Complete, easy-to-use, fast and responsible choice for ultrasound therapy, electrotherapy and combination therapy.

The Sonopuls 492 can be used as a mobile device thanks to the battery (optional). In addition to using it with a mains power supply, the equipment can also be used in a clinic, next to the bed of a patient or at home. Thus the multifunctional Sonopuls 492 can also become your assistant wherever you may go. The Sonopuls 492 can be expanded with the Vacotron 460 suction module. With this Vacotron, that can be integrated beautifully with the Sonopuls 492, you can easily position electrodes. A combination that will make your job even easier and faster to accomplish.

ELECTROTHERAPY

Equipment for pain management, muscle stimulation and/or diagnostics. Electrotherapy applications for fast pain relief without side effects. Muscles can be stimulated to improve the function of soft tissue. Electrotherapy can be used to measure differentiated tissue response to stimulation, to provide a diagnosis about tissue quality.

ULTRASOUND THERAPY

Equipment for therapy using high frequency sound waves. The high frequency vibrations can cause a mechanical and thermal effect in the tissue. Ultrasound therapy promotes the body’s capacity for self- healing and tissue repair.

COMBINATION THERAPY

Equipment for electrotherapy and ultrasound therapy. This type of therapy can be applied side-by-side and at the same time, providing a very efficient therapy. Pain reduction in combination with ultrasound therapy provides rapid post-traumatic treatment, resulting in tissue repair in a minimum of time.

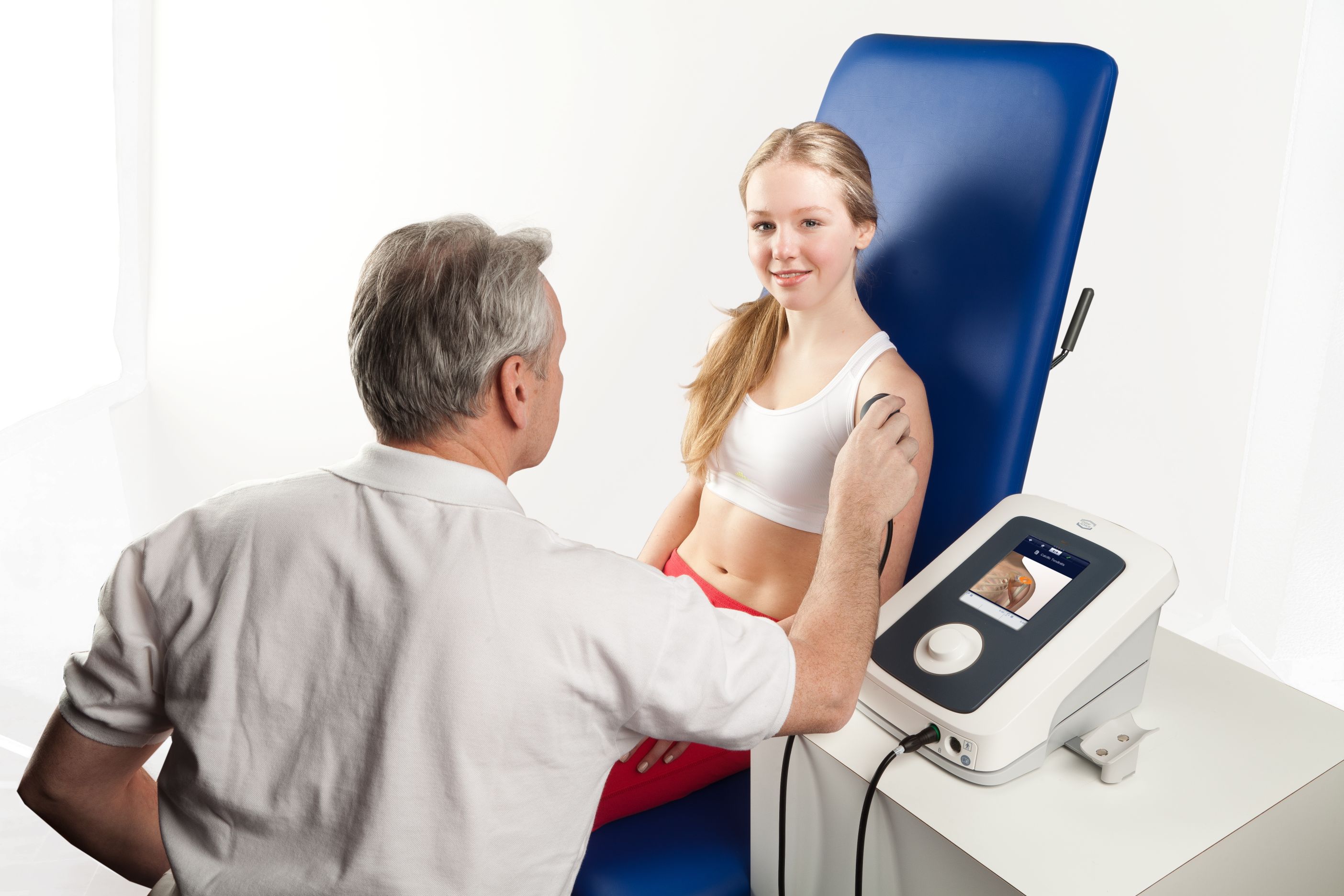

4 TREATMENTS  WITH 1 DEVICE

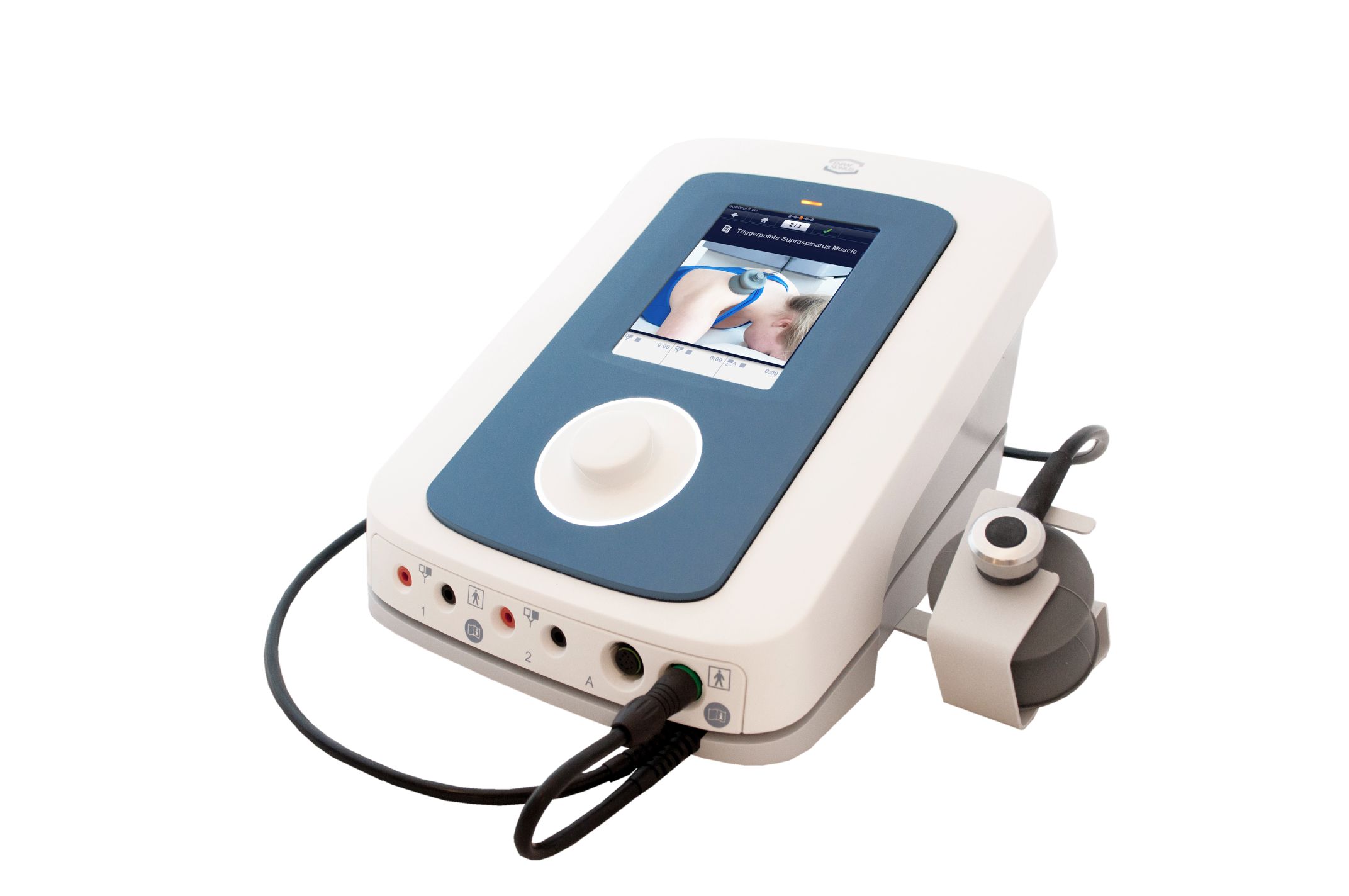

The new Enraf-Nonius Sonopuls 492 is available now, offering 4 completely independent channels. You will have 4 independent therapy units available for the price of 1! With just 1 unit you can apply 4 different therapies or treat on 4 different areas independently and simultaneously. Save time and money! Perform DUAL CHANNEL ULTRASOUND: treat patients with 2 independent channels, either conventional or with the unique handsfree StatUSTM. Plus, at the same time, the availability of 2 channels of electrotherapy, also perfectly suitable for combination therapy (combining ultrasound and electrotherapy).

Just one unit provides you with:

1. All electrotherapy modalities for effective pain relief and muscle stimulation
2. Dynamic ultrasound for rapid tissue regeneration
3. Static handsfree ultrasound for the most efficient application and the least time consuming method of ultrasound therapy including bone-healing
4. Combination therapy for diagnostics (the best way to find for example deep trigger points) and for treatment of soft tissue injuries.
5. Various pain management treatments simultaneously.

CRYSTAL CLEAR TFT COLOUR SCREEN

A crystal clear, full colour and scratch resistant screen that allows full visibility on all parameters from all viewing angles.

1 UNIT – 4 CHANNELS – 1 PATIENT

With the new Sonopuls 492 you can treat different areas or different localisations at the same time. An example is ultrasound treatment of the deep tissues of the hip. Traditional treatment consists of a session at the ventral side of the hip, the lateral approach and finally the dorsal side.

4 CHANNELS = 4 TREATMENT AREAS

The Sonopuls 492 with 4 independent channels also offers the possibility of treating 4 different areas at the same time. For example, treat one area with dynamic ultrasound and one with hands-free StatUS. The two remaining electrotherapy channels can be used to reduce pain or to stimulate muscle tissue. Double the result in less time! Just place the applicators, set the protocol and you are ready to start!

EVIDENCE-BASED PROTOCOLS

25 Evidence-Based treatment protocols for ultrasound,

42 Evidence-Based protocols for electrotherapy,

2 Evidence-Based protocols for combination therapy

BATTERY-OPERATED = MOBILE

In addition to being able to use the 4-series unit connected to a mains power supply, the device can also be used with a batteryoperated power supply. This will ensure that you can go everywhere with your unit, regardless of whether this is at the patient’s home or at his or her hospital bed.

MADE BY ENRAF-NONIUS

Made by Enraf-Nonius and, therefore, safe, reliable and durable. A device made by Enraf-Nonius, THE supplier for the physiotherapist worldwide. Where quality, reliability and durability come as standard.

TOUCH SCREEN USER INTERFACE

Easy to use by means of a clear menu via a touch screen interface. Extremely intuitive and as easy as a state-of-the-art smart phone.

COMPACT AND STYLISH

An extremely compact device and lightweight for easy transportation. At the same time stylish and beautiful, a device that is worth-while showing!

2 TREATMENT HEADS POSSIBLE

You can connect both the small 0,8 cm2 as well as the large 5 cm2 ultrasound treatment head in order to quickly change heads.

PROGRAMMED FOR SPEED

The menu structure is optimized to speed. In most cases you can start a pathology-specific treatment in just 3 steps! Easy, quick and simple.

CONTACT CONTROL

A 360 degrees light ring for contact control. A clear indication of the effective transfer of energy that enables you to conduct the therapy as efficient as possible.

VALUABLE TREATMENT HEAD

An intelligent and ergonomic treatment head, packed with electronics and covered with a special coating making it smooth and comfortable to use.

PROGRAMMABLE

In addition to the standard treatment protocols, you can also save your personal protocols (including sequential applications) based on your own guidelines.

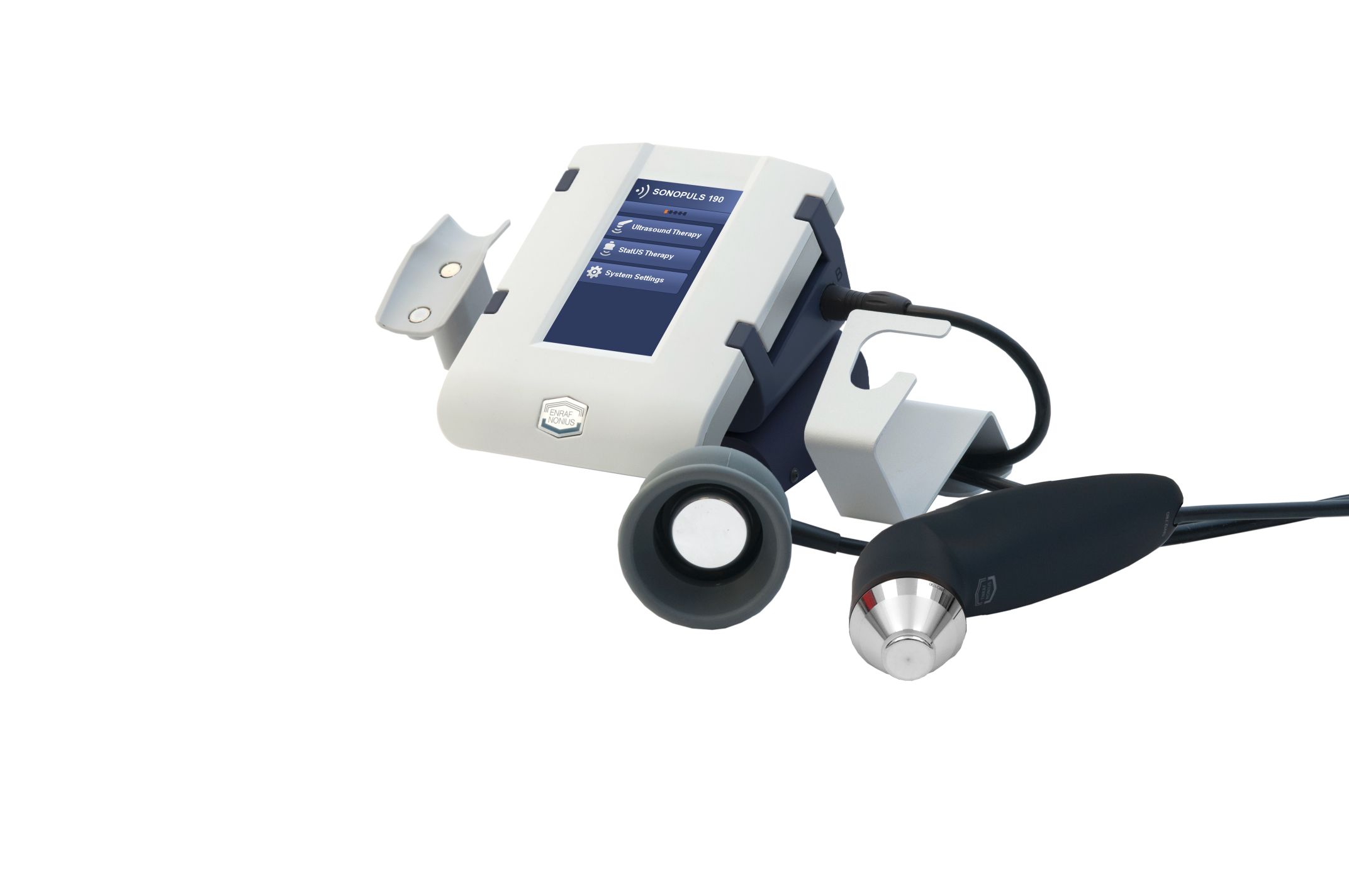

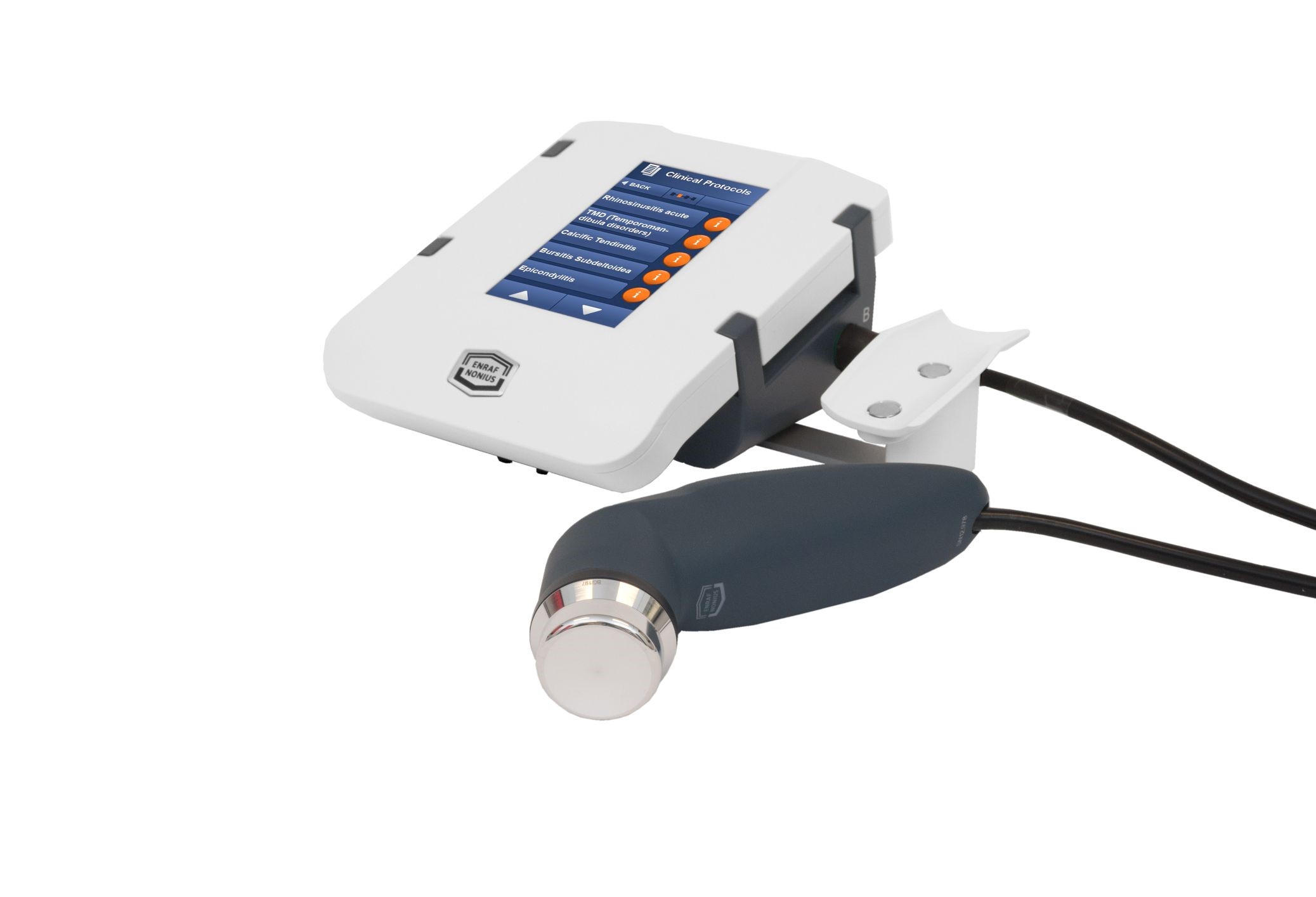

The Sonopuls 490 is the ultrasound therapy device from the Enraf-Nonius 4 series. You will be able to select the correct application for every pathology with both 1 MHz and 3 MHz applications and by selecting a small and/or large treatment head.

As is the case for all 4 series devices, the Sonopuls 490 is characterised by a beautiful design and a very easy-to-use touch screen operation. You will have configured the correct protocol with but a few taps.

The Sonopuls 490 has 25 evidence-based protocols for ultrasound therapy; all of which are substantiated applications that guarantee an effective therapy.

The Sonopuls 490 can (optionally) be provided with a battery-operated power supply, which will give you freedom. It is easy to take the Sonopuls 490 with you. The device will always be ready to use thanks to the battery-operated power supply. Regardless of whether it is next to the patient’s bed, in the patient’s home or in the changing room of a sports club, the Sonopuls 490 is your reliable companion where ultrasound therapy is concerned.

ULTRASOUND THERAPY

Equipment for therapy using high frequency sound waves. The high frequency vibrations can cause a mechanical and thermal effect in the tissue. Ultrasound therapy promotes the body’s capacity for selfhealing and tissue repair.

EVIDENCE-BASED PROTOCOLS

25 Evidence-Based treatment protocols for ultrasound. Complete including the display of the anatomic localisations and the treatment instructions.

BATTERY-OPERATED = MOBILE

In addition to being able to use the 4-series unit connected to a mains power supply, the device can also be used with a batteryoperated power supply. This will ensure that you can go everywhere with your unit, regardless of whether this is at the patient’s home or at his or her hospital bed.

ERGONOMIC DESIGN

The treatment head is made to fit your hand comfortably. A design completely based on  functionality and user friendliness.

CRYSTAL CLEAR TFT COLOUR SCREEN

A crystal clear, full colour and scratch resistant screen that allows full visibility on all parameters from all viewing angles.

MADE BY ENRAF-NONIUS

Made by Enraf-Nonius and, therefore, safe, reliable and durable. A device made by Enraf-Nonius, THE supplier for the physiotherapist worldwide. Where quality, reliability and durability come as standard.

TOUCH SCREEN USER INTERFACE

Easy to use by means of a clear menu via a touch screen interface. Extremely intuitive and as easy as a state-of-the-art smart phone.

COMPACT AND STYLISH

An extremely compact device, small and light-weight for easy transportation. At the same time stylish and beautiful, a device that is worth-while showing!

2 TREATMENT HEADS POSSIBLE

You can connect both the small 0,8 cm2 as well as the large 5 cm2 ultrasound treatment head in order to quickly change heads.

PROGRAMMED FOR SPEED

The menu structure is optimized to speed. In most cases you can start a pathology-specific treatment in just 3 steps! Easy, quick and simple.

CONTACT CONTROL

A 360 degrees light ring for contact control. A clear indication of the effective transfer of energy that enables you to conduct the therapy as efficient as possible.

VALUEABLE TREATMENT HEAD

An intelligent and ergonomic treatment head, packed with electronics and covered with a special coating making it smooth and comfortable to use.

PROGRAMMABLE

In addition to the standard treatment protocols, you can also save your personal protocols (including sequential applications) based on your own guidelines.

25 EVIDENCE BASED PROTOCOLS: Provided with 25 evidence based treatment protocols, including anatomical representations and clear guidelines for treatment.

PROGRAMMABLE:  Besides the 25 evidence based protocols you can also store 20 protocols according to your own guidelines.

EXTREMELY QUICK START-UP: Start the unit and it is ready for immediate use. No start-up delay, no operating system to load but instant availability of the full functionality of the unit.

CRYSTAL CLEAR TFT COLOUR SCREEN: A crystal clear and scratch resistant screen that allows full visibility on all parameters from all viewing angles.

TOUCH SCREEN USER INTERFACE: Easy to use by means of a clear menu via a touch screen interface. Extremely intuitive and as easy as a state-of-the-art smart phone.

PROGRAMMED FOR SPEED: The menu structure is optimized to speed. In most cases you can start a pathology-specific treatment in just 3 steps! Easy, quick and simple.

ERGONOMIC DESIGN: The treatment head is made to fit your hand comfortably. A design completely based on functionality and user friendliness.

CONTACT CONTROL: A 360 degrees light ring for contact control. A clear indication of the effective transfer of energy that enables you to conduct the therapy as efficient as possible.

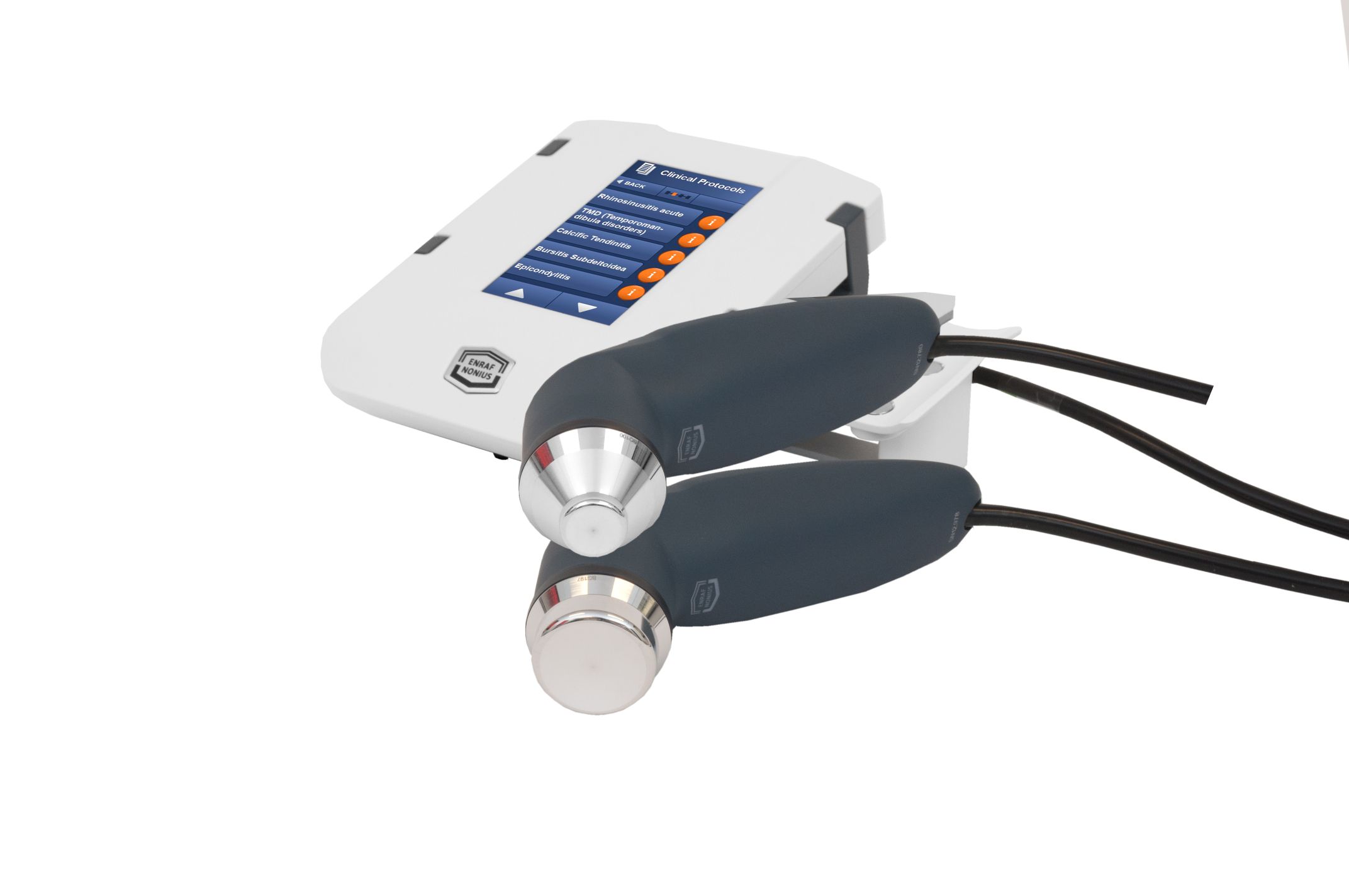

2 TREATMENT HEADS POSSIBLE: You can connect both the small 0,8 cm2 as well as the large 5 cm2 ultrasound treatment head in order to quickly change heads.

ENERGY EFFICIENT: Sounds as a paradox for a unit which primary goal is to transfer energy to the human body. Due to smart energy saving modes no waste is generated when the device is in rest-mode.

COMPACT AND STYLISH: An extremely compact device, small and light-weight for easy transportation. At the same time stylish and beautiful, a device that is worth-while showing!

BY ENRAF-NONIUS: SAFE, RELIABLE AND DURABLE: An Enraf-Nonius device, the worldwide supplier for physiotherapy and rehabilitation equipment. Made with special attention to quality, durability and safety.

A TREATMENT HEAD WITH ADDED VALUE: An intelligent treatment head, packed with electronics and covered with a special coating making it smooth and comfortable to use and easy to clean.

ULTRA-FLEXIBLE CABLE: The cable between the unit and the ultrasound head is extremely flexible. This assures ease of use. The cable adapts according to your movements and will never impede any motion of the treatment head.

TECHNICAL SPECIFICATIONS

Ultrasound frequencies: 1 en 3 MHz

Ultrasound: continuous and pulsed

Duty cycles 5, 10, 20, 33, 50, 80%

Pulse rate: 16 Hz, 48 Hz and 100 Hz

Numbers of US connections: 2

Intensity 0-2 W/cm2 continuous, 0-3 W/cm2 pulsed(2)

ERA US treatment: large: 5 cm2 , small 0,8 cm2

ERA StatUS™ applicator: 5 cm2

Pre-programmed protocols: 25 (evidence based) for US &52 (evidence based) for StatUS™ therapy

Free program positions: 20 pcs

TFT touchscreen: 480x272 pixels

Main power: 100-240 V ± 10% (50/60Hz)

Dimensions (wxdxh): 21x19x9 cm

Weight: 1152 gr

*At a duty cycle of 80% the maximum output is 2,5 W/cm2.

StatUS ultrasound is a new revolutionary method of applying therapeutic ultrasound hands-free.

Although it is a static application method, StatUS™ therapy is safe and effective. StatUS™ therapy does not really differ from conventional ultrasound therapy. The differences are found in the application method. The StatUS™ Pack 400 incorporates an unique technology and special modulations.

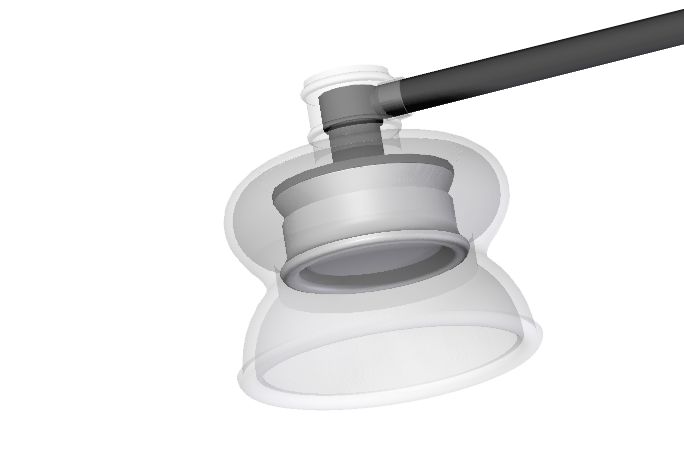

The StatUS™ applicator is a multi-frequency ultrasound treatment head that is integrated in a vacuum cup. In just a few seconds the applicator can be attached to the body.

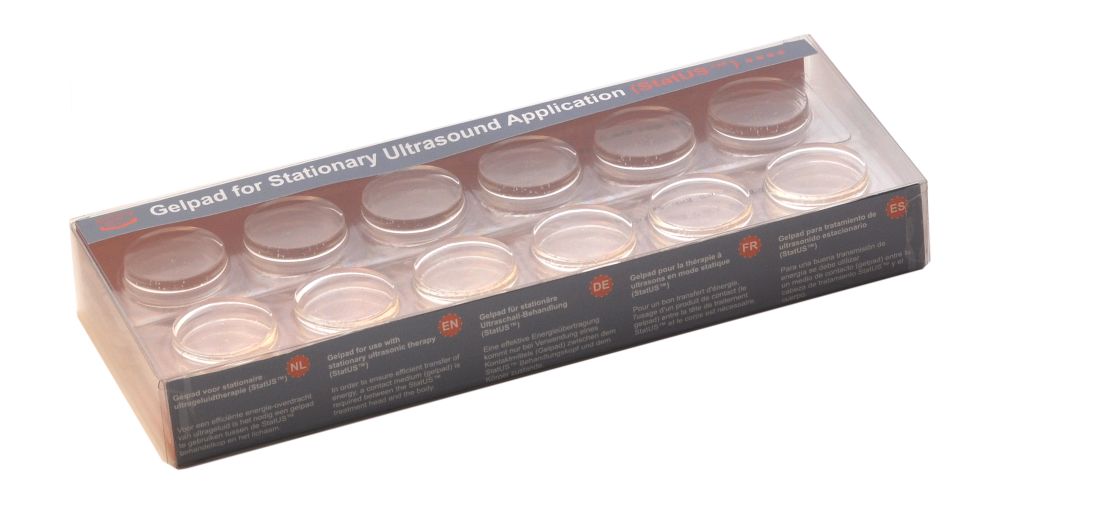

Non-liquid gelpad: A non-liquid gelpad ensures good transmission of the ultrasound energy. The gelpad is held in place with a fixing ring. The vacuum pressure creates a perfect seal between the body, the gelpad and the treatment head. The constant perpendicular position of the fixed StatUS™ applicator reduces dosage variations as in dynamic ultrasound applications. This enhances clinical effectiveness and patient safety.

Despite the stationary application hot spots will not occur during StatUS™ treatment, due to two innovative and intelligent forms of modulation: Amplitude Modulation and Duty Cycle Modulation. These (patented) forms of modulation ensure safe treatments without the peak intensities that can create hot spots.

Effective treatment: StatUS™ offers unprecedented advantages. StatUS™ therapy is the ideal and effective treatment method for musculoskeletal and soft tissue disorders. With the Sonopuls 490 or 492 and Status™ Pack 400 from Enraf-Nonius you can work both thermally and a-thermally. The Sonopuls 490 and 492 with StatUS™ Pack 400 are also ideally suited for LIPUS applications.

StatUS™ therapy is relatively simple. The parameters for StatUS™ therapy can be selected quickly and easily via the touchscreen. To simplify the therapy options, a number of pre-programmed StatUS™-protocols are stored in the Sonopuls 490 and 492. These evidence based protocols provide you with clear treatment instructions while the treatment parameters are set automatically.

More efficient: StatUS™ does this work for you, without compromising efficiency and effectiveness. StatUS™ makes your job faster, more targeted and more efficient.

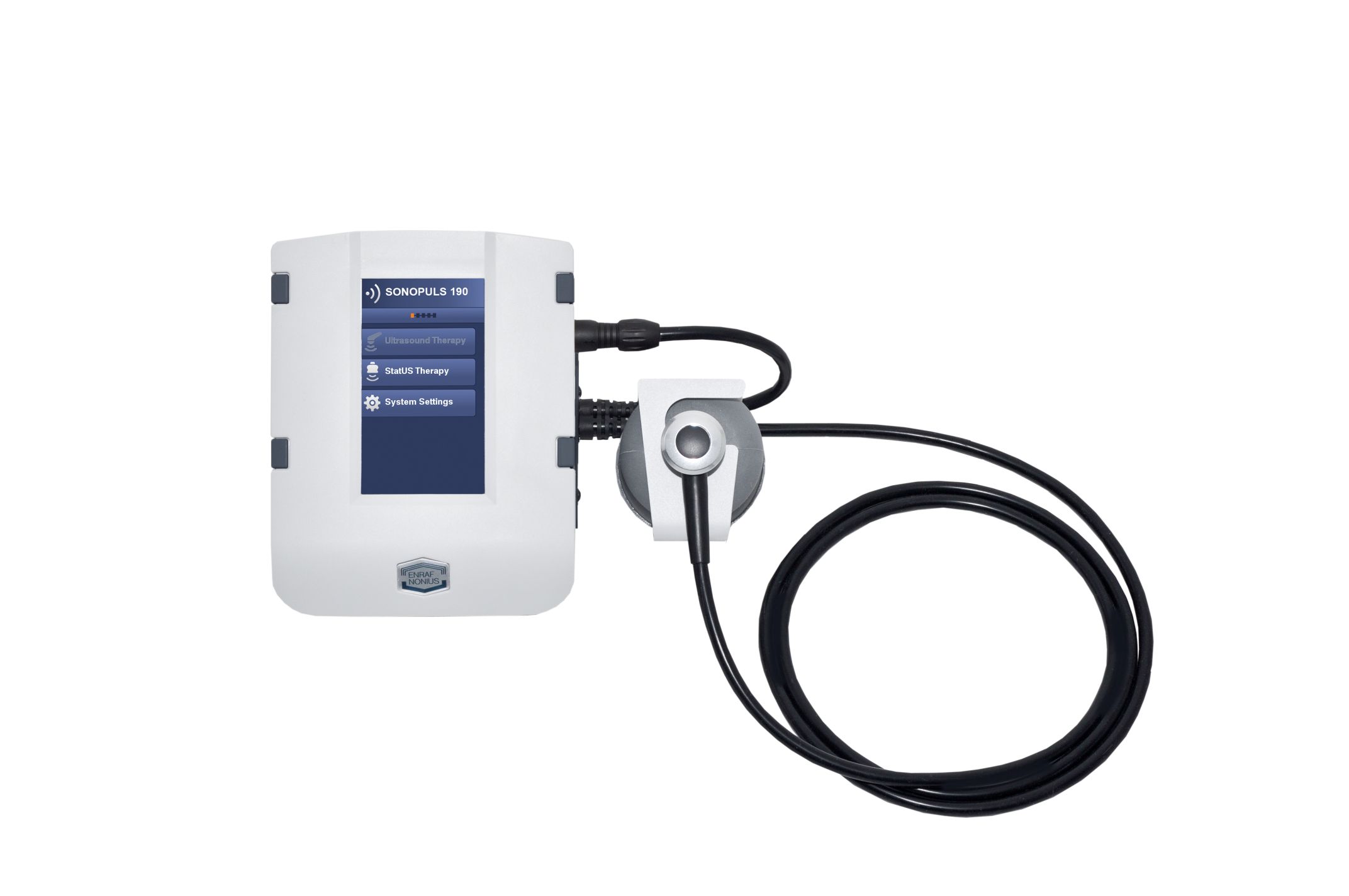

Hands-free ultrasound: The Sonopuls 490 and 492 with StatUS™ Pack 400 offer the possibility of HANDS-FREE ULTRASOUND. A fast and time-saving application. Do more in less time! As StatUS™ is a hands-free therapy, the therapist has valuable extra time during treatment. The therapist does not have to hold the head, StatUS™ is ideally suited for long(er) treatments. A StatUS™-treatment is physically less demanding. Increased comfort for both the patient and the therapist.

Fast and easy : StatUS™-therapy is instantly available and easy to set up. Non-liquid gelpads. No more gel residues. Easy to clean. Efficient energy transmission.

Safe : Special modulation forms ensure that undesired intensity peaks in the ultrasound bundle are considerably reduced. The chance of cavitation is reduced and the occurrence of hotspots is counter-acted.

Efficient: The treatment head is always at the right angle. The special gelpad follows the body’s contours. This combination ensures an even and constant transfer of energy along the whole surface of the head.

Effective: The set treatment time is also the effective treatment time. The set capacity is effectively transferred to the appropriate tissue.

52 Evidence based StatUS™ protocols: The Sonopuls 490 and 492 with StatUS pack offer a full library with 52 evidence based protocols. Just with a few clicks you will get all information and the proper settings for the pathology selected.

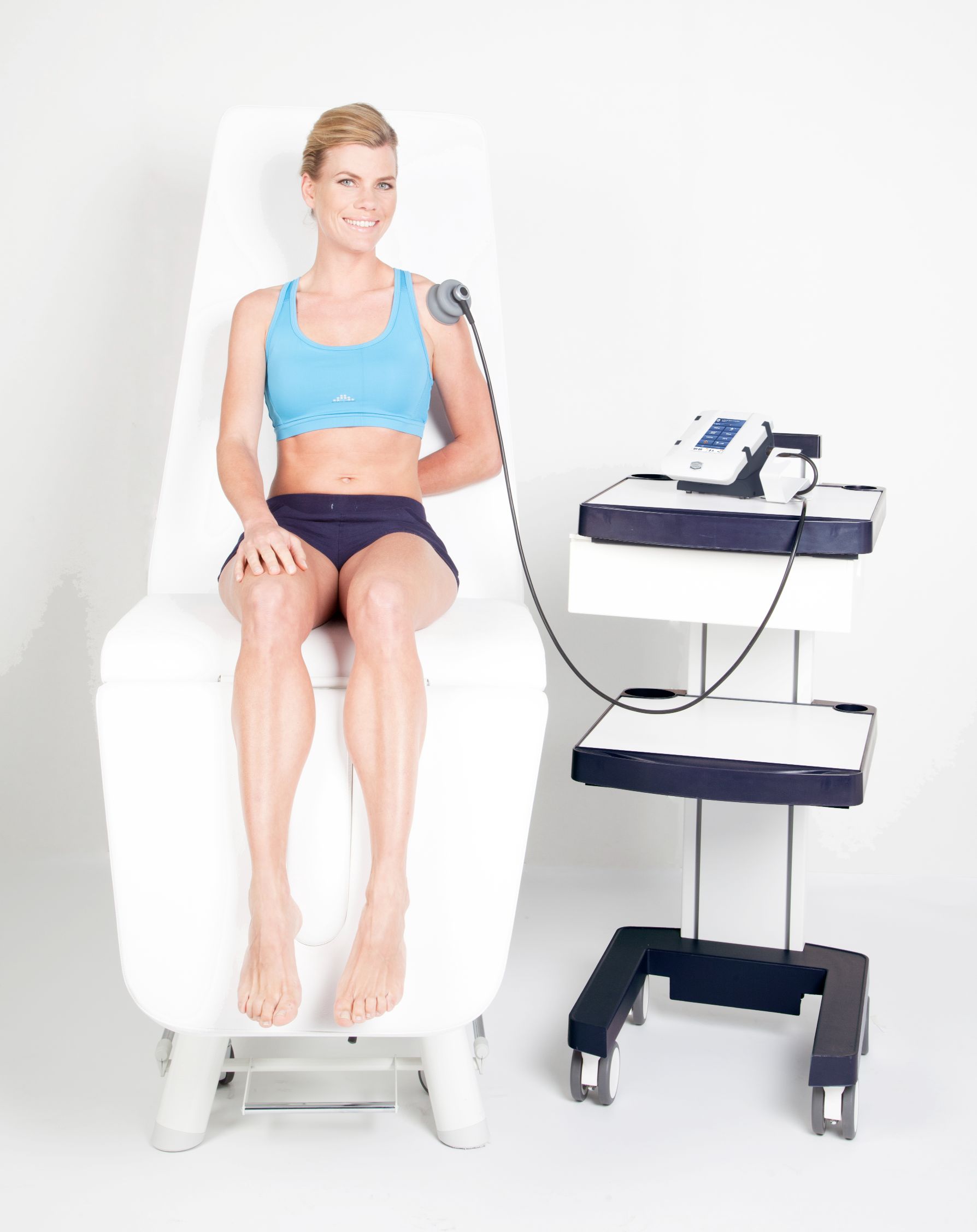

HANDS-FREE ULTRASOUND:  Did you ever think how ideal it would be if you could conduct your ultrasound treatments without having to sit with the patient, moving the treatment head over the injured tissue? And wouldn’t it be great if you could really transmit ultrasound energy right there where you need it and only there!

This is no longer a dream, StatUS™ makes it possible! Not only is this treatment more beneficial to your patients, but it also saves you time in order to conduct other activities. Imagine the significant cost savings in the future! Developed by Enraf-Nonius in collaboration with international institutes, StatUS™ is a safe and effective treatment opportunity to apply therapeutic ultrasound without having to move the treatment head.

StatUS™ ultrasound is the latest development in therapy and treatment comfort. A fast and time-saving application. Do more in less time! No more time consuming treatment methods, but quick and easy. The Sonopuls 190 with the StatUS™ Pack 100 offers numerous advantages for both the therapist and the patient. Simply connect the StatUS™ Pack 100 to your Sonopuls 190 and you can immediately benefit from

Would you like to work with conventional treatment heads too? Even then there is a version that suits you! The StatUS™ Pack 100 can be connected to any of the Sonopuls devices from the 100 series that are equipped with either a large or small treatment head. Once connected, you simply choose if you want to use a conventional multifrequency treatment head (dynamic method) or the StatUS™ applicator (for hands-free ultrasound).

25 EVIDENCE BASED PROTOCOLS: Provided with 25 evidence based treatment protocols for ultrasound treatment (and 52 protocols for StatUS™ treatment) including anatomical representations and clear guidelines for treatment. All protocols contain an extensive literature reference with cross references to every individual protocol.

PROGRAMMABLE: Besides the evidence based protocols you can store 20 protocols according to your own guidelines.

TOUCH SCREEN USER INTERFACE: Easy to use by means of a clear menu via a touch screen interface. Extremely intuitive and as easy as a state-of-the-art smart phone.

COMPACT AND STYLISH: An extremely compact device, small and lightweight for easy transportation. At the same time stylish and beautiful, a device that is worthwhile showing!

PROGRAMMED FOR SPEED:  Start the unit and it is ready for immediate use. No start-up delay! The menu structure is optimised to speed. In most cases you can start a pathology-specific treatment in just 3 steps! Easy, quick and simple.

CRYSTAL CLEAR TFT COLOUR SCREEN: A crystal clear and scratch resistant screen that allows full visibility of all parameters from all viewing angles.

ERGONOMIC DESIGN: The treatment head is made to fit your hand comfortably. A design completely based on functionality and user friendliness.

BY ENRAF-NONIUS: SAFE, RELIABLE AND DURABLE: An Enraf-Nonius device, the worldwide supplier of physiotherapy and rehabilitation equipment. Made with special attention to quality, durability and safety.

2 TREATMENT HEADS POSSIBLE : You can connect both the small 0,8 cm2 as well as the large 5 cm2 ultrasound treatment head or the StatUS™ applicator in order to quickly change heads/applicator.

A TREATMENT HEAD WITH ADDED VALUE: An intelligent treatment head, packed with electronics and covered with a special coating making it smooth and comfortable to use and easy to clean.
