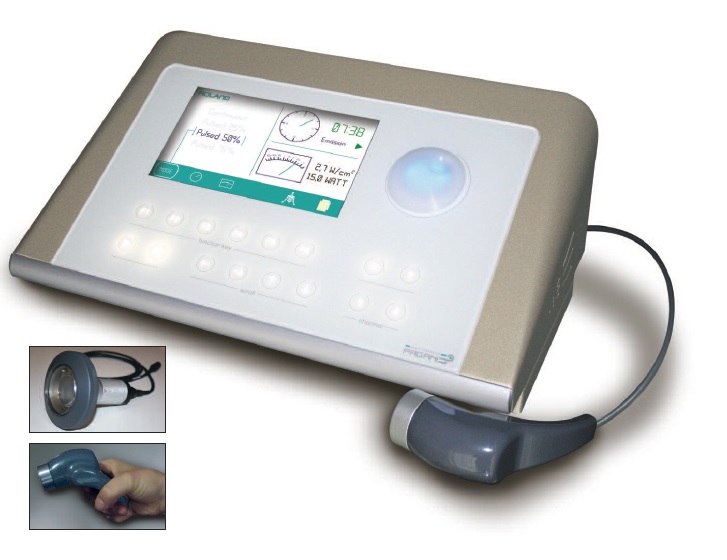

Totally new, the 3-BAND ultrasound therapy device represents the "Excellence" into the ultrasound range belonging to PAGANI. Innovative, modern, provided with solutions capable to ensure the widest versatility in performing applications and whole effectiveness mainly thanks to application of quartz technology, applied in manufacturing ultrasound head.

More expensive and difficult to use than ceramic, which is apply from almost all other competitors into the market, quartz has been chosen from PAGANI for its highest features in terms of stability, performance and longevity that ceramics cannot currently ensure.

This is why, the new 3-BAND device is the leading ultrasound, suitable for those operators who asks for the top quality without any compromise.

CAVITATION

Cavitation means a copious mechanical effect caused by ultrasound waves on the patient. All ultrasound therapy devices may produce cavitation but thanks to quartz, 3-BAND is capable to grant a very useful effect which could be applied both into the field of rehabilitation for treating muscular and tendon calcifications over the joints and treating also physioaesthetic pathologies for removing undesired fat cells and improving skin elasticity.

High-efficiency quartz with gold protection for granting top performance

Cavitation effect coming from piezoelectric effect

TECHNICAL FEATURES

Frequency: 1 & 3 MHz

Emission: Continuous and Pulsed (25%, 50%, 75%)

Modulation: 1 to 200 Hz

Standard ultrasound head: 1 MHz 5 cm2

Timer max. 30 min

Display: touch-screen colored display

Pre-set programs with body pictures

Therapeutic objectives

Free memories

Maximum intensity: 3 W cm2; 15 W max

Real-time device with visual and acoustic indication of missing coupling between patient’s tissue and ultrasound head

On inquiry:

Ultrasound head 5 cm2 3 MHz

Ultrasound head 1 MHz for static treatments with or without adapter

Trolley mod. R2 with or without drawers

 Arm with holder for ultrasound static head

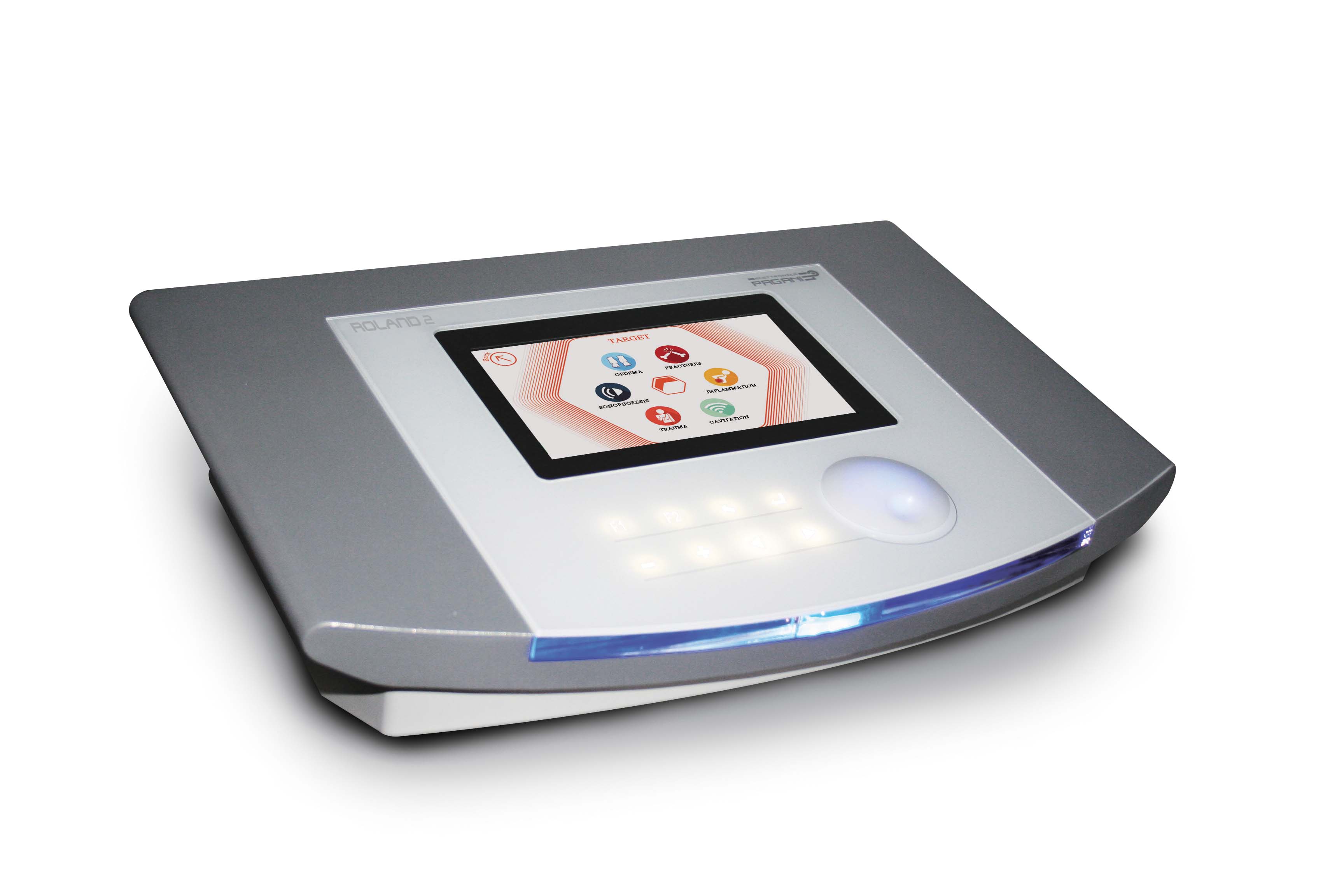

HC SOUNDSTIM allows to select both single generator (ultrasound or electrotherapy) and also to combine the two generators for mixing ultrasound to electrotherapy. Mainly, the combination is made for performing pain relief and anti-inflammatory applications and it is generally more effective than the single technique both for reducing application time and granting better results.

Technical features

Ultrasound

Frequency: 1-3 MHz

Emission: continuous and pulsed (from 20 to 80%)

Modulation: 1 to 200 Hz

5cm2 multifrequency head for single and combined use

Ergonomic 1 - 3 MHz head for massage and under-water applications

Timer max. 30 min

Intensity max: 3 W cm2

Real-time attesting no-coupling between patient’s tissue and us head

Electrotherapy

Outputs: n. 2

Intensity max.: 76,5 mA

Low frequency: Galvanic, interrupted galvanic, diadynamics (50-100 Hz, CP, LP, 50 and

100 Hz interrupted), rectangular, exponential, triangular, Biphasic, Trabert, Faradics, drainage current

Mid frequency: Outputs: 2  Frequency: 2,5 KHz to 20 KHz ,IF bipolar, IF quadripolar, IF isoplanar, IF vectorial, MF of stimulation, Kotz, IF horizontal

Graphic and coloured LCD with touch-screen

Pre-set programs with pictures

Free memories

On inquiry:

HV current

Trolley with 4 boxes

1 cm2 1-3 MHz head

1 MHz 8 cm large head with strap for static and underwater treatments

 connector combining electrotherapy to ultrasound applications

Compact dimensions along with the wide versatility of the combined

SonoQuartz is now the only device for ultrasound therapy with a piezoelectric quartz part. Although more difficult to interpose and more expensive, quartz has always been the “prime” material, more precious and effective, for use in ultrasound therapy. Its properties of stability of the frequency over time (the quartz oscillates exactly by 1 MHz, while ceramic has a rather large tolerance range that can change over time depending on many factors), its ability of oscillation capable of transmitting high power without distortions, its excellent adherence to the materials as well as its resistance make the ultrasound device based on the piezoelectric properties of quartz a real innovation in terms of technology and performance.

For this reason, people who want a high-performance ultrasound device, without compromise, can only choose SonoQuartz.

Technical features:

Power supply :115 - 230, 50/60 Hz, +/- 10%

Dimensions: cm 40x30x25

LCD : Coloured

Pointer : Encoder + soft touches

Pre-set programs : As standard with body pictures

Free memories : As standard

Working frequency : 1 MHz

Continuous and pulsed modes : As standard

Duty-cycle : 25%, 50%, 75%

Frequency : 20 – 200 Hz

Power max : 3 W/cmq

5 cm2 1 MHz head : As standard

On inquiry/extra: 8 cm static head 1 MHz

Multifrequency ultrasound device, capable to deliver both single frequencies at 1 or at 3 MHz and combined frequencies (1+3 MHz) for granting transmission over the whole affected patient’s tissues, TOWER SOUND is expression of the best solutions.

It is possible to perform both massage and underwater applications, power is adjustable from 0,1 to 3 W/cm2; the handpiece has been studied for granting comfort to the operator, from which depends performances and results of each application.

* With a simple movement any TOWER device changes unit and converts to any other device in the TOWER series: 2-channel electrotherapy (model 2STIM), 4-channel electrotherapy (model 4STIM), Ultrasound 1 & 3 MHz ( model SOUND), Magnetotherapy (model MAG), Laser (model LIGHT), Tecar (model TRC).

Technical features:

Power supply: 115 - 230, 50/60 Hz, +/- 10%

Dimensions: cm 40x30x25

LCD: Coloured

Pointer: Soft touches

Pre-set programs: As standard with body pictures

Free memories: As standard

Working frequency: 1 / 3 MHz

Continuous and pulsed modes: As standard

Duty-cycle: 25%, 50%, 75%

Frequency: 20 – 200 Hz

Power max:  3 W/cmq

5 cm2 1 MHz head: As standard

On inquiry (extra):

8 cm static head 1 MHz , 1 cm2 head

Roland trolley

R2 X5EU includes all special features belonging to the most modern therapeutic generators for electrotherapy and ultrasound therapy. X5EU is the most versatile combined device for electrotherapy and ultrasound. 1 & 3 MHz multifrequency ultrasound therapy is combined to the universal electrotherapy device, capable to perform every useful current alone or also combined to the ultrasound waves.

The universal electrotherapy generator is provided with two outputs. X5EU allows the operator to set every pathology whit all the widest range of parameters, over the Windows CE platform; also, the operator may use a lot of pre-set protocols with the relevant pictures, for placing correctly the relevant electrodes and/or ultrasound head.

Combination of the two available generators, ultrasound and electrotherapy, also grants more therapeutic benefits, due to the sum of the combined effects into the same time.

Technical features:

Ultrasound therapy

Frequency: 1-3 MHz

Emission: continuous and pulsed (from 20 to 80%)

Modulation: 1 to 200 Hz

5cm2 multifrequency head for single and combined use

Timer max. 30 min

Intensity max: 3 W cm2

Real-time attesting no-coupling between patient’s tissue and us head

Electrotherapy

Outputs: n. 2

Intensity max.: 76,5 mA

Low frequency: Galvanic, interrupted galvanic, diadynamics (50-100 Hz, CP, LP, 50 and 100 Hz interrupted), rectangular, exponential, triangular, Biphasic, Trabert, Faradics, drainage current.

Mid frequency: 2,0 KHz to 20 KHz

IF bipolar, IF quadripolar, IF isoplanar, IF vectorial, MF of stimulation, Kotz, IF horizontal

Graphic and colored LCD with touch-screen

Pre-set programs with body pictures

Free memories

Therapeutic objective

On inquiry:

HV current

Trolley with or without drawers

1 cm2 1-3 MHz head

1 MHz 8 cm large head with strap for static and underwater treatments

Connector combining electrotherapy to ultrasound therapy.
