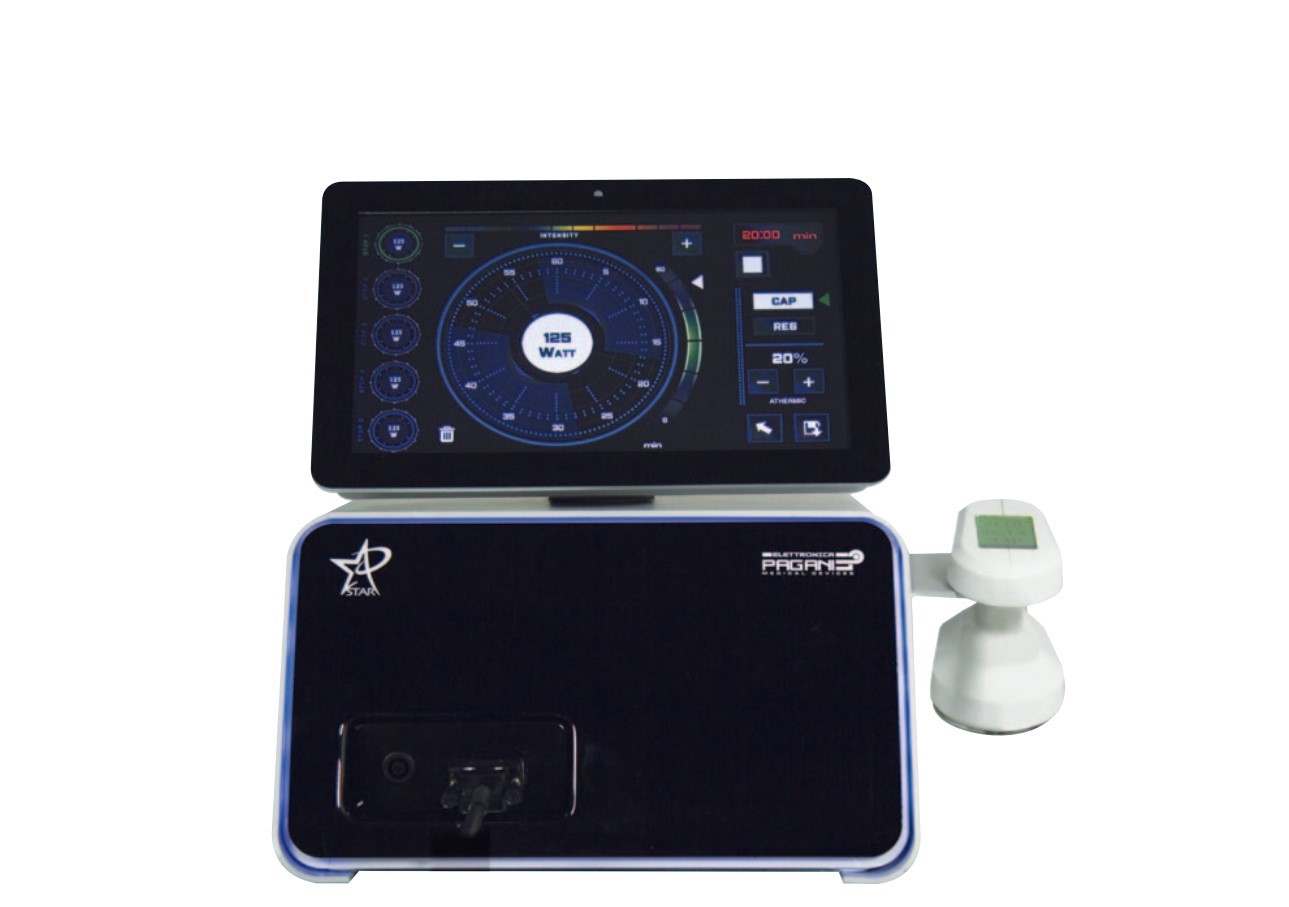

STARTECAR represents a therapeutic modality that allows the transfer of radiofrequency electromagnetic energy to different cell layers, from the superficial to the deep. This energy transfer has the property of warming inside, making endogenous diathermy, from moderate to intense.

The increase in temperature and the consequent increase in blood flow stimulates the processes of tissue repairing, favouring the contribution of organic substrates and the elimination of catabolites from the painful and/or inflammatory areas.

STARTECAR is used to make faster healing processes and, due to its antalgic effect, in the treatment of acute and chronic diseases of muscles, tendons and bone.

AN EXCLUSIVE PRODUCT

The Interactive Hand-Piece has been exclusively developed from PAGANI for granting comfortable and safety massage, in respect with ergonomic shape of the hand. Everybody may handle the hand-piece with insulation and protection from electromagnetic field. The Interactive Hand-Piece is granting electronic switching from capacitive to resistive and vice versa without changing the electrode. Over the coloured LCD of Interactive Hand-Piece you may see all useful parameters such as temperature, intensity, impedance and modality.

Static applications

FLEXI: high efficiency flexible electrode

FLEXI is the New high efficiency electrode exclusively developed by Elettronica PAGANI.

FLEXI is intended to modify the concept of Tecar Therapy and diathermy radiofrequency applications.

FLEXI is made of high conductive material that allows the use of a special electro-conductive gel, allowing in fact the possibility to apply a normal gel without medicament or a gel with a medicament, with anti-inflammatory and / or analgesic active ingredients, or other principles for skin tightening, muscle tone, improve circulation, stimulating skin elasticity and collagen production.

Bipolar electrodes applications

The treatments with bipolar technique are performed by means of a cylindrical hand piece where both the neutral electrode and the active electrode are present. In this way, the emission remains local and circumscribed to the two electrodes. It is particularly useful for local application in treatments on the face, on the phalanges, on the wrist and on all other small anatomical parts.

Technical features

Power supply: 115– 230 Vac – 50/60 Hz

Power consumption: max. 750 VA

Protection Class: 1 BF

EEC 93/42, Classification: IIa

Emission modes: Resistive and Capacitive

Therapeutic modalities: manual, bipolar, static

Emission: thermal and athermal

Working frequency: 480 KHz +/- 10 Hz

Power max. 400 W

Display: touch screen control plus 10,1’

Impedence in real-time

Temperature sensor for monitoring temperature in real time

Pre-set programs

Free memories

Patients’ data-base

Standard accessories:

Interactive Probe with LCD on board, n. 2 applicators (30 & 60 mm)

Bipolar with 30 and 60 mm applicators

SET of FLEXI electrodes

Elastic straps for static applications

Gel 250 gr

On inquiry:

Trolley mod. STAR

Carrying case.

STARTECAR represents a therapeutic modality that allows the transfer of radiofrequency electromagnetic energy to different cell layers, from the superficial to the deep. This energy transfer has the property of warming inside, making endogenous diathermy, from moderate to intense.

The increase in temperature and the consequent increase in blood flow stimulates the processes of tissue repairing, favouring the contribution of organic substrates and the elimination of catabolites from the painful and/or inflammatory areas.

STARTECAR is used to make faster healing processes and, due to its antalgic effect, in the treatment of acute and chronic diseases of muscles, tendons and bone.

AN EXCLUSIVE PRODUCT

The Interactive Hand-Piece has been exclusively developed from PAGANI for granting comfortable and safety massage, in respect with ergonomic shape of the hand. Everybody may handle the hand-piece with insulation and protection from electromagnetic field. The Interactive Hand-Piece is granting electronic switching from capacitive to resistive and vice versa without changing the electrode. Over the coloured LCD of Interactive Hand-Piece you may see all useful parameters such as temperature, intensity, impedance and modality.

Technical features:

Power supply: 115 - 230, 50/60 Hz, +/- 10%

Dimensions: cabinet desk top cm 40x40x25 h

Display: coloured with touch-screen 6,5”

Capacitive / Resistive: Yes, as standard

Continuous and pulsed emission modes: Yes

Working frequency: 485 KHz +/- 10 Hz

Power max: 200 W

Impedance on real-time: Yes

Temperature sensor: Yes

Hand-piece: Interactive Probe

Electrodes: Res/Cap, 30, 60 mm

Cream 1 Kg: Yes, as standard

On inquiry:

Set of accessories for static applications

Trolley mod. STAR Hand-piece with 30 mm Bipolar electrode

60 mm electrode for Bipolar hand-piece

Portable case.

STARTECAR represents a therapeutic modality that allows the transfer of radiofrequency electromagnetic energy to different cell layers, from the superficial to the deep. This energy transfer has the property of warming inside, making endogenous diathermy, from moderate to intense.

The increase in temperature and the consequent increase in blood flow stimulates the processes of tissue repairing, favouring the contribution of organic substrates and the elimination of catabolites from the painful and/or inflammatory areas.

STARTECAR is used to make faster healing processes and, due to its antalgic effect, in the treatment of acute and chronic diseases of muscles, tendons and bone.

Technical features:

Power supply: 115 - 230, 50/60 Hz, +/- 10%

Dimensions: cabinet desk top cm 40x40x25 h

Display: coloured with touch-screen 6,5”

Capacitive / Resistive: Yes, as standard

Continuous and pulsed emission modes: Yes

Working frequency: 485 KHz +/- 10 Hz

Power max: 200 W

Impedance on real-time: Yes

Temperature sensor: Yes

Hand-piece: Ergonomic handpiece

Electrodes: Res/Cap, 30, 60 mm

Cream 1 Kg: Yes, as standard

On inquiry:

Set of accessories for static applications

Trolley mod. STAR Hand-piece with 30 mm Bipolar electrode

60 mm electrode for Bipolar hand-piece

Portable case.

PHYSIO THECAR is all you need in tecar therapy, with its evident and unique frequency of 485 KHz, continuous and pulsed emission to also allow working without heat, adjustable power up to 300 W, the capacitive mode for tissues close to the surface and resistive mode for deeper tissues, the temperature sensor to monitor the temperature changes in real time, the control of the resistance of the tissues treated to verify the efficiency of energy transmission, the circuit safety solutions to prevent unpleasant shocks and returns to the patient or operator, the insulation of electrodes and the handpiece to protect the operator from radio frequency.

All this, together with the prerogatives of the entire Roland range with its large colour display, modern soft-touch keypad, attractive and innovative yet compact design to meet the needs in both outpatient and home-based settings, make PHYSIO THECAR one of the most effective and functional tecar therapy devices available on the market, suitable for any operator and for any pathology treatable by using tecar therapy.

IP: Interactive Probe

IP is made exclusively by PAGANI to allow a comfortable, safe massage in full compliance with the ergonomic shape of the hand and gesture of the massage.

Anyone can hold the handpiece in a practical and relaxed way to perform an effective massage in complete comfort, with maximum protection from possible dispersed currents and the electromagnetic field.

Technical features:

Power supply: 115 - 230, 50/60 Hz, +/- 10%

Dimensions: cabinet desk top cm 36x23x23 h

Display: coloured

Pointer Encoder + soft touches

Capacitive / Resistive: Yes, as standard

Continuous and pulsed emission modes: Yes

Working frequency: 485 KHz +/- 10 Hz

Power max: 300 W

Impedance on real-time: Yes

Temperature sensor: Yes

Hand-piece: Interactive Probe

Electrodes: Res/Cap, 30, 60 mm

Cream 1 Kg: Yes, as standard

On inquiry extras:

Roland trolley

Handpiece with 30 mm Bipolar electrode

60 mm electrode for Bipolar hand-piece

Portable case.

Naturally innovative, TOWER TRC offers pioneering solutions allowing you to get the best from each treatment. Power could be widely adjustable up to 120 Watts, capacitive and resistive modalities could be changed thanks to an electronic selection avoiding to change electrode.

Interactive Probe with Dynamic Energy Transfer is allowing energy transmission to the patient with reference to temperature and impedance modifications and Magnetic Coupling System is the special system assuring coupling between electrode and hand-piece without any connector. Last but not least, the therapeutic programs, free memories for your own programs

Interactive Probe: technology offers new limits!

Every physiotherapist may handle the hand-piece with full comfort and safety, for doing relaxed massage with proper insulation from emc.

MCS: Magnetic Coupling System is granting very fast and comfort coupling between electrode and handpiece.

* With a simple movement any TOWER device changes unit and converts to any other device in the TOWER series: 2-channel electrotherapy (model 2STIM), 4-channel electrotherapy (model 4STIM), Ultrasound 1 & 3 MHz ( model SOUND), Magnetotherapy (model MAG), Laser (model LIGHT), Tecar (model TRC).

Technical features:

Power supply: 115 - 230, 50/60 Hz, +/- 10%

Dimensions: cabinet desk top cm 21x30x25

Display: coloured

Pointer: Soft touches

Capacitive / Resistive: Yes, as standard

Continuous and pulsed emission modes: Yes

Working frequency: 485 KHz +/- 10 Hz

Power max: 120 W

Impedance on real-time: Yes

Temperature sensor: Yes

Hand-piece: Interactive Probe

Electrodes: Res/Cap 30 e 60 mm

Cream 1 Kg: Yes, as standard

On inquiry extras:

Roland trolley

Handpiece with 30 mm Bipolar electrode

60 mm electrode for Bipolar hand-piece

Portable case.

ENDOSAN is a modern device for microwaves therapy. It delivers both continuous microwaves for creating hyperaemia effects over the area of the treatment and also pulsed microwaves for transmitting electromagnetic waves without making warm over the superficial tissues. This innovative device is capable to deliver electromagnetic field only, without provoking warm while acute diseases are present and/or while warm is not indicated for the general situation of the pathology.

Microwaves operating at 2450 MHz frequency have been shown to be effective in the treatment of painful joints (eg cervical disorders, dorsalgia, lumbago, etc.), in degenerative rheumatic diseases (eg osteoarthritis, rheumatoid arthritis). And lately, thanks to pulsed emission modes, it is useful to use micro-waves in recent traumas (eg distortions, bruises, hematomas, muscle injuries, etc.).

The wheeled frame device is provided with an attractive and innovative design and it is especially comfortable to move. The handle placed on the back of the unit is allowing a comfortable and safe movement. Finally, the multi-articulated arm is assuring correct flexibility and safety. A wide range of radiators allows you to perform any kind of application.

Technical features:

Frequency: 2450 MHz

Emission modes: continuous and pulsed

Intensity: 250 (continuous); 1600 W (pulsed)

Modality pulsed: 25 ÷ 50% ÷ 75%

PPS 1/4, 2/4, 3/4, 4/4

Display: LCD Colored touch-screen

Pre-set programs with body pictures

Free Memories for customized protocols

Therapeutic objectives

Power supply: 115 - 230, 50/60 Hz, +/- 10%

Mobile: Wheeled frame with arm

Pointer: Track-ball/touch-screen

Continuous and pulsed emission modes: As standard

Duty-cycle: 20 – 80%

Arm: As standard

Conica radiator: As standard

HF cable: As standard

On inquiry extras:

Small radiator

120x 70 mm radiator

120 x 250 mm radiator

Large field radiator.

Continuous and pulsed emission modes

Continuous emission mode for using at the best way the available power of the unit until 470 W, particularly for the most complex parts of the body, into the deepest tissues and into the chronic pathologies.

Pulsed emission mode up to 1100 W for avoiding fast assuefation, or reducing the thermal effect, making more important the electromagnetic field, particularly into the acute phases and into the pathologies of muscles and tendons which are near to the radiating part.

Capacitive, Inductive and Resistive modes

The wide range of available accessories along with the high technological solutions, allow the operator to use DX-500 into Capactive, Inductive and Resistive modalities. So, while the most traditional capactive mode permits to get in touch with the deepest tissues for provoking both thermal and electromagnetic effects, inductive mode is mainly used for concentrating electromagnetic field into a certain area, normally using lower thermal effects and making more important electromagnetic stimulation from the soft tissues up to the hardest tissues.

Resistive mode is made by using a small electrode over or close to the interested area to be treated and a greater electrode over a neutral part of the body for concentrating thermal and electromagnetic effects near to the affected area.

Automatic tuning

The advanced electronic automatic tuning device, always grants the most correct coupling between patient and electrodes, in order to perform the most effective energy transfer.

THE BEST SOLUTIONS, FOR THE BEST EFFECTIVENESS

Made for performing one of the most traditional and effective physiotherapy treatment, DX500 is also provided with several special features able to enlarge versatility, effectiveness and quality of each treatment.

From the mechanical point of view, DX500 is made by a very simple and rational shape, for granting simple and comfortable movements: DX500 is provided with the best solutions in terms of electronics and technology for granting reliability and performances.

Technical features:

Power supply: 115 - 230, 50/60 Hz, +/- 10%

Mobile: Wheeled frame device

Display: Monochromatic

Continuous and pulsed modes: As standard

Frequency: 20 – 200 Hz

Working frequency: 27,12 MHz

Max power: 470 W

Pulse duration: 400 microsec

Tuning: Automatic

Modalities: Capacitive, inductive

Pre-set programs: As standard

Standard accessories:

pair of arms, pair of electrodes 130 mm

pair of rubber electrodes with felts 220x140 mm

elastic straps

On inquiry extras:

Pair of disk electrodes 80 mm

Pair of rubber electrodes with felts 160x120 mm

Large field electrode

Diplode

Adaptor fpr diplode.
