What is Shock wave therapy?

Shockwave therapy is successfully used for the treatment of muscle/tendon tissue and tendon insertions. Shockwaves are high energy sound impulses. The energy released in the treatment area improves the metabolism and blood circulation, thereby stimulating the body’s self-healing repair mechanism.

Shockwave has many advantages. A few examples are:

Short treatment time per session

High percentage of successful treatments after only a few sessions

Makes medication and/or surgery superfluous

The effectiveness of shockwave therapy is sufficiently proven by scientific research.

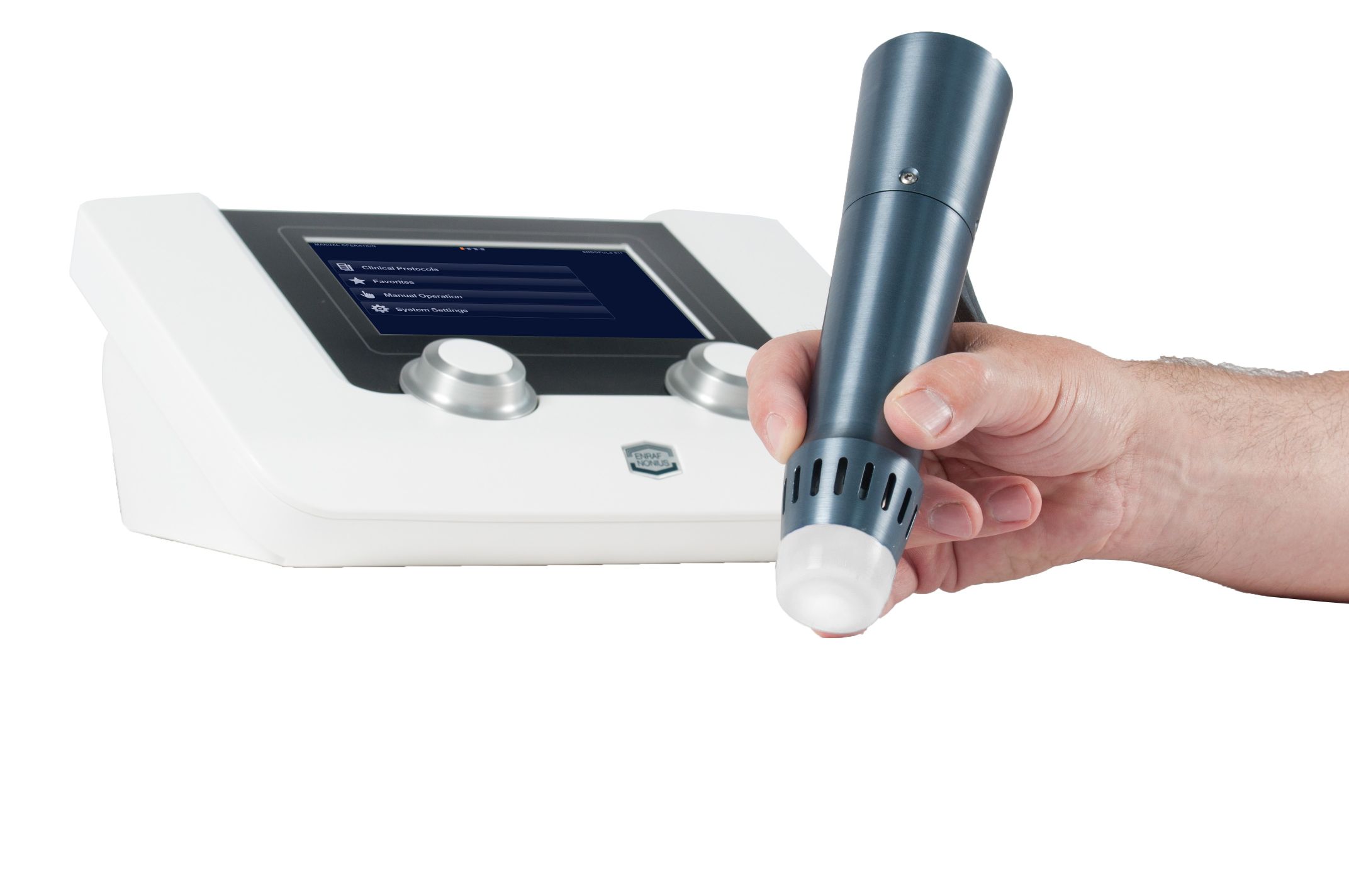

The Endopuls 811 is a compact, and complete shockwave unit. This ideal shockwave therapy device is safe, comfortable and user-friendly, as well as cost-effective and space-saving.

COMPACT

The Endopuls 811 does not need a compressor, as it has an electromagnetic system. The electromagnetic system is small, light and mobile and requires little maintenance. The projectile in the ergonomic handpiece is electromagnetically activated.

MOBILE

The Endopuls 811 is supplied in an aluminium case with all the necessary accessories, such as various applicators and a foot switch. Easy to transport and everything at hand for a complete treatment.

LITTLE MAINTENANCE, LONG LIFETIME

The Endopuls 811 needs very little maintenance. The ergonomic hand piece can be used for at least a 2 million shocks (about 1000 treatments) before it needs a revision.

THE ENDOPULS 811, THE COMPLETE UNIT

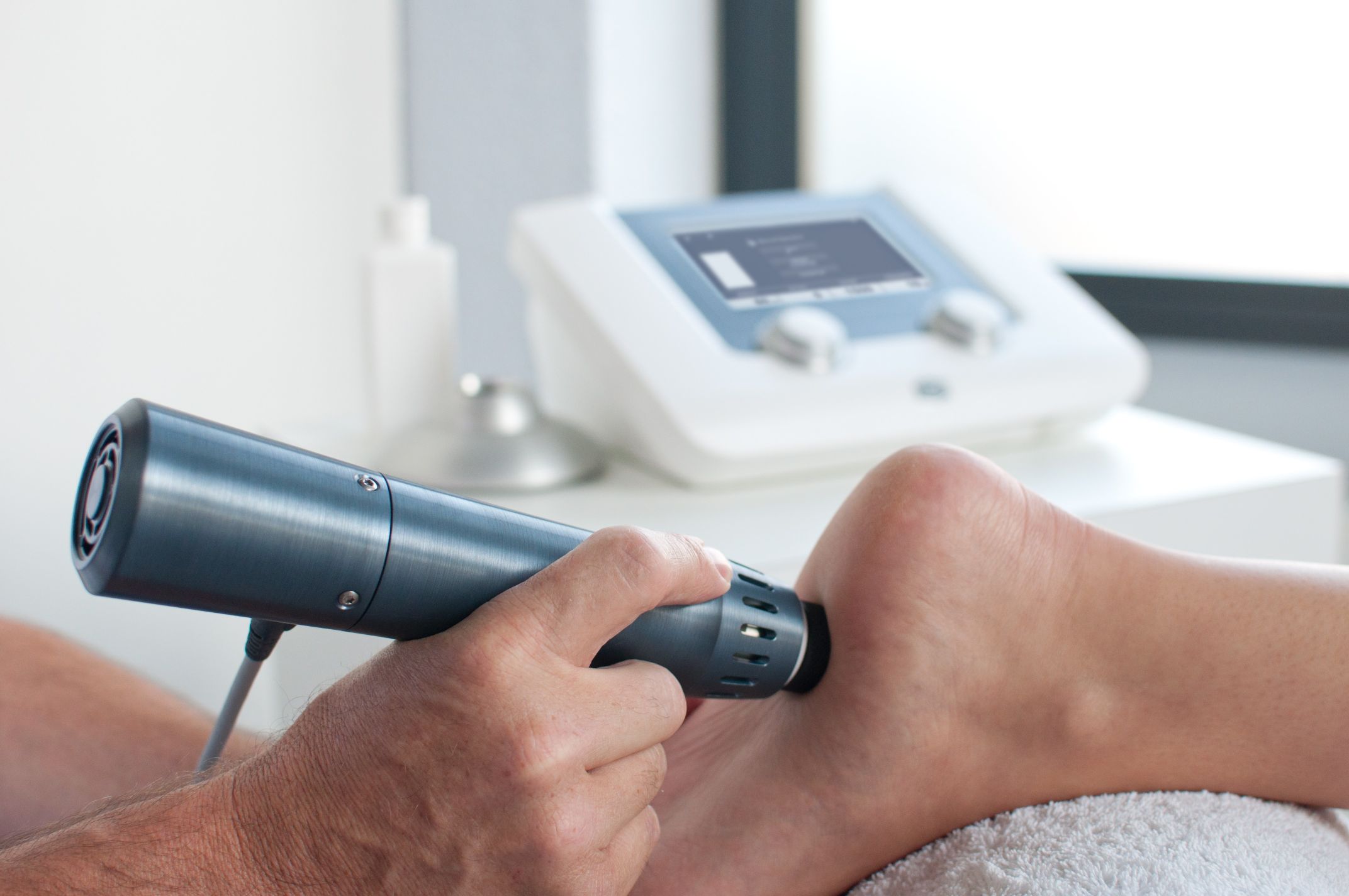

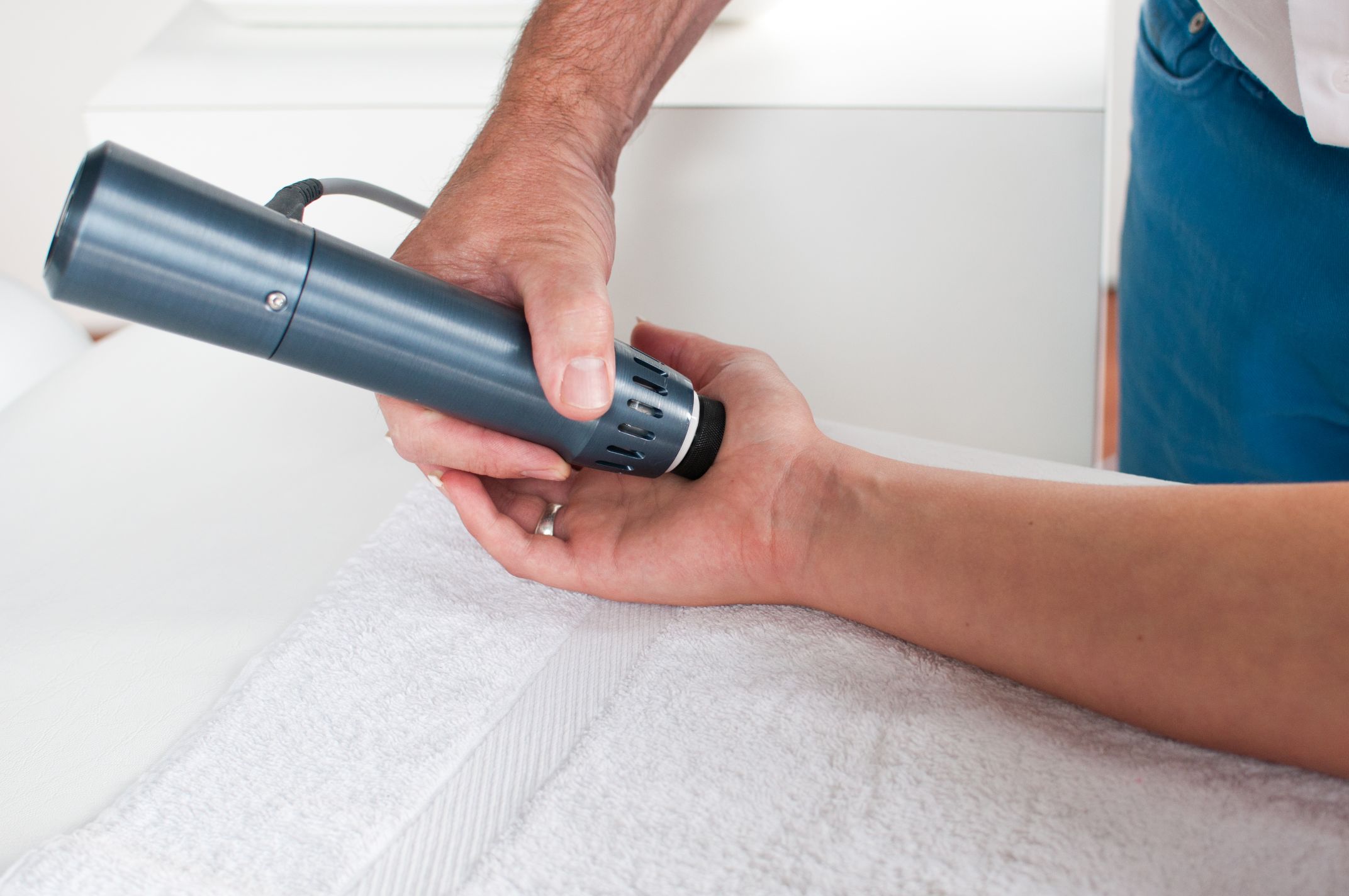

The handpiece has an ergonomic design and is made of a heavy quality aluminium. Due to the handpiece’s own weight less pressure is required by the therapist, it gives better intrinsic and vibration cushioning to protect the therapist, and a perfect dosage of energy transfer to the patient.

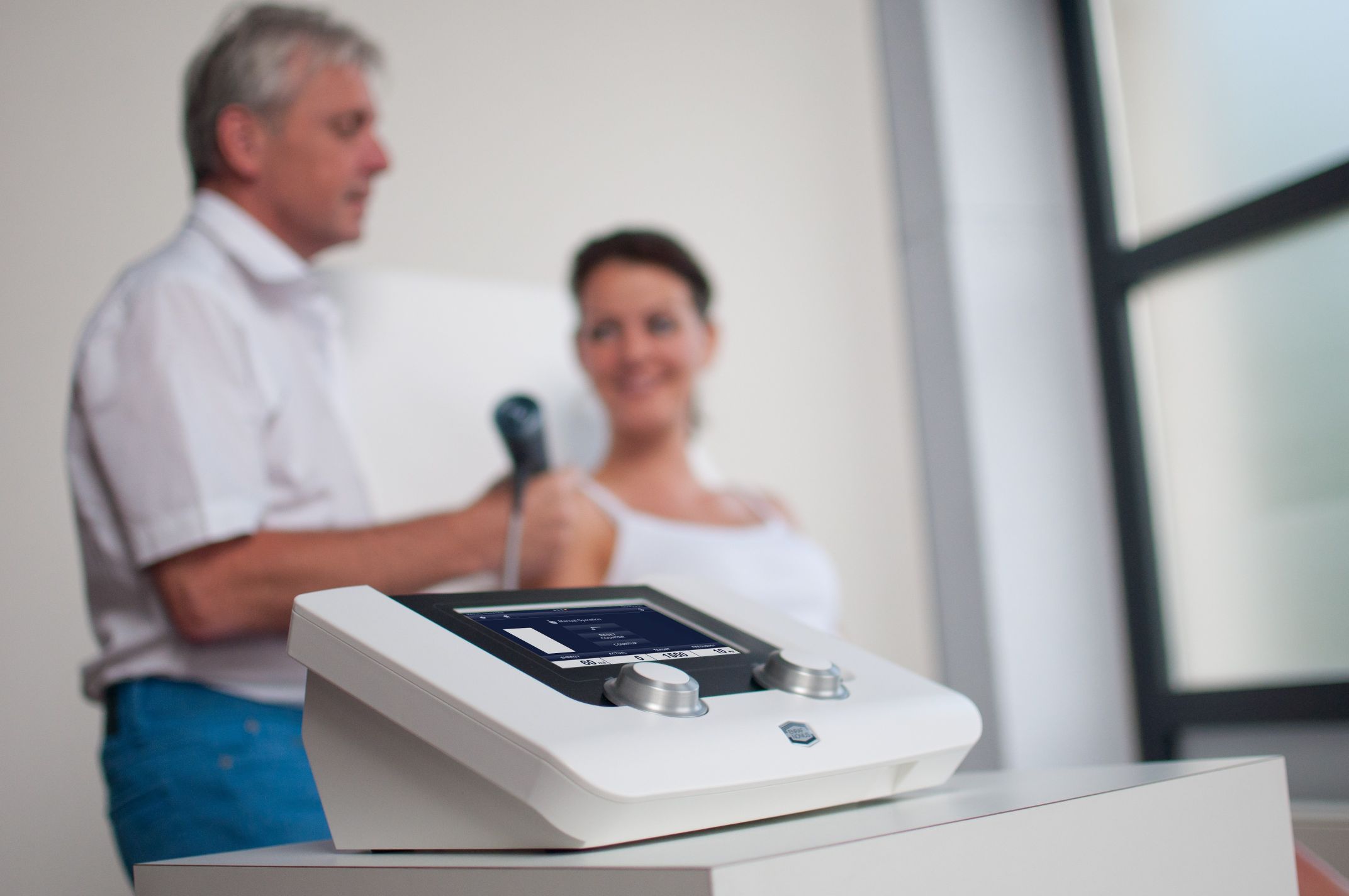

Extremely easy to use: operated via the clear touchscreen. The energy is set precisely and displayed in mJoules, informing the therapist about the energy transferred to the tissue.

TECHNICAL SPECIFICATIONS

Dosage / Energy settings: 60 mJ to 180 mJ in steps of 10 and 180 mJ - 185mJ

(at 16 Hz maximum 120 mJ and at 22 Hz maximum 90 mJ).

In comparison with a pressure-driven unit this is: 1 / 2 / 3 and 5 Bar.

Save and update: on SD cards

Handpiece: Ergonomic, anodised aluminium housing.

Dimensions device: length 35 cm, width 25 cm, height 14 cm

Dimensions handpiece: length 23 cm, 5 cm diameter

Weight device appr. 2,7 kg

Weight handpiece: appr. 0.85 kg (with cable)

Service life: minimum of 2,000,000 shots

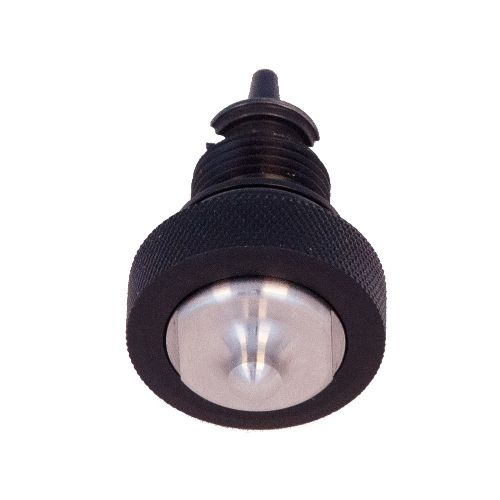

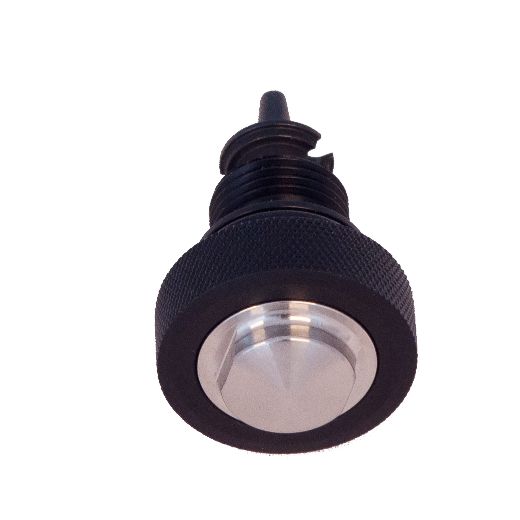

Applicators: 6 x 25 mm and 15 x 25 mm diameter, with a minimum life time of 150,000 shots

Electrical connection: 100 – 240 VAC / 50-60Hz 2.5A

Approvals: IEC/ EN 60601-1

STANDARD ACCESSORIES

Handpiece

Holder for handpiece

Applicator 6 mm point

Applicator 15 mm point

Applicator 25 mmpoint

Silicon covers, 10 pcs

Endopuls lotion

Foot switch

Test template

Case

Operating manual

Mains cable.
