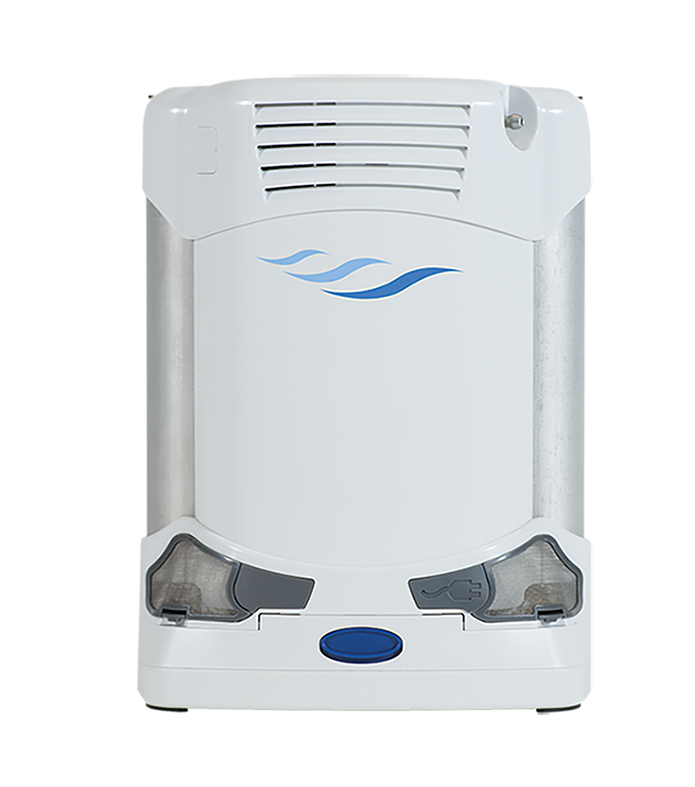

With its ergonomic shape, the lightweight and affordable FreeStyle® Comfort® rests against the natural curves of your body, making it comfortable to wear on the go. Equipped with user-replaceable batteries, this new oxygen therapy device meets FAA guidelines for commercial air flights and allows you to extend your time away from home.

CAIRE’s proprietary autoSAT feature allows the FreeStyle Comfort to deliver a consistent volume of oxygen (bolus) per breath, up to a maximum breath rate. As the user’s breath rate increases during activities like walking, the autoSAT feature adjusts the device operation to maintain a set bolus volume.

A LIGHTWEIGHT SOLUTION

Weighing only 5 lbs., the FreeStyle Comfort can go anywhere you want to go. Enjoy the convenience of wearing it with or without your carry bag by simply attaching the no-slip, padded shoulder strap. Alternately, wear with the optional backpack.

BREATHE EASY, WORRY LESS

UltraSense, our sensitive breath detection technology, ensures oxygen is delivered to you when you need it. Should a “no breath alarm” occur, the autoDOSE feature will pulse oxygen at 20 breaths per minute at the unit’s current flow setting until the alarm state is resolved.

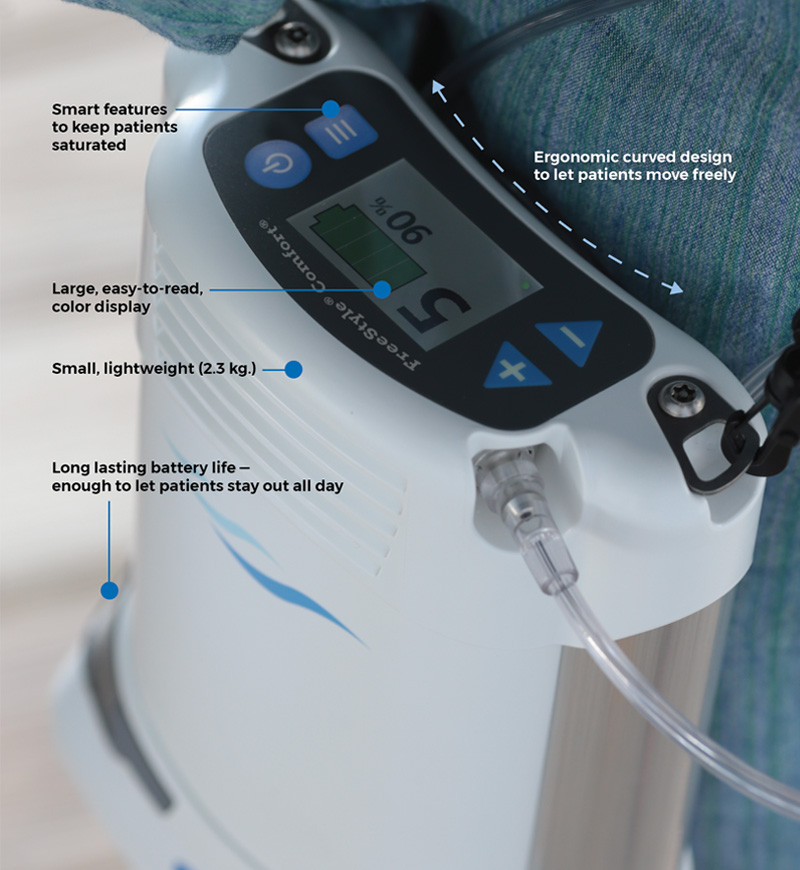

COMFORTABLE TO WEAR, EASY TO USE

The ergonomic, curved silhouette rests against the natural curves of your body, making it more comfortable to wear when you are out and about. User-replaceable batteries allow you to extend your time away from home and stay active.

Includes

Portable Concentrator

Carry Bag

Battery Pack

AC/DC Universal Power Supply and Cords

Shoulder Strap

UltraSense technology

Optional autoSAT technology feature

Other SKUs may include extra accessories.

Product Features

User-replaceable battery pack options offering up to 4 hours of battery life using the 8-cell battery pack at setting 2 and up to 8 hours of battery life with 16-cell battery pack

Easy to wear with a shoulder strap

Meets FAA guidelines for use on commercial air flights

Fully functional on wall (AC) or motor vehicle (DC) power

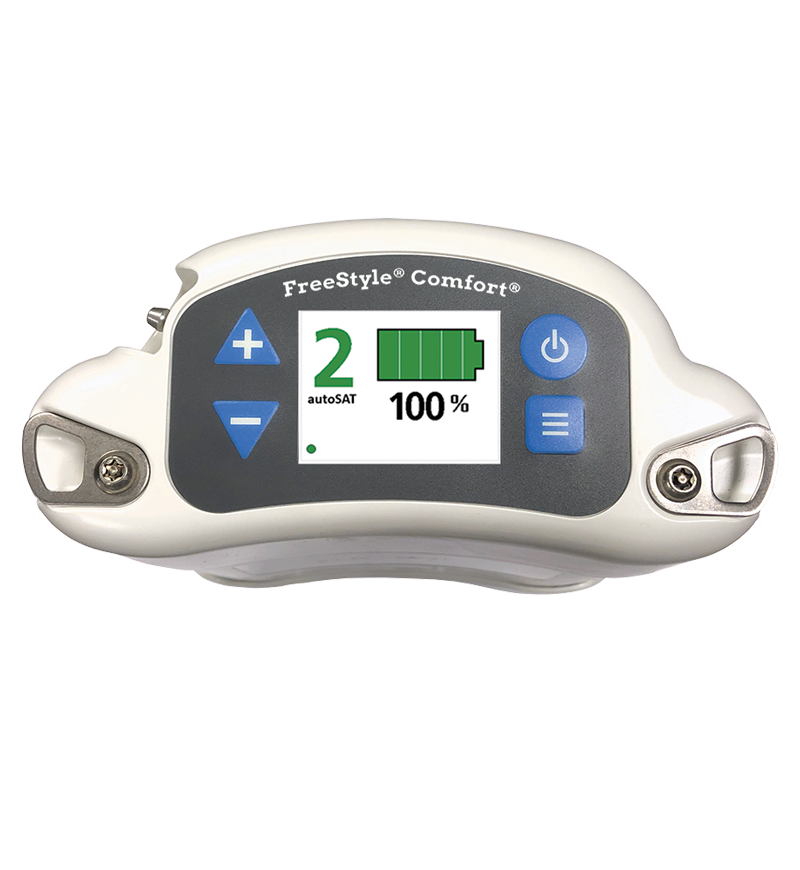

Easy-to-use full-color interface

Comes equipped with the optional telehealth solution.

Specifications

FLOW RATE: Pulse 1-5

DIMENSIONS:

8-cell battery pack: 25.4 x 18.5 x 7.9 cm

16-cell battery pack: 27.9 x 18.5 x 7.9 cm

WEIGHT:

8-cell battery pack: 2.3 kg

16-cell battery pack: 2.7 kg

SOUND LEVEL

40 dB(A) at Setting 2

BATTERY DURATION

8-cell battery at setting 2 – up to 4 hours

16-cell battery at setting 2 – up to 8 hours

WARRANTY

3 years FreeStyle Comfort (Includes sieve beds)

1 year battery and power supplies.

The Eclipse 5 combines portability with clinical efficiency to treat a wide variety of your patients’ needs, no matter the range of their activity levels – giving them the freedom to travel and enjoy life on the go. Suitable for use 24/7 use, this all-in-one oxygen therapy device can provide continuous flow from 0.5 to 3 LPM (Liters Per Minute) and pulse doses up to a setting of 9.

Oxygen with no limits

The Eclipse 5® is two devices in one, for both portable and at-home use. FAAapproved for commercial air travel and equipped with 24/7 capabilities, combine to make this device perfect for everywhere you go. And now, thanks to the optional telehealth solution—CAIREview™ powered by SynsorMed*—your provider can periodically monitor this device’s location and performance, and troubleshoot alerts— all from the convenience of their desktop computer or smart device.

STAY ACTIVE AND GO ANYWHERE

Travel by car, plane, boat, or train. A long battery life and AC/DC power options allow you to be more active and keep you doing the things you love.

PEACE OF MIND

Patented autoSAT® technology delivers the oxygen you need with every breath. Also, the Eclipse 5® comes equipped with wireless technology which can connect you to CAIREview™—a telehealth solution that your provider can use to help ensure you get the support you need.

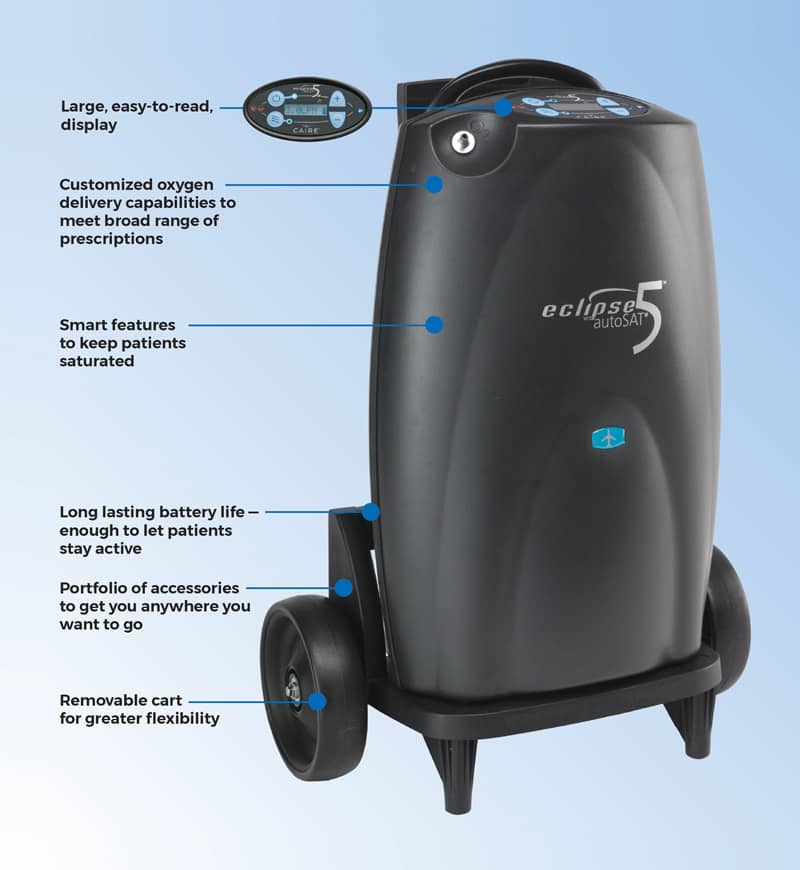

BUILT FOR COMFORT AND EASE OF USE

Transporting the Eclipse 5® is easy and will not get in the way of your living an active lifestyle! An easy-to-attach traveling cart with a telescoping handle can adjust to your comfort level and durable wheels allow you to go anywhere.

Includes

Portable Concentrator

Power Cartridge (Battery)

AC Power Supply

DC Power Supply

Removable Cart

Accessory Bag

Nasal Cannula

Spare Intake Filter.

Product Features

Runs on wall outlet (AC), motor vehicle (DC) or rechargeable battery power

In the car—all flow rates available and battery will recharge while running at 2 LPM or less 2 hour battery at 2 LPM with single battery

Over 5 hours of battery duration at 2 pulse

Removable rolling cart with adjustable handle

FAA-approved for commercial airline use

Can come equipped with the optional telehealth solution.

Specifications

FLOW RATE: 0.5–3.0 LPM, 1-9 Pulse Settings

DIMENSIONS: 49.0 x 31.2 x 18.0 cm

WEIGHT: 8.3 kg

SOUND LEVEL: 40 dB(A) @ Pulse Setting 3

BATTERY DURATION: 2 LPM Continuous – 2 Hours, Setting 2 Pulse – 5.1 Hours

BATTERY RECHARGE: 2–5 hours dependent upon flow

WARRANTY: 3 Years Eclipse 5®, 1 Year Battery and Accessories.

CAIRE INVESTS IN QUALITY

Design changes in November 2013 drastically increased overall durability, and improved the reliability of valves and sieve beds. This has reduced failure rates and has set a new standard for high performing 5 LPM concentrators.

REDUCED COST OF OWNERSHIP

Combining low failure rates with no preventative maintenance schedule creates a high-performing stationary with a low total cost of ownership.

LIGHTWEIGHT AND POWEREFFICIENT

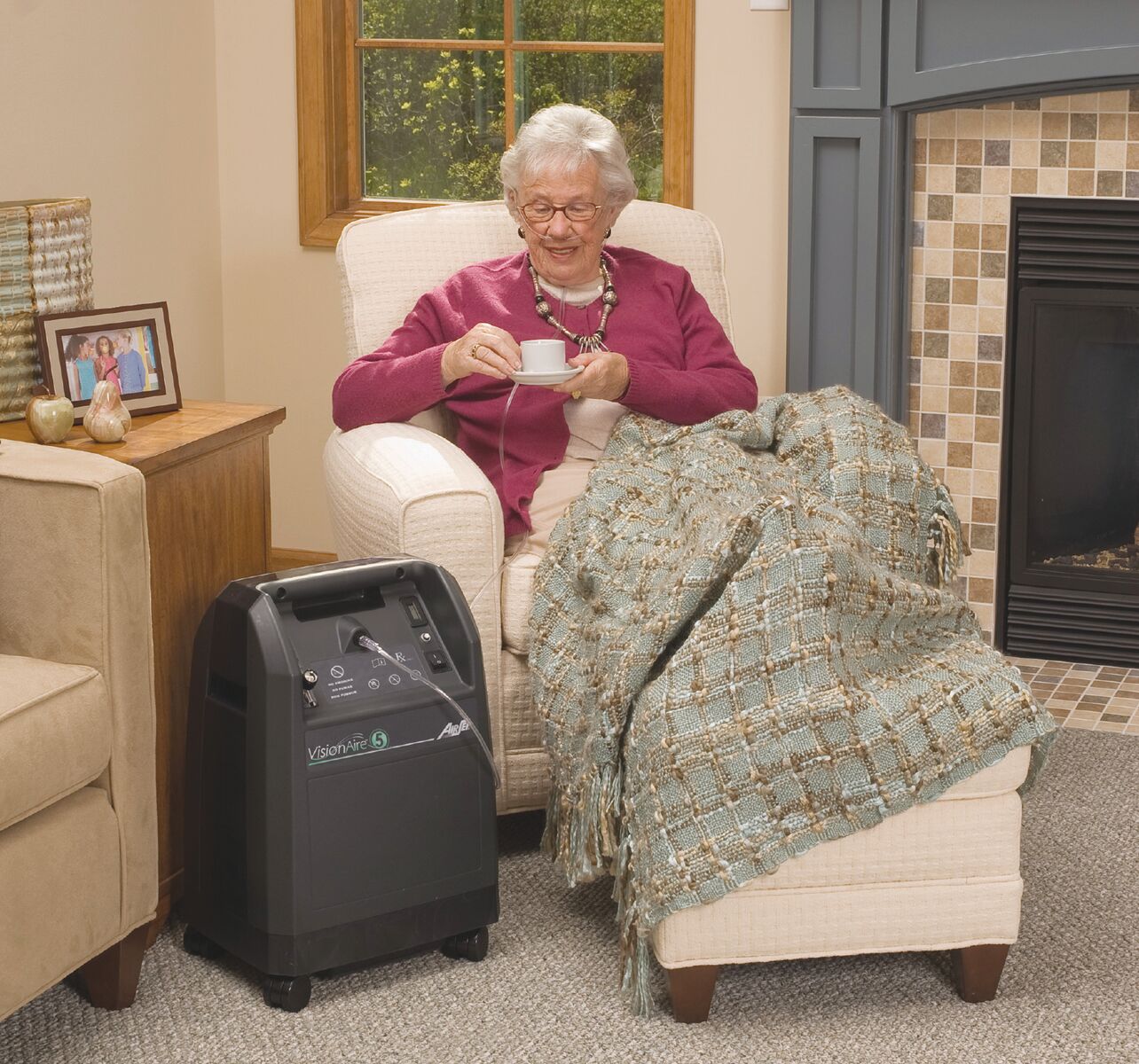

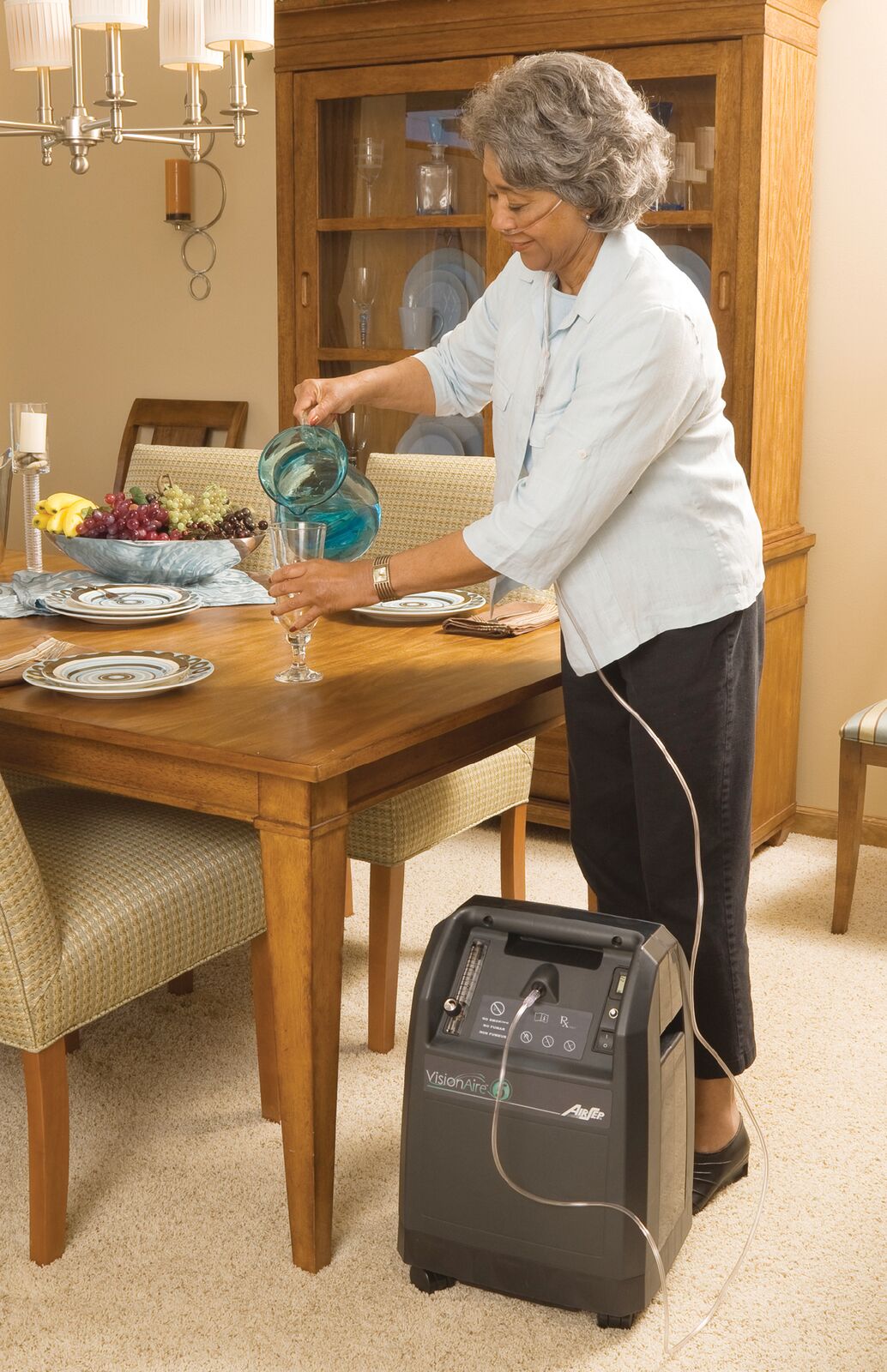

At only 30 lbs (13.6 kg) with side and top handles, the VisionAireTM 5 is lightweight and easy to deliver. Its 290 W power draw at all settings is incredibly efficient.

Includes

Oxygen Concentrator

Humidifier Adaptor Tube

Product Features

Maintenance-free design

Lightweight and easy transport

Well-defined audible alarm system for easy diagnosis

Lockable flow meter

Dual-function hour meter

Specifications

FLOW RATE: 0.5 - 5.0 LPM

DIMENSIONS: 52.8 x 35.8 x 29.2 cm

WEIGHT: 13.6 kg

SOUND LEVEL: 45 dB(A) (Typical)

02 CONCENTRATION: 90 % (+5.5 / -3 %)

OPERATING ENVIRONMENT: 5 to 40°C, 15-95% humidity

STORAGE ENVIRONMENT: -25 to 70°C, 15-95% humidity

POWER CONSUMPTION: 290 W (All Flow Rates)

ALARMS: Power Failure, High Pressure, Low Pressure, No Flow, Low O2 Concentration (Optional)

MAXIMUM TUBING: 15.2 m

WARRANTY: 3 Years

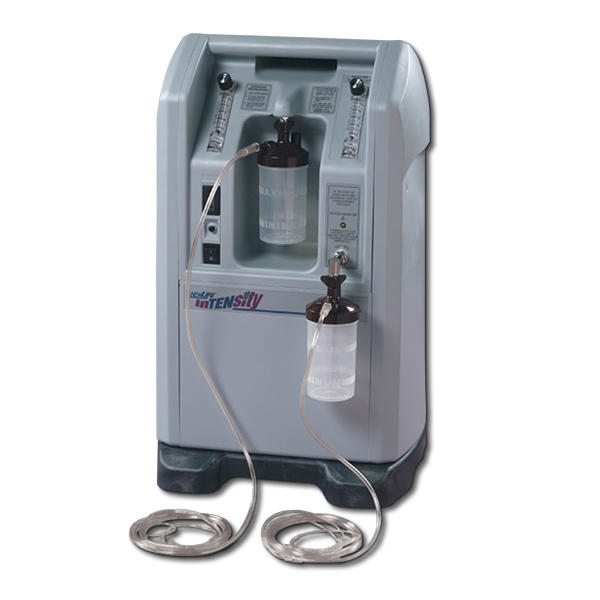

The NewLife Intensity is the most durable and capable high-, continuous-flow stationary oxygen concentrator. This stationary oxygen concentrator combines high pressure – 20 psi outlet pressure – with high flow to create up to 10 LPM of therapeutic oxygen making it ideal for long-term care facilities where higher oxygen flow is necessary. NewLife Intensity 10 LPM dual flow units provide additional savings to long-term care facilities with their capability to deliver oxygen to two patients simultaneously from a single concentrator.

HIGH FLOW AND HIGH PRESSURE COMBINED

Combining high flow and high output pressure makes the NewLife Intensity the premier high flow stationary concentrator for at home and facility use.

HIGH-PRESSURE APPLICATIONS

The Intensity has an output pressure of 20 psi (137.9 KPa), more than double any other high flow concentrator.

HIGH FLOW DELIVERY

Offering up to 10 LPM, this time proven concentrator offers higher flow options to serve the patients in hospitals, long-term care facilities, clinics, waiting rooms, or day and night time settings.

DUAL FLOW OPTION

The unique Dual Flow option features two separate flow meters that can provide a total of 10 LPM — allowing two patients to get oxygen from one machine simultaneously.

Includes

Oxygen Concentrator

Cannula Outlet Fitting

Product Features

High output pressure

Oxygen monitor

Easy to service and maintain

Time-proven NewLife ruggedness and reliability

Dual flow option available

Dual function hour meter.

Specifications

 FLOW RATE: 2–10 LPM

DIMENSIONS: 69.9 x 41.9 x 36.8 cm

WEIGHT: 26.3 kg

SOUND LEVEL: 58 dB(A)

02 CONCENTRATION: 90%+5.5%/-3%

OPERATING ENVIRONMENT: 5° to 40°C,15-90% humidity

STORAGE ENVIRONMENT: -25 to 70°C, 0-90% humidity

MAXIMUM TUBING:61 m

MAINTENANCE SCHEDULE: Felt Filter –1 Year Replacement, Intake Filter– Clean Weekly

WARRANTY:3 Years
