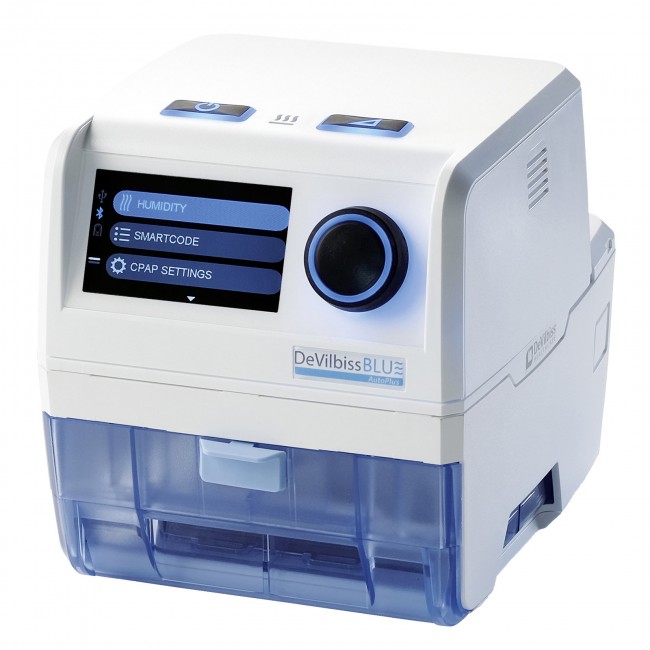

The DeVilbiss Blue AutoPlus detects, reports and differentiates between hypopneas, obstructive apneas, snoring, expiratory puffs, leaks, flow limitations, RERAs, central apneas and periodic breathing. Detects more events and responds with a new level of accuracy SmartFlex can be disabled, enabled or used during ramp-time only.

From concept to completion we took a fresh look at how a CPAP platform could help patients across the globe obtain the best possible night’s sleep. DeVilbiss Blue series utilises the latest advancements in sleep technology to offer great performance, maximum comfort and the ability to optimally monitor patient therapy. Deep Blue – A powerful new algorithm for detecting and responding to events.

The algorithm in the DeVilbiss Blue sets a new standard of data and performance. Improved sensitivity to a full spectrum of respiratory events means it detects more data and responds to a new level of accuracy, giving the user the most comfortable experience.

Its powerful logic allows the DeVilbiss Blue to differentiate and report simple Obstructive Apnoea from more complex scenarios, including Central Apnoea and mixed disease. Hypopnoea, obstructive apnoea, snoring, expiratory puffs, leaks, flow limitations, RERAs, central apnoea, periodic breathing are all now detected and reported with DeVilbiss Blue.

True Blue – Unrivalled performance from an accurate, stable yet incredibly quiet motor. At the heart of a CPAP is its blower motor. An off the shelf motor would just not do. To meet the demanding requirements of DeVilbiss Blue, our engineers started from the ground up designing our own custom motor capable of delivering strong, stable and accurate pressures, yet is the quietest device we have ever made.

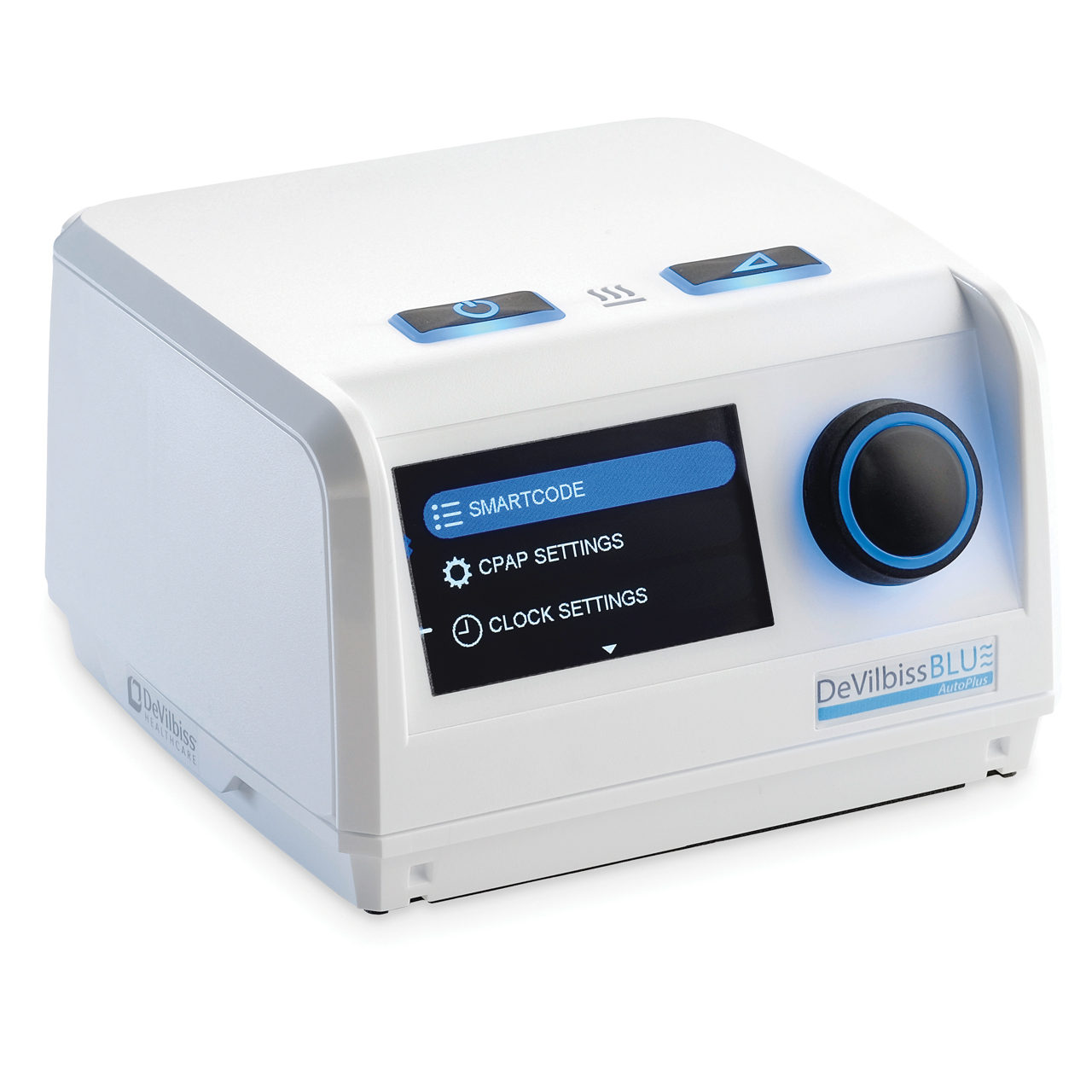

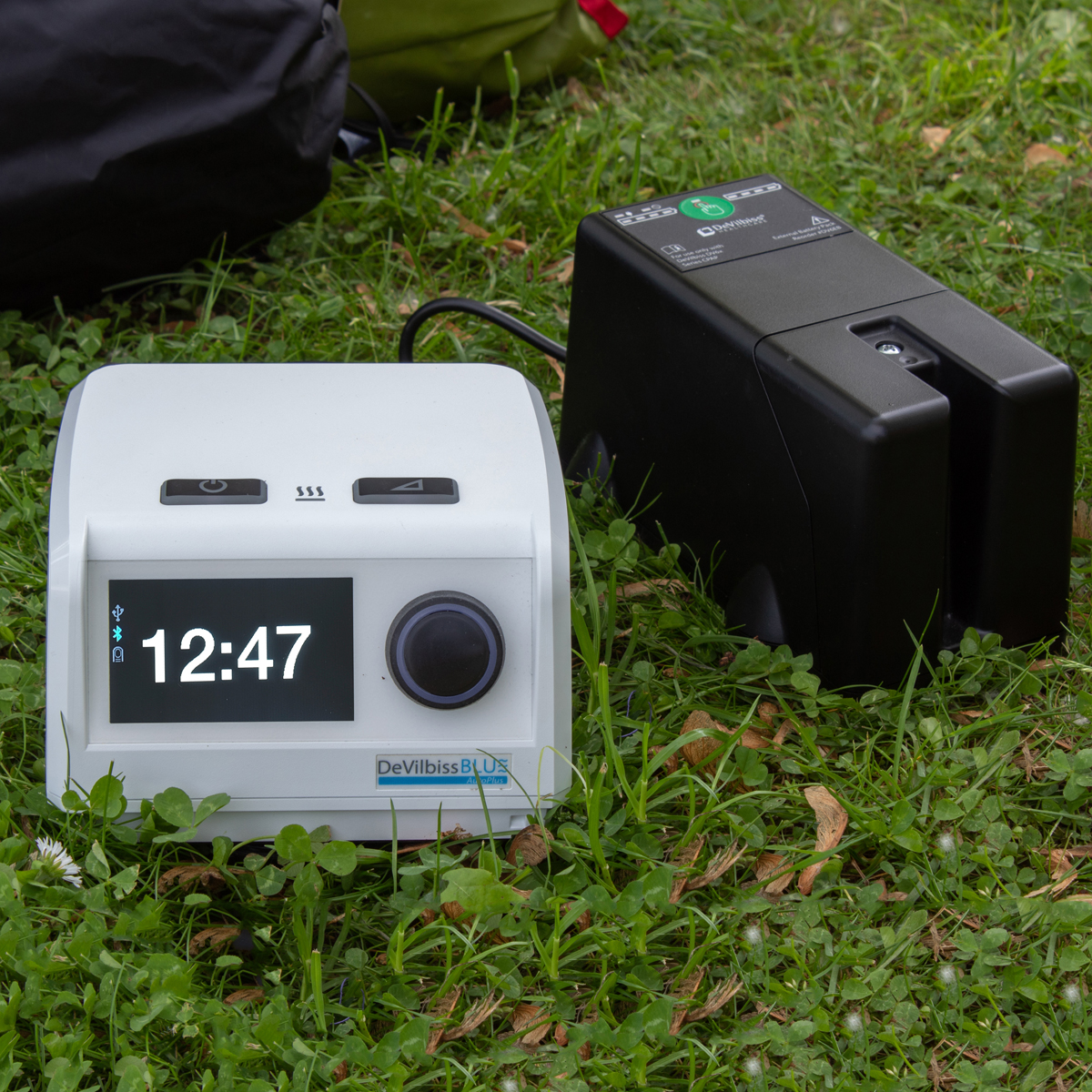

Clear Blue – Easy to set-up, easy to use. Our large colour screen and intuitive control wheel, makes setting up and using DeVilbiss Blue incredibly simple. Graphical displays of functions like SmartFlex and Flow Rounding become easy to interpret and adjust.

Performance · Comfort · Connectivity

A new level of performance and data with DeVilbiss Blue. From the advanced algorithm to the custom-made quiet motor, we have designed the DeVilbiss Blue to help patients across the globe obtain the best possible night’s sleep. Innovative features including PulseDose humidification, SmartFlex and Flow Rounding have been designed to maximise patient comfort to optimise CPAP therapy.

Making sure that patients are receiving the optimum CPAP treatment is vital for compliance. There are many ways to connect, transfer and analyse therapy data with the DeVilbiss Blue. Our wireless connectivity options enable CPAP settings to be changed remotely and instantly for faster response to patient’s needs.

Cool Blue – Maximum comfort, no rain-out.

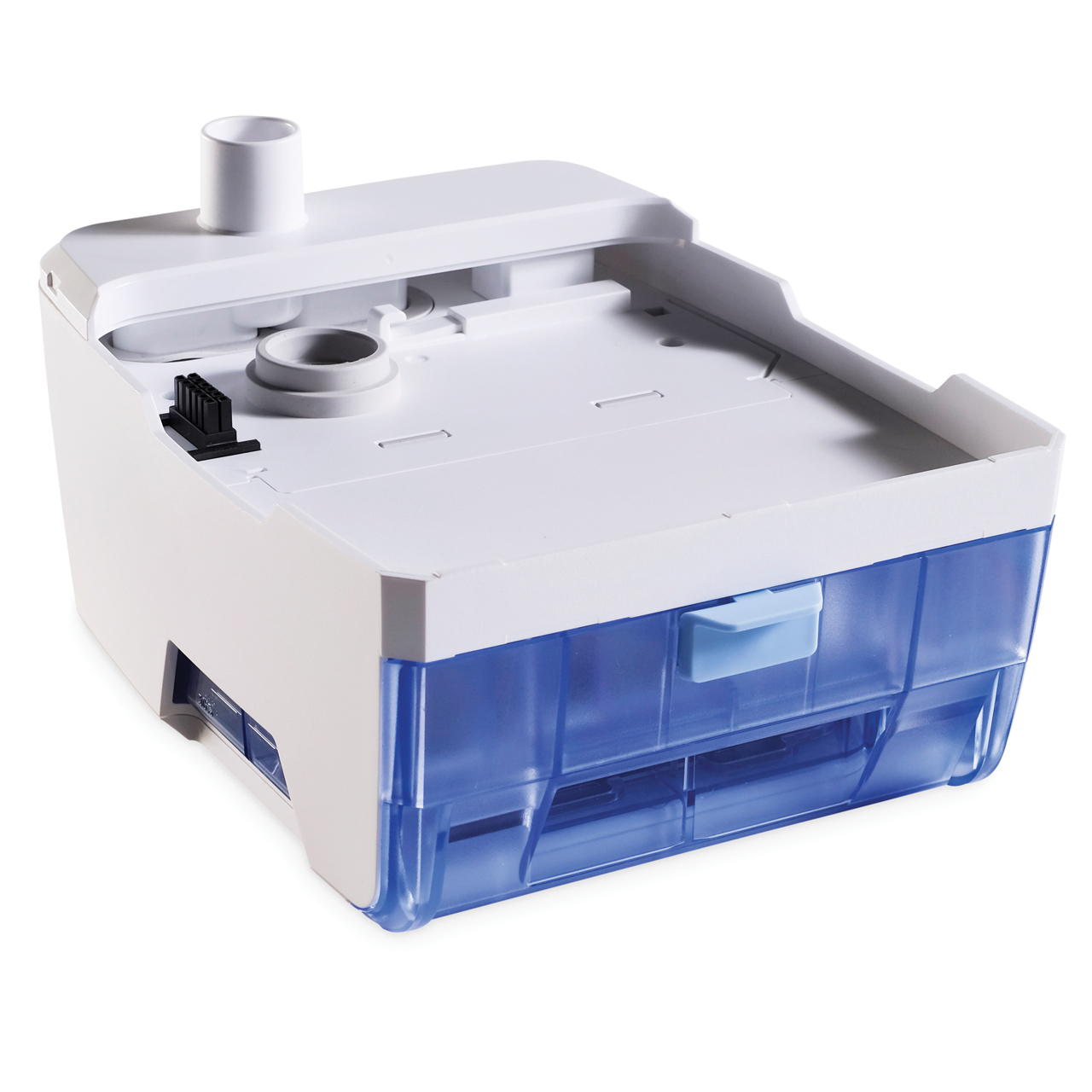

PulseDose humidification is a new technique developed by DeVilbiss to combat nasal congestion and dryness of the throat and nose. It works by delivering heated humidified air during inhalation only, and non-humidified air during exhalation. This gives the user maximum comfort whilst conserving water and eliminating ‘rain-out’ from the tubing ensuring a minimum of 8 hours uninterrupted sleep – with no need for an expensive heated tube! PulseDose humidification consumes the least water and power compared to traditional heated humidifiers. We offer both standard and PulseDose humidifiers as optional accessories.

Maintenance Free: Apart from regular cleaning of the filter, we developed the DeVilbiss Blue to be maintenance free for its lifetime. Every device is designed, built and tested to the highest quality by our skilled and dedicated team at our home in Somerset, Pennsylvania.

Connect Blue – Monitoring and improving sleep therapy in any situation. Treatment adherence is vital to the care of OSA patients. Being able to monitor data and respond rapidly if any changes are needed improves patient compliance leading to a better night’s sleep. DeVilbiss Blue has many new ways to transmit and receive data for monitoring and improving sleep therapy.

Bluetooth Pulse Oximeter: Pair a Pulse Oximeter to the DeVilbiss Blue and view SpO2 data on the CPAP display. Up to 72 hours of oximetry data can be stored in the DeVilbiss Blue for further analysis and reporting with our SmartLink software.

Bluetooth Modem: Send data wirelessly yet securely to a healthcare professional for analysis. If changes to the device settings are required these can be quickly transmitted back to the DeVilbiss Blue.

SmartCode

An innovative way of sending data remotely in situations where a wireless connection is not possible.

SmartCode Rx

A simple, powerful, yet low-cost tool to enable the healthcare professional to remotely change the DeVilbiss Blue settings.

SD card / USB

The DeVilbiss Blue has a port to allow for direct USB connection to a PC or data can be sent and received via an SD card.

SmartLink 3.0 therapy management software: Ideal for sleep labs and service management providers as it monitors CPAP usage, patient compliance and evaluates the success of CPAP therapy. For added convenience the SmartLink software is network capable. A new feature for SmartLink 3.0 is the ability to display and analyse high resolution data recorded by the DeVilbiss Blue for a more in-depth and precise view of the patients night sleep.

Other key features include:

Breath-by-Breath Analysis

Inventory Management

Patient Management

Overnight Analysis

Longitudinal Trending

Reporting

Technical specifications:

Dimensions (LxWxH): 9.4 cm  x 15.5 cm  x 15 cm

Pressure Range: 3 - 20 cmH2O

Maximum Power Consumption: 65 Watts

Average with/without Humidifier: 25 Watts / 10 Watts

Power Supply: 100 - 240 V, 50/60Hz

Weight with/without Humidifier: 1.75 kg / 0.9 kg

Airline Transport Approved.

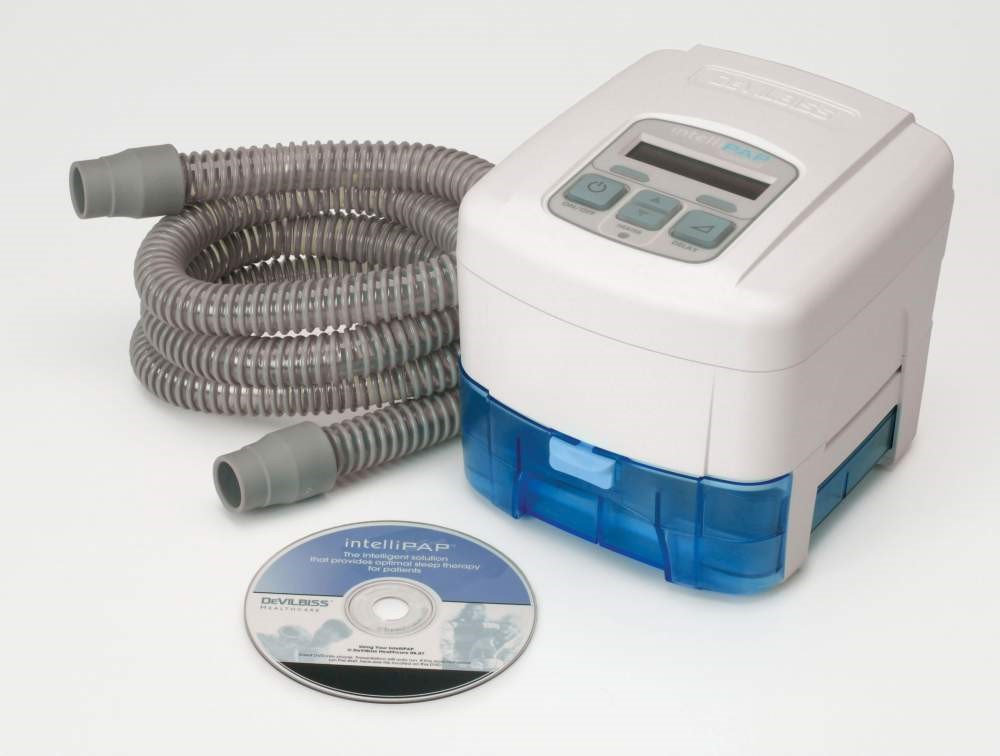

The DeVilbiss IntelliPAP Bilevel S incorporates all of the popular features of the IntelliPAP platform including: minimalistic design, exceptionally small footprint, highly efficient and easy-to-use integrated humidifier, exceptionally quiet operation, and SmartCode® technology. The IntelliPAP Bilevel S is the perfect choice for patients who require higher pressures to maintain airway patency.

With a pressure range of 3-25 cm H20 and the ability to adjust the IPAP and EPAP delta up to 22 cm H20, the IntelliPAP Bilevel S offers maximum adjustability and can be operated in CPAP and Bilevel mode.

Performance Features

Exclusive Flow-Rounding technology softens transitions from IPAP to EPAP pressure

Respiratory Event Detection algorithm scores patient breathing patterns detecting apneas, hypopneas and non-responding events.

Reports generated by SmartLink® or SmartCode®

LCD display shows actual pressure, leak rate and patient breathing parameters such as breath rate, I/E ratio, respiratory events, minute volume and tidal volume

Ramp delay settings of 0 to 45 minutes in 5-minute increments

Among the quietest bilevel units on the market

Integrated heated humidification

Exclusive humidifier chamber design maximizes humidification

Automatic Altitude Adjustment up to 8,500 feet

Includes exclusive SmartCode technology.

Design features:

Whisper-quiet operation – 26 dBA

Exceptionally small footprint fits easily into the home environment and carry-on luggage

Discreet carry bag included that can be easily expanded to hold additional accessories

Optional integrated heated humidification system easily docks into the bottom of the unit

without requiring a separate hose or power cord

Humidifier reservoir is easy to remove and replace and includes built-in overflow protection

Special design protects against water ingress damage

Patient air tubing extends from the back of the unit to reduce clutter and enhance visual appeal

Accommodates various tubing lengths (6 and 10 feet)

Large slip-resistant pad on bottom of the unit to minimize movement on the night table

Eight-foot power cord provides greater positioning and flexibility – no bulky power brick

Ability to turn off large, backlit LCD screen

Easy and intuitive set up – three large buttons control nearly all functions for simplified patient operation

Auto on/off* automatically starts the flow of air after breathing into the mask and stops the flow of air when mask is removed

SmartCode® therapy tracking encodes usage and efficacy data into a series of letters and numbers that can be easily decrypted using free software

Reminders alert user for the need to replace or check parts

Extra air inlet and fine particle filters are included

Universal power supply

3-year warranty

Technical specifications:

Product Dimensions 6.4” H x 6.5” W x 8.4” D

Product Weight 4.45 lbs with humidifier

Pressure Range 3-25 cm H20 (.5 increments)

Universal Power Supply Yes

AC Cord Length 8 feet

Automatic Altitude Adjustment Yes

DC Operable Yes

ABOB Analog Output for PSG Yes

Automatic Leak Compensation Yes

Auto On/Off Yes (can be enabled or disabled)

Motor Hour Meter Yes

Therapy Compliance Meter Yes

Warranty 3-year warranty on IntelliPAP Bilevel S & 3-year warranty on bilevel heated humidifier

DeVilbiss SmartLink® Compatible Yes

SmartCode Feature Yes
