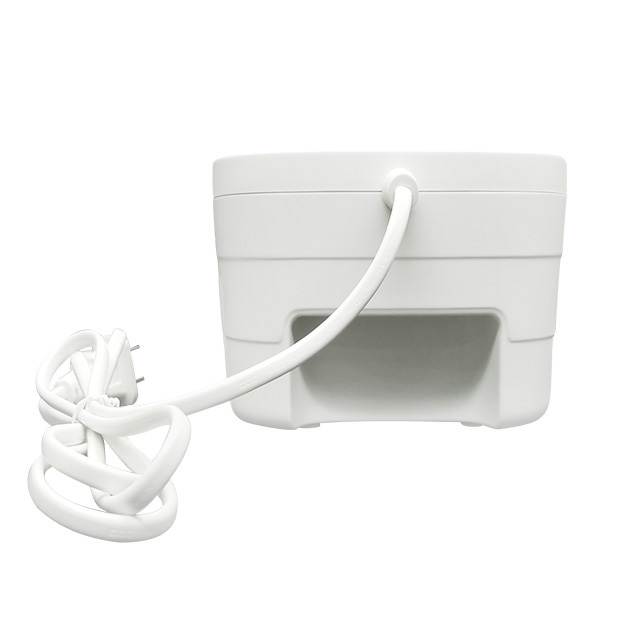

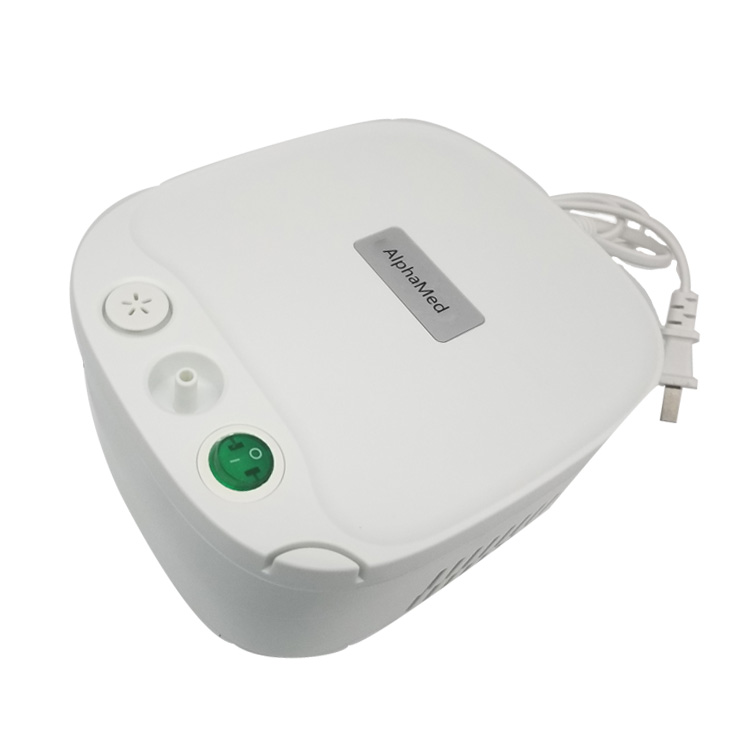

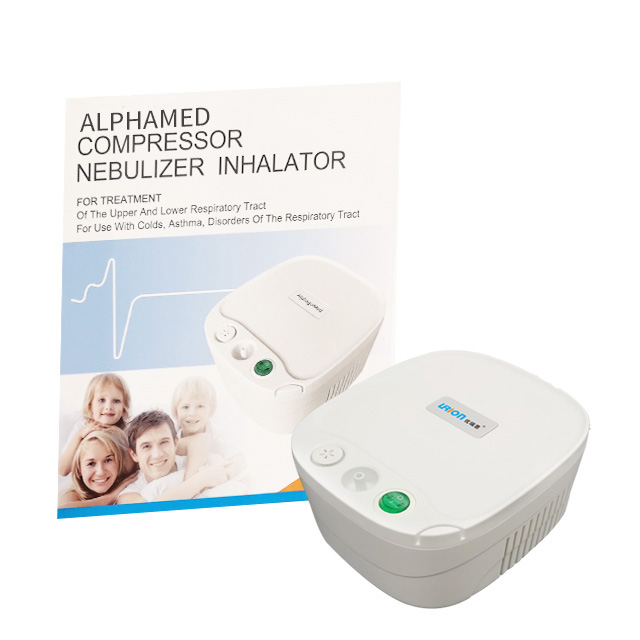

ALPHAMED UN505-C02
Simple Operation Compressor Nebulizer
Gallery
2852484
2852484
×
)
ALPHAMED UN505-C02
Simple Operation Compressor Nebulizer

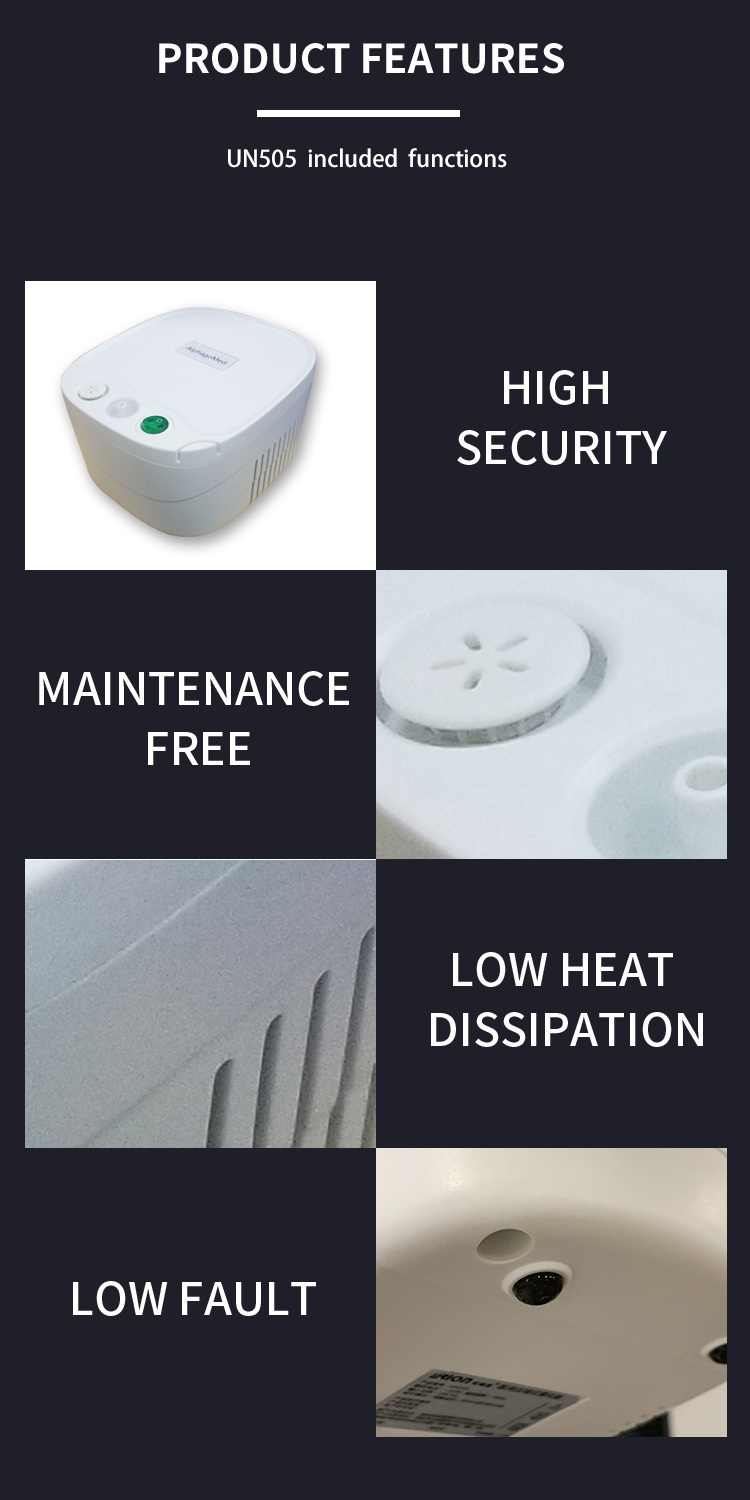

Production Features

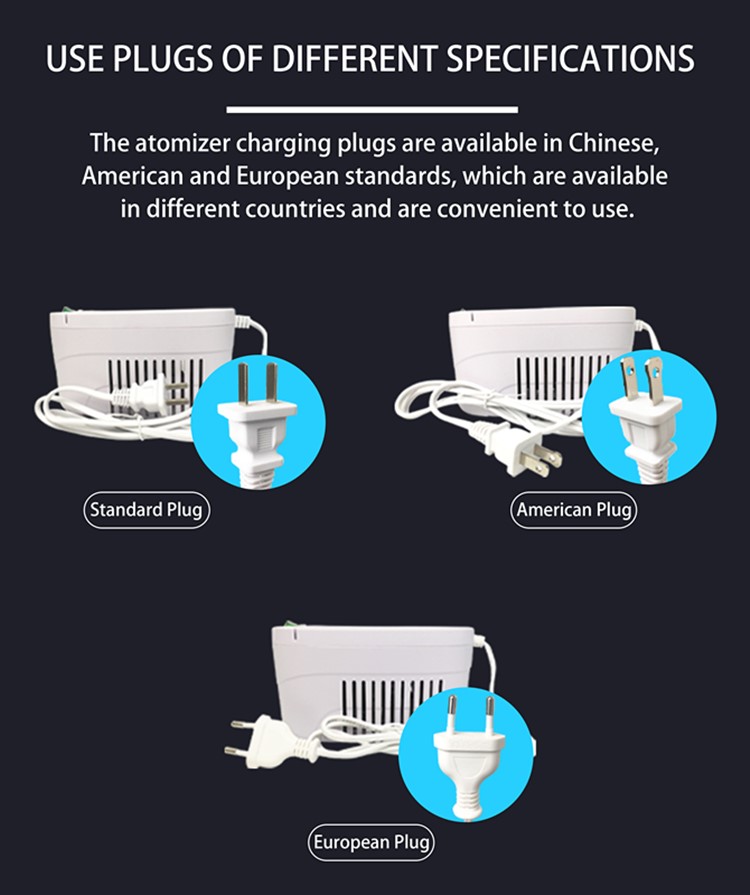

Power: AC 220V 50 Hz
Power Consumption: 180 VA
Medication Capacity: 5~8 ml

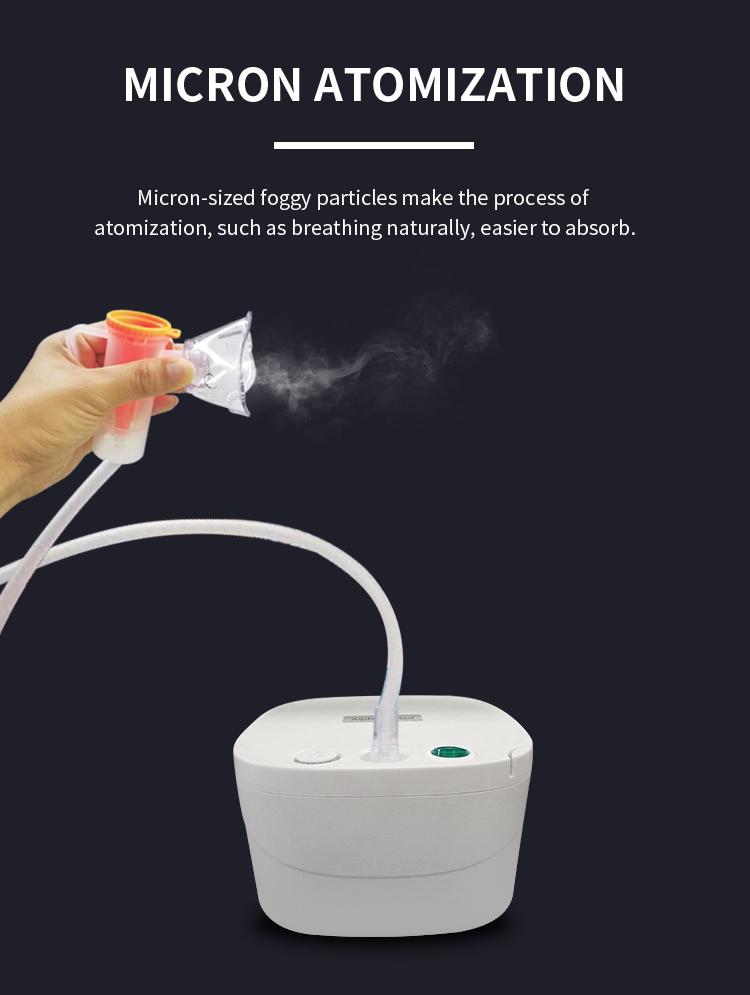

Particle Size: 1 to 5 μm
MMAD 3.2μm
Sound Level ≤70 dBA
Average Nebulization Rate 0.15 ml/min
Operating Pressure Rate: 80 to 120 Kpa / 0.8 to 1.2 bar
Flow Range: ≥5lpm
Operating environment relative temperature: 10℃ to 40℃, 15%~93%RH, 860hPa to 1060hPa
Transportation environment &storage relative humidity:-20℃ to 55℃, 15%~93%RH, 500hPa to 1060hPa
Dimensions (L*W*H): 170*150*87.5mm
Weight: 1180g

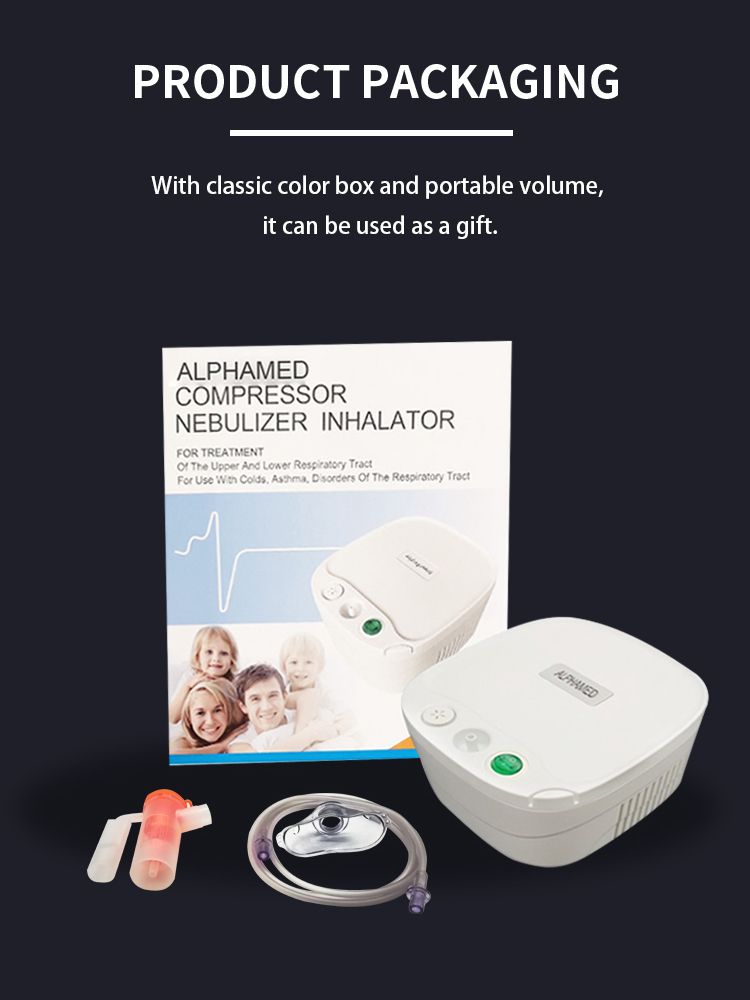

Standard Accessories
Mask, Nebulizer, Mouth piece, Air Tube,Filiters (5pcs)
