Examination

Shock

CPR

Cardiac Chair

Intensive Care

The simplicity of the solutions that characterise Matrix E50 makes it possible to increase patient accessibility to Intensive Care Units. With the main features required to care for critically ill patients, such as emergency medical positions, weight monitoring and tools to reduce hospitalisation times, it becomes a bed that meets patients’ therapeutic requirements and an indispensable tool for healthcare professionals.

Lifting System

Lifting system with trapezoidal arms electrically articulated by 2 linear motors (Linak).

Lifting stroke 420-793 mm and maximum patient load 250 Kg.

HANDS FREE

Digital Scales

7” touch screen incorporated in the foot panel. With weighing registration and possibility of recording in memory, thus freeing up health professionals to what really matters – caring for patients. The scale allows to perform Tare, Zero and Calibration.

Foot Control

Bilaterally used, it makes it possible to position the bed with the hands free for more effective treatments. The foot control allows you to perform the Cardiac Chair and Exam medical positions, as well as the CPR emergency intervention.

INCORPORATED FUNCTIONS

Integrated Controls

Integrated into the upper side guard rails, they are composed of 2 controls for the caregiver and 2 for the patient. Activation of functions by GO button, allowing a redoubled safety preventing accidental movements, also have selective locks of all functions of the bed.The caregiver control allows you to perform the medical positions Trendelenburg, Cardiac Chair, Examination and back positioning at 30º, as well as emergency interventions CPR and Shock.

Precise Angles

The side guard rails incorporate angle gauges for the inclination of the back section on the headboard side guards and for the inclination of the bed on the footboard side guard rails. Matrix E50 also incorporates features that facilitate the provision of care, with alarms, intermediate height stop for transport and key angles, such as back at 30º or bed horizontality.

PORTABLE CONTROLS

Supervisor Control

Optional control located at the foot of the bed and plugged into the bed foot panel. Selective locks as protection against misuse. Powered by helical cable. The supervisor control allows the medical positions Trendelenburg, Cardiac Chair, Examination and Back to 30º, as well as the emergency interventions CPR and Shock.

Hand-held Control

Optional control, it is portable and highly shock resistant. Powered by helical cable. The hand-held control allows you to perform the medical positions of Reversed Trendelenburg, Cardiac Chair, Examination and Rest.

EFFECTIVE PROCEDURES

Endotracheal Intubation

The head end and foot end panels are vertically removable. However, the head end support structure is fixed to the base, allowing unobstructed intubation. By raising the mattress platform to the Examination position with a single button, removal of the panel becomes unnecessary.

X-Ray Cassette Holder

Matrix E50 includes the option of incorporating an X-ray cassette holder in the back section. The loading of the cassette is carried out on the side of the bed headboard. The cassette holder is telescopic and fully extractable out of the bed back area. It has adjustment rulers for various cassette sizes, brands and models.

EARLY MOBILITY

Pressure Ulcer Prevention

The articulation of the mattress platform (back + legs) causes harmful muscular pressure in the abdominal and lumbar areas. By lifting the articulations, they simultaneously perform a synchronous gliding. This double self-regression of the back and leg articulations causes decompression and relief of the sacroiliac area, usually a critical point in the development of pressure.

 Self-Confidence

An important factor in reducing the length of hospital stays is the recovery of the patient’s confidence in their motor skills. The bed has features designed to help in this task, such as the Auto-Contour, which helps to sit without fear of slipping, the design of the railings for support in exiting the bed, or the stop of the elevation of the bed at the time of exit of the patient.

ADAPTATION TO NEEDS

Bed Extension

One-hand adjustable foot panel, allowing the bed to be quickly and easily extended up to 220 mm. Telescopic mattress support grid, allowing the extension to be maintained with the articulated foot section.

Support Drawer

The foot panel has a telescopic opening retractable support to support the bed changing service and to place the supervisor control in a place less prone to misuse.

INFECTION CONTROL

Hygiene Components

The headboard and foot panels and the split guard rails are produced in synthetic Medical HDPE, a material with great capacity for hygiene and disinfection, durability and high resistance to shock. The panels are vertically removable and have lockers for transportation. The bed board consists of 11 modular components made of PPC plastic or 4 single phenolic (high pressure thermolaminate) components. All the components can be extracted for cleaning using a quick-fit system.

Total Disinfection

The design of the bed was conceived in order to facilitate the cleaning processes. Reducing dirt accumulation points as much as possible.

CONTINUOUS PROTECTION

Night Light

The night light facilitates the orientation of the patient in low light environments, changing colour when the bed reaches the Rest position, indicating that the patient is properly positioned for a period of sleep. The Night Light is activated from the external control of the side guard rails and requires the bed to be connected to the building’s electricity supply.

Fall Prevention

Side guard rails comply with EN 60601-2-52. They prevent and avoid the risk of injuries caused by accidental falls through high side coverage and components with adequate gaps to avoid entrapment of body parts of patient carers.

URGENT ACTION

Emergency Procedures

Emergency functions such as CPR and Shock are not affected by Selective Lock functions, allowing rapid intervention in any situation. Present on the controls of the guard rails, supervisor or standing, it is possible to assist patients in cardiac arrest or hypovolaemic shock, with the press of a single key.

Manual CPR

The bed has bilateral emergency folding handles in the back section for cardiopulmonary resuscitation manoeuvres. They are located at the apexes of the back section for easy access and use.

INCREASED MONITORING

Selective Lock

The electrical functions of the bed can be selectively deactivated for reasons of functional convenience or safeguarding the patient’s health. The exception being emergency functions, which are not affected by Selective Lock. Locks are available on the supervisor control and/or on the external controls of the side guard rails. They are indicated by an illuminated padlock, locking all motors that the selected function activates.

EASIER TRANSPORT

TENTE Wheels

High-quality German brand Tente wheels, Ø150 mm, single or double-band ABS-faired.

Fifth Wheel

System that improves the manoeuvrability of the bed in tight spaces by rotating 360º on a vertical axis. For travelling in a straight line (driving position), the actuation is carried out on the brake pedals in the directional lock position, making it unnecessary to incorporate a dedicated pedal. Ø150 mm wheel.

SAFE STOPS

Centralised Braking

Bed equipped with 2 brake pedals, at the rear corners of the bed, with centralised effect and directional lock. As an option, it can be supplied with a cross-brake bar.

Brake Alarm

Available as an option, it is activated when the bed is unlocked without first removing the plug from the building’s power socket.

SMOOTH MOVEMENT

Cable Clip

Power cables damaged by transport is one of the most frequent malfunctions in electric hospital beds.Matrix E50 is equipped with a helicoidal orange coloured cable and a convenient portable cable holder to fit on top of the head panel. In addition, the cable is fixed to the bed frame preventing damage to the electrical assembly.

Batteries

2.4Ah Lithium battery module to keep the bed operational when disconnected from the power supply. When connected to the power supply, it electronically manages the charging, making it unnecessary to disconnect the power socket once the batteries are charged. Certified with electrical surge protection and antistatic wheel option. This function considerably reduces the maintenance costs of the bed.

Zero Gap

Although resistant when locked, the side guard rails carry handles that are easy and quick for the health care provider to operate, but provide reassurance against improper or accidental use.When folded down, they fold out from under the bed. This allows a stretcher to be placed against the bed and the patient to be safely transferred, facilitates patient entry and exit and does not disturb medical interventions.

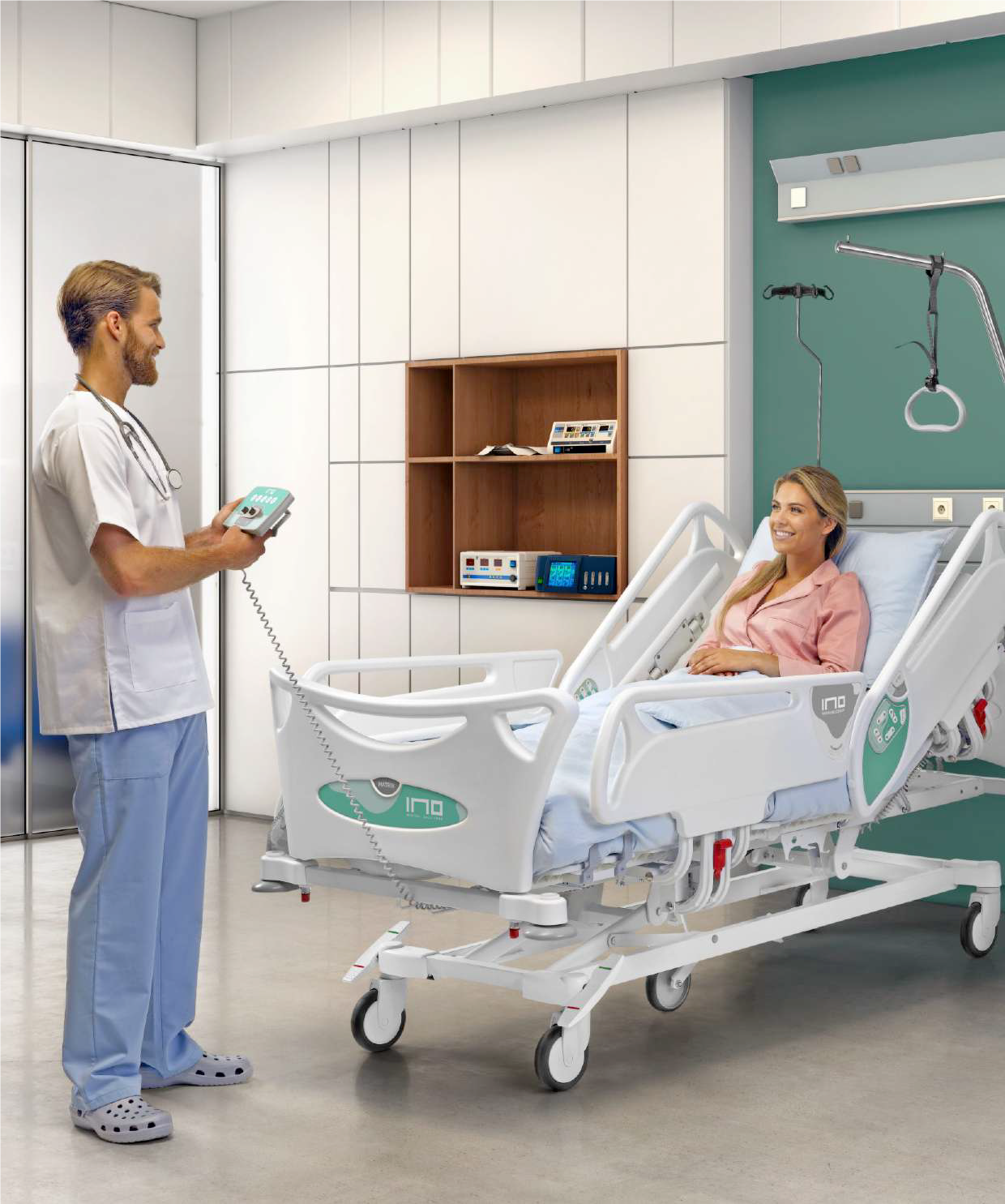

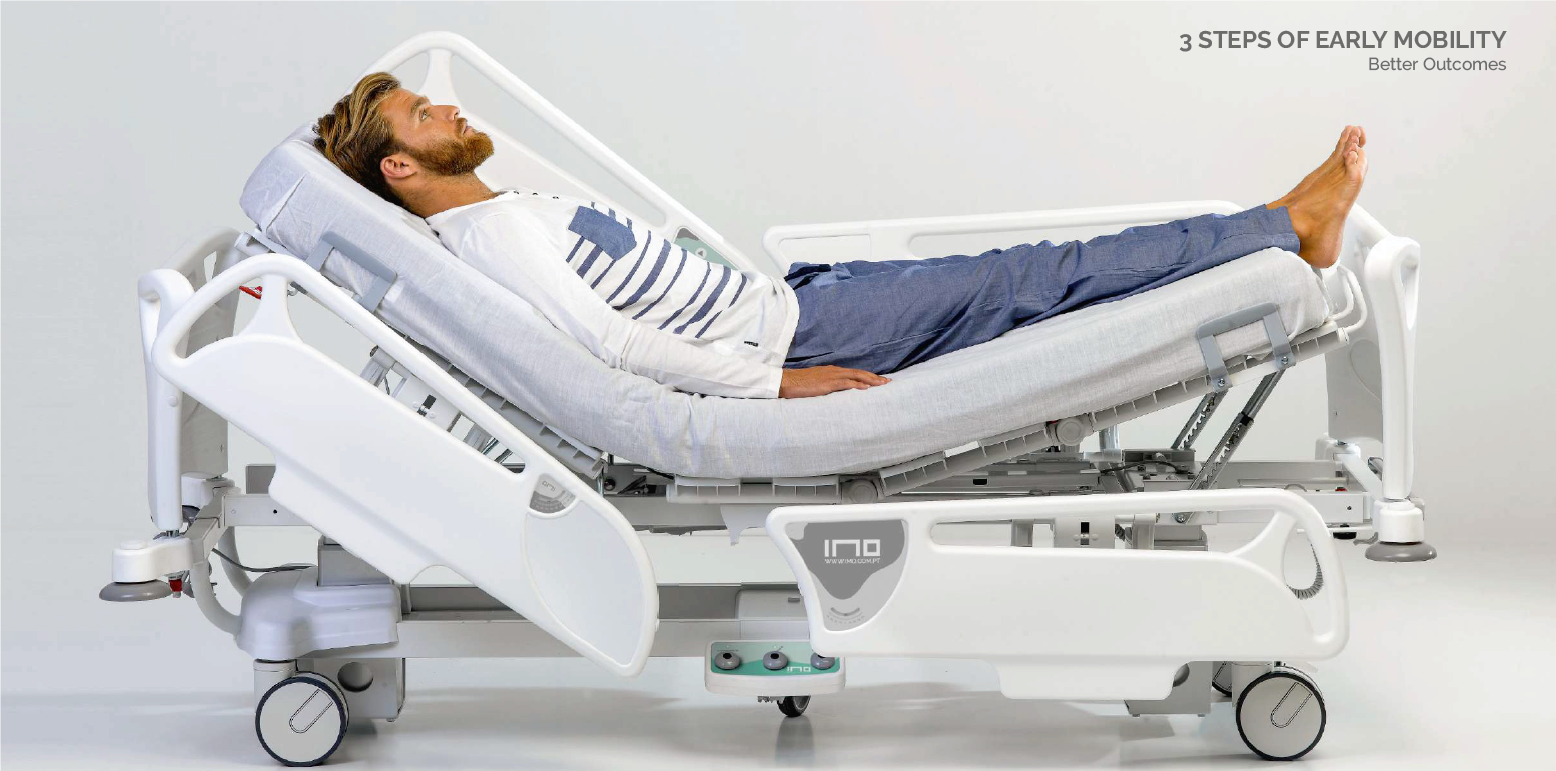

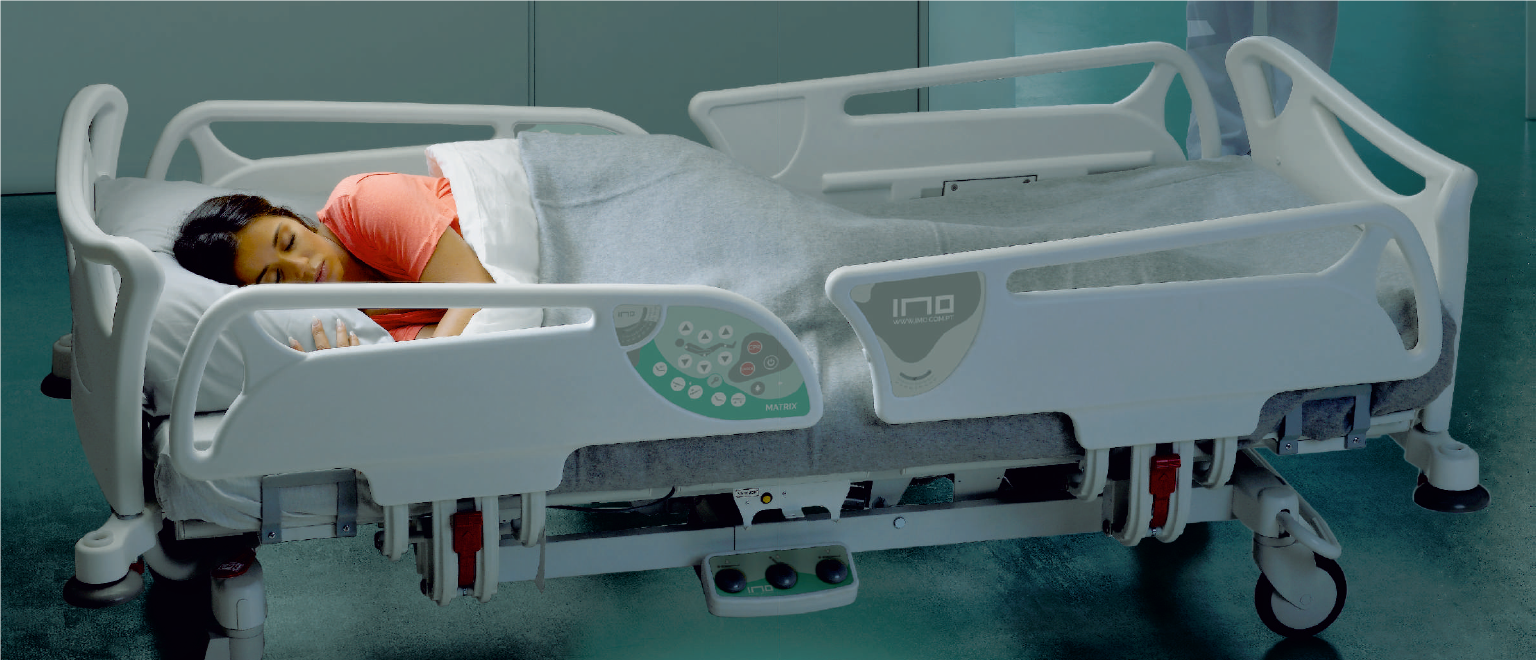

Matrix E30

The robustness and reliability of the whole system provide the necessary peace of mind for effective healthcare, with therapeutic functions enhanced by programmed Contour and Cardiac Chair movements to reduce patient hospitalisation.

Handset Control

Highly shock resistant. Powered by an extendable helical cable.

Allows the following positions: • Back and Legs • Height • Auto Contour • Trendelenburg and Reverse

Nurse Control

Located in a drawer at the foot of the bed and recessed in the foot of the bed panel. With selective locks as protection against accidental or improper use. Powered by an extendable helical cable.

Equipped with LED to indicate: • Battery state • Selective lock

Allows the following positions: • Height • Cardiac Chair • Shock • CPR.

Foot Controls

Used bilaterally, it makes it possible to position the bed with hands free for more effective treatments.

Allows the following positions: • Height • Cardiac Chair • CPR

Built-in Controls

Integrated in the upper side guard rails, they are composed of 2 caregiver and 2 patient controls.

Allows the following positions: • Back and Legs • Height • Trendelenburg and Reverse.

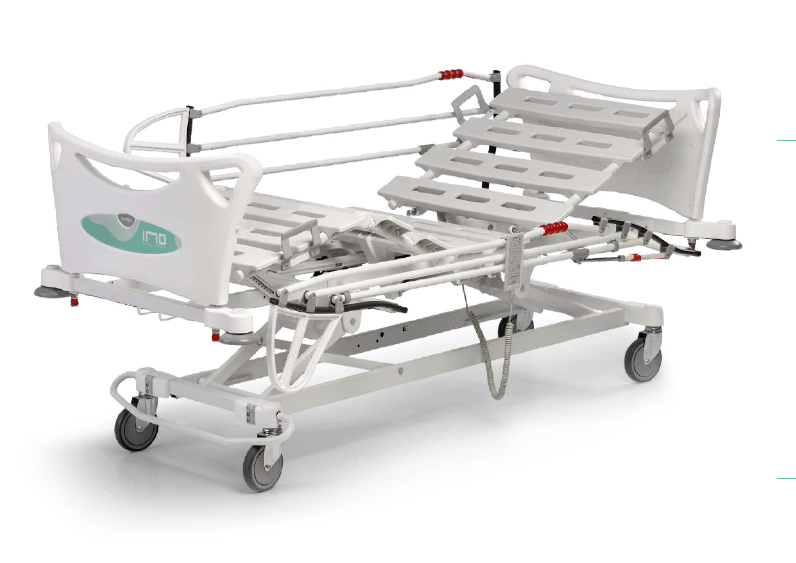

Matrix E20

The robustness and reliability of the entire system provide the necessary peace of mind for effective care, with therapeutic functions enhanced by programmed Auto-Contour and Cardiac Chair movements to reduce patient hospitalisation.

Self-Confidence

An important factor in reducing the length of hospital stays is the recovery of the patient's confidence in their motor skills. The bed has features designed to help with this task, such as the Auto Contour, which helps you sit up without fear of slipping, the design of the side rails, which double as support when getting out of bed, or the reduced height of the bed. Built-in and nurse controls not available as standard on E20 version.

Mattress Platform

The bed frame consists of 11 modular components made of plastic (PPC) or 4 phenolic panels (HPL). All the components can be extracted for cleaning using a quick-lock system.

Infection control

The head/foot panels and the split side rails are produced in HDPE medical, a material with great capacity for hygiene and disinfection, durability and high resistance to shock. The panels are vertically removable and have lockers for transportation.

X-Ray Cassette Holder

Matrix E20 has the option of incorporating an X-ray cassette holder in the back section. The cassette-holder is telescopic and of total extraction out of the back area of the bed, covered by a panel in phenolic (HPL). It has adjustment rulers for various cassette sizes, brands and models.

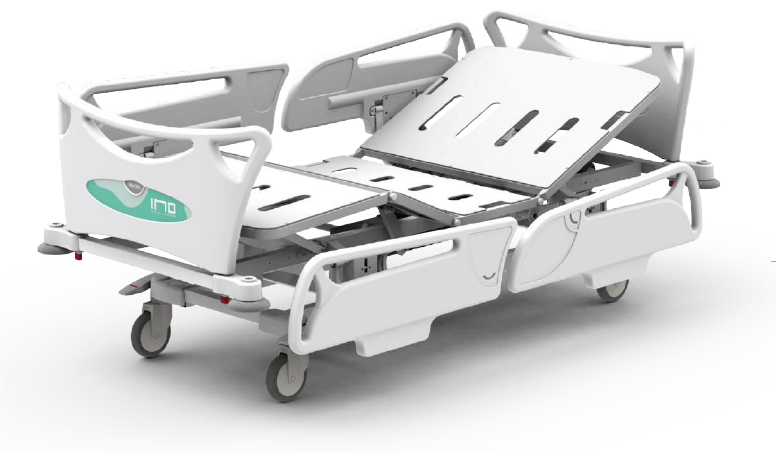

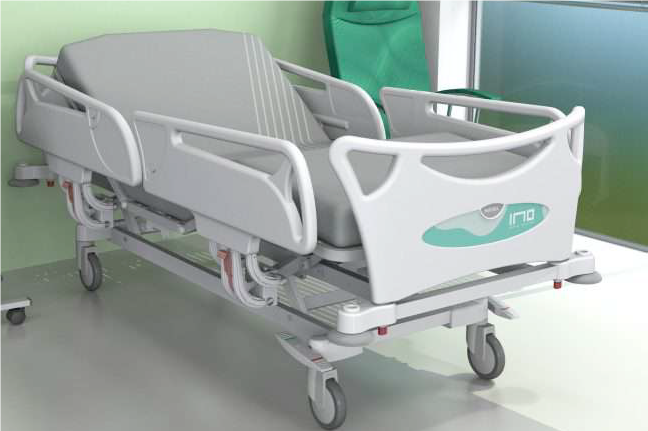

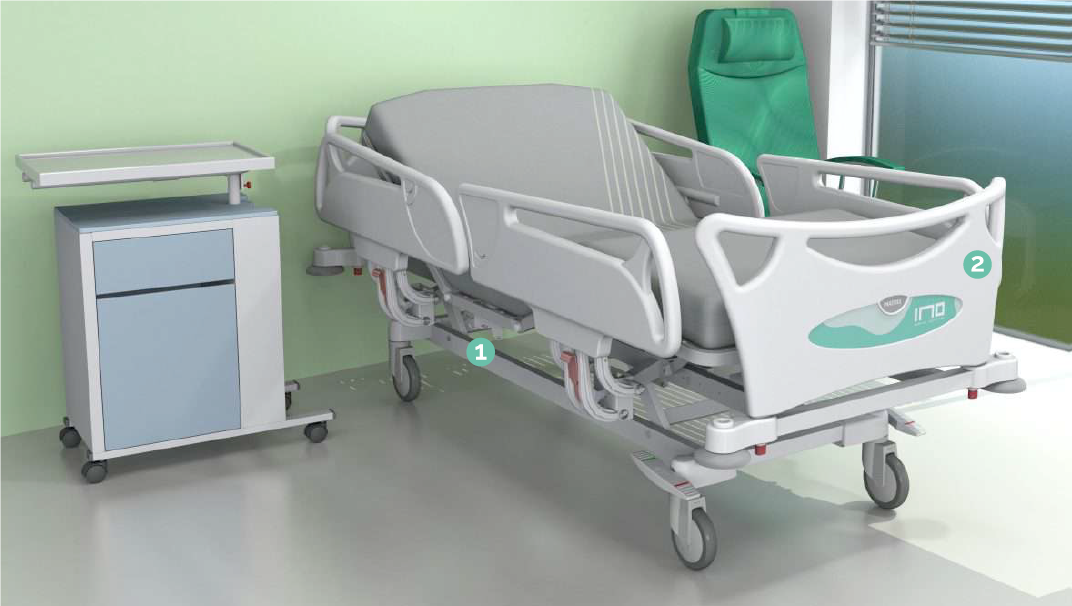

Luna

The robustness and reliability of the entire system provide the necessary peace of mind for effective care. With simple electrical functions, the Luna hospital bed is inserted as an economical alternative in order to create affordable quality health.

Handset Control

Portable control powered by an extendable helical cable. Allows the following positions: • Back • Legs • Auto Contour • Height

Rails Lock

Both side rails options are fitted with safety handles. These are in a place that is difficult to access for the patient, but are very ergonomic for healthcare professionals.

Endboards Lock

The bed end panels have buttons to block their removal, ensuring safer transport for patients and caregivers. May not be included at the customer's request.

Auto Contour

Bed Height Shock Adjusts the height of the bed platform through electrically articulated trapezoidal arms. With a 420 mm lifting stroke, it allows positioning the patient for ergonomic medical interventions for the healthcare professional. It performs automatically, by the activation of a single button, the Shock by rasing the leg and foot sections in sync. Used to reverse hypoxic episodes in vital organs. Automatically performs, by the activation of a single button, the position of Auto Contour, raising the leg and back sections in sync. Ensures a correct patient positioning when raising his back.

Bed Height

Shock Adjusts the height of the bed platform through electrically articulated trapezoidal arms. With a 420 mm lifting stroke, it allows positioning the patient for ergonomic medical interventions for the healthcare professional.

Schock

It performs automatically, by the activation of a single button, the Shock by rasing the leg and foot sections in sync. Used to reverse hypoxic episodes in vital organs.

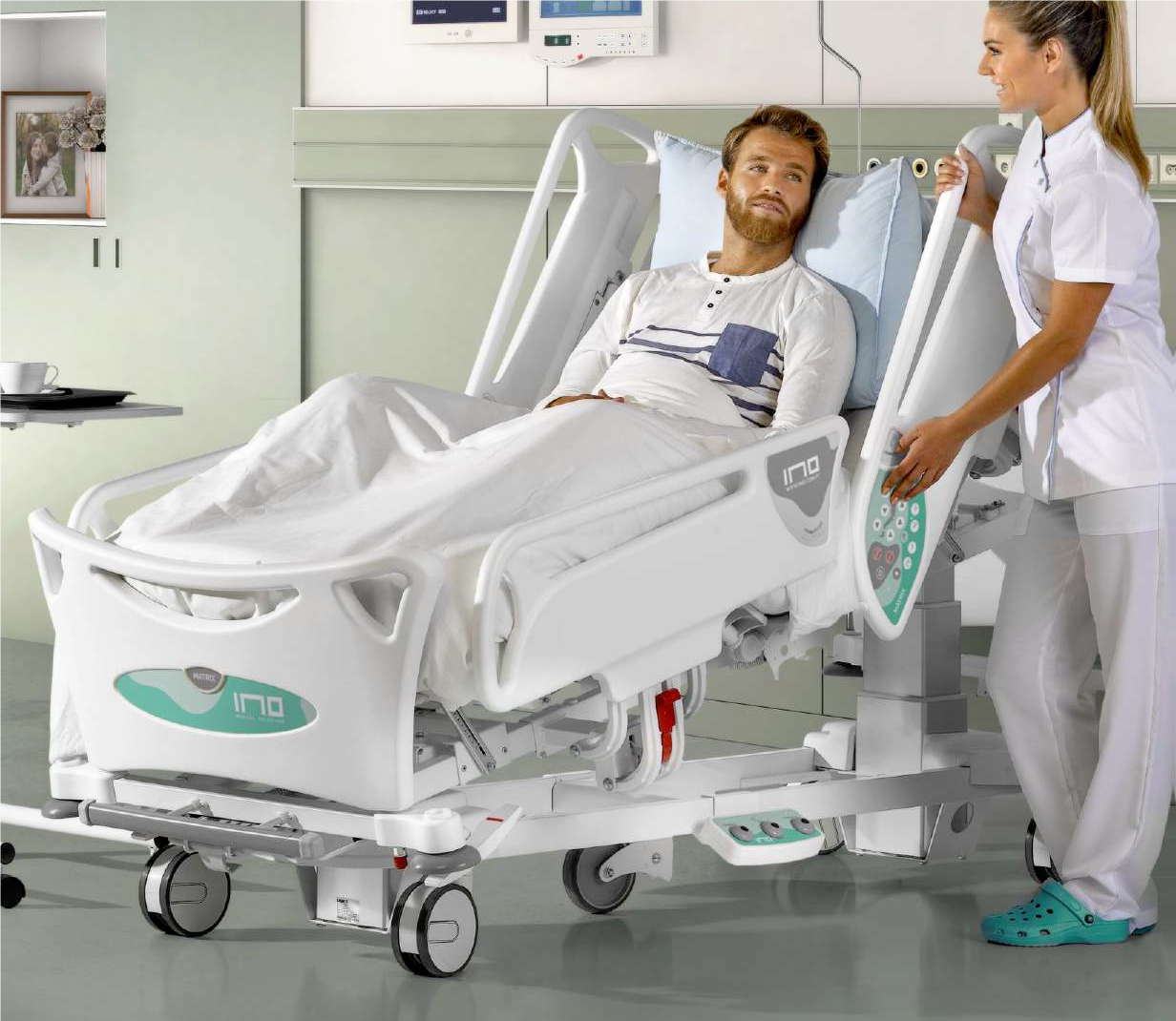

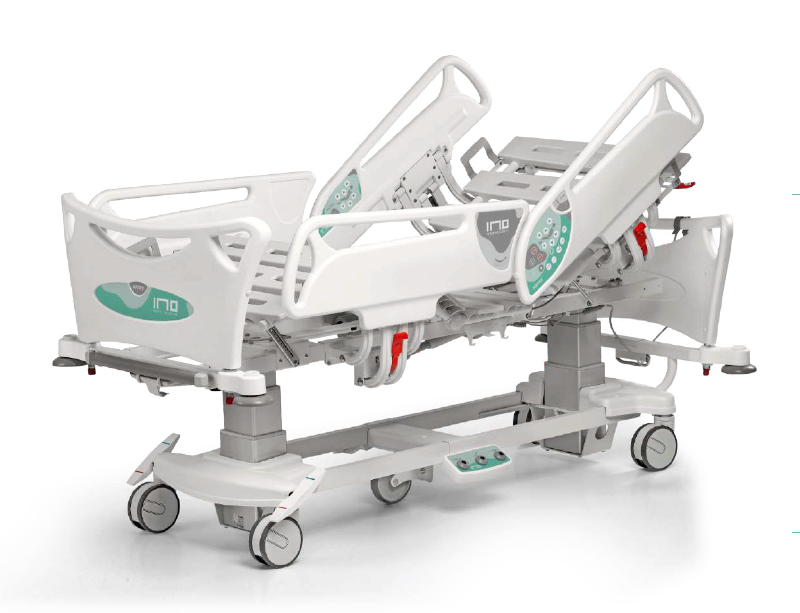

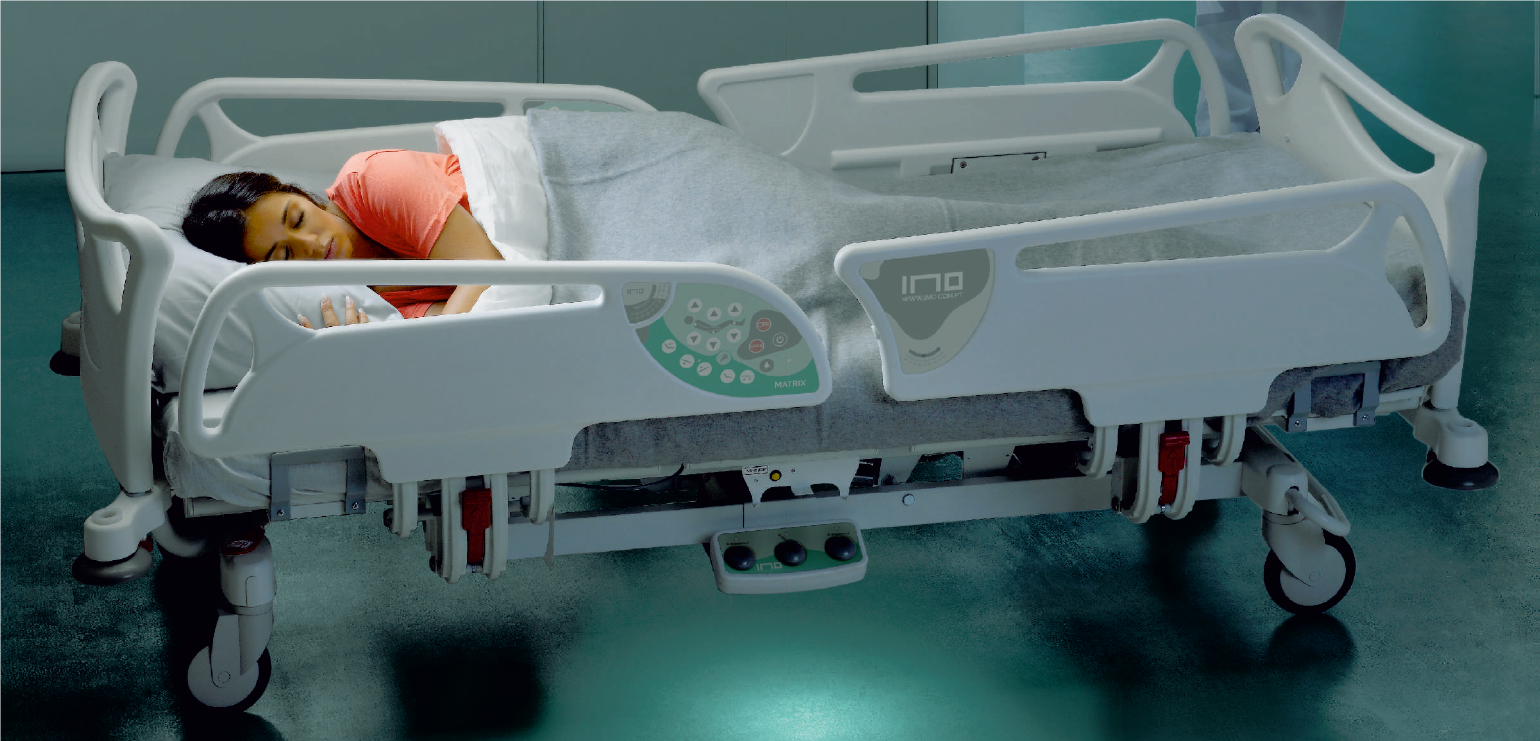

 Matrix E60

Therapeutic functions accentuated by programmed Contour and Cardiac Chair movements allow early patient mobilisation, while the Matrix E60's multi-point emergency controls increase the speed and precision of medical interventions.

Handset Control

Highly shock resistant. Portable control powered by an extendable helical cable.

Allows the following positions: • Back and Legs • Height • Reverse Trendelenburg • Cardiac Chair • Examination • Rest

Nurse Control

Located in a drawer at the foot of the bed and recessed in the foot of the bed panel. With selective locks as protection against accidental or improper use. Powered by an extendable helical cable. Equipped with LED to indicate: • Battery state • Selective lock

Allows the following positions: • Back and Legs • Auto Contour • Height • Trendelenburg and Reverse • Cardiac Chair • Examination • Shock • CPR

Foot Controls

Used bilaterally, it makes it possible to position the bed with hands free for more effective treatments.

Allows the following positions: • Height • Cardiac Chair • CPR

Built-in controls

Integrated in the upper side rails, they are composed of 2 caregiver and 2 patient controls. Activation by GO button and selective locks as protection against misuse. Equipped with LED to indicate: • Battery state • Selective lock • GO button

Allows the following positions: • Back and Legs • Height • Trendelenburg and Reverse • Cardiac Chair • Examination • Shock • CPR • 30º Back • Night Light

Double Autoregression

The articulation of the mattress platform (back + legs) causes harmful muscular pressure in the abdominal and lumbar areas.. By lifting the back and leg articulations, they simultaneously perform a synchronised horizontal glide.

Pressure Ulcer Prevention

The double autoregression of the back and leg articulations causes decompression and relief of the sacroiliac area, a critical point in the development of pressure ulcers.

Night Light Matrix

E60 model has a night light option that facilitates patient orientation in lo w light environments. Bicoloured light, it changes its colour when at minimum height, thus allowing a quick check whether the bed is in the safe sleeping position.

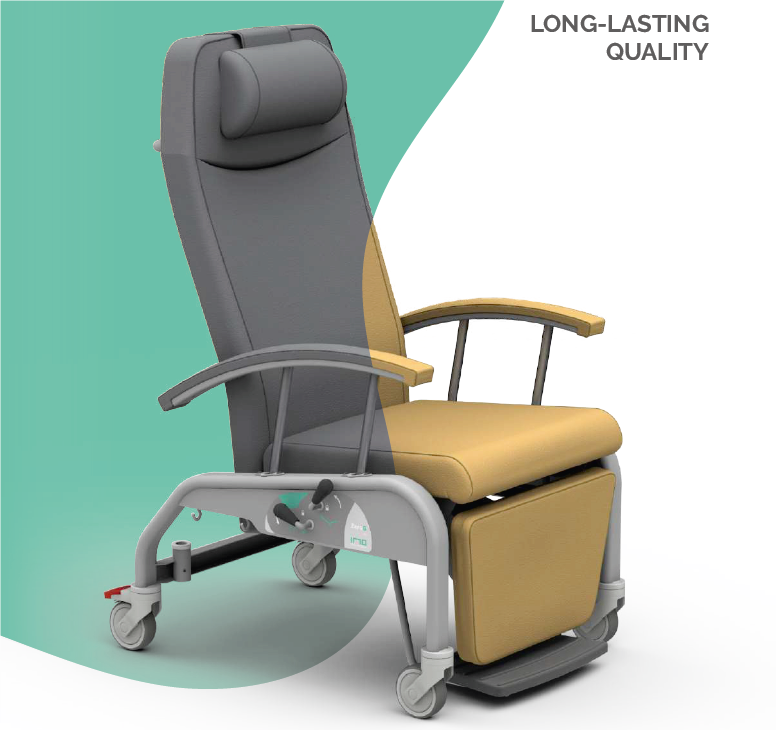

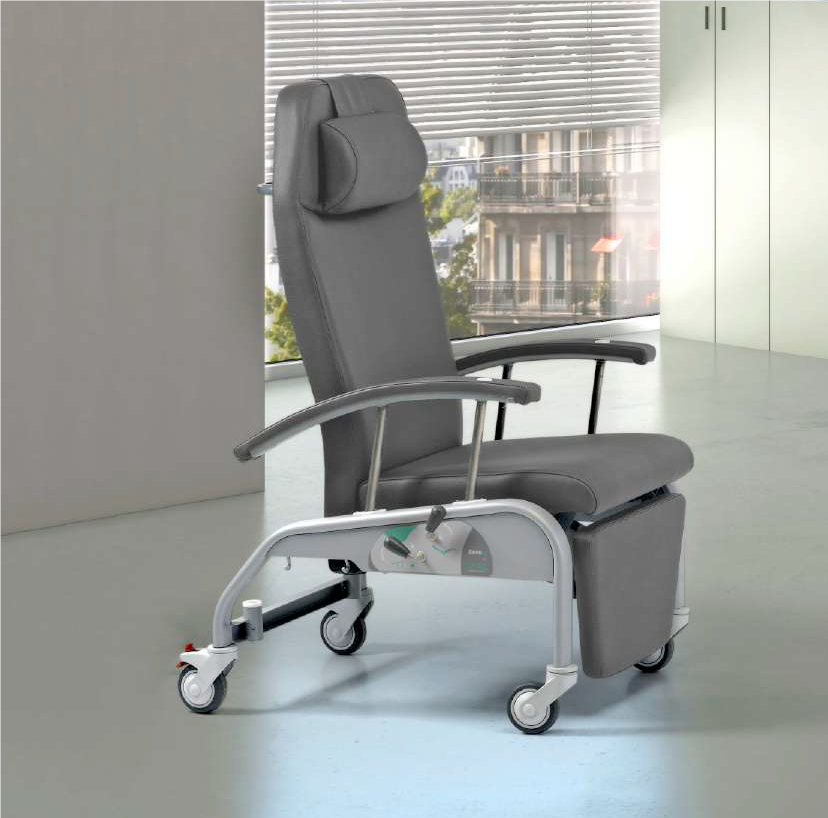

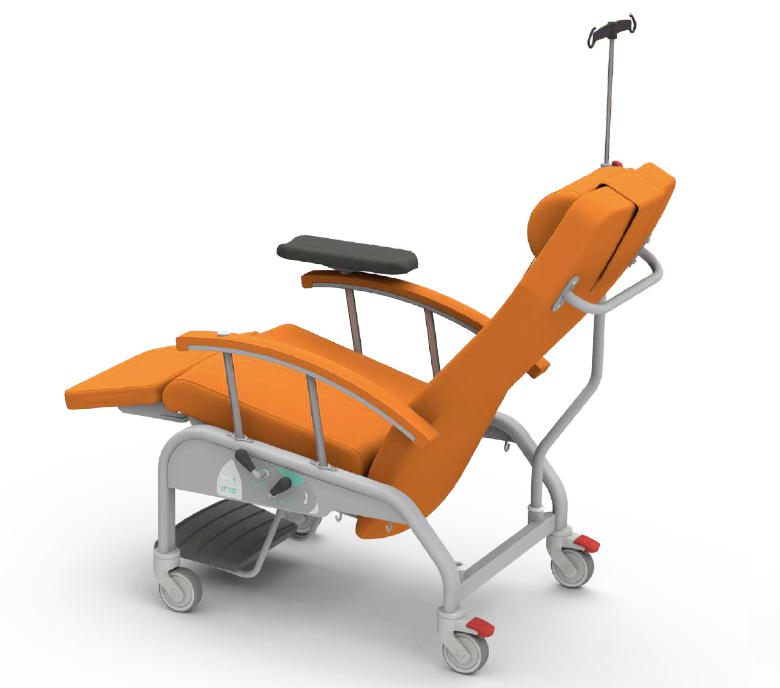

Zero G

The agility and reliability of the whole system provide the necessary peace of mind for the effective management of outpatient units, with therapeutic characteristics accentuated by positioning in zero gravity, reducing hospitalisation and increasing patient comfort.

Transport

The high functionality and manoeuvrability of this system make Zero G a highperformance patient chair for transport and relaxation, ideal for various healthcare services, from smalldialysis centres to large hospitalunits Conceived as a product to help in hospital management, specifically in the connection between health units.

This is a chairdistinguished byits high mobilityin any situation without neglecting the patient's comfort from the wards to treatment areas such as dialysis or surgeryunits.

Zero Gravity

Adjustable reclining of the back, seat and leg sections, in a proportion favourable to body relaxation. Ensures body relaxation for patients recovering after surgery.

Legrest

Independent and adjustable reclining leg section. Ensures comfort for patients with loss of mobility in the lower limbs.

Transport

Lifting of armrests and sliding of the telescopic footrest with antislip texture. Ensures comfortable and undisturbed movement of patients.

Transfer

Adjustable reclining sections and independent folding of armrests. Ensures the smooth transfer of patients to and from the seat.

Versatile Ergonomic

Between Zero G Uno and Duo versions, it is possible to choose synchronised or independent back and leg movements, opening up a range of applications depending on the hospital environment where it is inserted.

The Zero G's armrests, besides their function of resting the patient itself, also prevent and avoid the risk of injuries caused by accidental falls, through a high lateral coverage and a profile that accompanies the reclining of the seat and backrest.

Fall prevention

The Zero G's armrests, besides their function of resting the patient itself, also prevent and avoid the risk of injuries caused by accidental falls, through a high lateral coverage and a profile that accompanies the reclining of the seat and backrest.

Zero gravity position

Zero G is based on the concept of neutral body posture, achieving the most ergonomic and relaxing posture for the human body.

A synchronous articulation of back and seat in a determined proportion and inclination, simulates the conditions of microgravity and the respective absence of atmospheric pressure, maximising musculoskeletal relief.

This positioning technique applied to patients in hospital treatment provides an extraordinary rehabilitation and rest therapy.

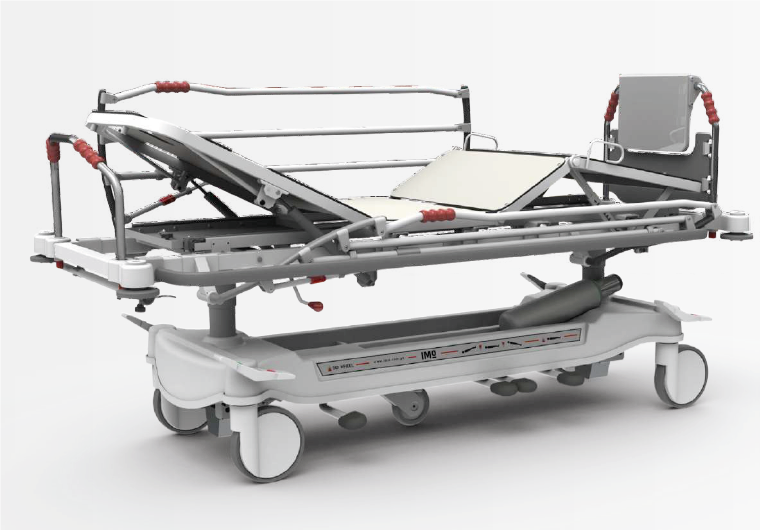

Trendy

With the manoeuvrability that hospital E&A require combined with the therapeutic characteristics that patients need for a rapid recovery, the Trendy transport stretcher is an important ally to the care provided in any outpatient hospital

Multi-Functional Stretchers

The Trendy has been developed with adaptability and safety in mind. A resistant stretcher that protects the patient in any hospital environment, it remains useful in any outpatient unit or hospital through functionalities to aid medical procedures and practical accessories for various clinical situations.

Robust Architecture

Structure prepared against wear and tear and shocks, with a system of lifting and tilting the bed by 2 hydraulic columns controlled by bilateral pedals. Lifting stroke 565-885 mm and maximum patient load of 350 Kg.

Treatment Stretcher

With articulation of the back, legs and feet sections, this version allows placing the patient in medical and therapeutic positions which are essential for patients in recovery situations or for minor interventions in day hospitals.

It can be complemented with a foot panel with tray and document holder for filling in and storing medical records, as well as an optional X-ray cassette holder across the entire length of the mattress platform.

E&A Stretcher

With only the articulation on the back section and a simple frame on both stretcher ends, this model, which is focused on emergency units, speeds up the movement of patients without complicating environments in which the speed of interventions is the most important thing.

It has features that make transport easier, such as the attachment for the IV pole, the base for storing objects or the optional 5th wheel.

Medical Positions

Trendy is equipped with positioning functions for the mattress platform sections which, combined with columns adjustment, make it possible to place patients in medical positions for treatments and therapies.

The backrest is tilted by two gas springs that help support the patient's weight, while the leg and foot sections are raised synchronously via a multipoint rack.

Differentiating accessories

Trendy stretcher has the option of incorporating accessories and extras important for various areas of care linked to ambulatory patients, from intravenous therapy to radiology, among others. One example of this is the X-ray cassette holder in a transversal drawer along the entire length of the mattress platform, which is radio-transparent in phenolic (HPL). It is completely extractable from the head end and has rulers for adjustment to various cassette sizes, brands and models.

Frame Adjustment

Trendy's frame height movements are regulated hands-free. It has one pedal to raise both hydraulic columns and two pedals to lower the columns individually. The lowering pedals can be pressed simultaneously to lower the frame or individually to regulate the Trendelenburg and Reverse positions.

Hands-Free

In addition to the bed adjustment pedals, Trendy incorporates more features that free the hands of healthcare professionals for emergency situations that may arise. The base of the stretcher doubles as storage for other smaller medical devices or for the patient's personal belongings, and the headboard has a slot for the IV stand. The treatment version also includes a bed base with document holder.

Resistant to Cleaning

Trendy stretcher is built with a stainless steel metallic structure or with anti-corrosion and electrostatic epoxy paint. It resists hospital cleaning and disinfection with alcohol-based detergents and soaking with damp cloths of lukewarm water. The mattress platform is made up of unique components in phenolic (HPL).

Self-Lubricating Components

All the articulated components of the stretcher are composed of selflubricating components, preventing failure of operation at critical times and drastically reducing maintenance costs.

Fall Prevention

The side rails meet the EN 60601-2-52 standard through components with adequate spaces to avoid entrapment of body parts for patients and caregivers. High vertical coverage and a wide opening at the foot of the bed reduces the risk of injuries caused by accidental falls and prevents patients from stepping over the railings during disorientation episodes.

Lock for Transport

In addition to the side guard rails, the endpanels also have locks, created specifically for moving the stretcher safely. They should only be locked during transport, so that it is possible to remove the panels in an emergency.

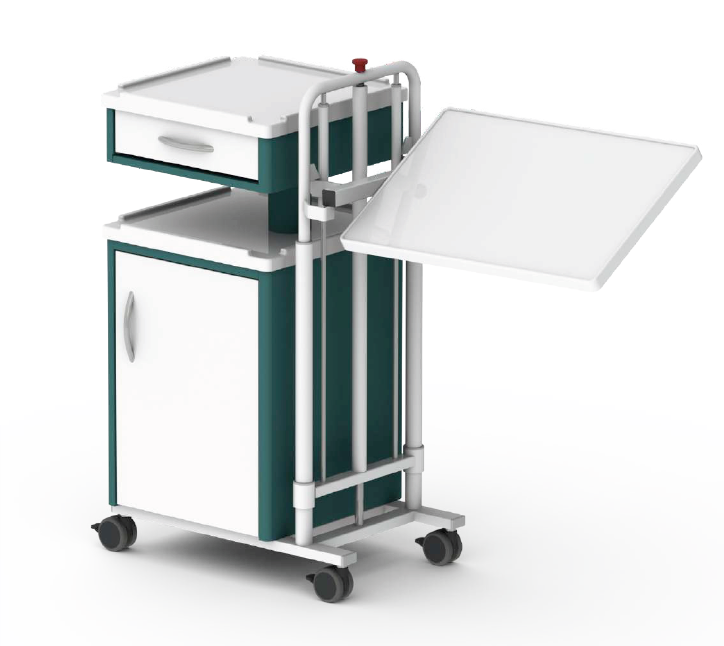

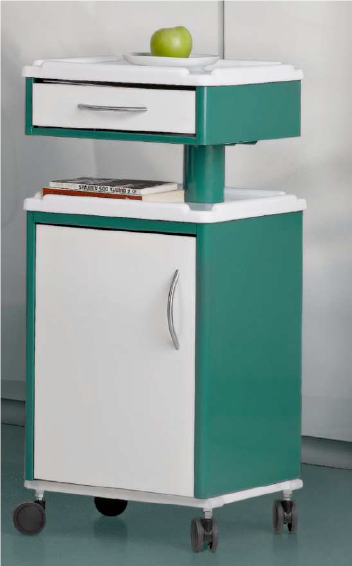

Wally

With the purpose of harmonising wards, Wally side tables are excellent companions for IMO beds. Reliable and durable, these tables complement the patients’ needs in carrying out activities and using and storing their personal belongings.

Metallic structure, doors and drawer fronts in melamine and ABS tops. Overbed table with gas spring lifting, with lifting stroke from 775-1025 mm.

One-hand Adjustment

The same quality parameters applied to IMO beds are universally used in the construction of all other products and components. This becomes apparent in the handling of the Wally cabinet, with its smooth movement and one hand adjustable tray.

Prestige Range

In both the versions with and without meal tray, Wally tables stand out for their robust construction and functionality. With metal structure and three ABS tops, a cornerless table is designed to prevent injuries and improve cleanliness. Wally as a whole, is designed to meet the needs of patients and carers in any hospital situation.

Folding

Tray folds down vertically with just one hand. Used for storage when not in use.

Lifting

Tray with 775-1025 mm lifting stroke and locking handle at desired height. Used by the caregiver to improve patient comfort.

Reclining

Tray tilts bilaterally 40º, with horizontal locking. Used by the patient to facilitate reading in bed or other activities.

Early mobility

Simple and lightweight, the patient can easily adjust the cabinet against the bed by itself. The smooth opening of the door and drawer to both sides helps access stored items, holder is very easy to access.

Infection Control

No hard-to-reach corners to prevent the accumulation of dirt and the interior with a removable shelf and a plastic bowl, making deep cleaning possible, further enhanced by openings in the top corners.

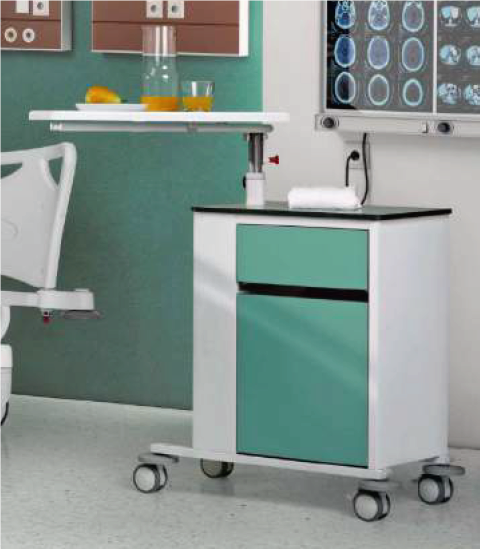

Combi

Aimed at harmonising wards, Combi side tables are excellent companions for IMO beds. Reliable and durable, these tables complement the patients’ needs in carrying out activities and using and storing their personal belongings.

Epoxy painted metallic structure, with finishing options for tops and doors of lasting quality. Overbed table with gas spring lifting option, with a lifting stroke of 960-1200 mm.

For any situation

Combi support tables offer combinations for every situation. From the simple cabinet with ample storage space and a bottle rack, to the overbed table to facilitate the activities of the bedridden, or to the combined table with storage and tray. The range as a whole is designed to meet the needs of patients and carers.

Transversal quality

The same quality parameters applied to IMO beds are universally used in the construction of all other products and components. This becomes apparent in the options that are available for the tables. From phenolic (HPL) to ABS plastics, all finishes have an ideal purpose and situation where they should be applied.

Rotating

Tray rotates 360º with axis in the support frame and stops at various angles. Used by the patient to mo ve a w a y after use.

Lifting

Tray with 960-1200 mm lifting stroke and locking handle at desired height. Used by the caregiver to improve patient comfort.

Extending

Tray slides up to 210 mm horizontally. Used to compensate for bed width and centre tray with patient.

Reclining

Tray tilts bilaterall y 20º, with horizontal locking. Used by the patient to facilitate reading in bed or other activities.

Early Mobility

Simple and lightweight, the patient can easily place the cabinet against the bed by itself, as it has no handles. The smooth opening of the door and drawer to both sides helps access stored items, and the bottle holder is very easy to access.

Infection Control

Combi’s simple, minimalist design makes cleaning tasks easier. While the tray and bottle holder with rounded corners prevent the accumulation of dirt, the interior features a removable shelf and plastic cuvette for thorough cleaning.

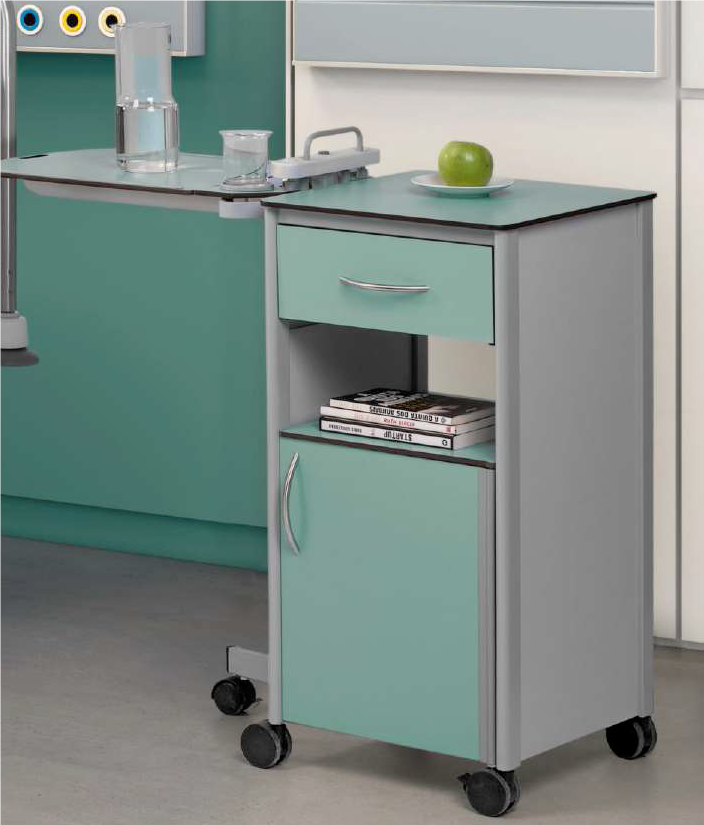

Adapta

In order to harmonise the wards, the Adapta support tables are excellent companions for IMO beds. Reliable and durable, these tables complement the patients’ needs in carrying out activities and using and storing their personal belongings.

Metallic structure painted in epoxy, with tops, sides and fronts in phenolic (HPL). Overbed table with gas spring lift, with 855-1115 mm lift stroke.

Compact and practical

As its name suggests, Adapta is a table that stands out for its adaptability to any space. Extremely compact, it can be inserted in the smallest spaces, without ever losing the functionality of a high-quality bed table Compact and Practical Adapta as a whole is designed to meet the needs of patients and carers in any hospital situation.

One-Hand adjustment

The same quality parameters applied to IMO beds are universally used in the construction of all other products and components. This becomes apparent in the handling of Adapta, with its smooth movement and easily adjustable tray.

Folding

Tray folds down vertically with just one hand. Used for storage when not in use.

Lifting

Tray with 855-1115 mm lifting stroke and locking handle at desired height. Used by the caregiver to improve patient comfort.

Extending

Tray slides up to 160 mm horizontally. Used to compensate for bed width and centre tray with patient.

Reclining

Tray tilts bilaterally 35º, with horizontal locking. Used by the patient to facilitate reading in bed or other activities.

Early Mobility

Design to increase patient autonomy, the low-profile fifth wheel allows easy fitting of the Adapta cabinet with tray under the bed and the cup-holder independent of the inclination of the tray increases comfort.

Infection Control

The simple and minimalist design of Adapta makes cleaning tasks easier. No hard-to-reach corners to prevent dirt from accumulating and the interior with a removable shelf and plastic tray makes deep cleaning possible.

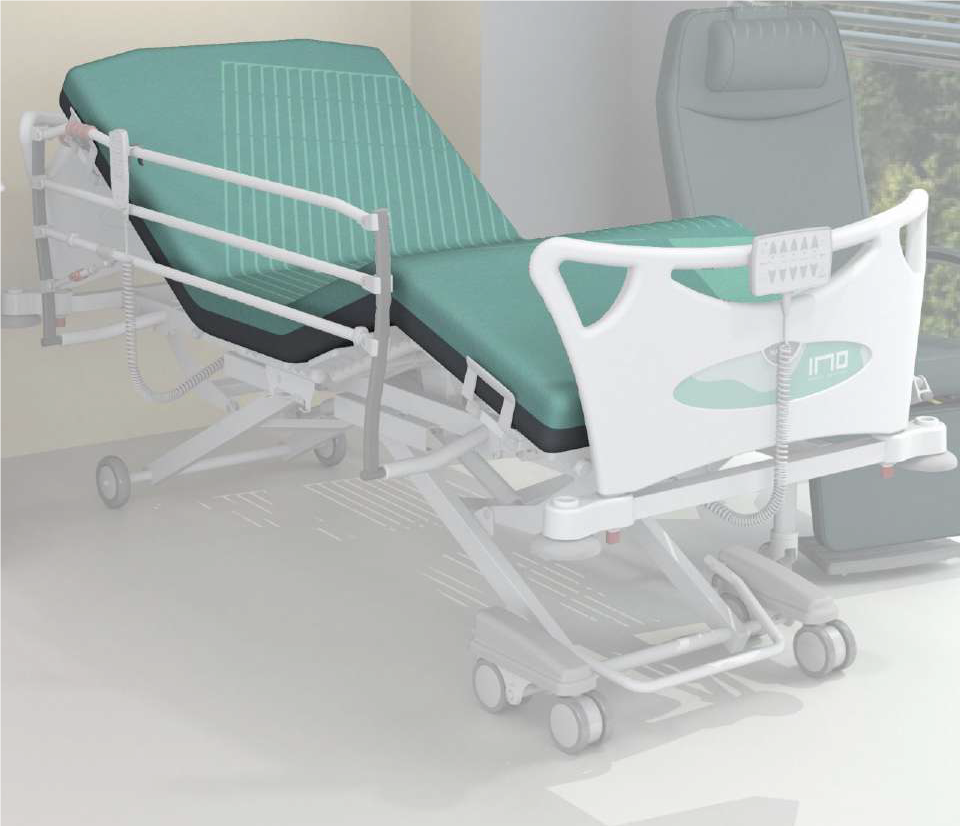

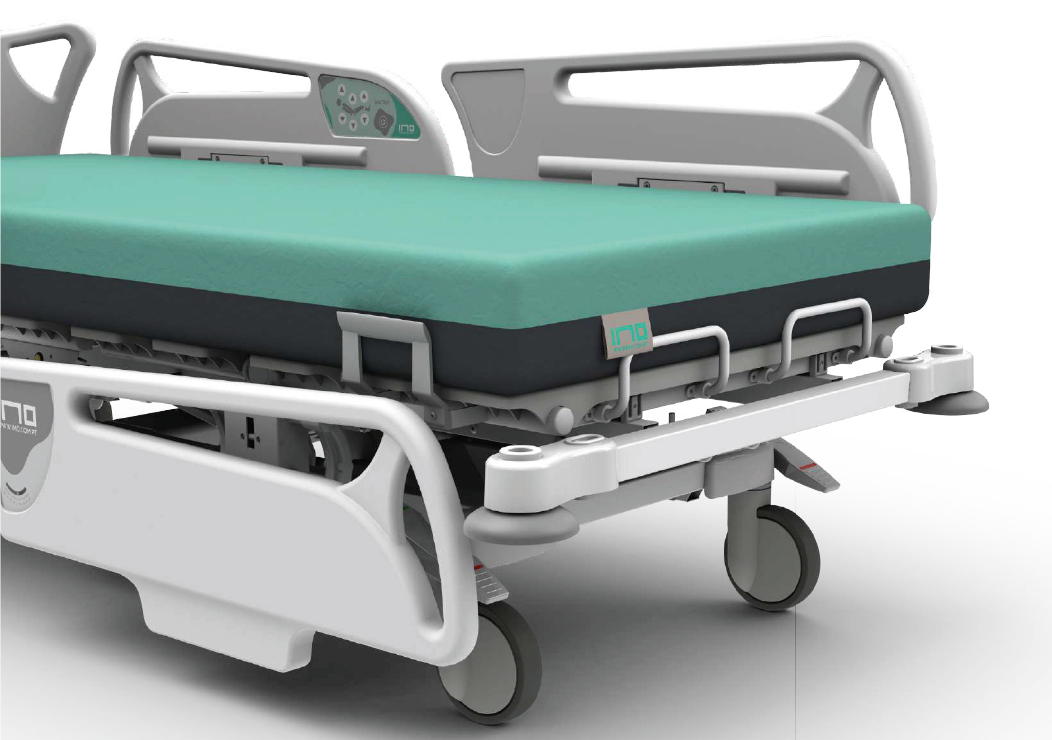

Mattresses

The IMO mattresses were developed to meet the most general needs of patients. Ideal for long recovery periods, they have shapes that not only adapt perfectly to the articulated beds, but also expand therapeutic functionalities.

Bed complement

All IMO mattress models are designed with one fundamental purpose: compatibility with hospital beds, whether on a ward, ICU or other healthcare units. With features designed to increase the comfort of bedridden patients, the combination of IMO mattresses and beds creates hospital environments where patients want to be and professionals like to care.

IMO mattresses include a cover in bi-elastic polyurethane fabric. Very thin and soft, it adapts completely to the joints of the bed.

Medical Positions

Ideal for long recovery periods, the IMO mattresses have shapes that not only adapt perfectly to the articulated beds, but also expand therapeutic functionalities for the bedridden patients.

Risk Assessment

The choice of mattress should take into account the patient's risk of developing bedsores. The mean pressure is an indicator of the mattress' ability to evenly disperse the force caused by patients in decubitus.

Superior quality

The inclination in the foot area and the different foam layers allow for superior endurance, enabling the prevention of bedsores in heavier patients. This highperformance foam provides a feeling of comfort far superior to conventional visco.

Temperature Control

The sectioned structure in conjunction with the characteristics of the foam allows a higher endurance allowing to maintain a prevention of bedsores in heavier patients. This visco foam is designed to remaining soft at 0°C.

Adapted to joints

The slotted structure in combination with the characteristics of the viscoelastic foam allow for optimal pressure alternation, reducing pressure ulcers caused by bed positioning.

Visco comfort

The diamond structure in conjunction with the characteristics of the viscoelastic foam allows a balanced distribution of body weight, reducing skin pressure with the mattress, providing a superior anti-sores effect.
