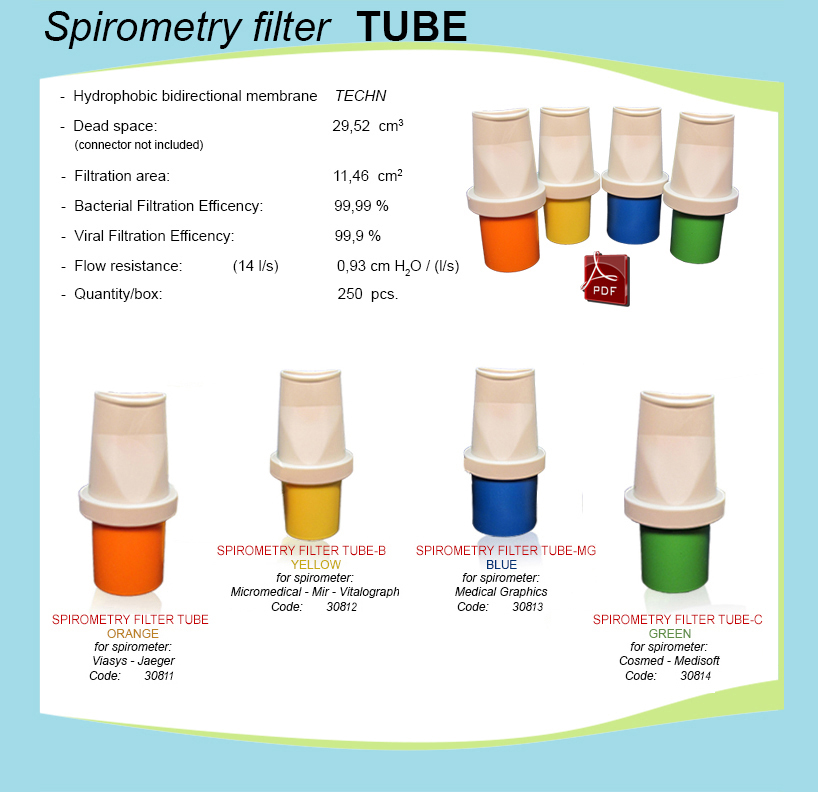

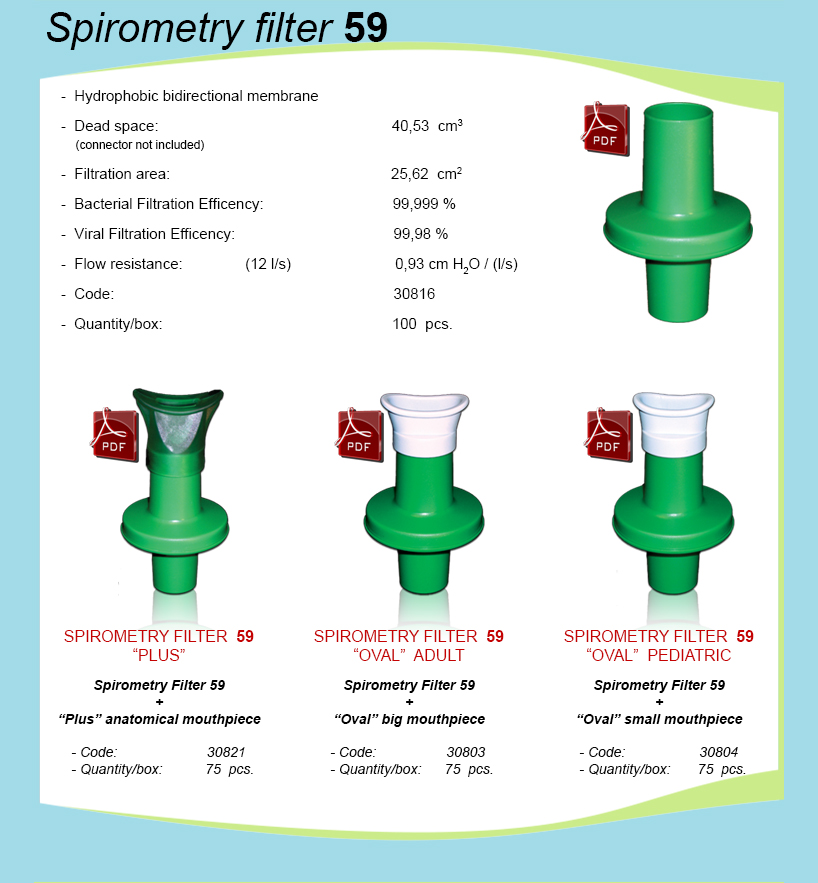

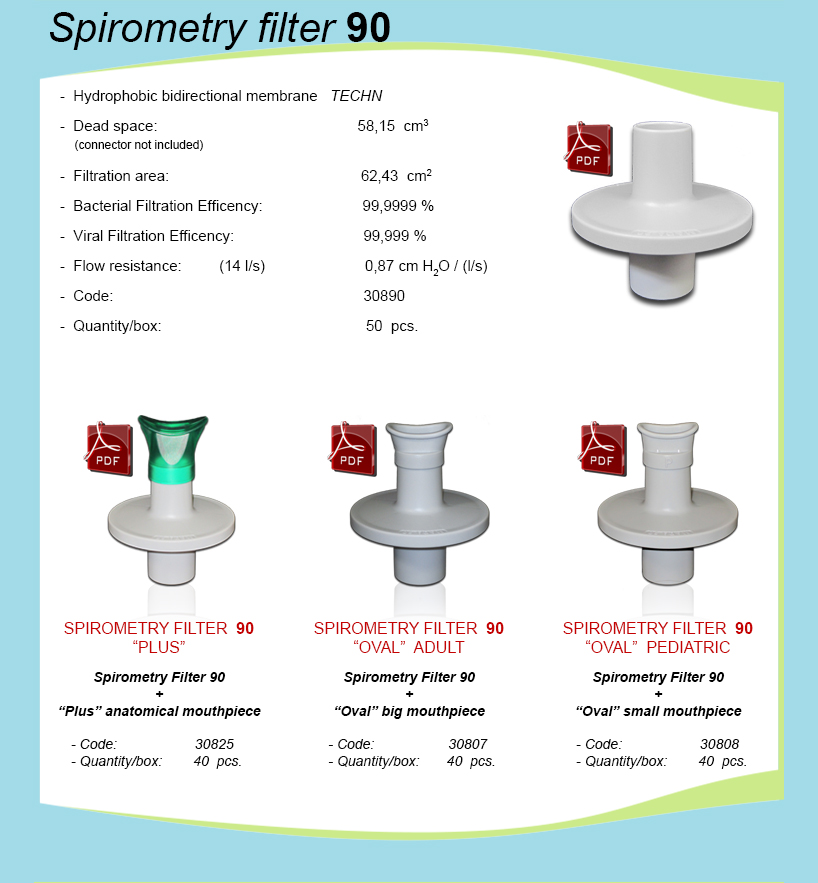

MADA started its operations in 2001. Designing and producing filters showing different characteristics, in order to meet the various needs of its customers. This approach has been a winning choice from a marketing viewpoint. The first property of MADA's filters is: quality. Having carried out tests  by the most important scientific laboratories in the world, CAMR (U.K.) and NELSON Laboratories (U.S.A.) and results obtained confirmed the excellent level and validity of MADA's research and therefore the better quality provided by MADA filters worldwide.  The raw material used for their products come from German, English and Italian companies, and the filters are manufactured exclusively in Italy. Such a high quality is matched with an extremely competitive price. The company has been certified by the Istituto Superiore di Sanità (Italian Department of Health) Class lla - CE 0373 Today MADA can claim to be the Italian leading company in the industry of Spirometry Filters.

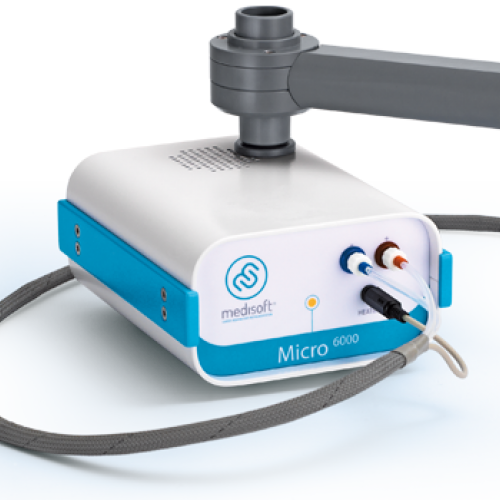

Micro 6000

The MICRO 6000 is an economical choice for basic spirometry, clinical trials or simple office spirometry.

COMPLETE BASIC SPIROMETRY: Including Forced Vital Capacity, Slow Vital Capacity, Maximum Voluntary Ventilation and Minute Tidal Ventilation including bronchochallenge testing software.

-Built-in weather station with automatic reading including pressure, temperature, humidity sensors

-Small, compact system

-High precision, reliable, accurate, and stable gold-standard Lilly heated pneumotachograph with no moving parts

-Low cost of operation and low maintenance

-Expair software suite with complete operator and patient guide included

-Low cost solution. non expandable.

 The MICRO 6000 spirometer an be combined with the following devices:

ECG, FeNO+, FOT Resmon Pro, BodyBox,  HypAir, SpiroAir, Ergocard Professional, Ergocard Clinical.

Technical Specifications

Dimensions: (H x W x D) cm 9 x 15 x 18.6

Weight: ±1.9 kg

Power requirements: 230 VAC50 Hz or 115 VAC60 Hz

Power consumption: ± 10 VA

Interface PC: USB with electrical isolation

Meets all electrical safety requirements: IEC60601-1

CE MDD 93/42/EC, Class IIa

Computer interfacing: Windows 7 Pro / Ultimate/ 8.0 / 8.1 ™

Serial interface USB

AMBIENT CONDITIONS

Temperature: 10 to 35°C

Relative humidity: 25 to 80% (non condensed)

Barometric pressure: No restriction

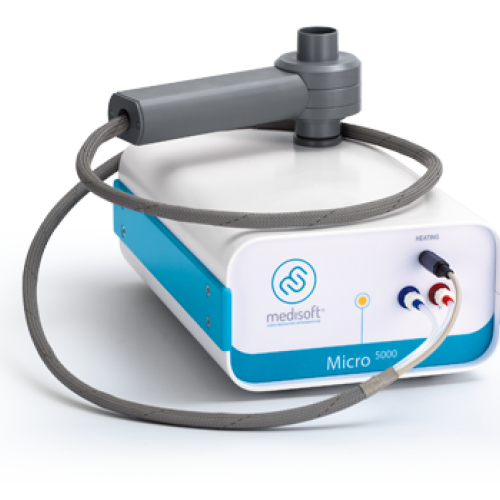

Micro 5000

The MICRO 5000 spirometer is the building block of your pulmonary function lab. A modular desktop spirometry system with reliable and accurate testing in a single, compact device.

COMPLETE BASIC SPIROMETRY: Including Forced Vital Capacity, Slow Vital Capacity, Maximum Voluntary Ventilation and Minute Tidal Ventilation including bronchochallenge testing software.

-Small, compact system

-High precision, reliable, accurate, and stable gold-standard Lilly heated pneumotachograph with no moving parts

-Adult pneumotachograph flow measurement from 0 to 15 l/s

-Low cost of operation and low maintenance

-Multi-flow option: choose additional Lilly pneumotachographs for Pediatrics (0 to 6 l/s) and Newborn (0 to 3 l/s)

-Expair software suite with complete operator and patient guide included.

WITH THE MICRO 5000, ONE OF THE FOLLOWING OPTIONS CAN BE ADDED AT ANY TIME

Bronchoprovocation and Special Resistance Testing:

PROVO4 Provocation System: automated, software controlled, accurate and safe bronchial provocation testing.

RINT: resistance measurement using interrupter technique. Ideal for children.

NEP (negative expiratory pressure): alternative method to detect expiratory flow limitation, which does not require performance of forced expiratory efforts on the part of the patient, or a body plethysmography test.

Respiratory Mechanics Testing:

MIP – MEP (maximum inspiratory and maximum expiratory pressure): indicator of respiratory muscle strength.

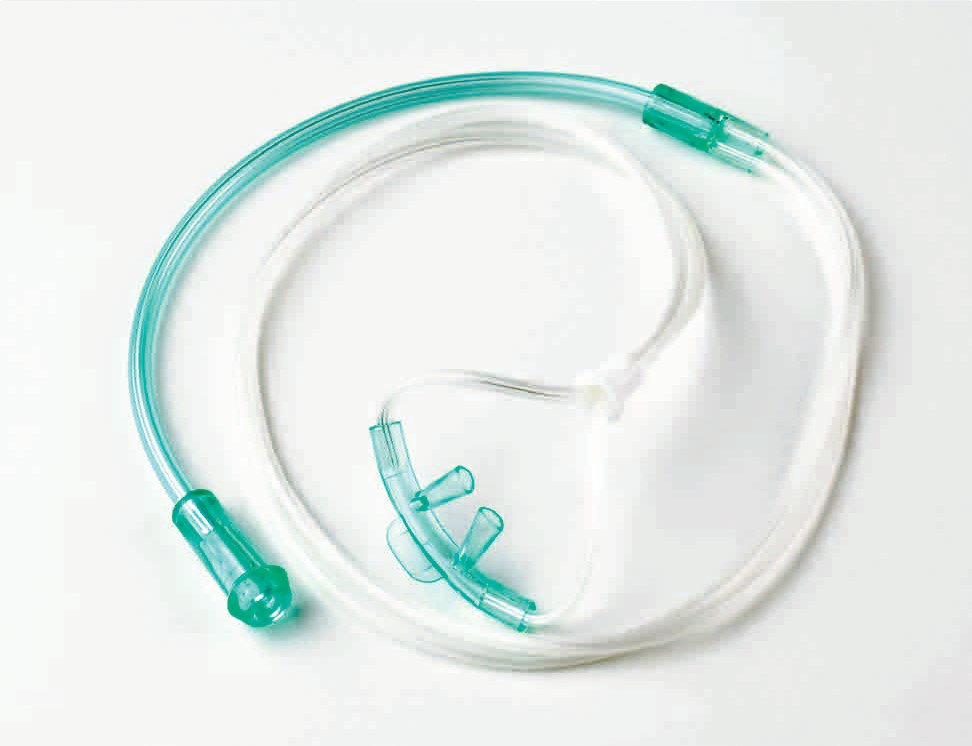

SNIP: maximal nasal inspiratory pressure using a nasal cannula. A non-invasive indicator of diaphragmatic muscle fatigue.

P01: inspiratory occlusion pressure at 0.1 seconds, for respiratory muscle drive evaluation.

Static and dynamic compliance and resistance: measured by intra-oesophageal balloon catheters.

The MICRO 5000 spirometer can be combined with the following devices:

ECG, FeNO+, FOT Resmon Pro, BodyBox,  HypAir, SpiroAir, Ergocard Professional, Ergocard Clinical.

Technical Specifications

Dimensions: (H x W x D) cm 13 x 19 x 29.5

Weight: ±4.2 kg

Power Requirements: 230 VAC/50 Hz or 115 VAC/60 Hz (see device identification label)

Power Consumption: ± 15 VA

Interface PC: Serial RS-232

Meets All Electrical Safety Requirements: IEC60601-1

CE MDD 93/42/EC, Class IIa

Computer Interfacing: Windows 7 Pro / Ultimate/ 8.0 / 8.1 ™

AMBIENT CONDITIONS

Temperature: 10 to 35°C

Relative Humidity: 25 to 85% (non condensed)

Barometric Pressure: No restriction

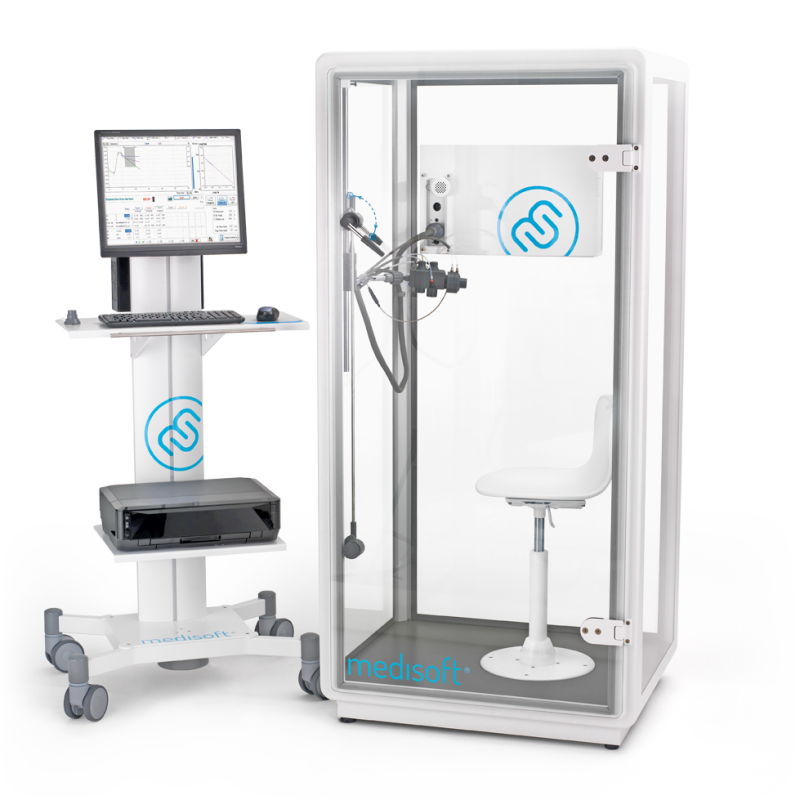

BodyBox

Medisoft's BodyBox offers complete body plethysmograph solutions with accurate spirometry and lung volume measurements for children and adults. The clear glass enclosure ensures maximum patient comfort.

COMPLETE PULMONARY FUNCTION TESTING IN ONE DEVICE

All measurement programs in the BodyBox are controlled by the powerful Expair software. Featured in the standard configuration are the following testing features.

Basic Spirometry: Including Forced Vital Capacity, Slow Vital Capacity, Maximum Voluntary Ventilation and Minute Tidal Ventilation including bronchochallenge testing software.

Absolute Static Lung Volumes: With the standard and accurate Thoracic Gas Volume testing, the BodyBox measures FRCpleth, VC, IC, ERV, RV and TLC.

Airways Resistance Testing: RAW and SGAW

Fast and easy airways resistance measurements is standard with the Medisoft BodyBox. With complete test control, the operator can manage panting and quiet breathing modes and high-quality signal filtering. After the test, review and analysis of the loops is easy with user-selected methods including automatic or manual adjustments.

FOUR CONFIGURATIONS AVAILABLE:

1. Standard internal volume
2. XL
3. XL with handicap access door for wheelchair patients
4. Pediatric

CHOICE OF SIX DLCO OPTIONS

Medisoft is the only manufacturer featuring a choice of six diffusion methods, making the BodyBox the ideal system for all main diagnostic tests.

1. Single Breath with Helium trace gas (He)
2. Rapid Gas Analysis Diffusion (RTD) with single breath using Helium trace gas (He) or Methane trace gas (CH4 )
3. Re-breathing Diffusion with Helium trace gas (He) and using inspiratory bag
4. Intra Breath Diffusion with Cardiac Output (Qc)
5. DLCO-NO dual diffusion method (Trace gas He) (exclusive) with membrane diffusion (DM) and Capillary blood volume (Vc)
6. Steady State Real Time Diffusion TlCO ss (exclusive)

MORE FRC OPTIONS INTEGRATED IN THE CABIN

In addition to the TGV BodyBox method, Medisoft offers an extra FRC method N2 washout (to calculate XX YY), LCI (Lung Clearance Index) and CV (Closing Volume).

ADDITIONAL OPTIONS TO COMPLETE YOUR PULMONARY DIAGNOSTIC TESTING

Bronchoprovocation and Special Resistance Testing:

PROVO4 Provocation System: automated, software controlled, accurate and safe bronchial provocation testing.

RINT: resistance measurement using interrupter technique. Ideal for children.

NEP (negative expiratory pressure): alternative method to detect expiratory flow limitation, which does not require performance of forced expiratory efforts on the part of the patient, or a body plethysmography test.

Respiratory Mechanics Testing:

MIP – MEP (maximum inspiratory and maximum expiratory pressure): indicator of respiratory muscle strength.

SNIP: maximal nasal inspiratory pressure using a nasal cannula. A non-invasive indicator of diaphragmatic muscle fatigue.

P01: inspiratory occlusion pressure at 0.1 seconds, for respiratory muscle drive evaluation.

Static and dynamic compliance and resistance: measured by intra-oesophageal balloon catheters.

The BodyBox can be combined with the following devices:

ECG, FeNO+, FOT Resmon Pro, SpiroAir,  HypAir, Micro 5000, Ergocard Professional, Ergocard Clinical.

Technical Specifications

Patient Chair:  Pneumatic adjustment

BodyBox Door:  Safe patient and operator mechanism, internal and external handle

Power Requirements:  230 VAC 50 Hz or 115 VAC 60 Hz (see device identification label)

Power Consumption: 110 VA (module), 130 VA (module with rapid diffusion)

Warmup Time:  20 minutes

Meets All Electrical Safety Requirements: IEC60601-1

CE MDD 93/42/EC, Class IIa

Computer Interfacing: Windows 10 Pro

Serial interface RS232 / USB 2.0 / USB 3.0

AMBIENT CONDITIONS

Temperature: 10 - 35°c

Relative Humidity: 25 to 85 % (non condensed)

Barometric Pressure:  No restriction

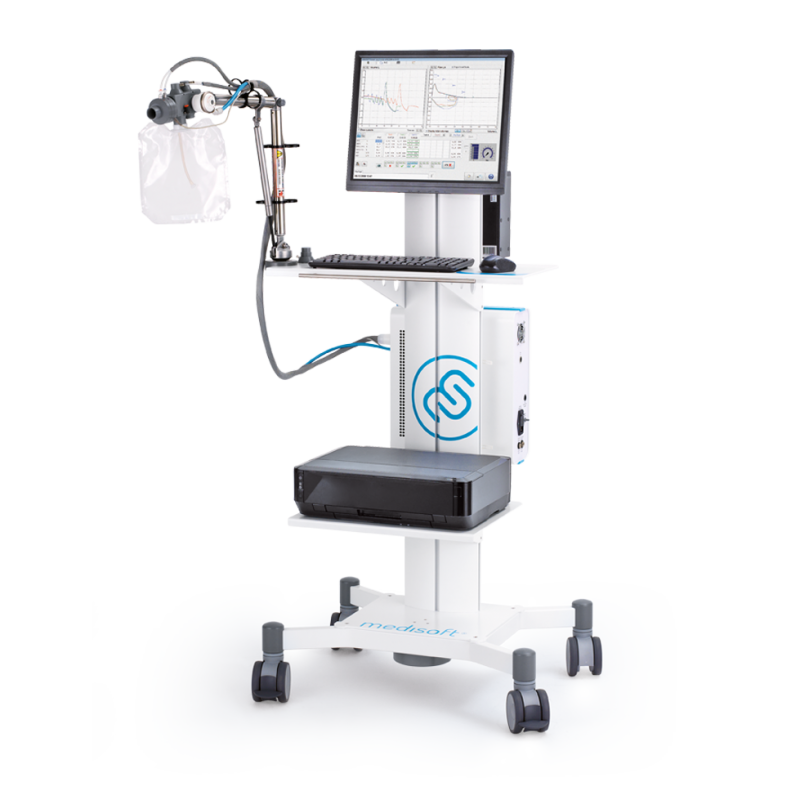

HypAir

The HypAir offers a wide range of pulmonary function tests in a single system. With high quality open circuit spirometry, lung volumes, diffusion, respiratory mechanics and more, the HypAir is the ideal device for complete, modular pulmonary function testing.

-Compact system with cart or table-top configurations

-Ability to upgrade options over time

-High precision, reliable, accurate, and stable gold-standard Lilly heated pneumotachograph with no moving parts

-Low cost of operation and low maintenance

-Expair software suite with complete operator and patient guide included.

The HypAir is a full and comprehensive system built to allow for complete muscle and neural drive studies.

A single mouthpiece connects the subject. This permits the measurement of flow at the mouth with a Lilly Pneumotachograph. The occlusion valve attaches to the distal end of the flow transducer and permits rapid occlusion with pneumatic control. The respiratory band placed at the abdomen measures the diaphragmatic shift and amplitude during efforts. A twin lumen balloon can be placed or two single balloons to present the pressure at the oesophagus and at the diaphragm. The use of a two channel EMG to measure changes at the Diaphragm allows the synchronisation of the signal with the pressure waveform. In a later stagem, it is proposed to align the signal with the flow produced at the mouth as a complete picture of the work of breathing. The control of electro-magnetic stimulation permits the triggering of neuro-muscular responses (using an additional electro stimulator available as an external device). The instantaneous inspiratory pressure study measured at 100 milliseconds into the inspiratory cycle of tidal breathing responses can further be added to carbon dioxide re-breathing stimulation.

All measurement programs in the HypAir pulmonary function system are controlled by the powerful Expair software. Featured in the standard configuration are the following testing options.

Basic Spirometry: Includes Forced Vital Capacity, Slow Vital Capacity, Maximum Voluntary Ventilation and Minute Tidal Ventilation including bronchochallenge testing software.

Choice of 2 Lung Volumes Methods  (FRC, VC, IC , ERV, RV, TLC):

Medisoft is the only manufacturer featuring a choice of 2 lung volume methods

Multi Breath N2 washout / LCI (Lung Clearance Index) including closing volume (N2 Slope):

He Dilution by closed circuit He dilution technique with O2 compensation and CO2 absorption with re-breathing bag.

CHOICE OF SIX DLCO OPTIONS

Medisoft is the only manufacturer featuring a choice of six diffusion methods, making the BodyBox the ideal system for all main diagnostic tests.

1. Single Breath with Helium trace gas (He)
2. Rapid Gas Analysis Diffusion (RTD) with single breath using Helium trace gas (He) or Methane trace gas (CH4 )
3. Re-breathing Diffusion with Helium trace gas (He) and using inspiratory bag
4. Intra Breath Diffusion with Cardiac Output (Qc)
5. DLCO-NO dual diffusion method (Trace gas He) (exclusive) with membrane diffusion (DM) and Capillary blood volume (Vc)
6. Steady State Real Time Diffusion TlCO ss (exclusive)

ADDITIONAL OPTIONS TO COMPLETE YOUR PULMONARY DIAGNOSTIC TESTING

Bronchoprovocation and Special Resistance Testing:

PROVO4 Provocation System: automated, software controlled, accurate and safe bronchial provocation testing.

RINT: resistance measurement using interrupter technique. Ideal for children.

NEP (negative expiratory pressure): alternative method to detect expiratory flow limitation, which does not require performance of forced expiratory efforts on the part of the patient, or a body plethysmography test.

Respiratory Mechanics Testing:

MIP – MEP (maximum inspiratory and maximum expiratory pressure): indicator of respiratory muscle strength.

SNIP: maximal nasal inspiratory pressure using a nasal cannula. A non-invasive indicator of diaphragmatic muscle fatigue.

P01: inspiratory occlusion pressure at 0.1 seconds, for respiratory muscle drive evaluation.

Static and dynamic compliance and resistance: measured by intra-oesophageal balloon catheters.

The HypAir pulmonary function  can be combined with the following devices:

ECG, FeNO+, FOT Resmon Pro, SpiroAir,  HypAir, Micro 5000, Ergocard Professional, Ergocard Clinical.

Technical Specifications

Power Requirements:  230 VAC 50 Hz or 115 VAC 60 Hz

Power Consumption:  100 VA (module)

Warmup Time:  20 minutes

Meets All Electrical Safety Requirements: IEC60601-1

CE MDD 93/42/EC, Class IIa

Computer Interfacing:  Windows 7 Pro / Ultimate / 8.0 / 8.1 ™

Serial interface RS232

AMBIENT CONDITIONS

Temperature:  10 - 35°c

Relative Humidity:  25 to 85 % (non condensed)

Barometric Pressure:  No restriction

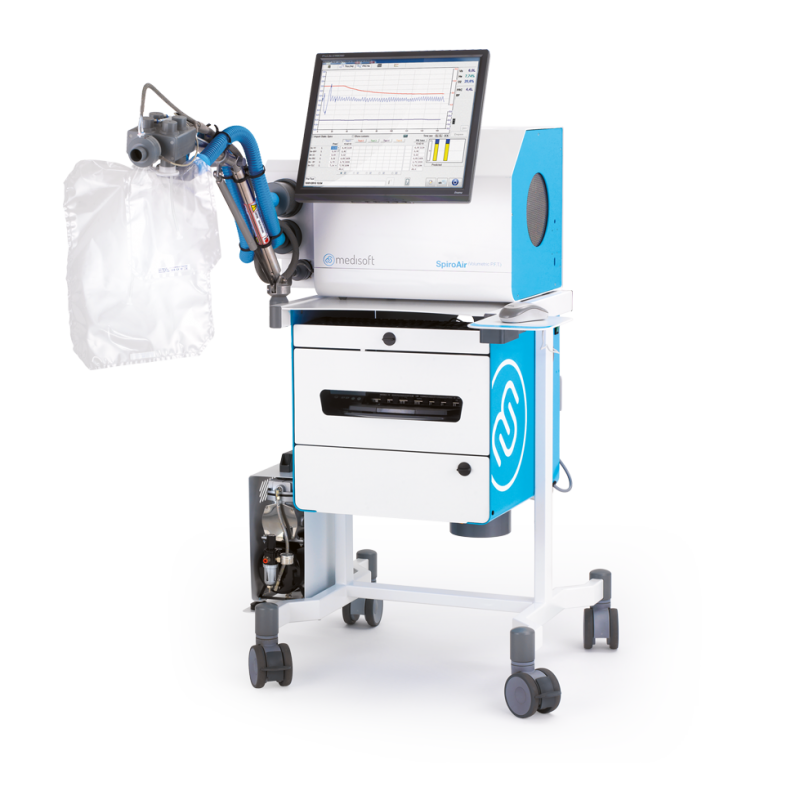

SpiroAir

The SpiroAir volumetric P.F.T. system features a Gold Standard dry rolling seal spirometer with the most reliable and accurate transducer on the market. It is the ideal device for the most accurate spirometry, lung volume and diffusion measurements for children to adults.

COMPLETE, MODULAR PULMONARY FUNCTION SYSTEM

The SpiroAir base unit includes spirometry, closed circuit helium dilution, functional residual capacity (FRC) and lung sub-divisions along with with a CO2 scrubber and circulating fans. The 12 liter spirometer with a true volume displacement horizontal dry rolling seal is completely user accessible for easy maintenance and cleaning.

-Compact system with cart or table-top configurations

-Ability to upgrade options over time

-High precision, reliable, accurate, and stable gold-standard Lilly heated pneumotachograph with no moving parts

-Low cost of operation and low maintenance

-Expair software suite with complete operator and patient guide included.

All measurement programs in the SpiroAir volumetric P.F.T. system are controlled by the powerful Expair software. Featured in the standard configuration are the following testing options.

Basic Spirometry: [with option for every test to use either the closed circuit or the open circuit] Includes Forced Vital Capacity, Slow Vital Capacity, Maximum Voluntary Ventilation and Minute Tidal Ventilation including bronchochallenge testing software.

Lung Volumes Methods (FRC, VC, IC , ERV, RV, TLC):

UNIQUE: He Dilution Wash-in with standard method and closed circuit by unique low resistance dry rolling seal spirometer He dilution technique with O2 compensation and CO2 absorption.

CHOICE OF THREE DLCO OPTIONS

UNIQUE: Medisoft is the only manufacturer featuring a choice of three diffusion methods.

1. Single Breath with Helium trace gas (He)
2. DLCO-NO dual diffusion method (Trace gas He) (Exclusive) with membrane diffusion (DM) and Capillary blood volume (Vc)
3. Re-breathing Diffusion Dlco rb using inspiratory bag

ADDITIONAL OPTIONS TO COMPLETE YOUR PULMONARY DIAGNOSTIC TESTING

Bronchoprovocation and Special Resistance Testing:

PROVO4 Provocation System: automated, software controlled, accurate and safe bronchial provocation testing.

RINT: resistance measurement using interrupter technique. Ideal for children.

NEP (negative expiratory pressure): alternative method to detect expiratory flow limitation, which does not require performance of forced expiratory efforts on the part of the patient, or a body plethysmography test.

Respiratory Mechanics Testing:

MIP – MEP (maximum inspiratory and maximum expiratory pressure): indicator of respiratory muscle strength.

SNIP: maximal nasal inspiratory pressure using a nasal cannula. A non-invasive indicator of diaphragmatic muscle fatigue.

P01: inspiratory occlusion pressure at 0.1 seconds, for respiratory muscle drive evaluation.

Static and dynamic compliance and resistance: measured by intra-oesophageal balloon catheters.

The SpiroAir volumetric P.F.T. system can be combined with the following devices:

ECG, FeNO+, FOT Resmon Pro, SpiroAir,  HypAir, Micro 5000, Ergocard Professional, Ergocard Clinical.

Technical Specifications

Power Requirements:  230 VAC 50 Hz or 115 VAC 60 Hz

Power Consumption:  +/- 110 VA (module)

Warm up Time: 20 minutes

Meets All Electrical Safety Requirements: IEC60601-1

CE MDD 93/42/EC, Class IIa

Computer Interfacing:  Windows 7 Pro / Ultimate / 8.0 / 8.1 ™

Serial interface RS232

AMBIENT CONDITIONS

Temperature:  10 - 35°c

Relative Humidity: 25 to 85 % (non condensed)

Barometric Pressure:  No restriction.

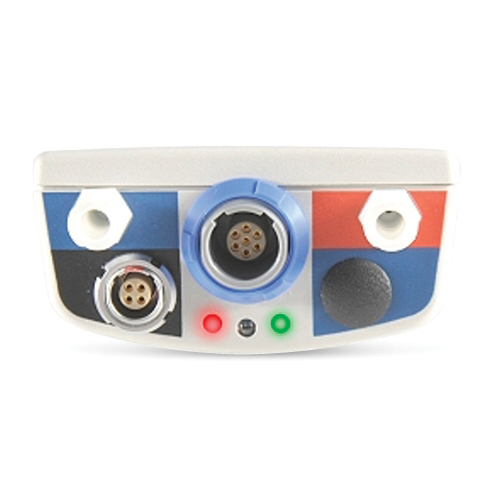

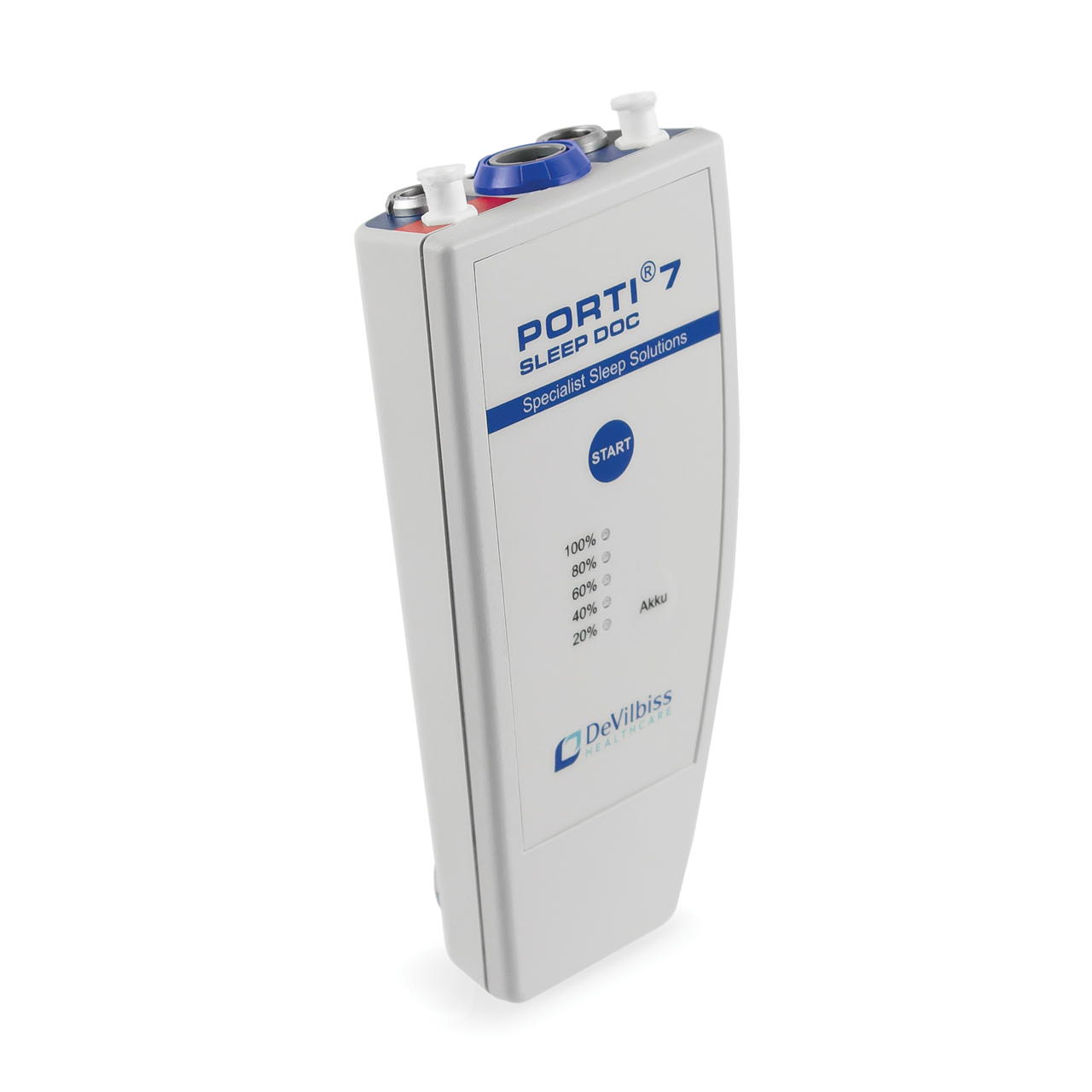

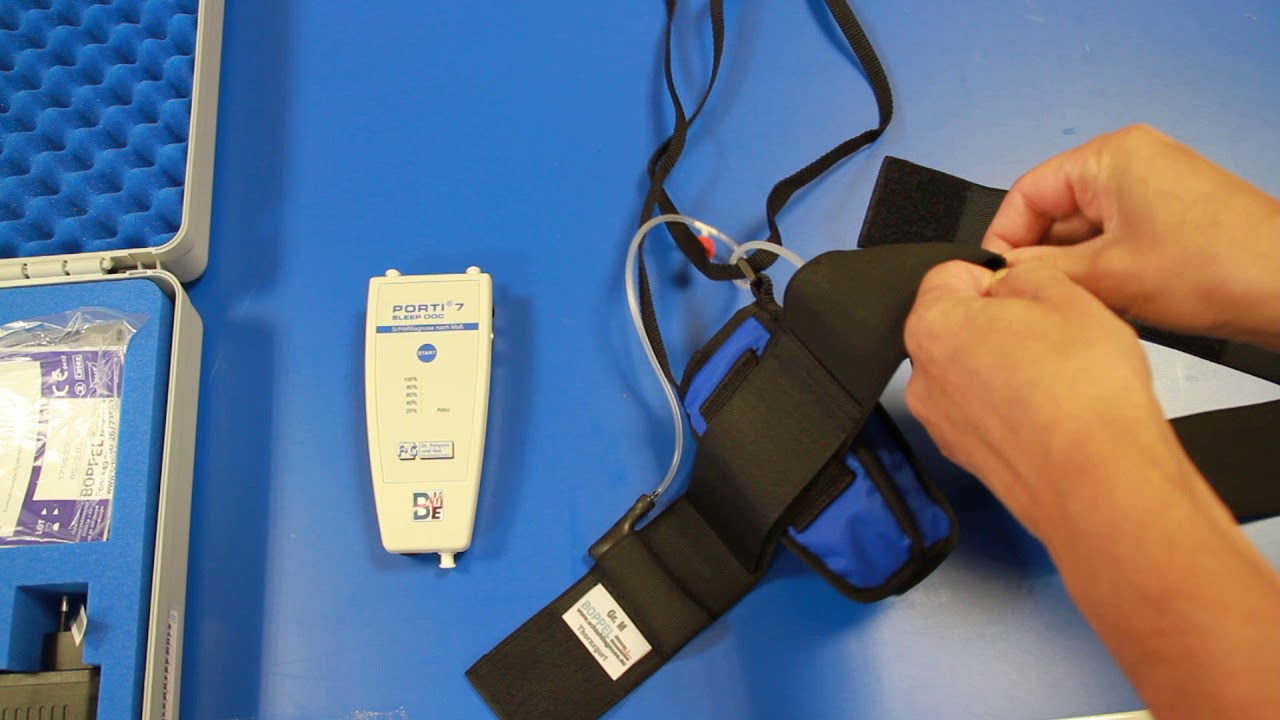

SleepDoc Porti 7

Polygraph

DeVilbiss Healthcare introduces the SleepDoc Porti diagnostics systems powered by the technology and expertise of Dr Fenyves und Gut. From a 5 channel respiratory screener up to a full 38 channel polysomnography the Porti systems are ideal for home or hospital use. They are inexpensive to use due to the low cost of consumables and use the same analysis and reporting software for all devices. The Porti range is the ideal solution for the developing sleep service.

Porti Family Features:

-Low running costs due to inexpensive consumables

-Optional extended warranty through our regular service program

-Built in rechargeable battery to ensure low running costs

-Simple to operate for both patients and clinical staff

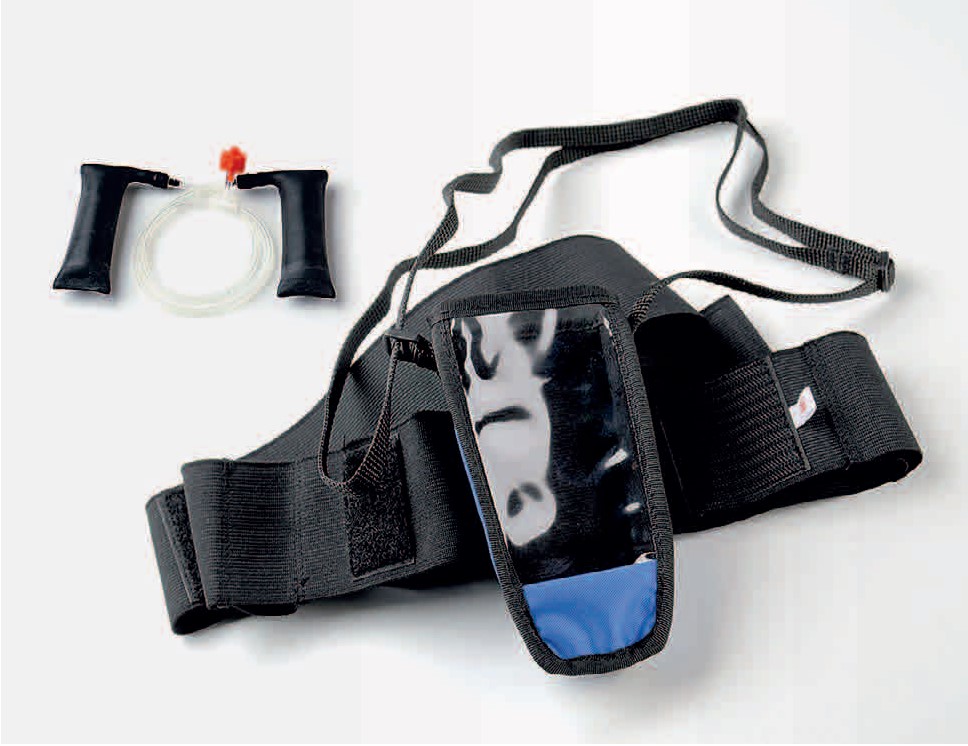

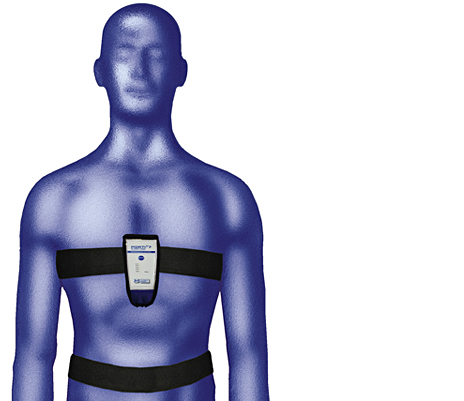

-Unique thorax and abdomen belt technology using robust accurate pressure sensors, thus removing the need for expensive specialist belts

-Removable pressure sensors in the belts, effectively cleaned (machine washable)

-Internal battery charges fully in 2 hours – a fully charged battery will record for 16 hours

Software Features

The analysis and reporting software is extremely comprehensive, yet easy to understand. Its flexibility, allowing the user to determine the parameters, the content and design of the reports means the software can be customised to fit the needs of the sleep laboratory.

-All SleepDoc Porti systems use the same software, consumables and sensors

-Quick evaluation of reports and data

-Fully automatic evaluation, diagnosis and report generation

-Manual editing options

-Easy configuration of raw data and final reports

-Flexible parameter control for the clinician

-Quick and easy report generator

-Integration into network

-Option for data to be sent by e-mail

-Data import and export via the internet.

The Porti 7 sleep screening device offers 10 standard channels with the option of extending its measurement capabilities up to 24 channels. It  is designed for the diagnosis of Obstructive Sleep Apnoea (OSA) and other sleep related conditions and can be used both in the hospital and at home by the patient. The device is hard wearing, simple to use and is supplied in a protective carry case. It is an ideal diagnostic tool for the identification of sleep disordered breathing, for use at home or in hospital. It comes as standard with 10 channels, but with the option of extending up to 24 channels. Porti 7 additional features include:

-Fast direct download via USB connection.

-No memory card required, all patient data is stored in the internal memory.

-Visual battery check on front of unit. LED’s show the remaining battery life.

-No ON/OFF switch, uses an automatic start via programming in the

-Porti software. Can program up to 6 nights of start/finish times.

Standard channels method

Flow: Using flow prongs or directly from the patient CPAP interface

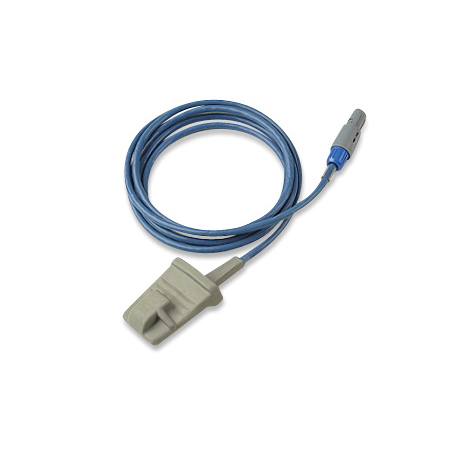

Oxygen Saturation SpO2: Using an HP Finger Sensor

Pulse: Using an HP Finger Sensor

Pulse Wave: Using an HP Finger Sensor

Snoring: The built in microphone detects sound via the flow prongs

CPAP / BiPAP:  Absolute pressure is obtained using an integrated pressure sensor, which can be connected, directly to the patient CPAP interface or tubing.

Thorax: Effort belt with removable / integrated pressure sensors

Abdomen: Effort belt with removable / integrated pressure sensors

Ambient Light: The internal light sensor allows continuous monitoring of brightness of the sleeping environment.

Body Position: Using an integrated magnetic sensor (5 positions)

Optional Channels Method

Restless Leg: Using a Piezo pressure sensor

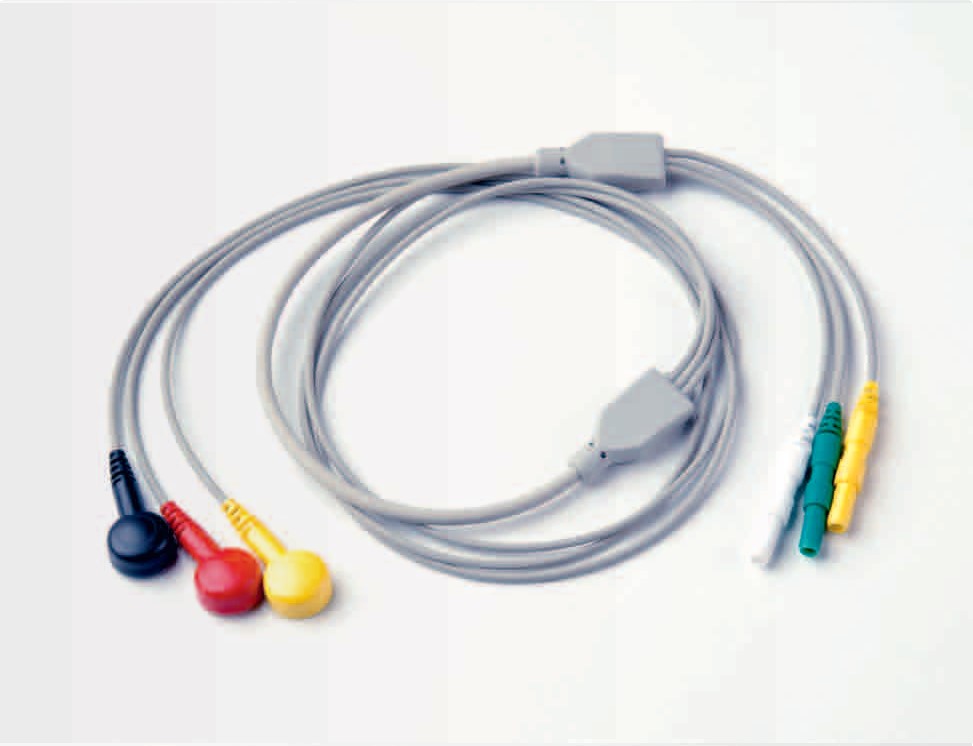

ECG: One channel lead via adhesive electrodes. Resolution up to 200Hz

Pulse Transit Time (PTT): Calculated by using Pulse and ECG channels

Systolic Blood Pressure: Continuous recording of systolic blood pressure without additional sensors (PTT required)

Thermistor: An alternative method of measuring flow.

NeuroPort: For automatic sleep staging

8 x External Analogue Channels: External box with voltage input for up to 8 external channels with galvanic separation.
