MAXIMUM COMFORT FOR MAXIMUM WELL BEING

The Enraf-Nonius ManuMax is a series of new generation treatment couches. These high quality, professional couches are developed by our experts to set a new standard in physiotherapy.

3 DIMENSIONAL CURVED HEAD SECTION

The ManuMax is the first treatment couch with a 3 dimensional curved head section. The facial/nose opening follows the shape of the head and covers the complete length of the headrest without any stitching, making the headrest very comfortable for the patient and easy to clean. Maximum comfort for maximum well-being.

THE MOST STABLE TREATMENT TABLE

The sturdy frame is designed to create the most stable treatment surface. All ManuMax tables have a safe working load of 250 kilograms. The standard electrical all-around operation (high/low) adds to the user friendliness of ManuMax. The soft-landing wheel system and the digital lock are standard with this new generation treatment tables. Never was a treatment table so comfortable for patient and therapist.

The frames of the ManuMax couches are available in two different shades of grey. The finest upholstery is carefully chosen in a variety of colours suiting a natural, executive, or life style environment. The perfect treatment table fitting in your own style.

EXAMINATION AND MULTI LINE

The ManuMax series include an Examination and a Multi line. The Examination line has an extra-long back section, ideal for examination and basic treatments. There is no need for your patient to turn around in order to change from a lying to a sitting position.

The ManuMax Multi line offers versatile treatment tables for the modern, demanding therapist. Equipped with the unique head section, the ManuMax Multi line, is available in 2- or 3 section treatment tables.

THE MANUMAX MULTI, THE ULTIMATE TREATMENT TABLE

The 3-fold ManuMax Multi treatment table has either 3 or 5 sections.

THE MANUMAX MULTI 3.3

The ManuMax Multi 3.3 is the versatile treatment table for the modern and demanding therapist. This ManuMax is equipped with the unique ManuMax head section. Different adjustable positions like the flexion position can be performed with this multifunctional treatment table.

THE MANUMAX MULTI 3.5

The ManuMax Multi 3.5 has besides all this, exclusive adjustable armrests, which can be lowered smoothly and twisted sidewards for maximum comfort with the patient lying face down. With its unique formed facial/nose opening ánd the arms positioned in a total relaxing mode, is the ManuMax 3.5 the most ergonomic comfortable table. The ManuMax 3.5 is the ultimate treatment couch ever in your practice!

Technical specifications

Size tabletop (lxw): 215 x 67 cm

Height adjustment: 48-96 cm

Lifting time (min.-max.): 18 sec.

Lifting capacity: 250 kg

Power supply: 100-240V ~ 50/60 Hz

Current consumption: 2.5 A max.

Colours upholstery: 204 sirius blue, 012 black, 170 baby blue

Colours frame: light /dark.

MAXIMUM COMFORT FOR MAXIMUM WELL BEING

The Enraf-Nonius ManuMax is a series of new generation treatment couches. These high quality, professional couches are developed by our experts to set a new standard in physiotherapy.

3 DIMENSIONAL CURVED HEAD SECTION

The ManuMax is the first treatment couch with a 3 dimensional curved head section. The facial/nose opening follows the shape of the head and covers the complete length of the headrest without any stitching, making the headrest very comfortable for the patient and easy to clean. Maximum comfort for maximum well-being.

THE MOST STABLE TREATMENT TABLE

The sturdy frame is designed to create the most stable treatment surface. All ManuMax tables have a safe working load of 250 kilograms. The standard electrical all-around operation (high/low) adds to the user friendliness of ManuMax. The soft-landing wheel system and the digital lock are standard with this new generation treatment tables. Never was a treatment table so comfortable for patient and therapist.

The frames of the ManuMax couches are available in two different shades of grey. The finest upholstery is carefully chosen in a variety of colours suiting a natural, executive, or life style environment. The perfect treatment table fitting in your own style.

EXAMINATION AND MULTI LINE

The ManuMax series include an Examination and a Multi line.

 The Examination line has an extra-long back section, ideal for examination and basic treatments. There is no need for your patient to turn around in order to change from a lying to a sitting position.

The ManuMax Multi line offers versatile treatment tables for the modern, demanding therapist. Equipped with the unique head section, the ManuMax Multi line, is available in 2- or 3 section treatment tables.

THE MANUMAX EXAMINATION 2.2

The ManuMax Examination 2.2 is the 2-section table for examination and basic treatments. With its extra-long back section, comfortable support is provided for even the tallest patients. The back section can be adjusted up to 90 to accommodate the patient for any treatment.

Technical specifications

Size tabletop (lxw): 215 x 67 cm

Height adjustment: 48-96 cm

Lifting time (min.-max.):  18 sec.

Lifting capacity: 250 kg

Power supply: 100-240V ~ 50/60 Hz

Current consumption: 2.5 A max.

Colours upholstery:

204 sirius blue

012 black

170 baby blue.

The versatility of the Manumed Optimal 3-section offers you, the modern and demanding physiotherapist, the perfect treatment and examination couch. Everything is possible: lying and sitting positions, Trendelenburg and flexion position, which can be adjusted during treatment.

with the patient simply remaining on the couch. In short, the most unique couch available, which gives both the therapist and the patient the experience of comfortable treatment. Elegant in appearance and sturdy on its retractable castors, the Manumed Optimal 3-section is the obvious choice for the therapist who makes high demands on a professional top quality treatment couch.

MANUMED OPTIMAL 3-SECTION

3 (to 5) adjustable sections

Many adjustable positions, including the flexion- and (anti-)

Trendelenburg positions

Electrically adjustable pli comes standard with electrical high/ low variant

Load capacity up to 200 kg (some models optional to 250 kg)

Head section folds down completely for better access of the cervical region

Optimally positioned handles

Long nose hole, allowing proximal or distal movement of the patient even when lying in prone position

Optional a triangular nose hole or without nose hole

Wheel raising mechanism for easy movement of the couch

Height can be adjusted hydraulically (no mains lead needed) or electrically (smooth and quick)

Completely relaxed starting position in the face-down position with separate head section (optional)

COMES IN 3 DIFFERENT VERSIONS

Without flexion position

With flexion position

With flexion position & adjustable arms section

AVAILABLE IN 16 COLOURS

A matching Enraf-Nonius couch for every interior. As in other practices, a pleasant ambience is important in physiotherapy practices. Clients must feel comfortable in the room where they are being treated. As each practice is furnished differently and has its own colour scheme, we regard it as important for the treatment couches to fit in with your look and feel. That is why we can manufacture our treatment couches in several frame and upholstery colours. Our imitation leather upholstery contains no phthalates and is flame retardant – a unique combination that makes this material suitable for medical use!

TECHNICAL SPECIFICATIONS

Size tabletop (lxw): 204 x 67 cm (optional 57 or 80 cm width)

Height adjustment: 47-100 cm electric , 47-97 cm hydraulic

Lifting time (min.-max.): approximately 18 sec.

Lifting capacity: 200 kg  (electrical motor optional 250 kg)

Power supply: 120/230VAC 50/60 Hz

Current consumption: 2.0 A max.

NOTE: ALL-AROUND OPERATION IS AN OPTION.

With the Manumed Optimal 2-section treatment couch you have the modern Manumed Optimal quality couch at your disposal. Robust in appearance and simple to operate. Stable and durable.

Less is more with the Manumed Optimal 2-section couch. The 2-part head section, the 2-part head section with separate arm supports and the 2-part back section offer a full range of options to the therapist looking for an uncomplicated couch for safe treatment.

FEATURES

2 (up to 4) adjustable sections

Load capacity up to 200 kg (optional 250 kg)

Head section folds down completely for better access of the cervical region

Optimally positioned handles

Long nose hole,  for proximal or distal movement of the patient even when lying in prone position

Optional a triangular nose hole or without nose hole

Wheel raising mechanism for easy movement of the couch

Height can be adjusted hydraulically (no mains lead needed) or electrically (smooth and quick)

Completely relaxed starting position in the face-down position with separate head section with adjustable arm rests (optional).

COMES IN 3 VERSIONS:

With head section

With head section& adjustable arms section

With back section

AVAILABLE IN 16 COLOURS

A matching Enraf-Nonius couch for every interior. As in other practices, a pleasant ambience is important in physiotherapy practices. Clients must feel comfortable in the room where they are being treated. As each practice is furnished differently and has its own colour scheme, we regard it as important for the treatment couches to fit in with your look and feel. That is why we can manufacture our treatment couches in several frame and upholstery colours. Our imitation leather upholstery contains no phthalates and is flame retardant – a unique combination that makes this material suitable for medical use!

TECHNICAL SPECIFICATIONS

Size tabletop (lxw): 201 x 67 cm (optional 57 or 80 cm width)

Height adjustment:

45-95 cm (backsection)

47-97 cm (headsection)

Lifting time (min.-max.): 18 sec.

Lifting capacity: 200 kg (electrical model optional 250 kg)

Power supply: 120/230VAC 50/60 Hz

Current consumption: 2.0 A max.

NOTE: ALL-AROUND OPERATION IS AN OPTION.

The treatment couch for everyone. The large back section makes this couch a combination of adjustability and sitting comfort. You can change from lying face up to sitting without any need for the patient to get off. This makes this couch popular not only with physiotherapists, but also with medical practitioners and aestheticians. The Manumed Comfort offers them an unrivalled examination couch in their practice or studio.

Extra large back section

Easy change from sitting to lying position with gas spring support

Wheel raising mechanism for easy movement of the couch

Height can be adjusted hydraulically (no mains lead needed) or electrically (smooth and quick)

Independently adjustable leg sections (optional)

COMES IN 2 VERSIONS

Standard

With adjustable leg sections

CHOOSE BETWEEN HYDRAULIC OR ELECTRIC

Both versions are available either in hydraulic or electric control.

 AVAILABLE IN 16 COLOURS

A matching Enraf-Nonius couch for every interior. As in other practices, a pleasant ambience is important in physiotherapy practices. Clients must feel comfortable in the room where they are being treated. As each practice is furnished differently and has its own colour scheme, we regard it as important for the treatment couches to fit in with your look and feel. That is why we can manufacture our treatment couches in several frame and upholstery colours. Our imitation leather upholstery contains no phthalates and is flame retardant – a unique combination that makes this material suitable for medical use!

TECHNICAL SPECIFICATIONS

Size tabletop (lxw): 200 x 67 cm (for type 612 and 622 optional 80 cm width)

Height adjustment:

 46-99 cm electric

46-96 cm hydraulic

Lifting time (min.-max.): 18 sec.

Lifting capacity: 200 kg (electrical motor optional 250 kg)

Power supply: 120/230VAC 50/60 Hz

Current consumption: 2.0 A max.

NOTE: ALL-AROUND OPERATION IS AN OPTION.

DE LUXE UPHOLSTERY IS AN OPTION.

The Manumed Osteo treatment couch is a must-have for the therapists who wants every possible comfort for his patient and himself. This treatment couch has 4 (to 7) independently adjustable sections, allowing the patient to be treated in many positions. The electrical adjustment of the flexion position comes as standard with the three different Manumed Osteo types with an all-around operation. An ideal couch for the therapist. More comfortable to perform the already heavy duty profession. A true quality treatment couch, stable on its frame and flexible in its use!

FEATURES

4 (up to 7) independently adjustable sections, allowing an infinite number of sitting and lying positions

Flexion and (anti-)Trendelenburg positions

Unrivalled stability combined with adjustability

Electric height adjustment and electric sectional adjustment as well for maximum comfort

1 Programmable position: With 1 push of the button to, for example, a full horizontal position.

Completely relaxed starting position in the face-down position with separate head section (optional)

Independently adjustable leg sections (optional)

Padded sections with soft edges.

COMES IN 3 VERSIONS

Standard

With adjustable arms section

With adjustable arms and legs section

AVAILABLE IN 16 COLOURS

A matching Enraf-Nonius couch for every interior. As in other practices, a pleasant ambience is important in physiotherapy practices. Clients must feel comfortable in the room where they are being treated. As each practice is furnished differently and has its own colour scheme, we regard it as important for the treatment couches to fit in with your look and feel. That is why we can manufacture our treatment couches in several frame and upholstery colours. Our imitation leather upholstery contains no phthalates and is flame retardant – a unique combination that makes this material suitable for medical use!

TECHNICAL SPECIFICATIONS

Size tabletop (lxw): 214 x 67 cm

Height adjustment: 51-103 cm

Lifting time (min.-max.): 18 sec.

Lifting capacity: 200 kg (electrical model optional 250 kg)

Power supply: 230VAC 50/60 Hz

Current consumption: 2.0 A max.

NOTE: DE LUXE UPHOLSTERY IS AN OPTION.

With this cost-effective Manumed examination and treatment couch you can treat anywhere, even without a power source. Because the Manumed ST quality couch is available in an electric and hydraulic version.

With the hydraulic version you don't need a socket! This means you can conduct examinations and provide treatment anywhere, with easy height adjustment. The easy to operate foot pedal allows you to adjust the height effortlessly. If you do have access to sockets, the electric version provides complete ease of use. A simple press on the button (or use of the easy all-round operation) adjusts the height effortlessly.

Whichever version you choose, the Manumed ST is a quality couch with a stable, quality frame and fitted with high quality upholstery. Thanks to the geometry of the frame, there is also plenty of legroom under the couch, making seated treatment very comfortable for the specialist. With the optional wheel-raise mechanism the couch can be moved easily and quickly. The Manumed ST is the ideal Manumed at a very attractive price.

FEATURES

Available as a 2-section or 3-section model

Available as head part or back part version

Available with hydraulic or electrical height adjustment

Available in 6 different upholstery colours

Many options and accessories

Very attractive price

TECHNICAL SPECIFICATIONS

Size tabletop (lxw): 207 - 209 x 67 cm

Height adjustment: 45-101 cm

Lifting time (min.-max.): 25 sec.

Lifting capacity: 150 kg

Power supply: 230VAC 50/60 Hz

Current consumption: 1.0 A max.

Force hydraulic pump: 10.000 N.

The examination and treatment couch par excellence for a small treatment room and a limited budget. Because of the scissors mechanism the ManuXelect is raised fully vertically. Consequently, the ManuXelect takes up only 1.4 m2! The easily adjustable sections make this couch easy to operate and stable throughout. A cost-effective variant for someone who has little space available. The ManuXelect treatment couch comes in two 2-section models and in a 3-section variant.

FEATURES

Electrical height adjustment from 48 to 105 cm

Section adjustment with gas springs

Ergonomic handles for operation with one hand

Scissors movement saves space. The couch travels up and down linearly

Padded sections with soft edges

The nose hole (with optional plug) ensures patient comfort even when lying face down

COMES IN 4 VERSIONS

3-sectional

2-sectional with head section

2-sectional with back section

Traction table

TECHNICAL SPECIFICATIONS

Size tabletop (lxw): 207 - 209 x 67 cm (optional 80 cm width)

Height adjustment: 48,5-105,5 cm

Lifting time (min.-max.): 35 sec.

Lifting capacity: 150 kg (optional 250 kg)

Power supply: 120/230VAC 50/60 Hz

Current consumption:

1.5 A-350W max. (light) or

2.0 A-470W max. (heavy)

Foam density: 38 Kg/m3

LIFTING CAPACITY

1. Electric - max. 150 kg (standard)
2. Electric - max 250 kg (optional)

Neurological exercise therapy with the Manumed Bobath. The large, extra wide treatment surface of 100 cm to 120 cm makes it easy to support and assist patients during therapeutic exercises. The Bobath and Vojta motion methods can be applied to perfection owing to the unmatched stability. A sturdy couch affording both patient and practitioner the most comfortable treatment positions.

FEATURES

Very large surface (100 or 120x200 cm)

Wheel raising mechanism for easy movement of the couch

Electric or hydraulic height adjustment

The 2-section model can be used as a neurological exercise or treatment couch

COMES IN 3 VERSIONS

2-sectional with adjustable height (electric or hydraulic)

1-sectional with adjustable height (electric or hydraulic)

1-sectional with fixed height (stationary)

AVAILABLE IN 16 COLOURS

A matching Enraf-Nonius couch for every interior. As in other practices, a pleasant ambience is important in physiotherapy practices. Clients must feel comfortable in the room where they are being treated. As each practice is furnished differently and has its own colour scheme, we regard it as important for the treatment couches to fit in with your look and feel. That is why we can manufacture our treatment couches in several frame and upholstery colours. Our imitation leather upholstery contains no phthalates and is flame retardant – a unique combination that makes this material suitable for medical use!

TECHNICAL SPECIFICATIONS

Size tabletop (lxw): 200 x 100 cm for models 500, 510 and 520

Height adjustment: 44-97 cm

Lifting time (min.-max.): 18 sec.

Lifting capacity:

250 kg for electric

200 kg for hydraulic

135 kg for fixed height

Power supply: 120/230VAC 50/60 Hz

Current consumption: 2.0 A max.

NOTE: ALL-AROUND OPERATION IS AN OPTION.

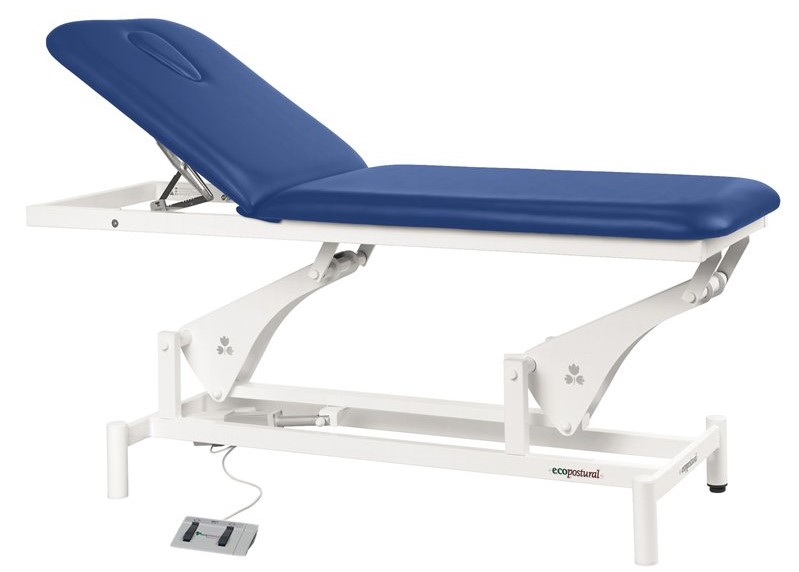

C3500 is a 2-sectional electric twin pillar white frame table. Available in 22 different colours.

With (T13) or without (T15) nose hole, and in two options of width 62 cm or 70cm.

FEATURES

Height Adjustment: Electric system

Mechanism: Foot pedal

Type: 2 Section

Frame: Twin pillar White

Width: 62 cm

Length: From 185 to 198 cm

Armrests: No armrests

Maximum Weight: 135 Kg

Foam Thickness                : 5 cm

Foam Firmness: II – Soft

Head / Backrest: Manually.

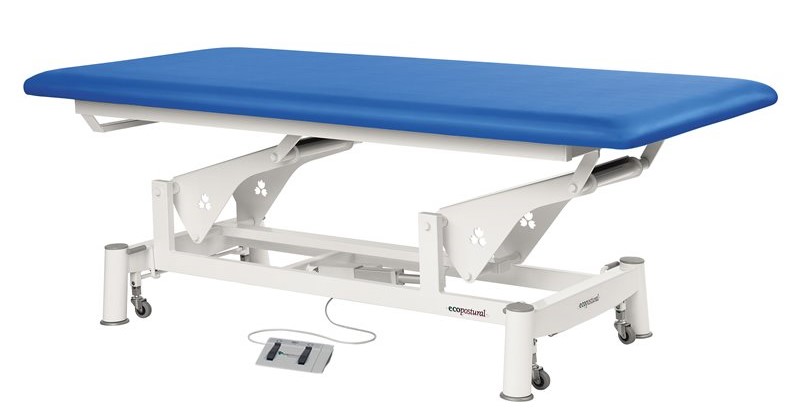

C5504 (1-sectional bobath)

Electric twin pillar white frame speciality table. Available in 25 different colours.

With (T13) or without (T15) nose hole, and in two options of width 100 cm or 120cm.

FEATURES

Height Adjustment: Electric system

Mechanism: Foot pedal

Type: Speciality table

Frame:  Twin pillar White with bearings

Width: 100 cm (and optional 120cm)

Length: More than 198 cm

Armrests: No armrests

Maximum Weight: 175 Kg

Foam Thickness: 5 cm

Foam Firmness: II – Soft

Hoist-compatible: YES

C5514 (2-sectional bobath)

Electric twin pillar white frame speciality table. Available in 25 different colours.

With (T13) or without (T15) nose hole, and in two options of width 100 cm or 120cm.

FEATURES

Height Adjustment: Electric system

Mechanism: Foot pedal

Type: Speciality

Frame: Twin pillar White with bearings

Width: 100 cm

Length: From 185 to 198 cm

Armrests: No armrests

Maximum Weight: 175 Kg

Foam Thickness: 5 cm

Foam Firmness: II – Soft

Head / Backrest: Hydraulic

Hoist-compatible: YES.
