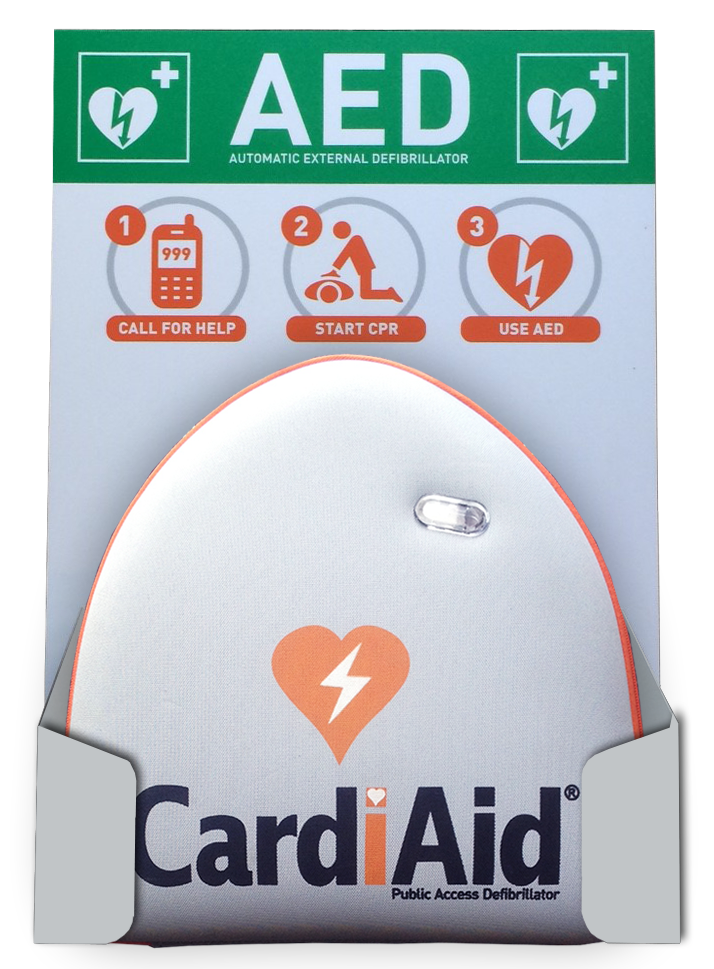

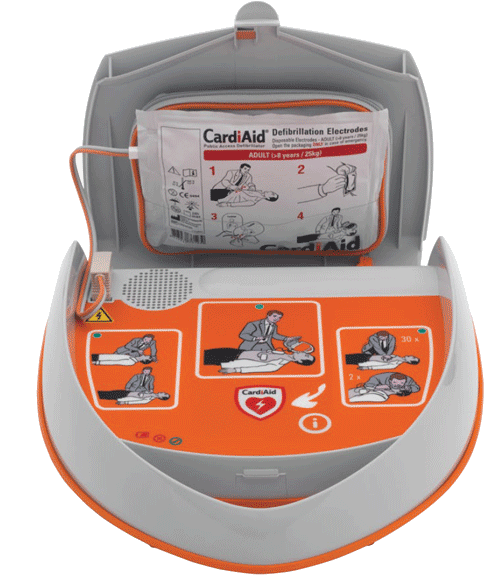

CardiAid is the most user-friendly AED on the market and is the perfect addition to your (business) premises. The CardiAid was designed to be the simplest and clearest possible AED for public use, making it possible to administer an electric shock with a minimum of delay to anyone suffering acute heart failure. The CardiAid AED has been designed for public use at places such as children’s day care centres, schools, sports complexes, doctors’ surgeries, veterinary and dental practices, by emergency services etc.  CardiAid software is compliant with ILCOR2015 ERC guidelines. The CardiAid AED delivers the most effective treatment, based on the algorithm and biphasic defibrillation of the heart.  The CardiAid is completely safe to use. The AED only delivers a life-saving electric shock when the analysis has determined it necessary. You can rely on this entirely. The AED produces strong visual and auditory signals. A loud voice giving clear instructions guides you through the resuscitation process, along with clear pictograms. A metronome provides the heart massage rate.

Main features

- CardiAid automatically switches on by simply opening the cover.

- Pre-connected electrodes help save time and make the process simpler for the user.

- “Status indicator lights” provide easy interpretation of the self-test results.

- CardiAid guides the user step by step with a combination of clear voice instructions,     illustrations and lights for the maximum efficiency. All steps are ensured to be applied  accurately even if the responder has limited knowledge or experience.

- CardiAid works with one-button only, the shock button. No on-off button, no time loss!

- The AED available in 24 languages.

Automatic

- CardiAid combines an accurate ECG detection algorithm with high sensitivity and specificity values with its current-based defibrillation technology for the most effective treatment.

Paediatric

- Paediatric treatment is available with special paediatric electrodes.

-CardiAid automatically activates paediatric mode when the special paediatric electrodes are plugged in.

Safety

- Any inessential function is omitted to make CardiAid perfect for public access defibrillation. No ECG display, no distraction!

- CardiAid is ready for any unpredictable situation with high battery capacity to support up to 200 shocks/20 hours of monitoring.

- CardiAid stores the ECG and incident data with the highest capacity in industry: up to 4 events with a total duration of 3 hours.

- To minimize the responsibility of the owner and risk of forgetting to charge the battery, CardiAid does not use rechargeable battery.

- Event and ECG data can be obtained easily through Bluetooth.

Maintainance

- CardiAid is easily adaptable to future changes in resuscitation guidelines with configurable functions like voice prompts, CPR duration, CPR sequence (30:2 or hands-only); and chest compression frequency (100 to 120 bpm).

- CardiAid Monitor 2 Technical Service Software offers a whole solution for all needs: Configuration, maintenance, troubleshooting, event data monitoring and many more.

- CardiAid has a unique maintenance policy.

- The device is programmed to warn every 2 years to remind the due date, reducing the responsibility of the owner.

- The periodical maintenance consists of battery & electrode replacement and special function tests.

Technical specifications

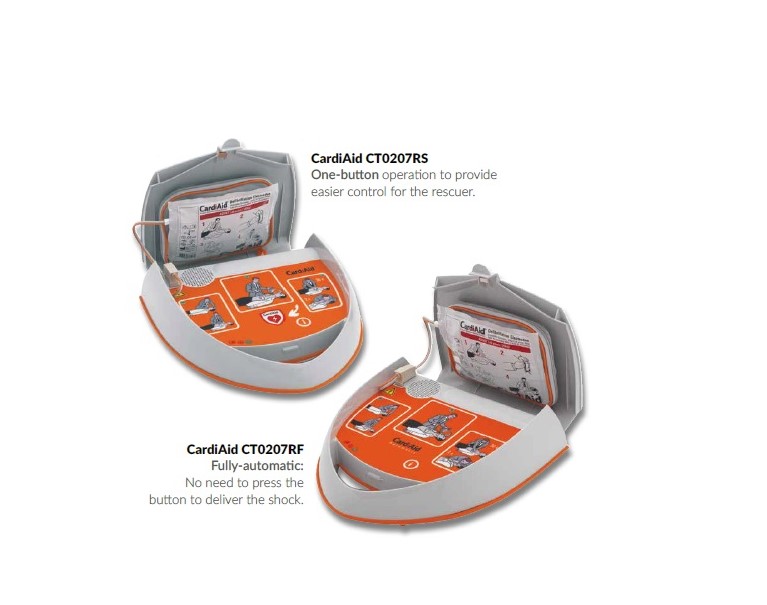

Operating Mode: Automated (CT0207RS: one button operation, CT0207RF, full-automatic).

Wave Form: Biphasic, current based.

Energy delivery: Adjusted to patient impedance, programmable (factory settings).

Delivered energy – Adult mode:

170j (Average for 50 Ω at low level energy),

270j (Average for 50 Ω at high level energy).

Delivered energy – Paeditric mode:

50j (Average for 50 Ω at low level energy),

75j (Average for 50 Ω at high level energy).

Shock Sequence: Constant or escalating, Programmable

Charging Time: Typically < 10 seconds, maximum < 15 seconds.

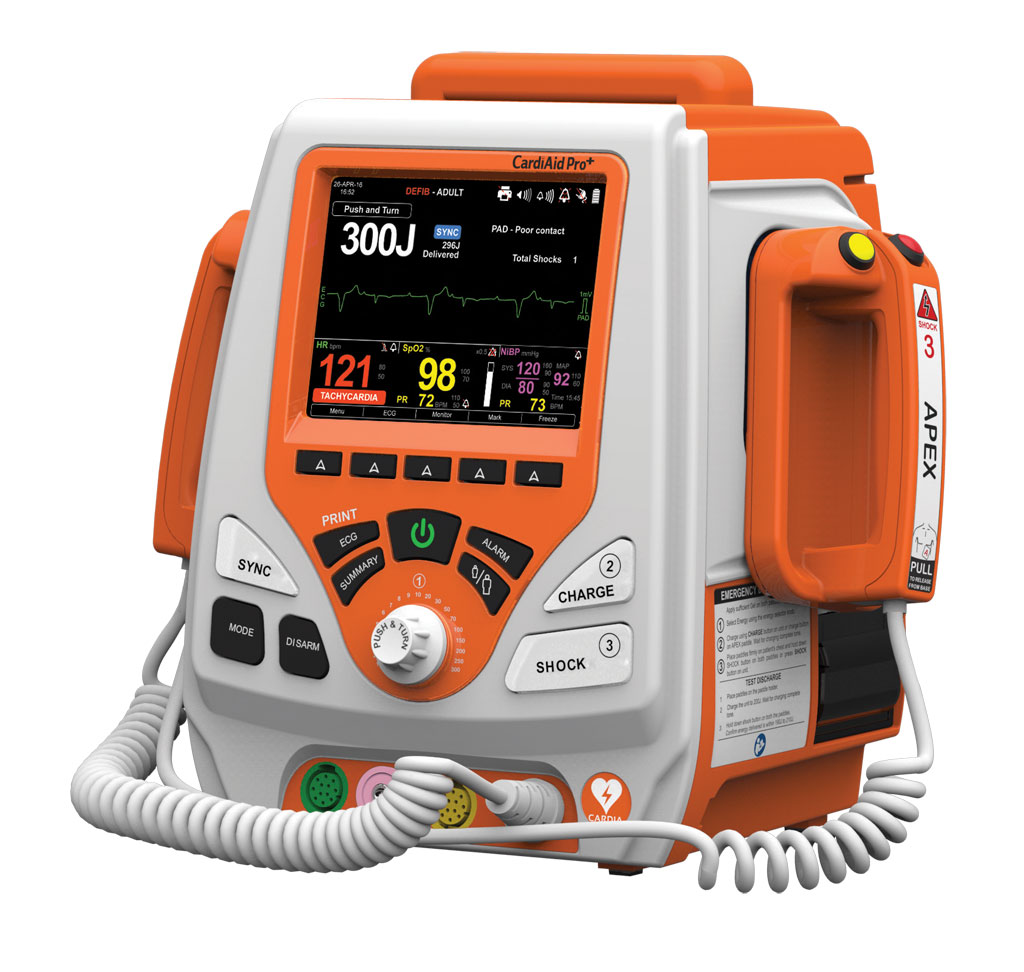

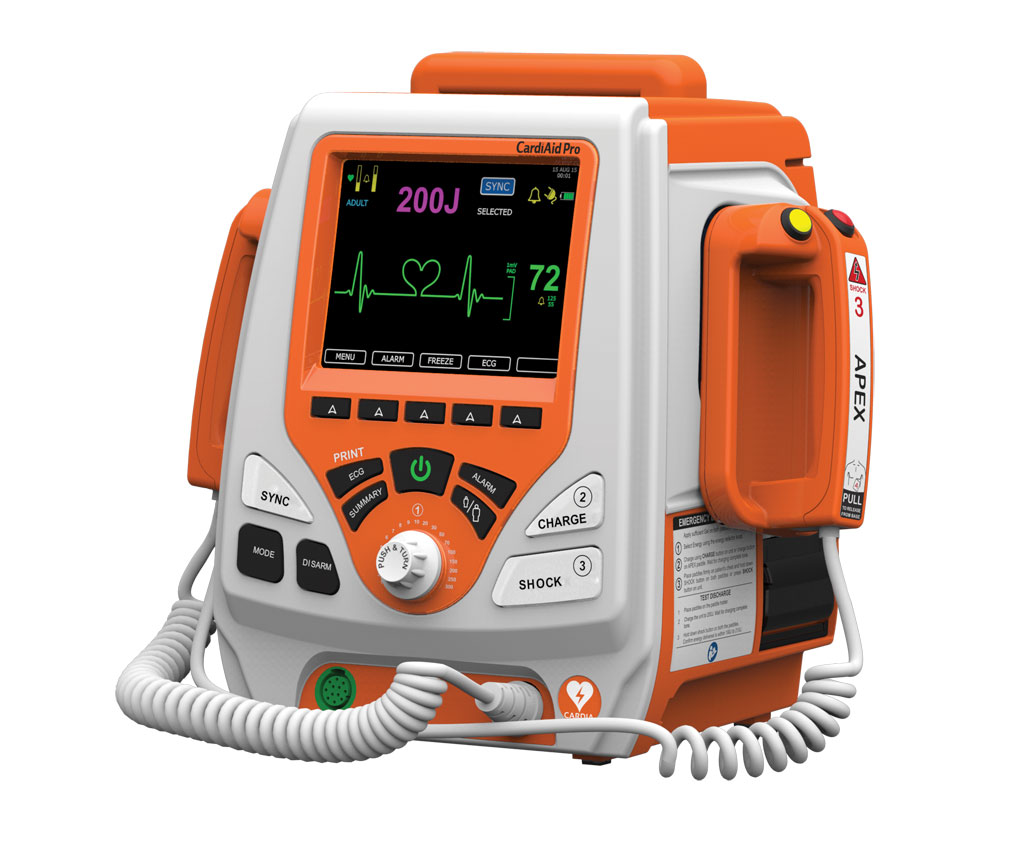

CardiAid PRO biphasic defibrillators

CardiAid Pro and CardiAid Pro+ biphasic professional defibrillators give you simple and safe defibrillation functionality. Both models employ current controlled, time limited biphasic defibrillation with patient impedance compensation to give accurate results. Capable of delivering up to 300J, the defibrillators are powerful and reliable, available for reviving victims of SCA.

Defibrillation technique

CardiAid Pro employs current controlled, time limited biphasic defibrillation with patient impedance compensation to give accurate results.

Reduces tissue damage by accurately controlling the current.

Accurate delivery of energy.

Biphasic pulse waveform with better efficiency compared with monophasic pulses.

Capable of delivering up to 300J, CardiAid Pro is a powerful and reliable device available for reviving victims of SCA.

Efficiency

Thanks to the intelligently designed power module, CardiAid Pro can charge to 300J in under 8 seconds when running from battery or AC mains. With a high capacity internal power source, CardiAid Pro can deliver more than 100 full energy (300J) shocks from a new fully charged battery.

Quick and Easy

The ergonomically designed energy selector and the simple to use 1 2 3 operation helps to keep the focus where it is needed. With the rotary energy selector and illuminated energy indicator ring, setting the right energy gets quick, easy and accurate. AED mode with voice prompts makes the device suitable for use by personnel with only basic life support training.

Patient monitoring

CardiAid Pro is equipped with a 3 lead / 5 lead ECG for monitoring the patient after defibrillation therapy. Arrhythmia detection algorithms built into CardiAid Pro simplifies the task of post shock monitoring.

Intuitive User Interface

The large clutter free colour LED display on CardiAid Pro helps users to quickly identify information provided on screen. The ergonomically placed keys with back-illumination makes operating CardiAid Pro still simpler.

Pacing

Transcutaneous pacing is identified as an integral step in ACLS bradycardia treatment protocol. CardiAid Pro+ features constant-current transcutaneous pacing via disposable adhesive pads to support patients with bradycardia showing symptoms of shock.

Technical specifications

Operating modes: Manual defibrillation, AED, Pacing or Monitoring.

Output Energy: 150J for adult, 50J for paediatric (factory default) nominal into a 50Ω test load through disposable pads.

AED Control: On/Off, Pause analysis, Analyse, Shock

Prompts: Text and voice prompts

ECG Analysis: Evaluates patient ECG and signal quality for identifying shockable rhythms, proper contact and motion artefact.

Waveform: Current controlled, time limited biphasic. Waveform parameters compensated for patient impedance.

Defibrillator - Charging Time

Less than 8 seconds to 300 Joules with a new, fully charged Battery at 25°C. (3APENS Variant)

Less than 7 seconds to 300 Joules with AC power at 90% - 110% rated AC mains voltage. (3APENS Variant)

Less than 6 seconds to 200 Joules with a new, fully charged Battery at 25°C. (2APENS Variant)
