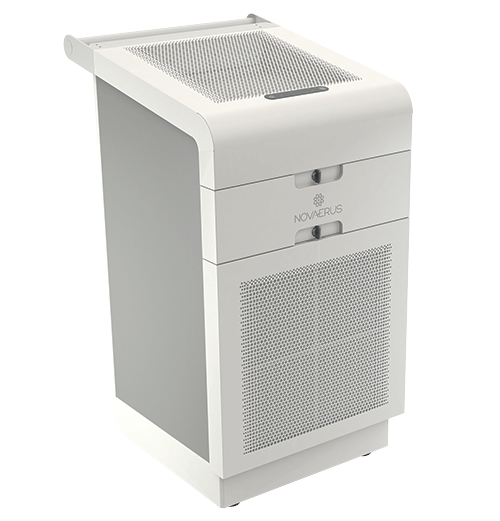

Designed for rapid remediation in large spaces and situations with high risk of infection, the Novaerus Defend 1050 uses NanoStrike technology combined with a triple-stage Camfil® filter system to provide a combined solution for air disinfection and particle removal. Free-standing unit can be wheeled easily to point of care and plugs into any outlet.

The Defend 1050 combines patented active purification plasma technology with a triple-stage Camfil® filter system to provide non-chemical air dis-infection and particle-reduction for multiple applications.  It is safe for use around vulnerable populations and highly effective at reducing infection, mitigating unpleasant odours, and reducing environmental contaminants in indoor areas that need to remain inhabitable during construction, restoration, or remediation projects.

M5 PRE-FILTER

30/30 high efficiency pleated panels water resistant, 3-month life span,400 × 400 × 50 mm

PLASMA COILS

6 active purification plasma coils produce low-energy plasma field

G4 CARBON FILTER

High efficiency pleated panels moisture resistant, 4-month life span,400 × 400 × 50 m

H13 HEPA FILTER

Very high efficiency, individually tested 12 month life span, MGA 400 × 400 × 110 mm

NANOSTRIKE TECHNOLOGY

FAN SPEED CONTROL

LARGE ROOMS

TRIPLE STAGE FILTER

APPLICATIONS

Operating Theatres

Intensive Care Units

Emergency Rooms

In Vitro Fertilization Labs

Patient Wards

Senior Living Facilities

Childcare & Schools

Construction

SPECIFICATIONS

Voltage: 230 VAC / 50Hz

Fan settings: 5 speeds

Energy use: 137 - 331 W

Air flow: 181 - 906 m3/hr

Dimensions: 100.1 cm (h) × 50.5 cm (w) × 46.5 cm (d)

Weight: 51 kg

Designed for continuous air dis-infection and odour control in medium indoor spaces, the Novaerus Protect 800 uses NanoStrike technology with a 2-speed fan. Can be wall-mounted or placed on a stand and plugs into any outlet.

Applications

Patient Rooms- Operating Theatres- Nurses Station- Examination Rooms – Classrooms - Common Areas- Dental Offices etc.

Model NV800 Specs

Stand or Wall mounted supplied with 2m power cord

ELECTRICAL RATING

230 VAC, 50 Hz, 20 W

Fuse Rated at 250 VAC, 3 Amps, Listed

POWER CONSUMPTION

Maximum 20 Watts

CONSTRUCTION + COLOR

Precision-cut fabricated metal casing in a white anti-bacterial powder coat finish

DIMENSIONS + WEIGHT

33.6 cm(w) × 33.6 cm(h) ×10.4 cm(d), 4.8kg

ELECTRICAL CONNECTION

Switched and fused with a grounded, moulded power cord

FAN AIR FLOW VOLUME

Speed I = 220 m3/hr

Speed II = 260 m3/hr

NOISE LEVEL

Speed I = 40 dB

Speed II = 45 dB

OPERATING CONDITIONS

10-35°C, 10-75% Relative

Humidity 2000m

SHIPPING / STORAGE CONDITIONS

5°C-50°C, Maximum 95% Relative Humidity

QUALITY + SAFETY

Manufactured under ISO 9001, ISO 14001 & OHSAS 18001.

Conforms to the Medical Device Directive

PRODUCT CERTIFICATIONS: CE marked

How the Protect 800 Works

1. Contaminated indoor air is pulled into the unit by an internal dual-speed fan.
2. Contaminants are rapidly and safely destroyed at the DNA level by an ultra-low energy patented plasma field emitted by two internal plasma coils.
3. Healthy, contaminant-free air is returned to the room.

NANOSTRIKE TECHNOLOGY

MEDIUM ROOMS

FAN SPEED CONTROL

APPLICATIONS

Patient Rooms

Operating Theatres

Nurses Station

Examination Room

Classroom

Common Areas

Designed for continuous air dis-infection and odour control in small indoor spaces, the Novaerus Protect 200 (NV200) uses patented filter-free ultra-low energy plasma technology with a single speed fan. The unit can be wall-mounted or placed on any surface and plugs into any outlet.

Applications

Reception Desk- Bathrooms- Supply Rooms – Offices- Patient Bedside- Ambulances- School Buses.

Model NV200 Specs

Wall mountable, countertop, or stand-alone

Supplied with 2m power cord

ELECTRICAL RATING

230 VAC, 50 Hz Single Phase, 20 W

Fuse rated at 250 VAC, 3 Amps,

Listed

Precision-cut fabricated metal

CONSTRUCTION + COLOR:

Precision-cut fabricated metal casing in a white anti-bacterial powder coat finish

DIMENSIONS + WEIGHT:

28.3 (h) × 13.1 (w) × 11.6 (d) cm , 3.4kg

ELECTRICAL CONNECTION:

Switched and fused with a grounded, moulded power cord

FAN AIR FLOW VOLUME: 80 m3/hr

NOISE LEVEL: 35 dB

OPERATING CONDITIONS:

10-35°C, 10-75% Relative Humidity, 2000m

SHIPPING / STORAGE CONDITIONS:

 5°C-50°C, Maximum 95% Relative Humidity

QUALITY + SAFETY:

Manufactured under ISO 9001, ISO 14001 & OHSAS 18001.

PRODUCT CERTIFICATIONS: CE marked

How the Protect 200 Works

1. Contaminated indoor air is pulled into the unit by an internal dual-speed fan.
2. Contaminants are rapidly and safely destroyed at the DNA level by an ultra-low energy patented plasma field emitted by two internal plasma coils.
3. Healthy, contaminant-free air is returned to the room.
