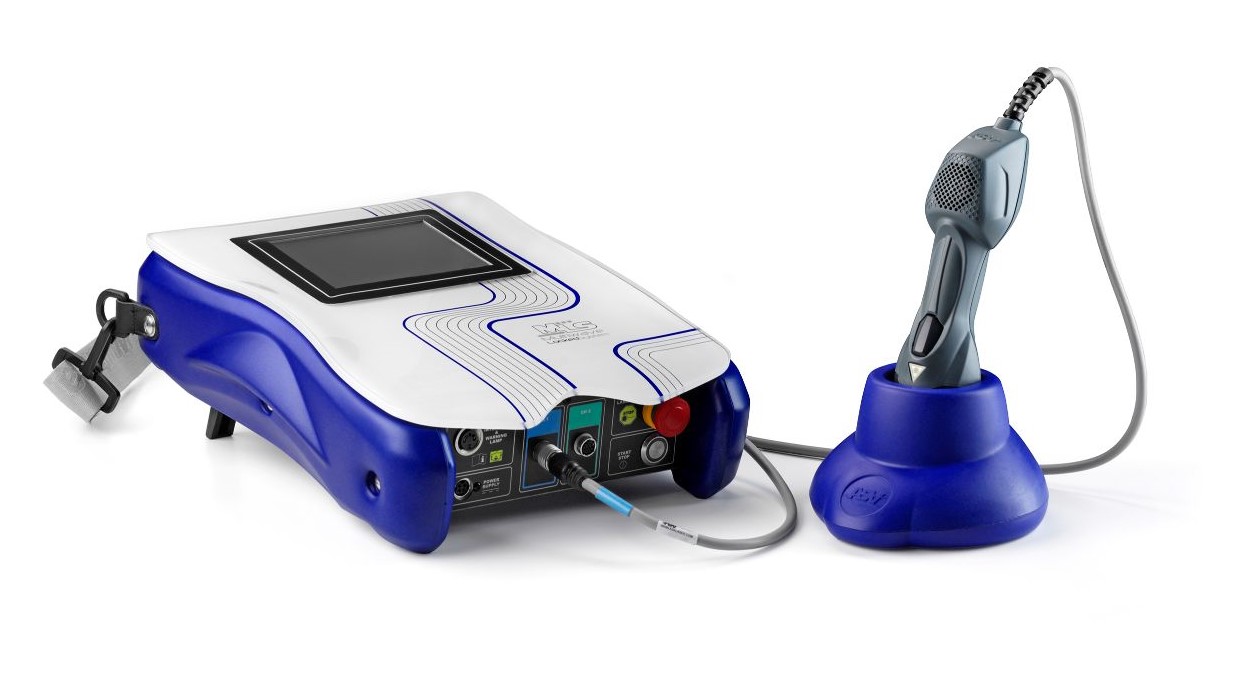

ASA MLS® Laser Therapy Mphi Laser
Always with you!
Gallery
2849449
2849449
×
)

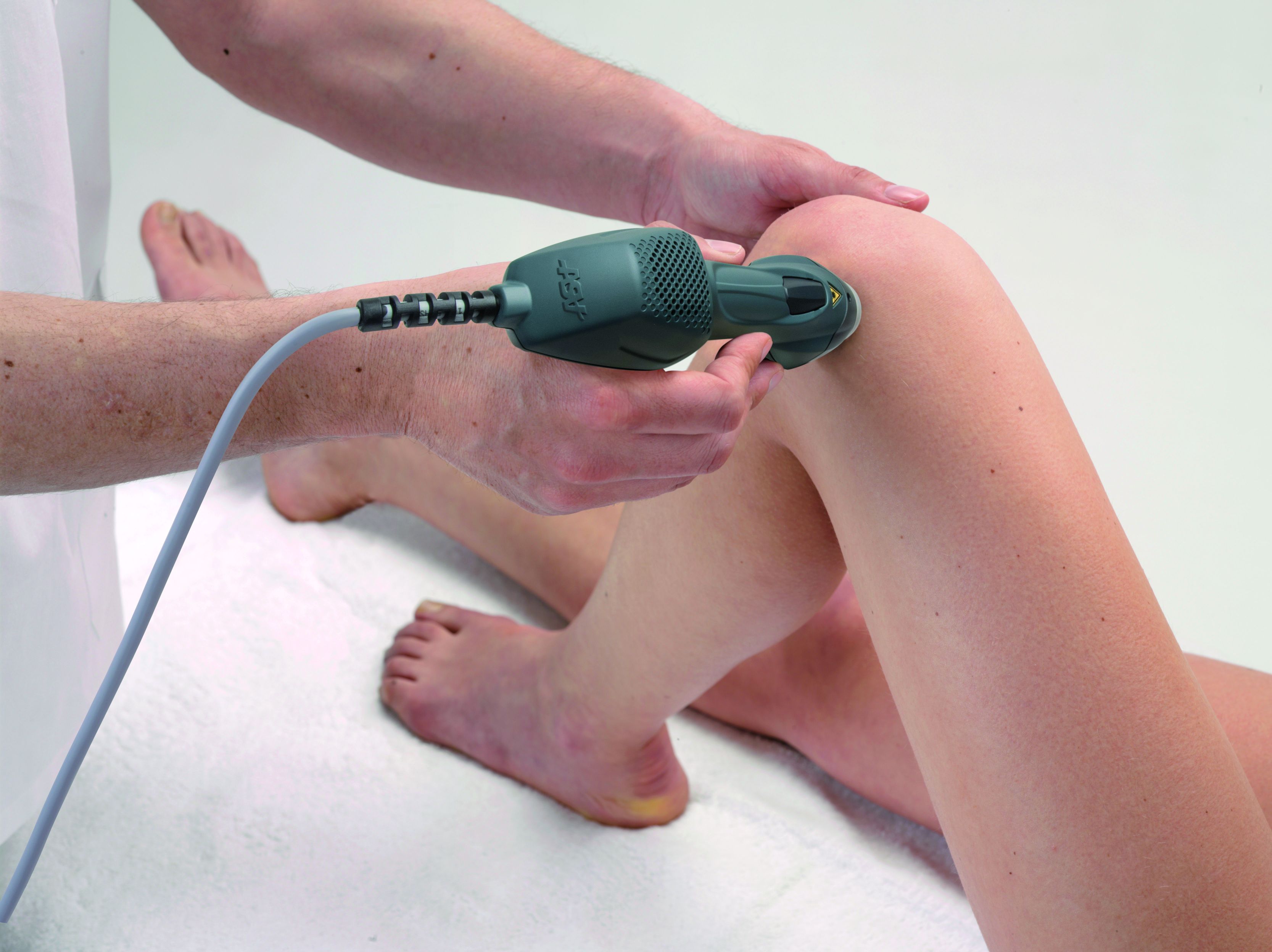

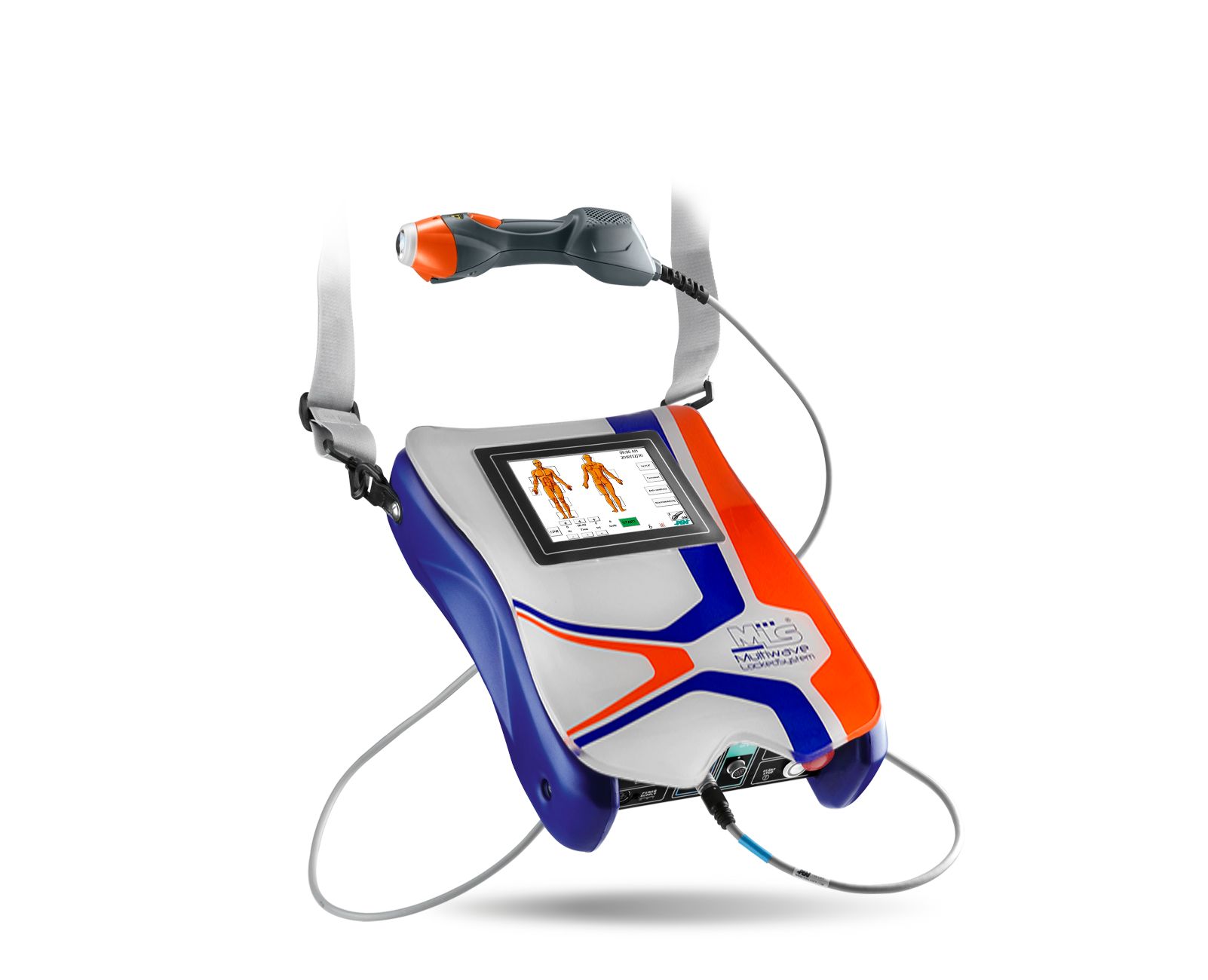

ASA MLS® Laser Therapy Mphi Laser
Always with you!

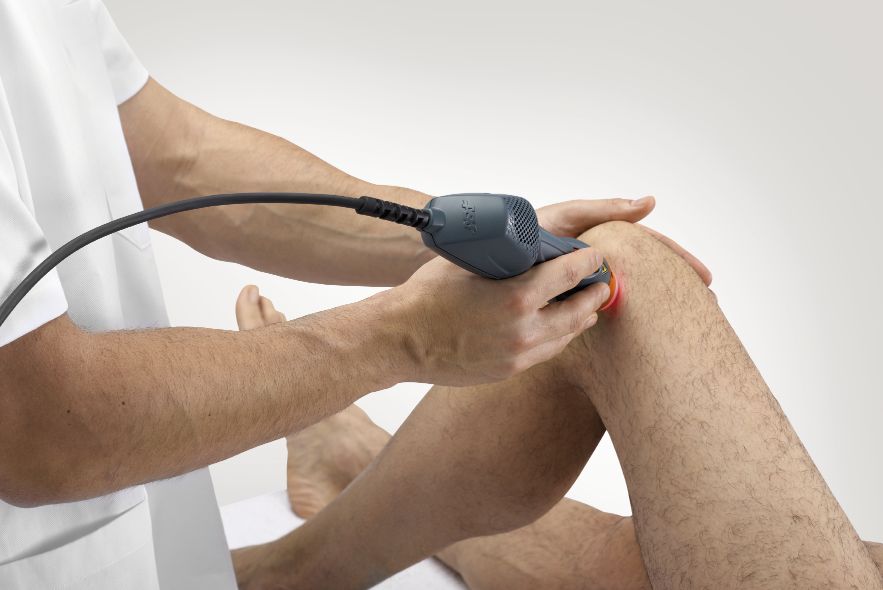

Easy to transport, ergonomic, easy to use, intuitive: a new opportunity for making the beneficial effects of MLS® Laser Therapy available everywhere, in your clinic or at patient’s home. Completely independent, provided with lythium battery, with moderate dimensions and weight. Mphi is equipped with an innovative backlit color graphic touch-screen display that interacts with the operator in an intuitive manner.
The synchronised action, specific of MLS® Laser Therapy, administered by Mphi, allows obtaining a complex and refined light pulse capable of transferring the light energy to the anatomical structures targeted by the therapy with great efficiency. The patient can thus overcome the acute phase of pain quickly and lastingly, effectively promoting functional recovery.

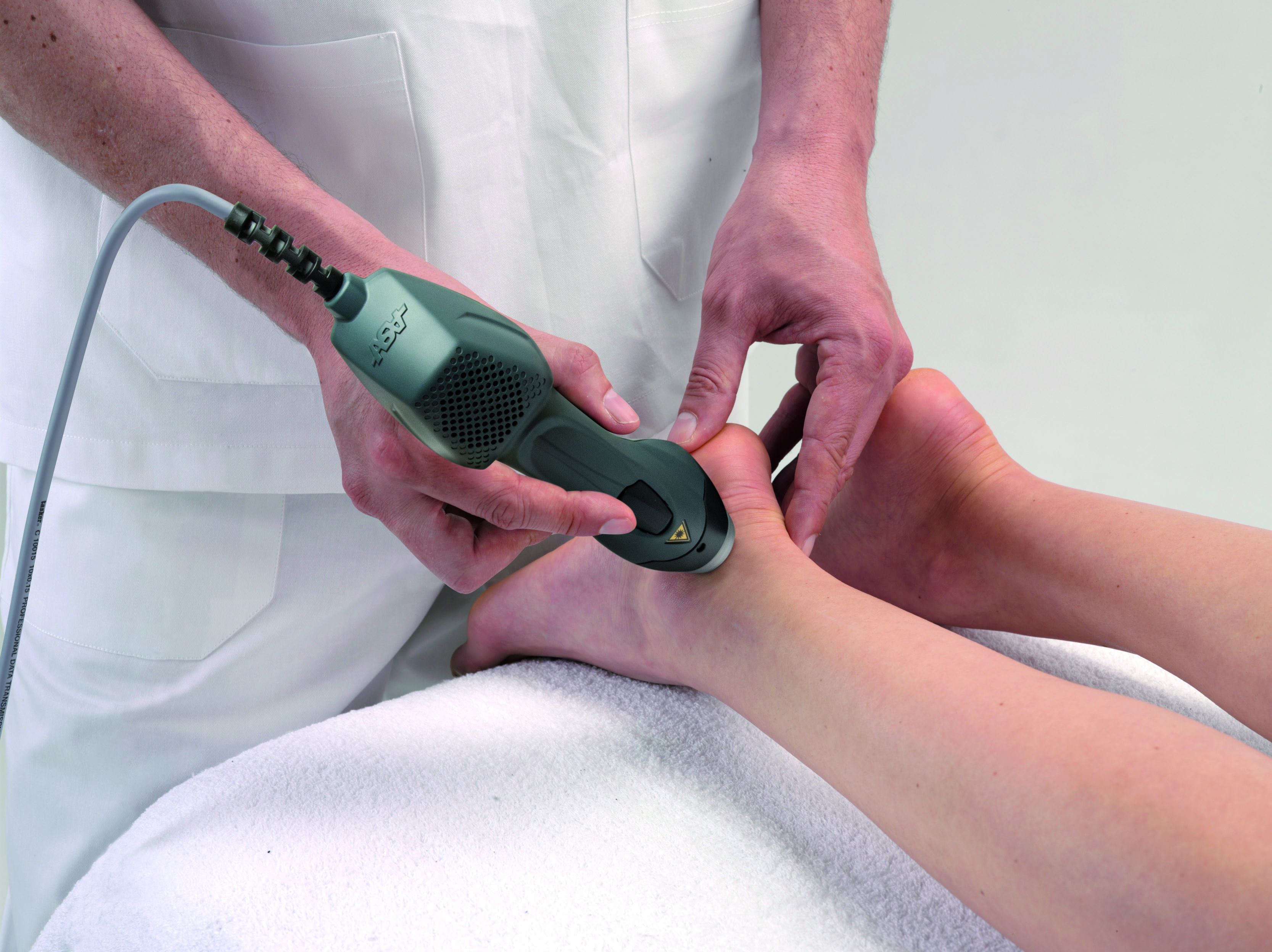

Handpiece with optical group composed of MLS® source power up to 1.1 W - Peak Power 25 W
Target Area ø 2 cm highlighted by high-efficiency red lights LEDs
High resolution LCD color touch screen user interface
Simultaneous management of two independent channels
4 treatment modalities:
A) specific pathologies
B) pain management
C) anti-edema
D) biostimulation
Possibility to customize each treatment parameters
MLS® modulation in CPW and FPW mode (Synchronized emission of Continuous Pulsed Waves and Frequenced Pulsed Waves)
Modulation frequency from 1 to 2000 Hz with 1 Hz steps
Power level 25%, 50%, 75% and 100%
Fixed duty cycle at 50% or variable
Treatment duration from 1” to 99’59” with 1” steps
Automatic calculation of the emitted energy according to the settled parameters
ALARMS AND SAFETY FEATURES
Laser emission warning light
Interlock
Acoustic signal selectable by operator
Date and time
Password to operate the device
Language option
Ready to be connected to the remote laser emission signaling device
INCLUDED ACCESSORIES
OPTIONAL ACCESSORIES
Trolley-Ergonomic trolley designed for holding Mphi, with bumper-protected wheels, a built-in handpiece holder and two storage compartments.
SIZE AND WEIGHT
36 x 28 x 10 cm, 3 Kg
POWER SUPPLY
Lithium polymer battery
External power supply 18Vdc 50VA.

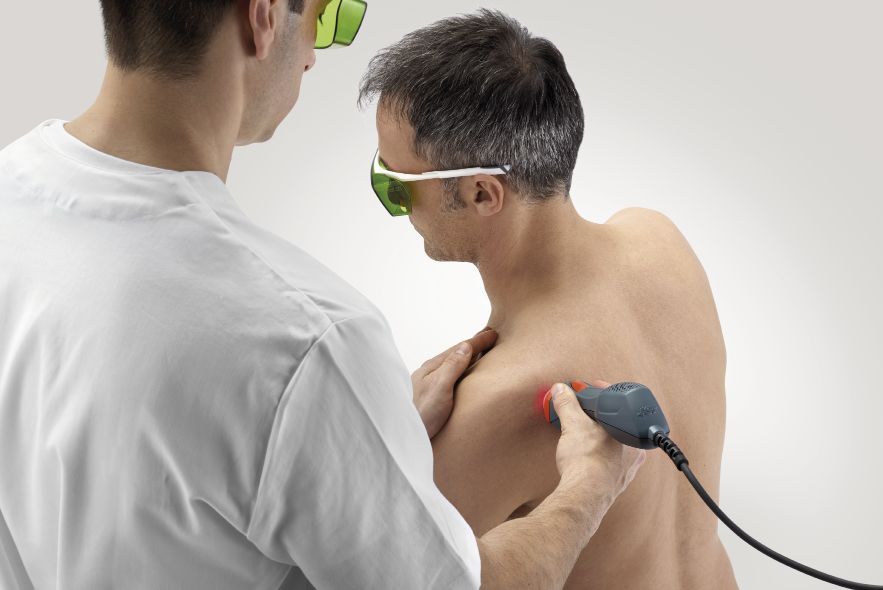

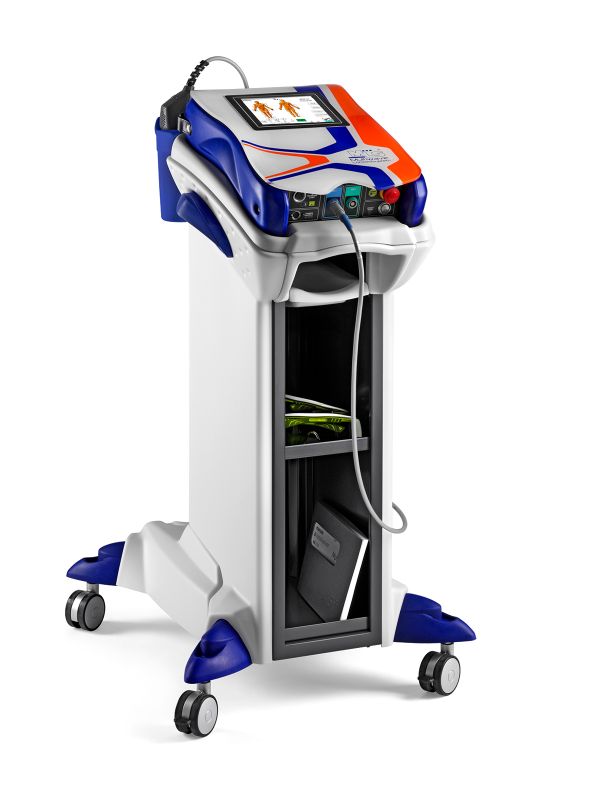

ASA MLS® Laser Therapy Mphi 5 Laser
Dual treatment. Simultaneously!
Mphi 5 allows simultaneous dual treatment.

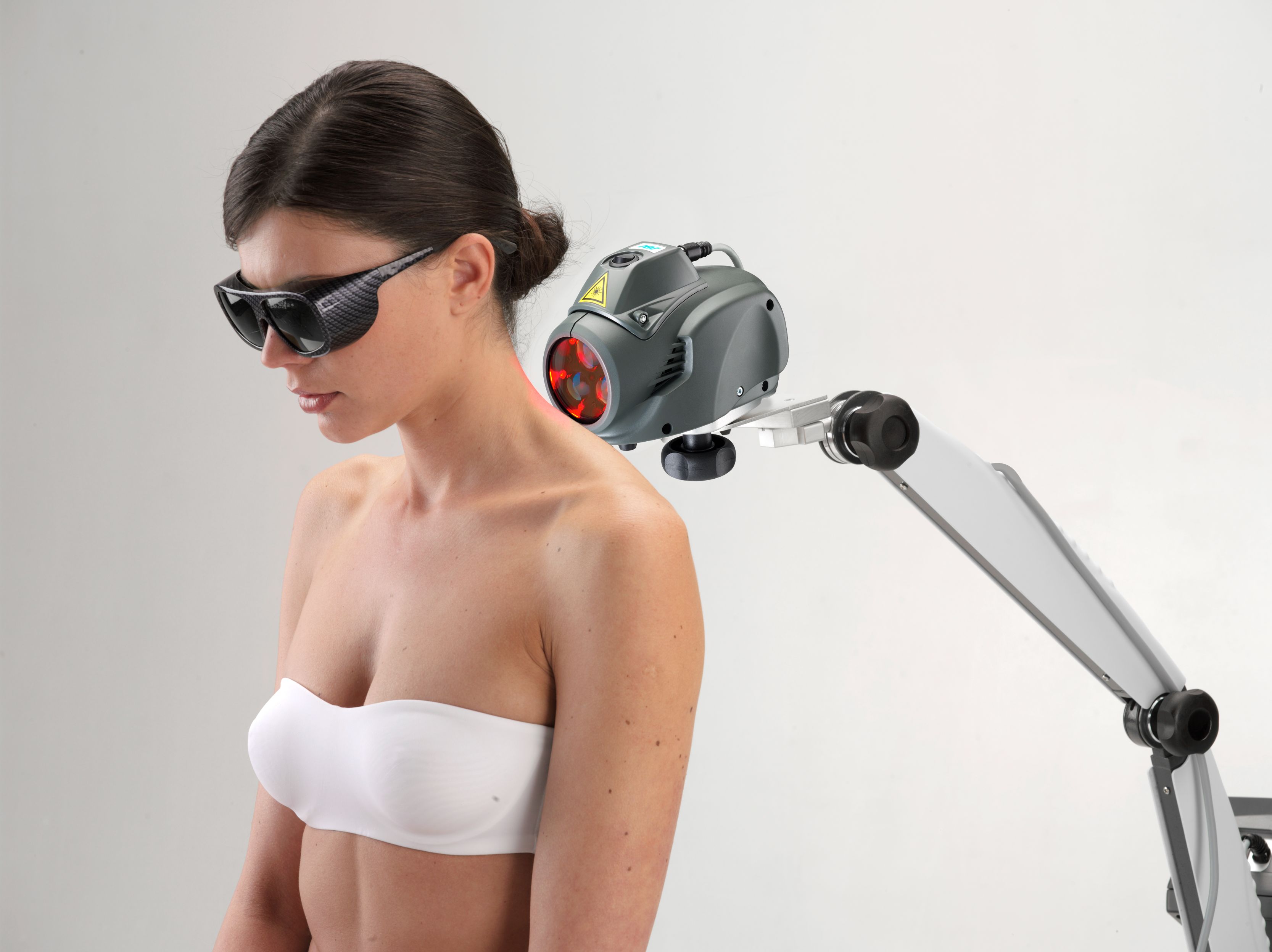

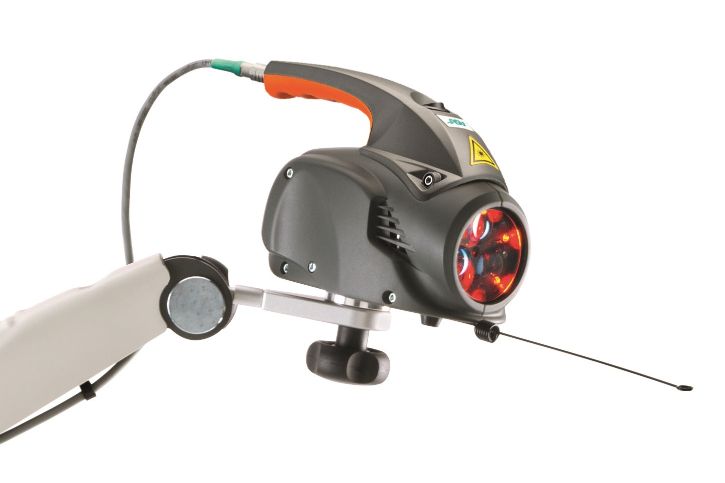

While the operator is using the handpiece on painful and trigger points, the Charlie multidiode applicator works uniformly on large areas of tissue, such as major muscle groups or entire joints, in automatic fixed pointer mode.
The operator is assisted in the choice of the treatment thanks to the pre-set, but customisable, therapeutic programs.
1 MLS® source - 25 W Peak Power
2 cm diameter Target Area
3 MLS® sources - 3 x 25 W Peak Power
5 cm diameter Target Area
Technical features:
ALARMS AND SAFETY FEATURES
ACCESSORIES INCLUDED
SIZE AND WEIGHT
POWER SUPPLY

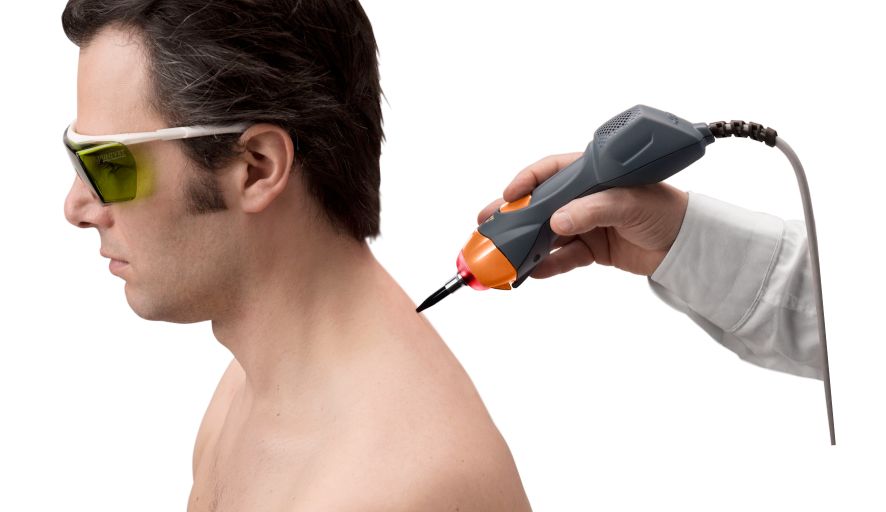

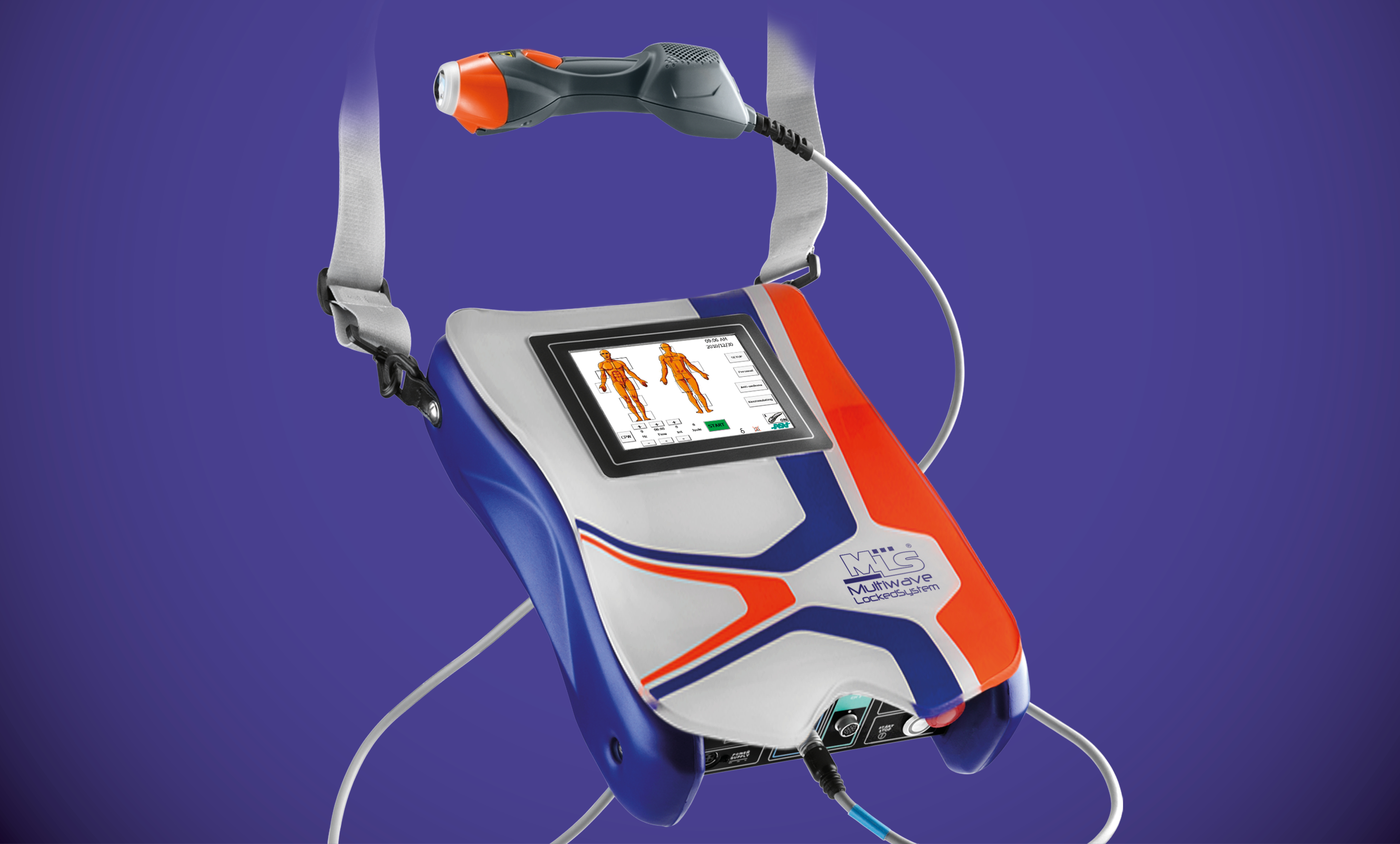

ASA MLS® Laser Therapy Mphi 75 Laser
75W peak power
Mphi 75 represents a further evolution of the MLS® family and inherits its safety features and ease-of-use as a portable device with adequate size and weight.
Mphi 75 offers all the features of the well-known and appreciated Mphi model, with a new handpiece with a peak laser source of 75 Watt, together with highly specialised distinctive features, such as the specific cone light guide and dedicated software for laser puncture sessions. The personalization of the protocols, in a specific area, allowing the creation and storage of parameters ready to be used at any time.
The MLS® pulse boosted this way allows an early improvement of symptoms with reduced treatment times.
ALARMS AND SAFETY FEATURES
INCLUDED ACCESSORIES
OPTIONAL ACCESSORIES
SIZE AND WEIGHT
POWER SUPPLY
ASA MLS® Laser Therapy Mphi 75.5 Laser
The 2 in 1 solution. With 75W peak power
Mphi 75.5 is a further evolution of the MLS® family: the therapeutic effects and application options of the MLS® family are increased thanks to the 75W peak power handpieces and a number of highly specialised distinctive features, such as the conical light guide for laser acupuncture treatments.
The enhanced MLS® pulse results in faster improvement of symptoms with reduced treatment times also in “hands-free” mode thanks to the fixed pointer of the Charlie Orange multidiodic applicator.
1 MLS® source - 75 W Peak Power
Ø2 cm Target Area
3 MLS® sources - 3 x 75 W Peak Power
Ø5 cm Target Area
ALARMS AND SAFETY FEATURES
ACCESSORIES INCLUDED
SIZE AND WEIGHT
POWER SUPPLY

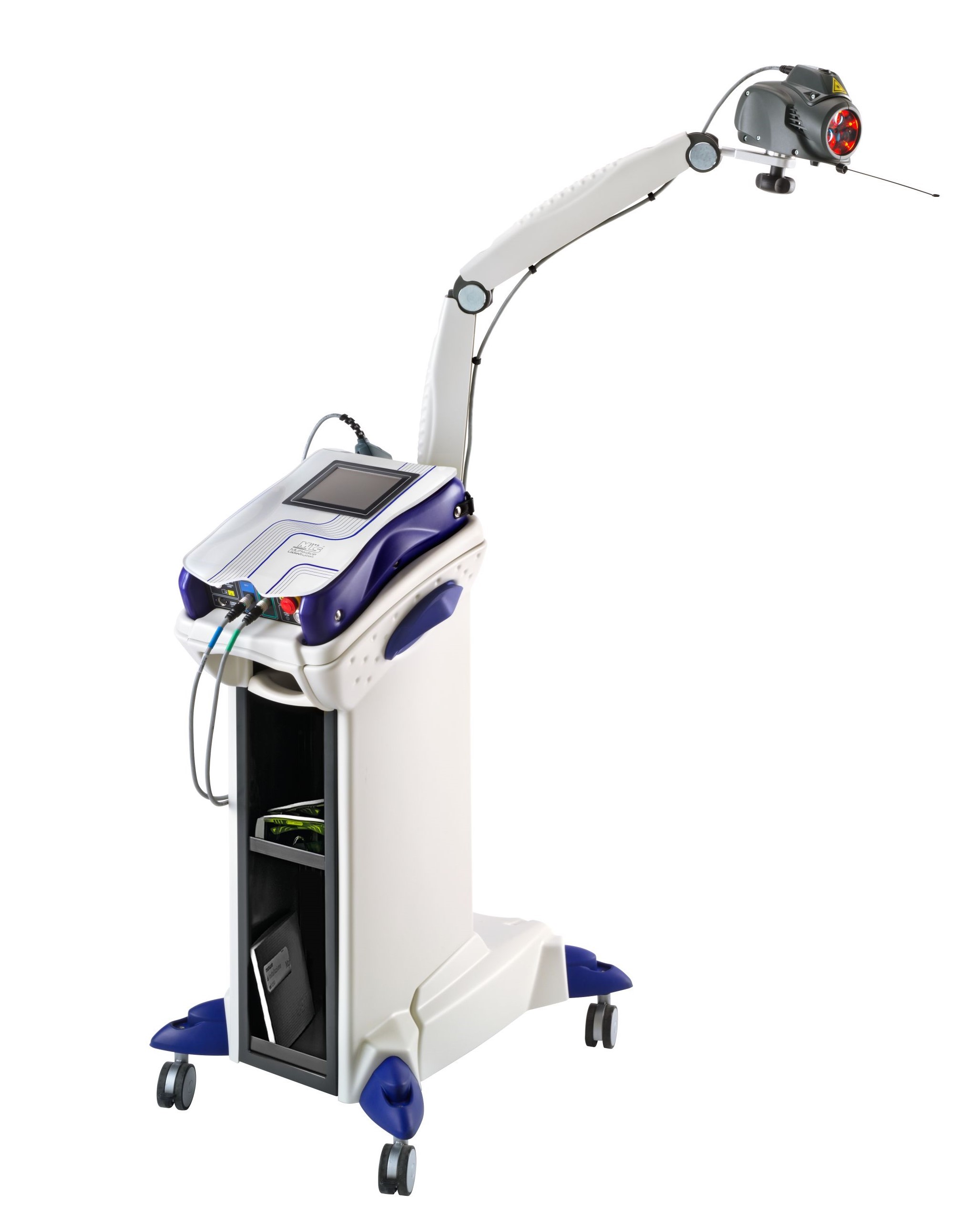

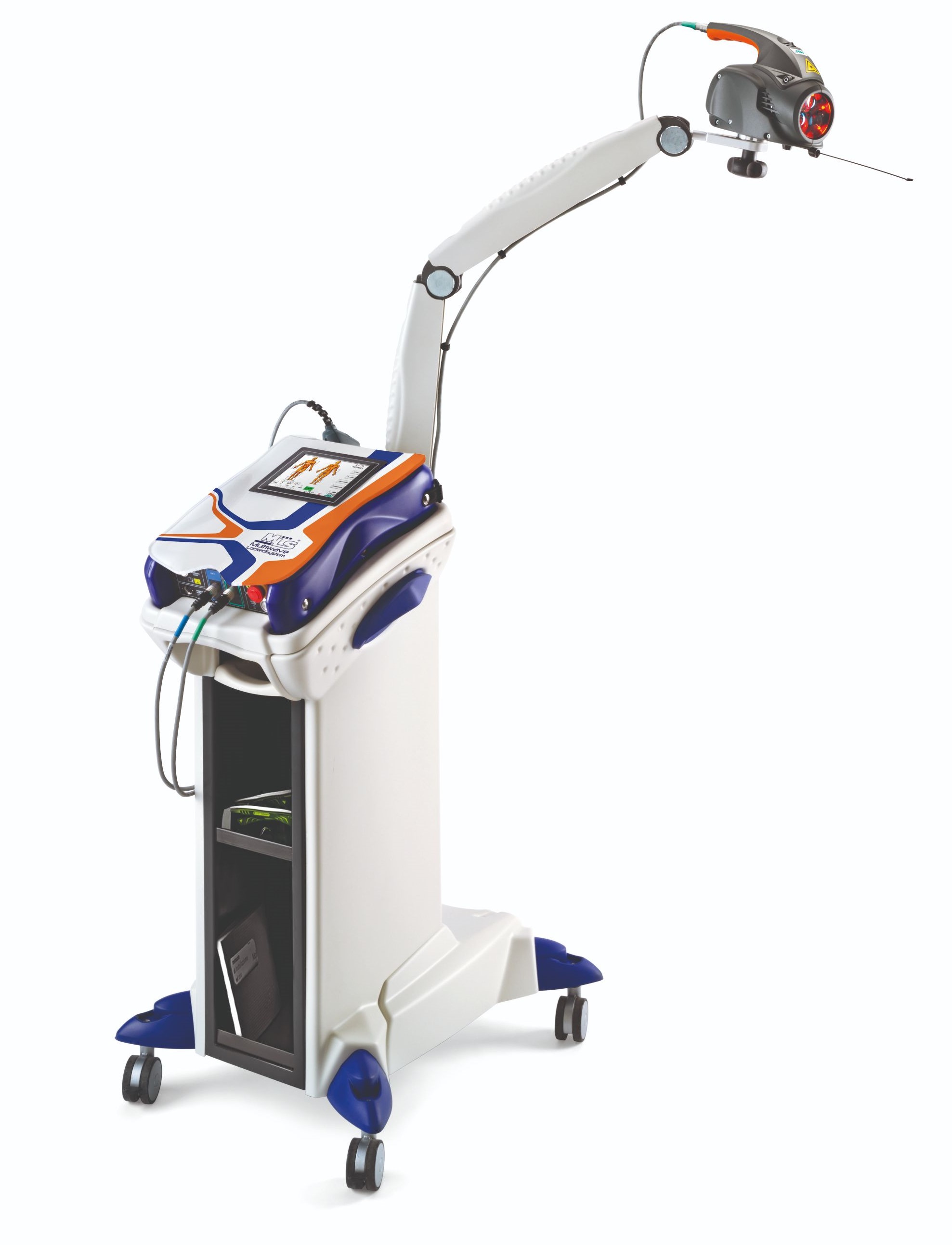

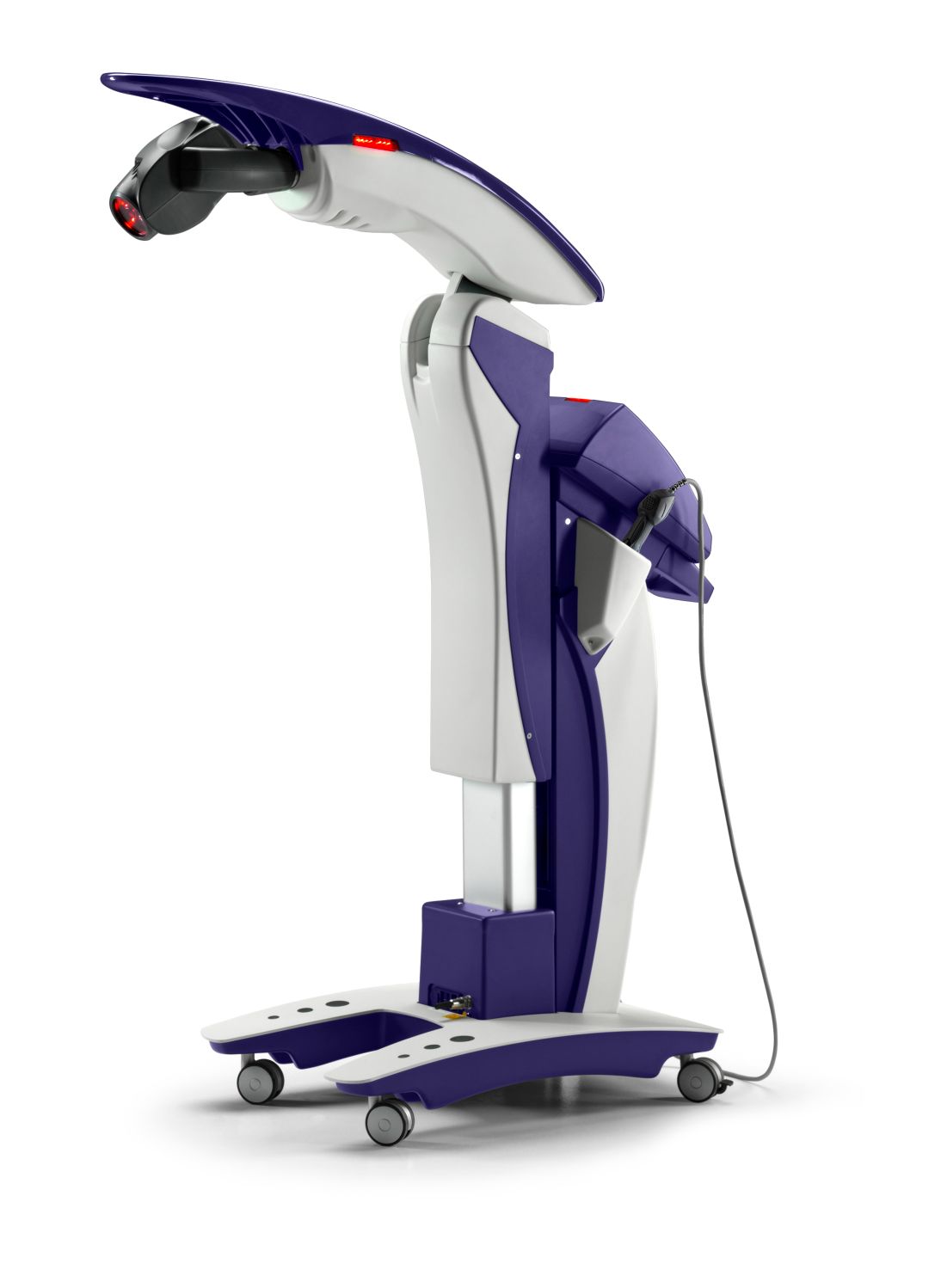

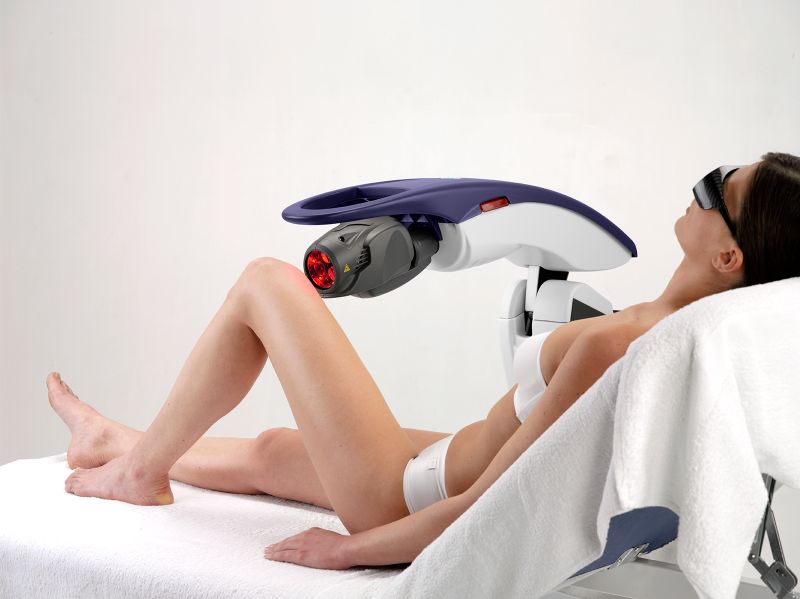

ASA MLS® Laser Therapy M6 Laser
Multi-target with automatic scan

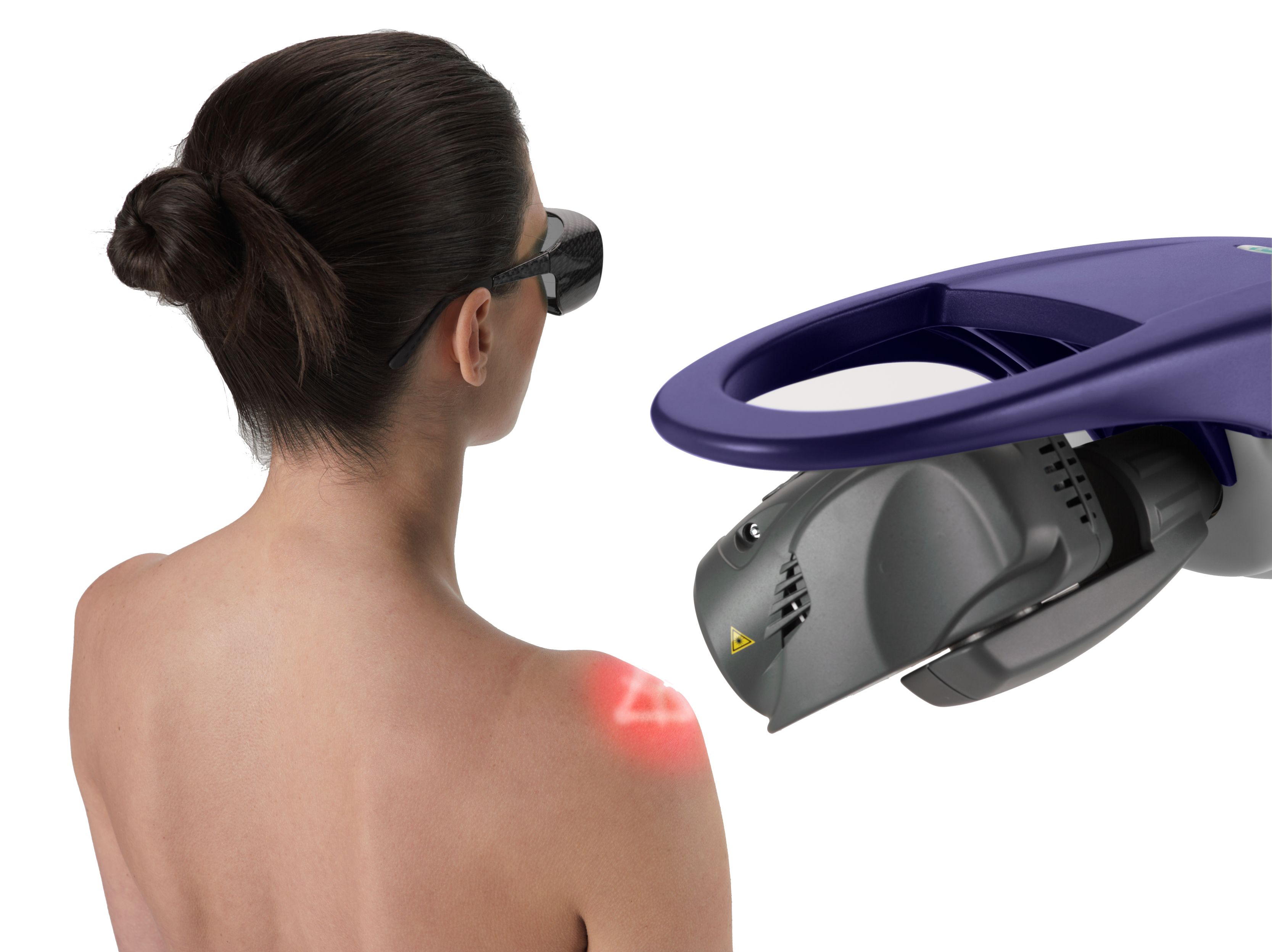

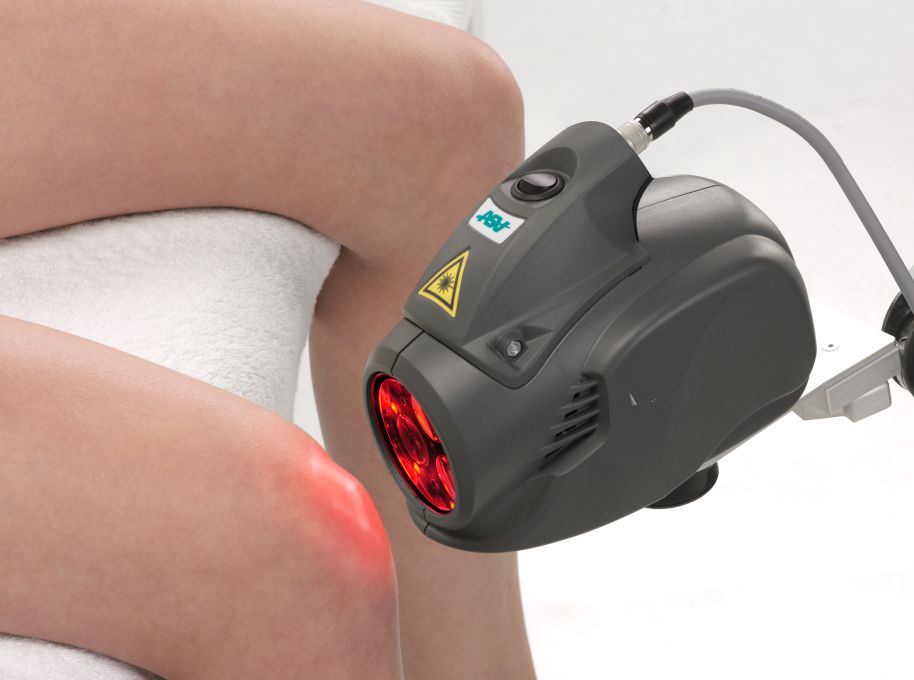

M6 enables the automatic delivery of MLS® Laser Therapy: the robotized head uniformly covers the entire target area and highlights multi-targets.
Treatment times are carefully calibrated to deliver the best possible energy dose to the tissue being treated.
The wide range of movements enables the M6 to be adapted to the chosen course of treatment, allowing the patient to be treated in various positions, either sitting, lying down or at a distance, without risk of contamination.
The multi-target application mode with bustrophedic (bi-directional) scanning, the "Greek" way, allows large areas of tissue to be treated rapidly and uniformly.
Technical specifications:
ALARMS AND SAFETY FEATURES
INCLUDED ACCESSORIES
SIZE AND WEIGHT
POWER SUPPLY

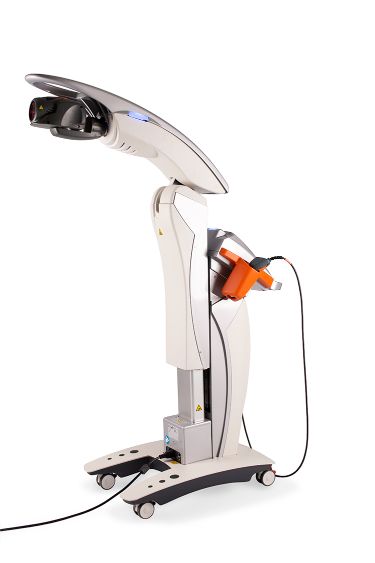

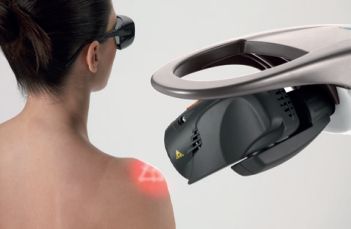

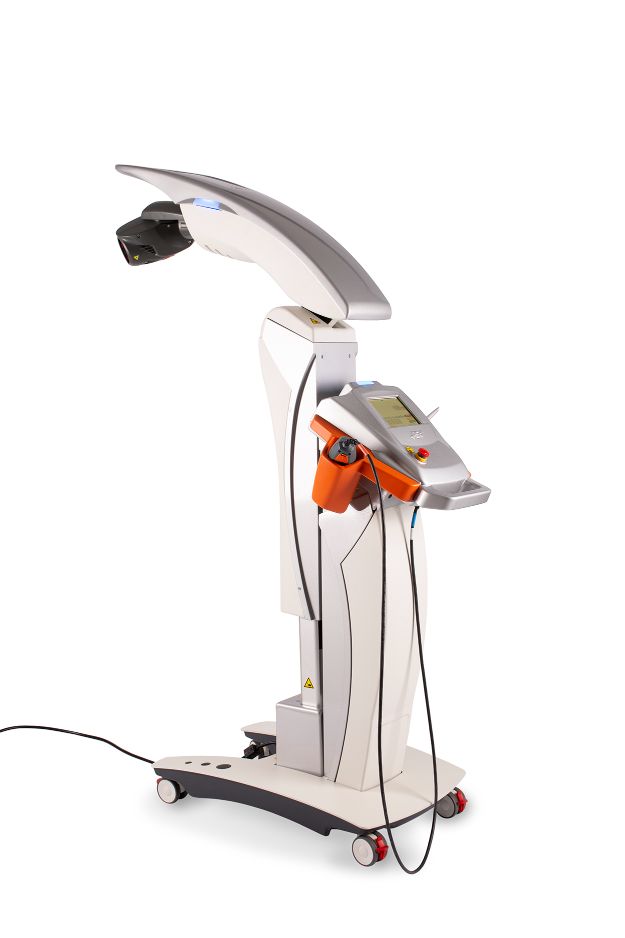

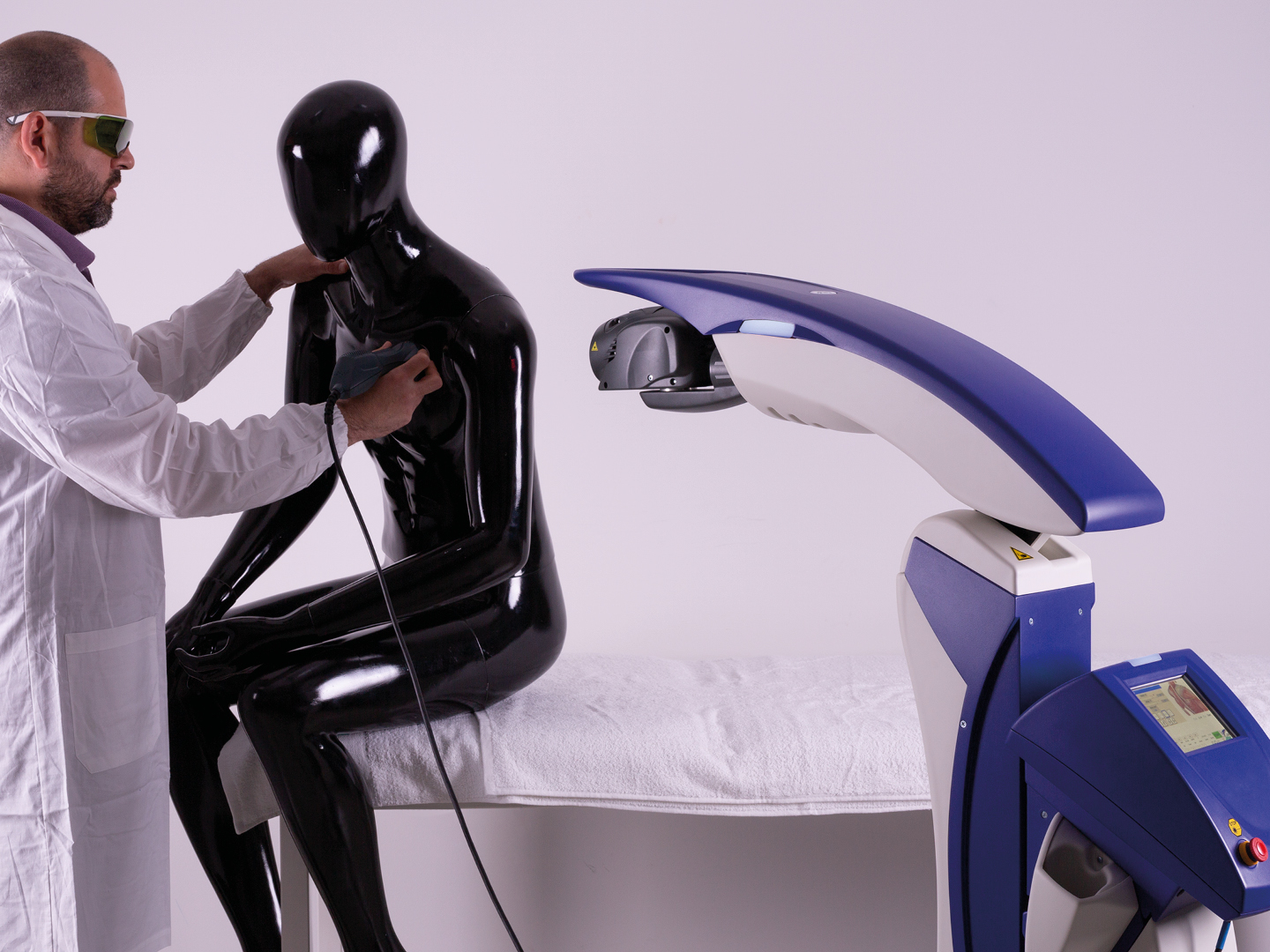

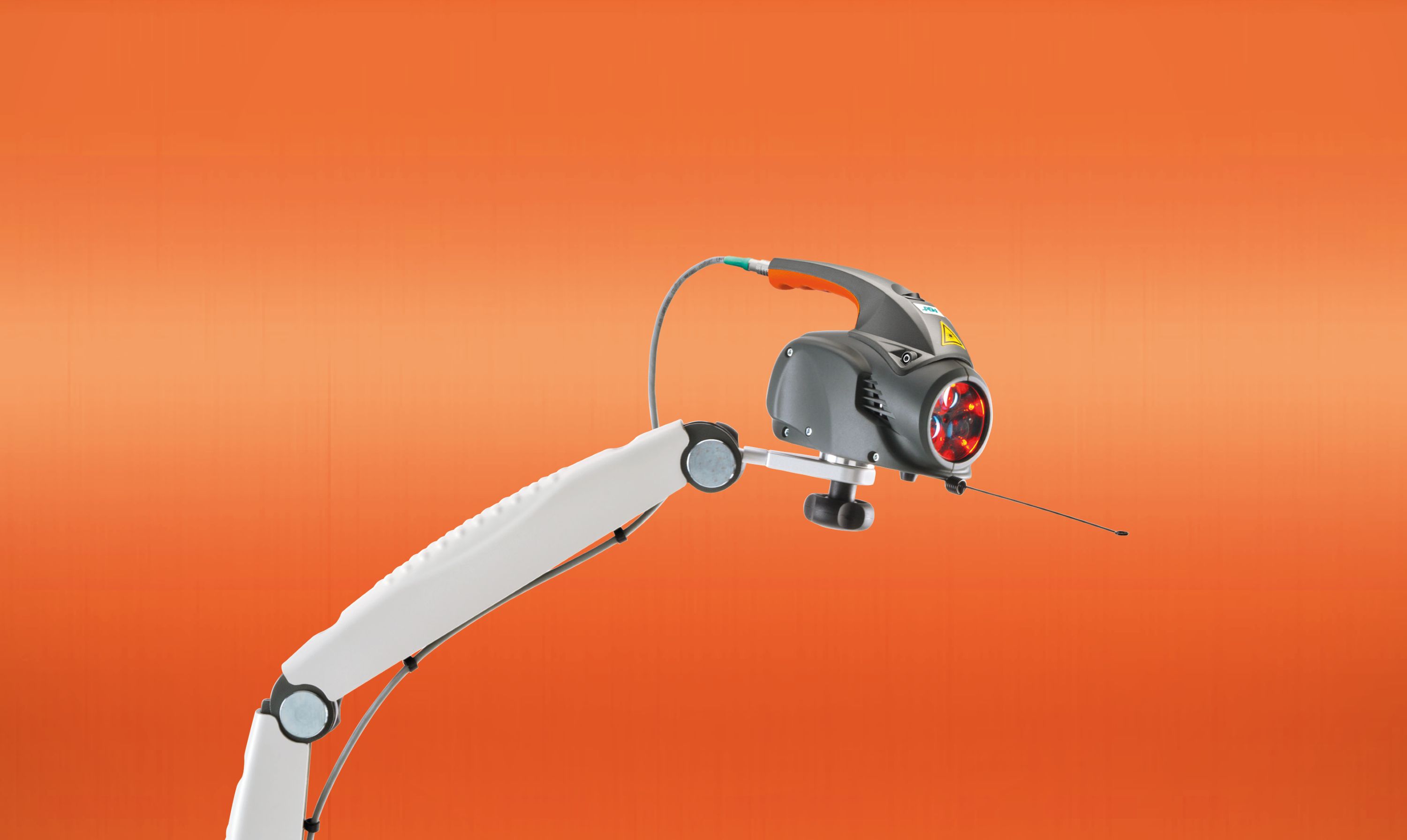

ASA MLS® Laser Therapy M8 Laser
Robotized MLS® with 75W peak power

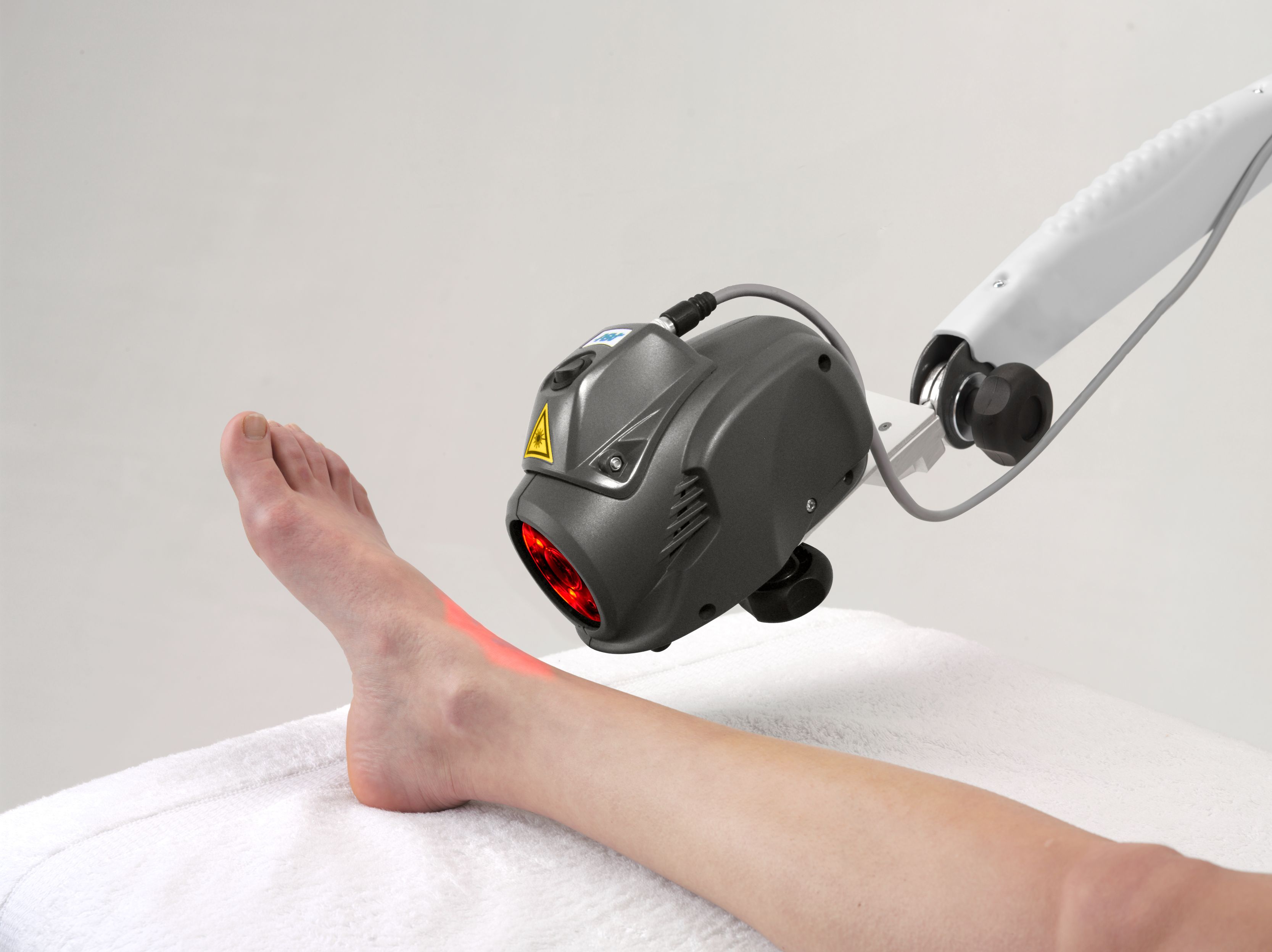

Thanks to its exclusive MLS® multidiode applicator with 75W Peak Power, M8 provides rapid and automatic delivery of MLS® Laser Therapy.
The movement of the column and arm and rotation of the head in 5 robotized directions, enable perfect positioning on the target area.
The enhanced MLS® pulse results in faster improvement of symptoms with reduced treatment times in “hands-free” mode.
Once the treatment parameters have been entered, the therapist just needs to supervise the treatment which is performed hands-free at a distance, in total safety. There is no contact between the robotised head and the patient, thus avoiding potential contamination.
Therapy protocol and head adjustment parameters are displayed and can be changed via an advanced and user-friendly interface.
The new software offers complete protocols with relevant illustrations to guide the operator during the therapy.
Technical features:
ALARMS AND SAFETY FEATURES
INCLUDED ACCESSORIES
SIZE AND WEIGHT
POWER SUPPLY

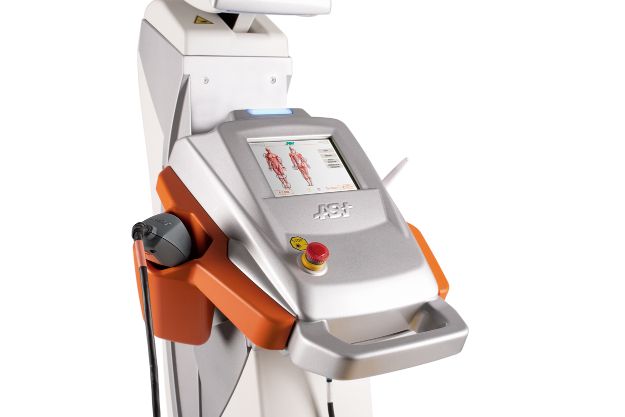

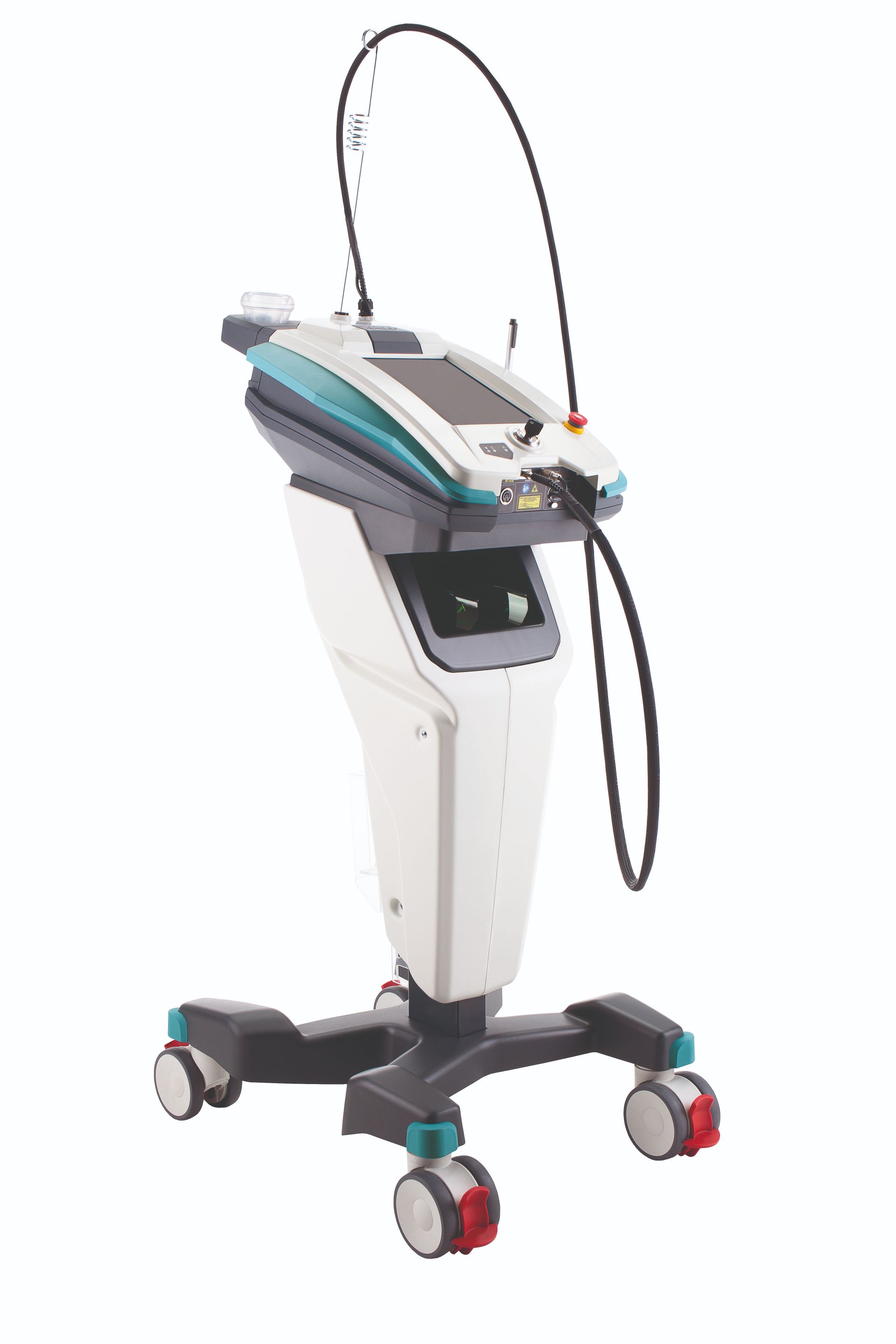

ASA MLS® Laser Therapy MiS Laser
MLS® High Peak Pulse

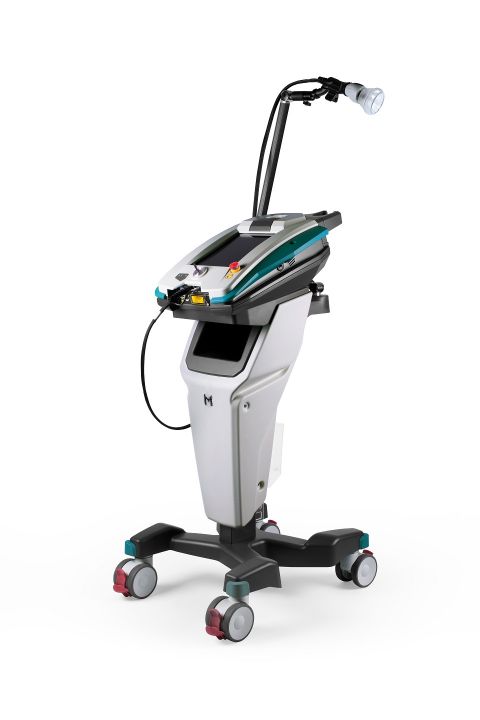

MiS is a device with never-before-seen performance, capable of combining the synchronized action of MLS® Laser Therapy with Hilterapia® distinctive pulsed power.
The very high, instantaneous peak power and a controlled average power are consistent with the choice of pursuing efficacy while safeguarding patients’ safety. The modulation in short pulses allows in fact to “tame” the peak power, taking advantage of its therapeutic benefits in complete safety, avoiding damaging thermal effects.
In addition to the therapeutic characteristics typical of the MLS® family, MiS finds an application in peripheral neuropathies, as demonstrated by ASAcampus scientific research.
The application of MiS in a recognized model of chronic neuropathic pain shows a clear and lasting reduction in pain symptomatology, accompanied by functional recovery. From the biological point of view, the treatment with MiS promotes the recovery of the nerve fibres that have been damaged in the lesion area, as confirmed by histological and immunohistochemical evaluations. Specifically, sheath reorganization is important both for nerve trophism and conduction.
Thus, MiS is particularly indicated for the treatment of neuropathic pain.
It inherits the demonstrated efficacy and therapeutic superiority of the synchronised emission of MLS® (continuous and pulsed wavelengths, 808nm + 905nm) and it enhances the peak power of the pulsed component.
The spatial overlap between the different wavelengths ensures the diffusion of the MiS energy mix on the irradiated area. The adopted optical technology allows a uniform beam profile and a homogeneous energy distribution on the target area.
It has gone beyond the technological state of the art by optimizing the fibre coupling of 7 diode laser sources, pulsed and continuous, reaching peak powers of 1kW and an emission quality of very high level.
The very high instantaneous power is modulated through very short pulses that allow the stimulation of the therapeutic biological processes while maintaining control of the thermal effect and therefore the safety of the treatment, which has always been an essential requirement for ASA.

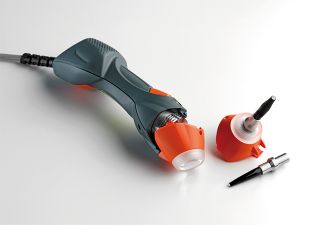

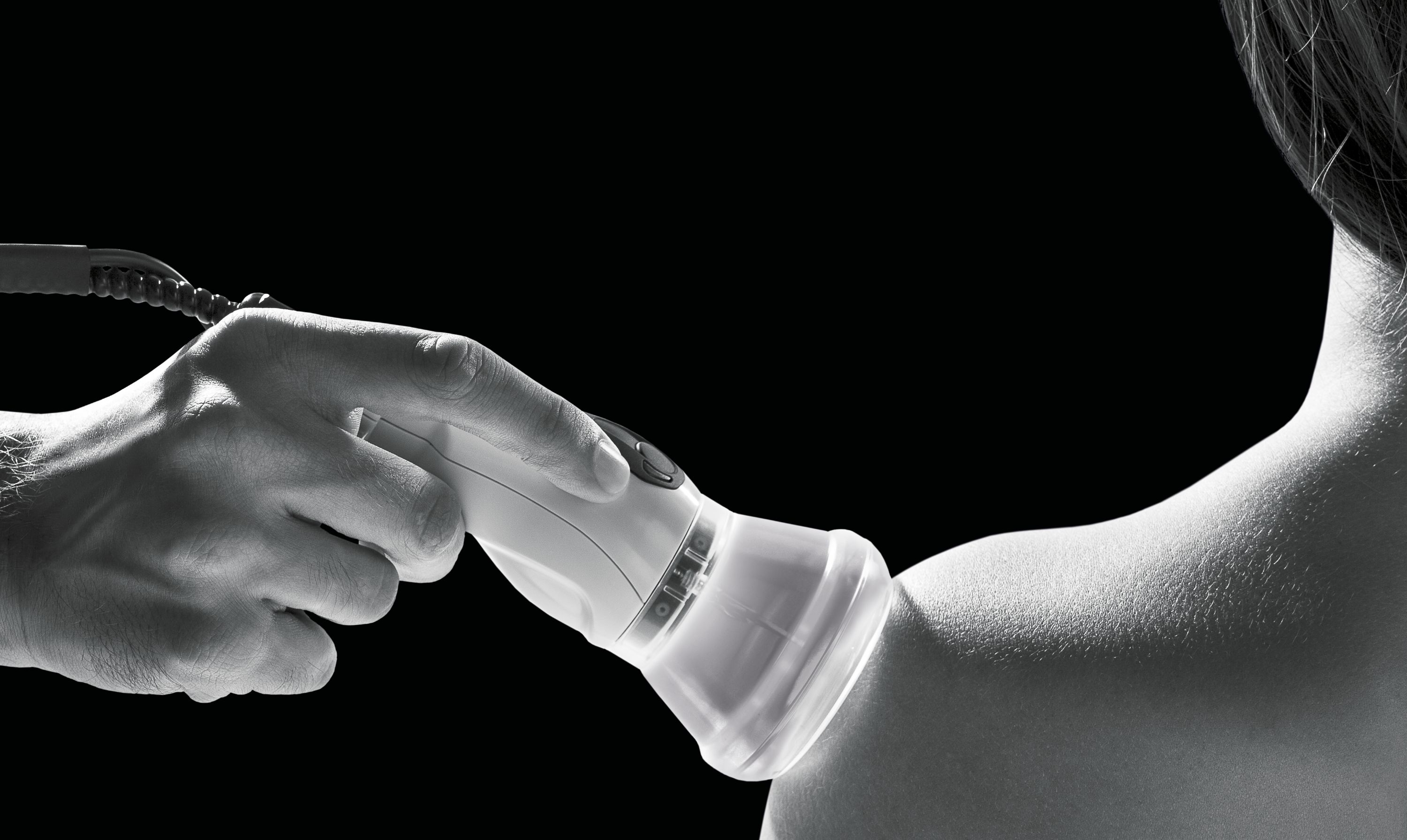

Light, compact, and multifunctional handpiece. The mechanical connection system of the optical terminals has been designed to allow immediate interchangeability and is equipped with a recognition sensor to adjust the emission parameters automatically.
It combines in a single bundle the multisource power, maximizing the therapeutic performance. Flexible, handy, and durable thanks to the internal steel sheath.
Technical features:
SIZE AND WEIGHT
POWER SUPPLY

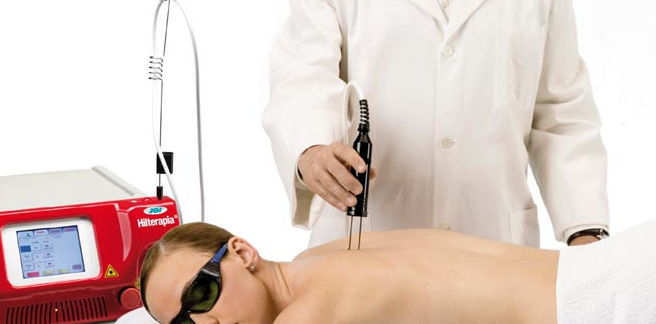

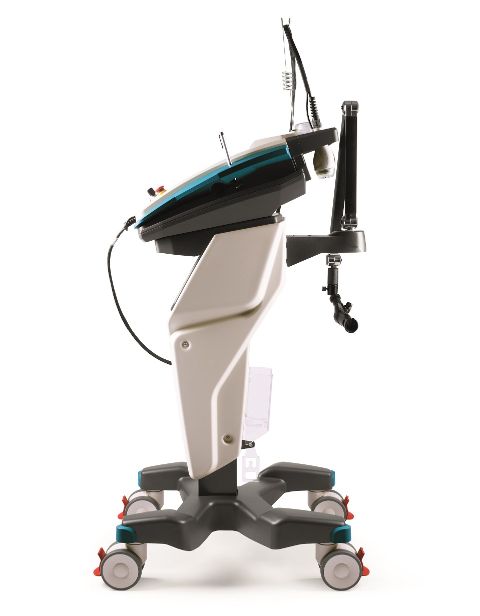

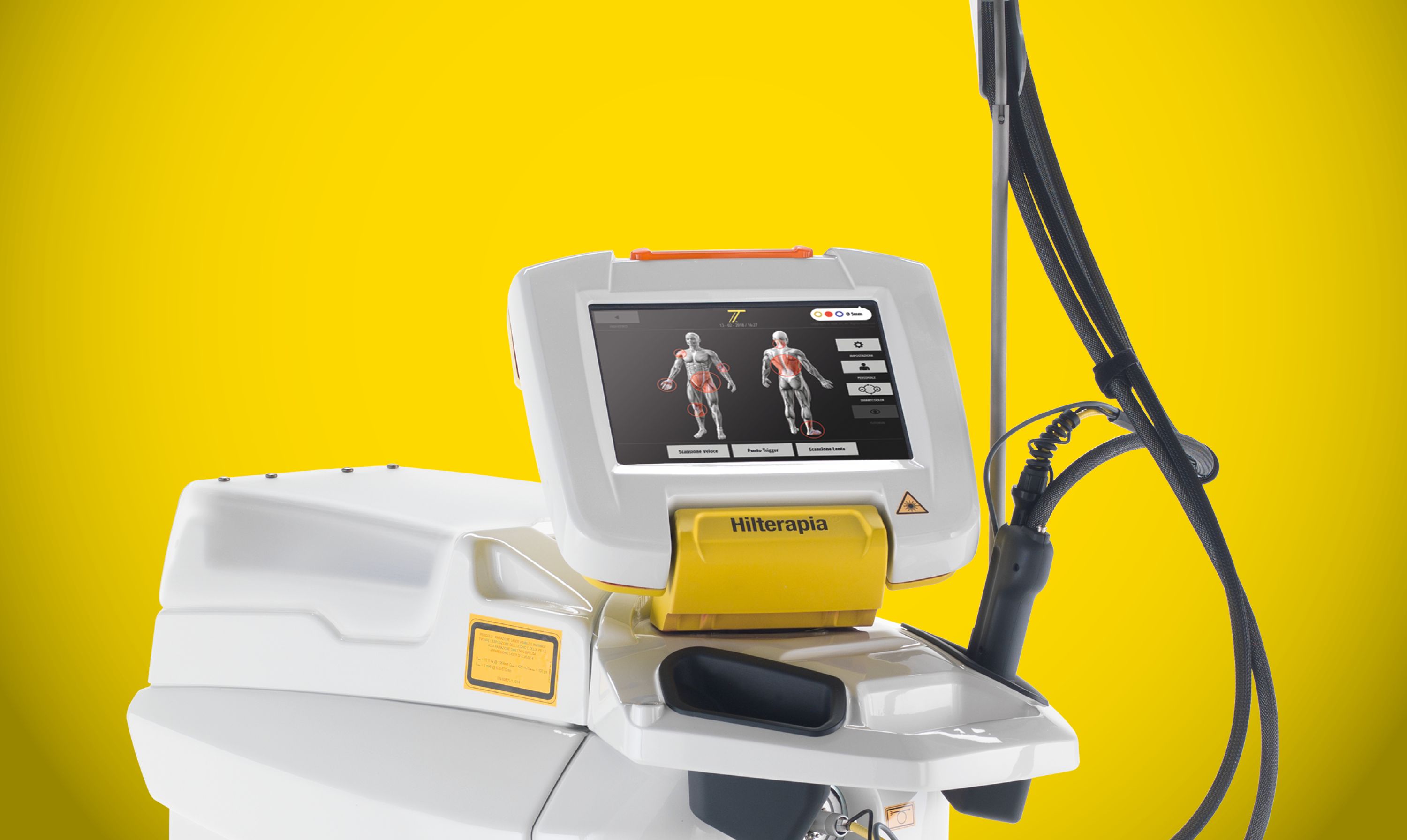

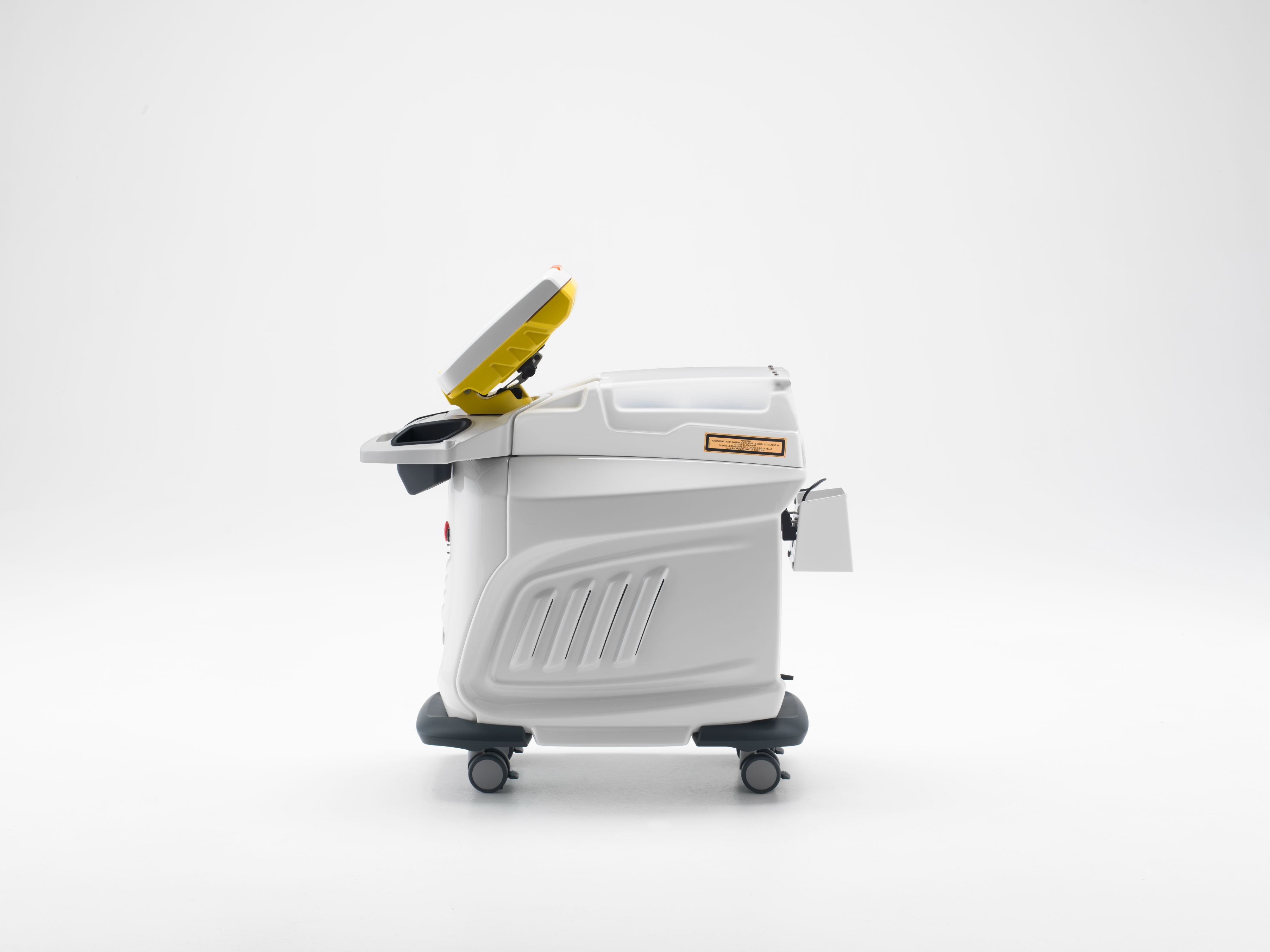

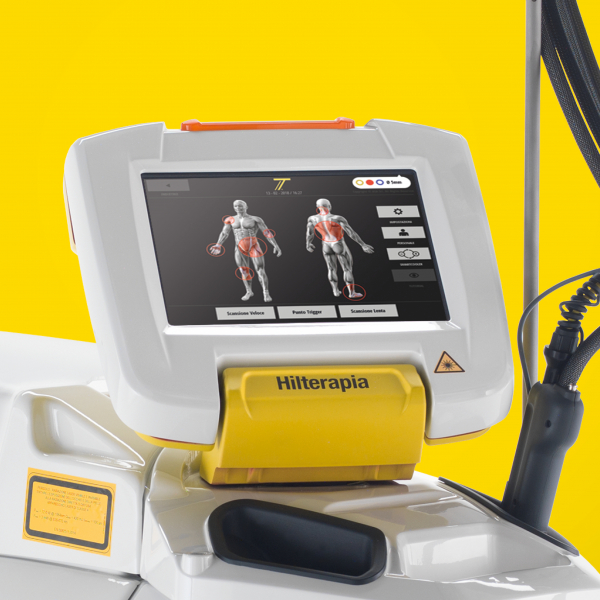

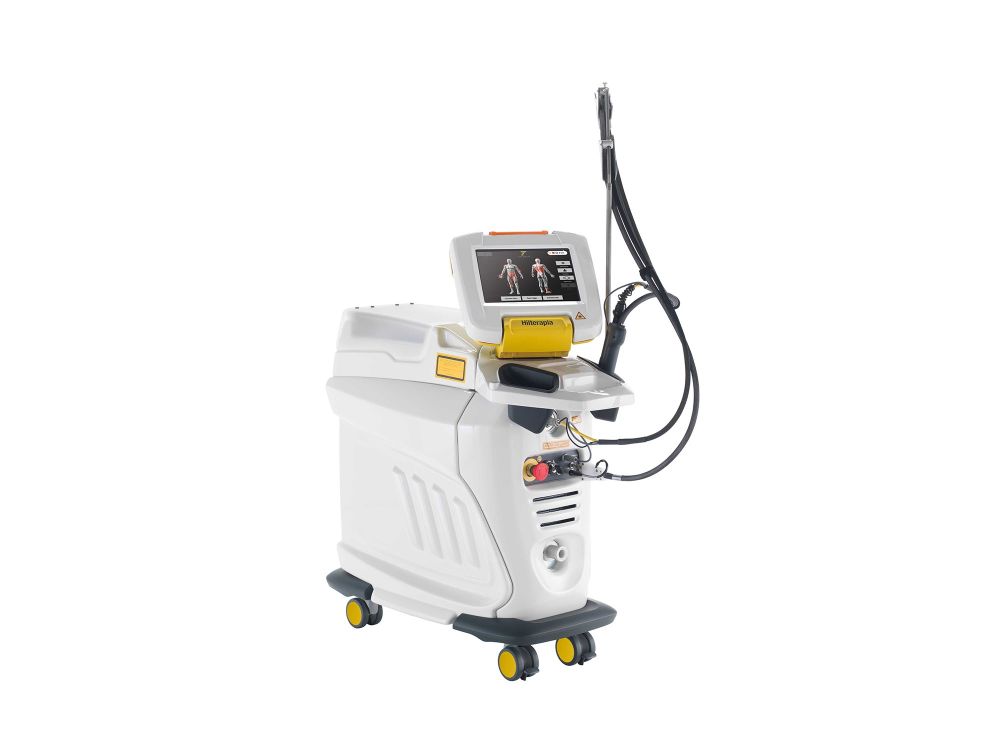

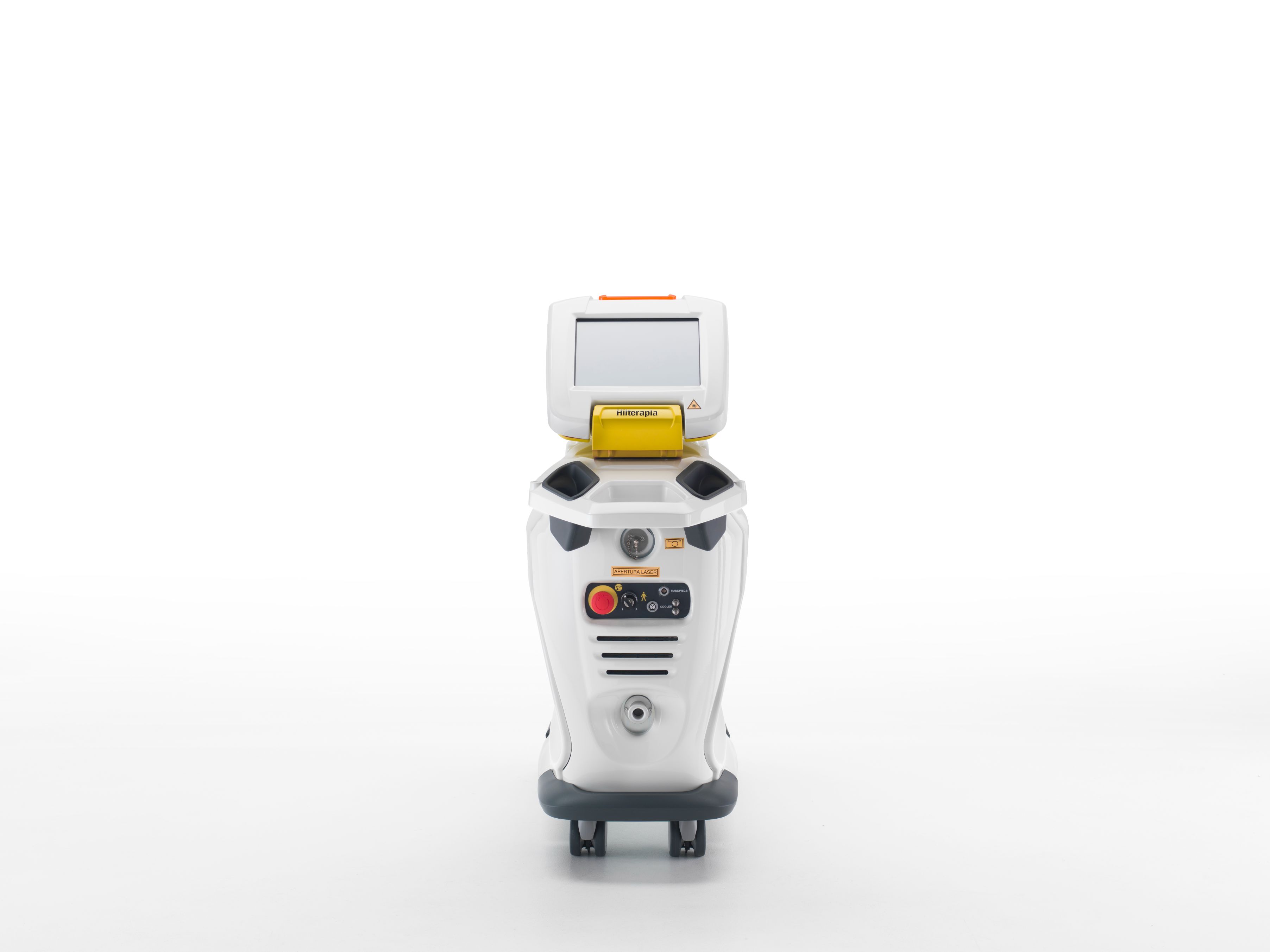

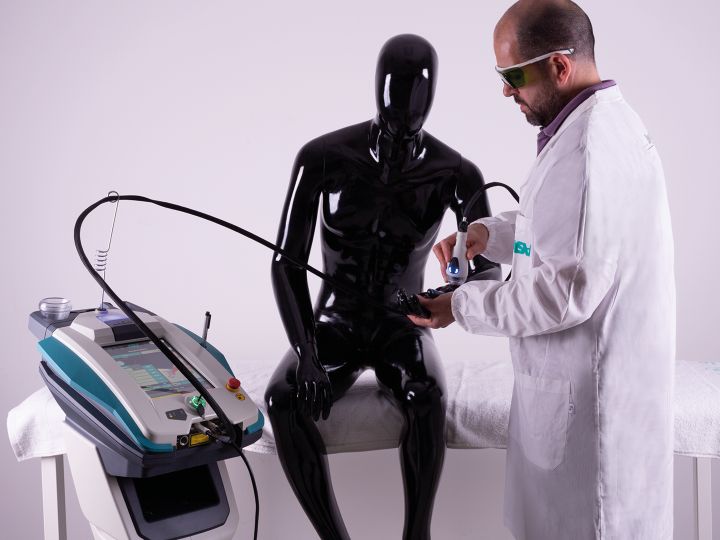

ASA Hilterapia® HIRO TT Laser
Dual and parallel action

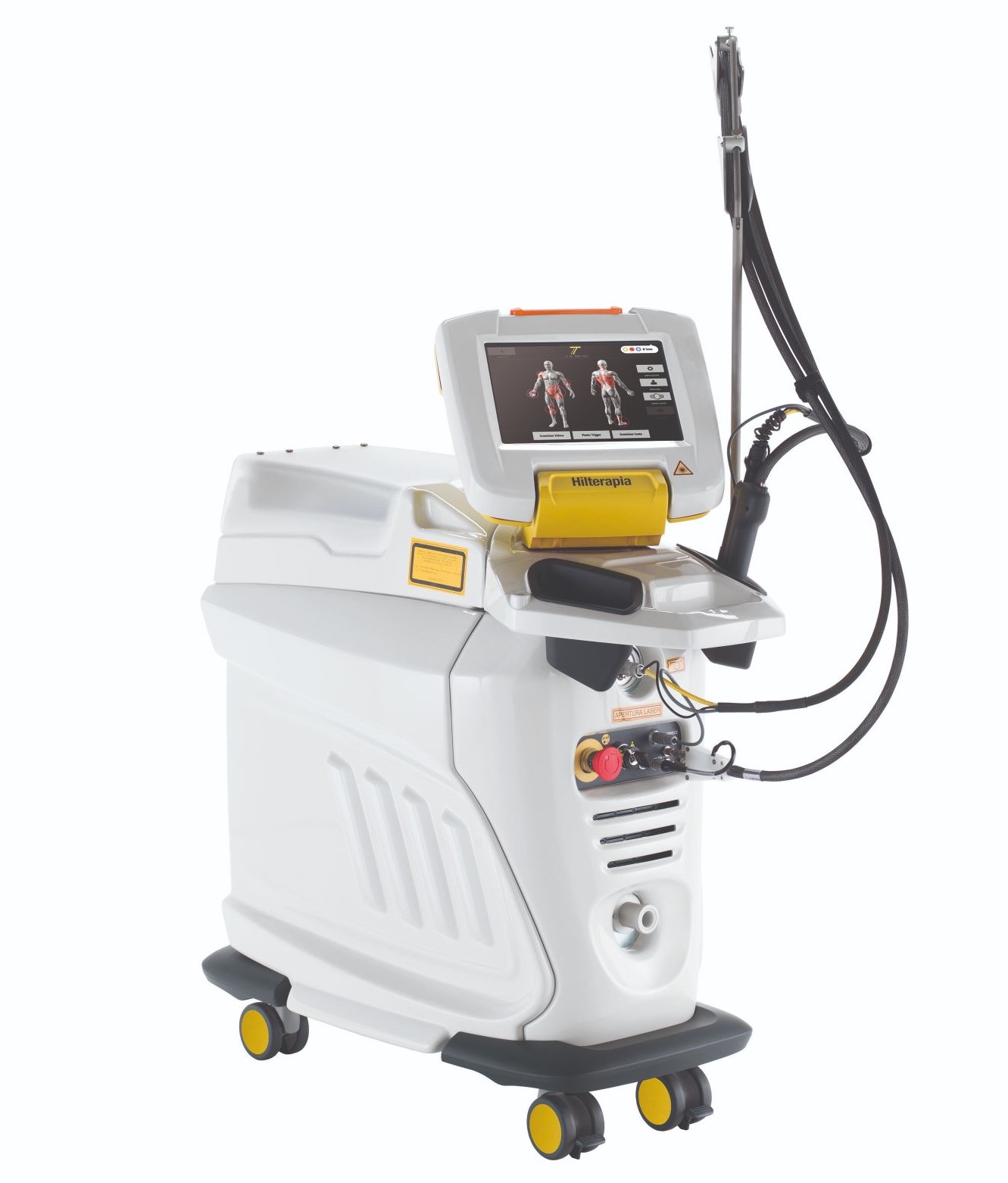

HIRO TT is the ultimate application of Hilterapia®, the new therapeutic strategy in the treatment of painful pathologies of the musculoskeletal system based on the principle of thermal exchange.
HIRO TT combines the Nd:YAG pulsed laser source with a cooling system which lowers the temperature of the skin and the underlying tissues, called SmartCooler.
Thanks to the effects of the thermal exchange, HIRO TT allows an immediate intervention even in the most acute conditions, such as traumas, muscle lesions and contusions.
The SmartCooler allows you to make the best use of HILT® pulse, conveying a larger quantity of photons faster and deeper.
The thermal exchange triggered by the SmartCooler and by the high intensity laser source shows more significant and longer-lasting results.
HIRO TT has been designed to connect all three handpieces (Ø 5mm, Ø 10mm, DJD) with a single optic fiber, thus optimising the change of handpiece with a quick and easy connection.
The proven safety of the HILT® pulse, enhanced by the localised action of the thermal exchange, ensures patient comfort during the treatment also in cases of very acute inflammation and on highly sensitive subjects.
Technical features:
ALARMS AND SAFETY FEATURES
ACCESSORIES INCLUDED
SIZE
WEIGHT
POWER SUPPLY

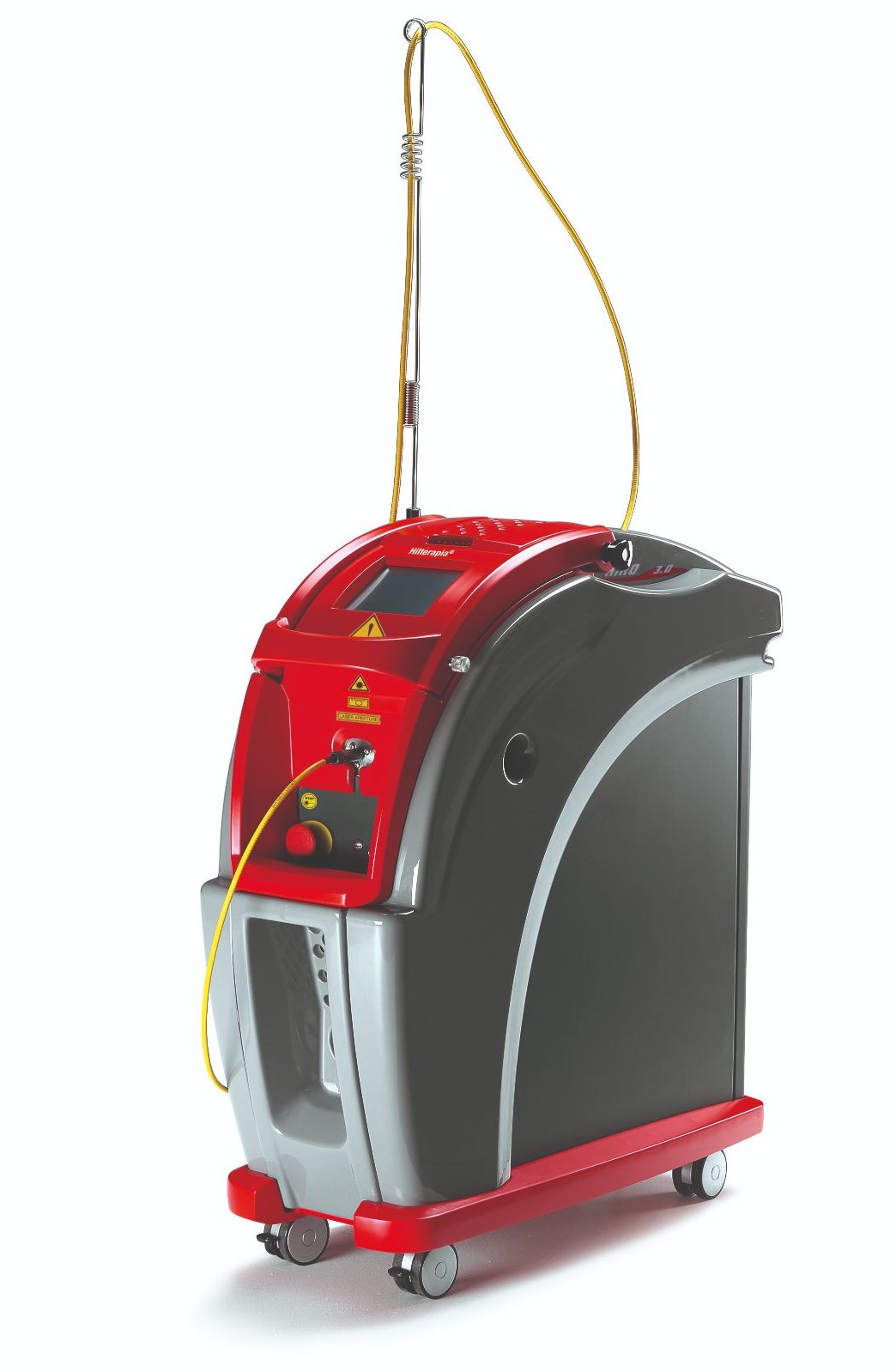

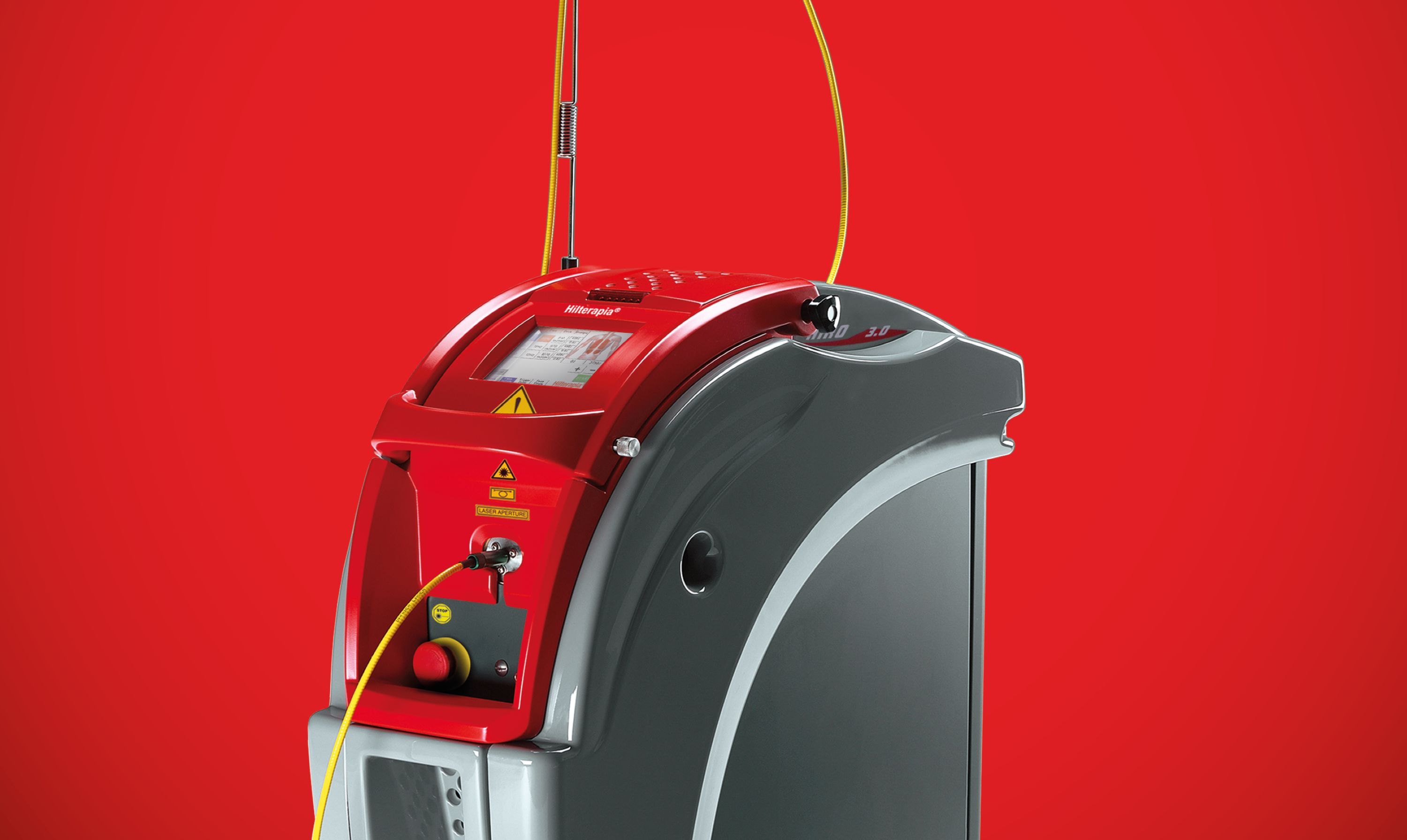

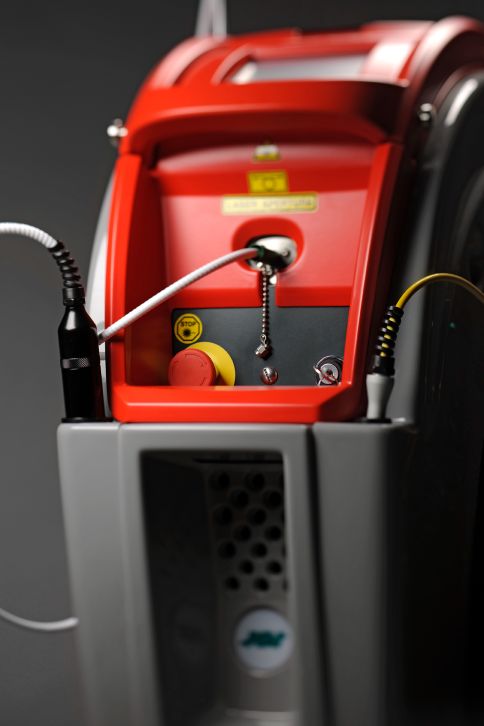

ASA Hilterapia® HIRO 3.0 Laser
15,000 W/cm2 for regenerative therapy
In addition to treating oedema and muscle pain with great efficacy, obtaining an antalgic and anti-inflammatory effect even in depth, HIRO 3.0 is able to promote reparative and regenerative processes to allow an effective action on joint and tendon diseases.
Thanks to the specific patented impulse, HIRO 3.0 reaches very high power peaks (3kW) with a Nd:YAG pulsed source (wavelength 1064 nm).
The high intensity obtained (up to 15,000 W/cm2 that even today cannot be reached by other laser technologies), added to high energetic impact, effectively treat even the deepest chronic lesions.
The duration and frequency of the HILT® impulse means that its use is always safe, because it constantly maintains the skin temperature below the thermal damage threshold.

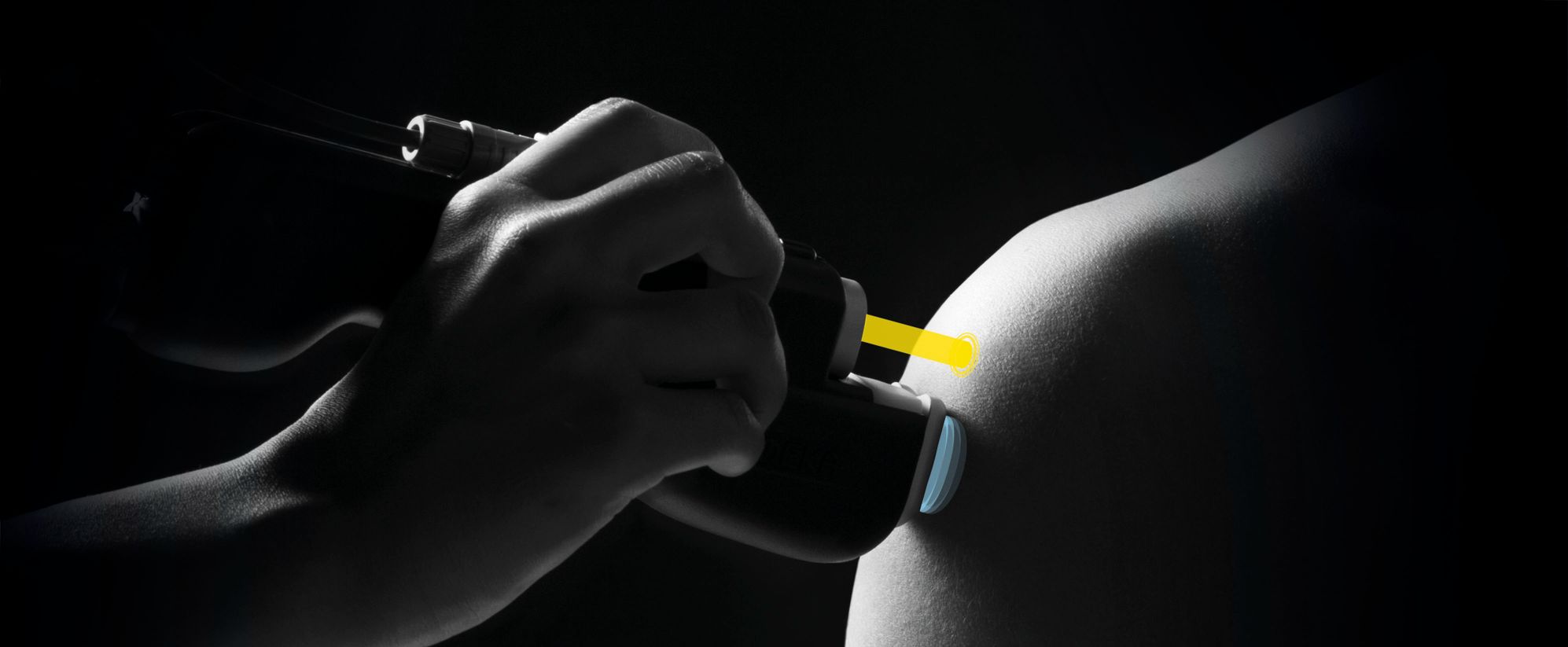

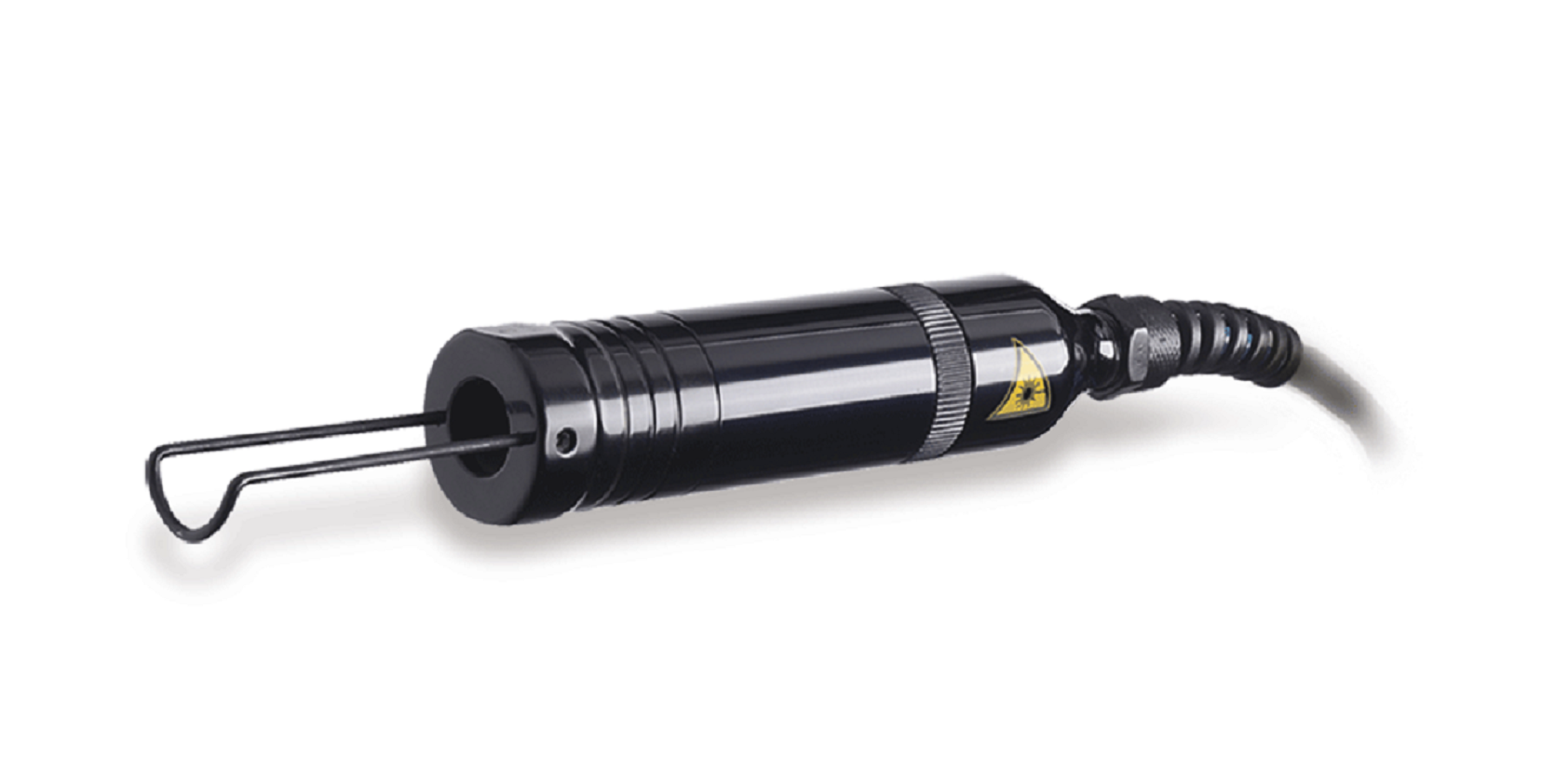

Standard handpiece for pain therapy featuring a spacer for the correct energy delivery on the treatment area.
Intensity 15,000 W/cm2
DJD handpiece for regenerative therapy, optimizing the HILT® pulse transfer to the tissue. Patented.
Intensity 15,000 W/cm2
ALARMS AND SAFETY FEATURES
INCLUDED ACCESSORIES
SIZE
WEIGHT
POWER SUPPLY

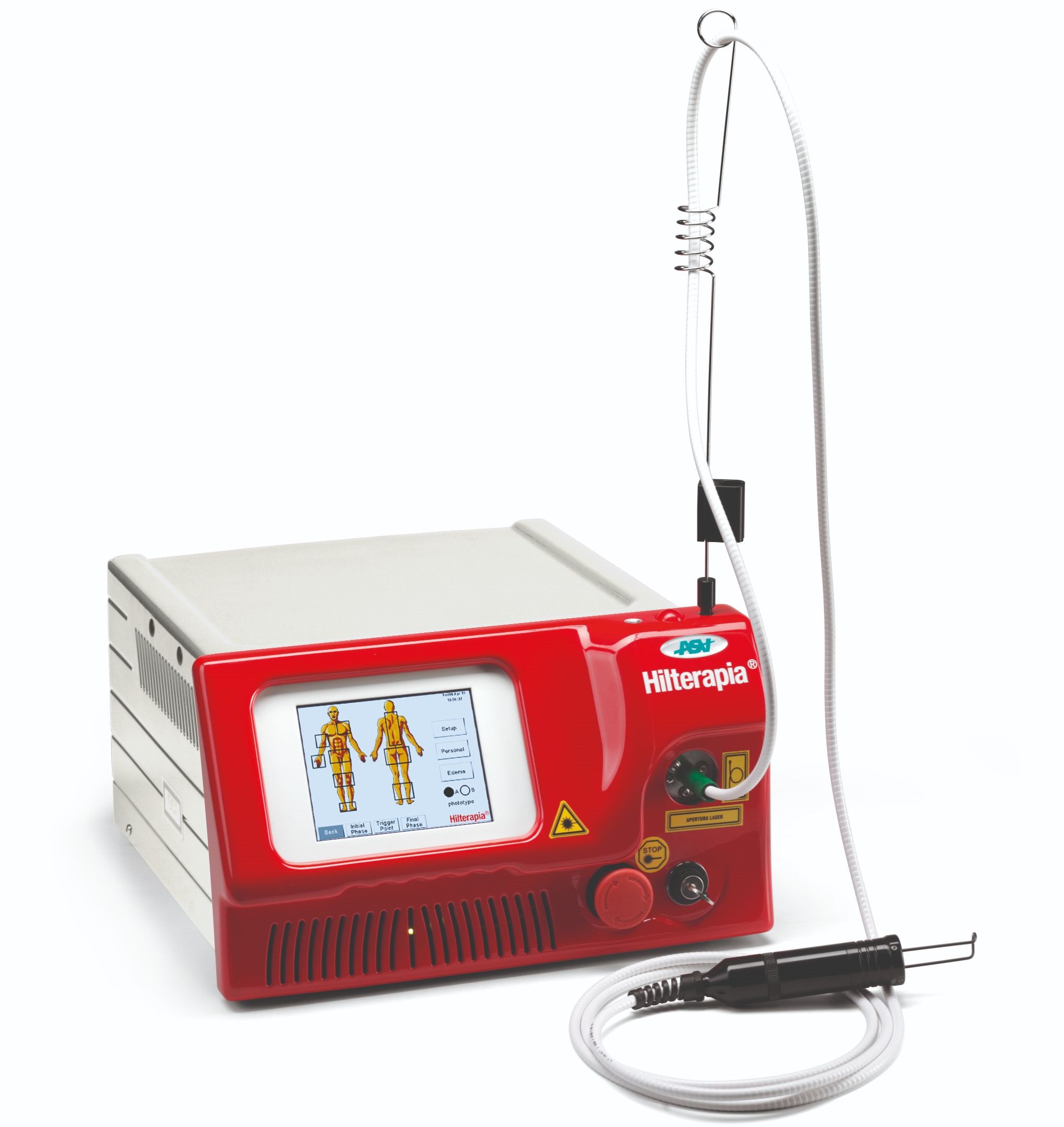

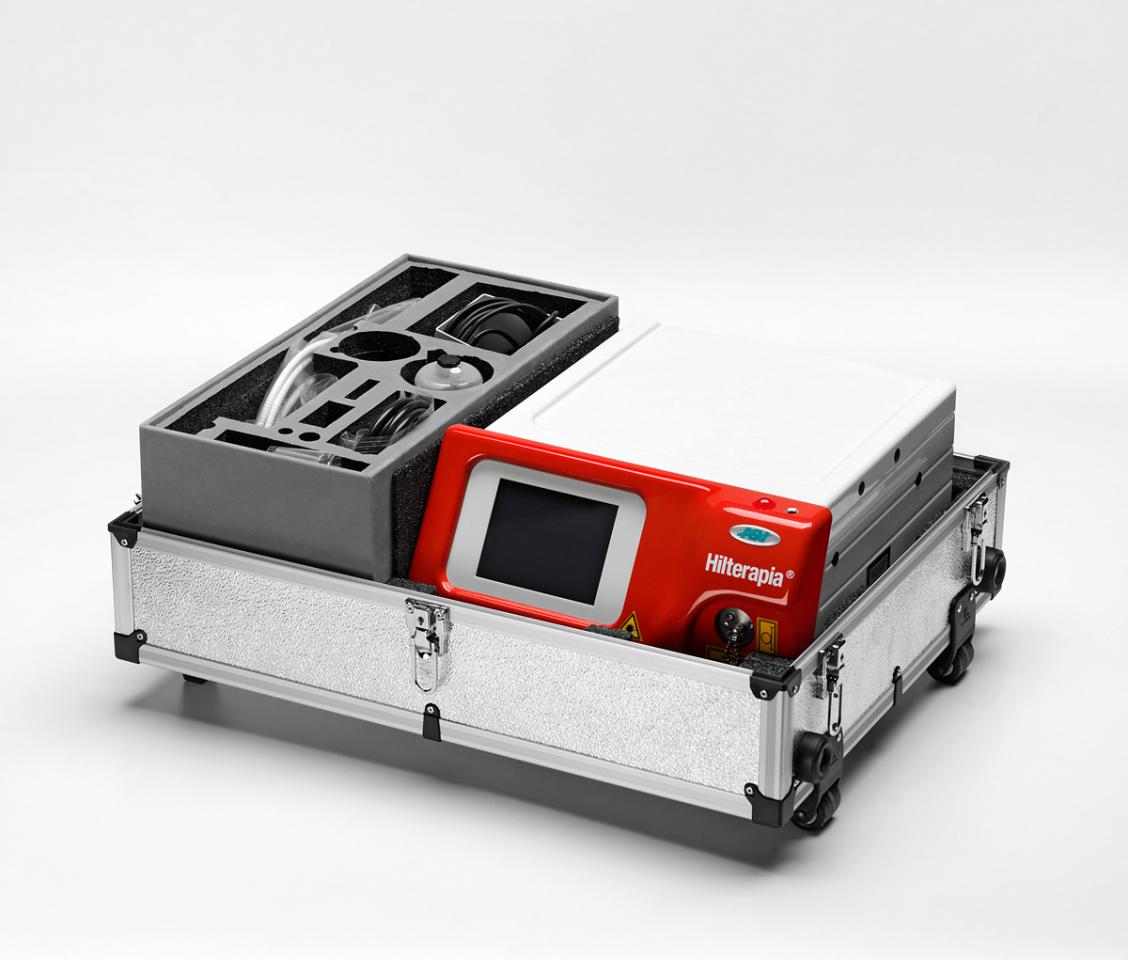

ASA Hilterapia® SH1 Laser
5,000 W/cm2 portable

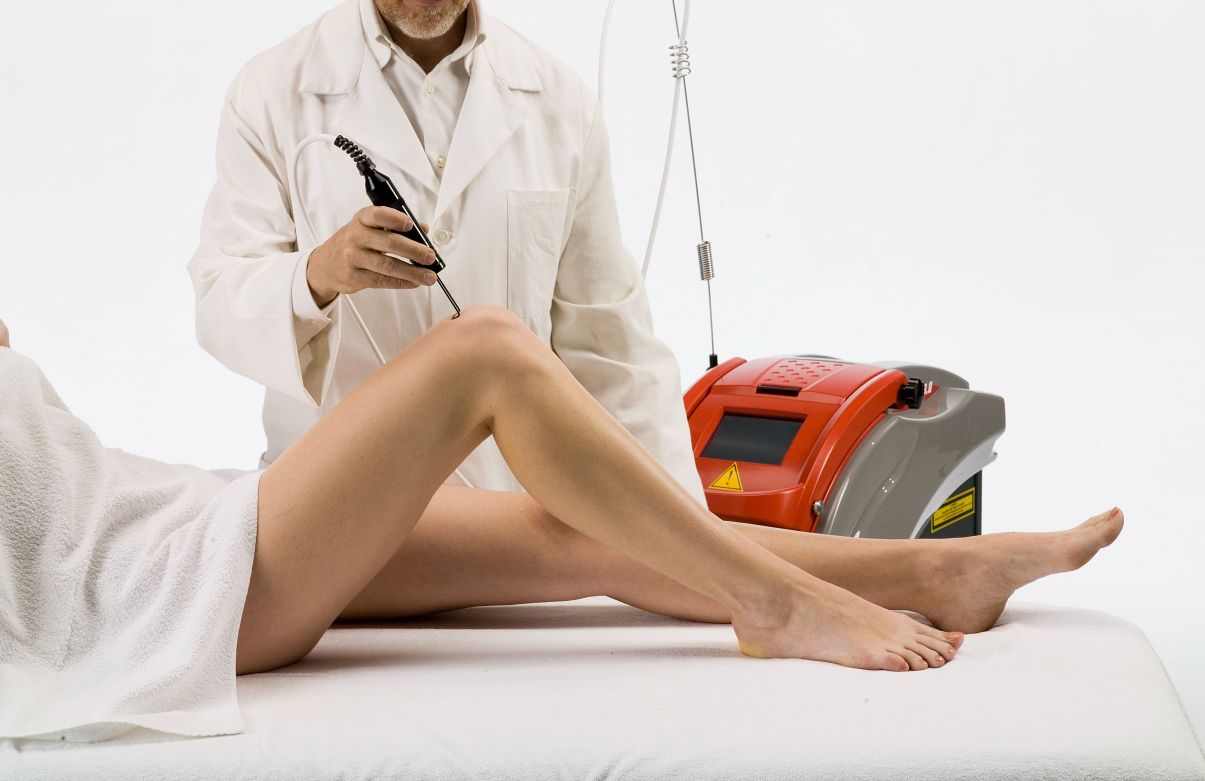

The result of experience in the sporting world, SH1 combines the therapeutic efficiency of Hilterapia® with comfortable use given by its easy transportability.
SH1 deals effectively with muscle pain from an analgesic and anti-inflammatory angle, including in-depth, and with oedema. The results on pain are evident right from the very first applications.
SH1 reaches power peaks of 1kW using a pulsed Nd:YAG source. The high intensity obtained (up to 5,000 W/cm2), together with a high energetic impact, efficiently heals even deep-seated pathologies.
The duration and frequency of the HILT® impulse means that its use is always safe, because it constantly maintains the skin temperature below the thermal damage threshold.
Standard handpiece for pain therapy featuring a spacer for the correct energy delivery on the treatment area.
Intensity 5,000 W/cm2
Technical features
ALARMS AND SAFETY FEATURES
INCLUDED ACCESSORIES
SIZE AND WEIGHT
POWER SUPPLY
