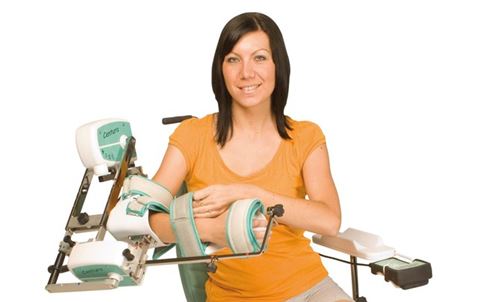

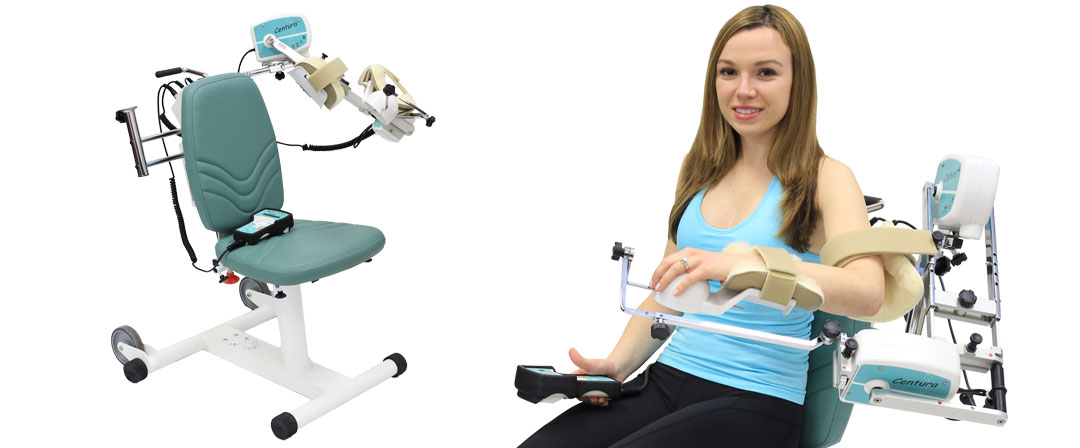

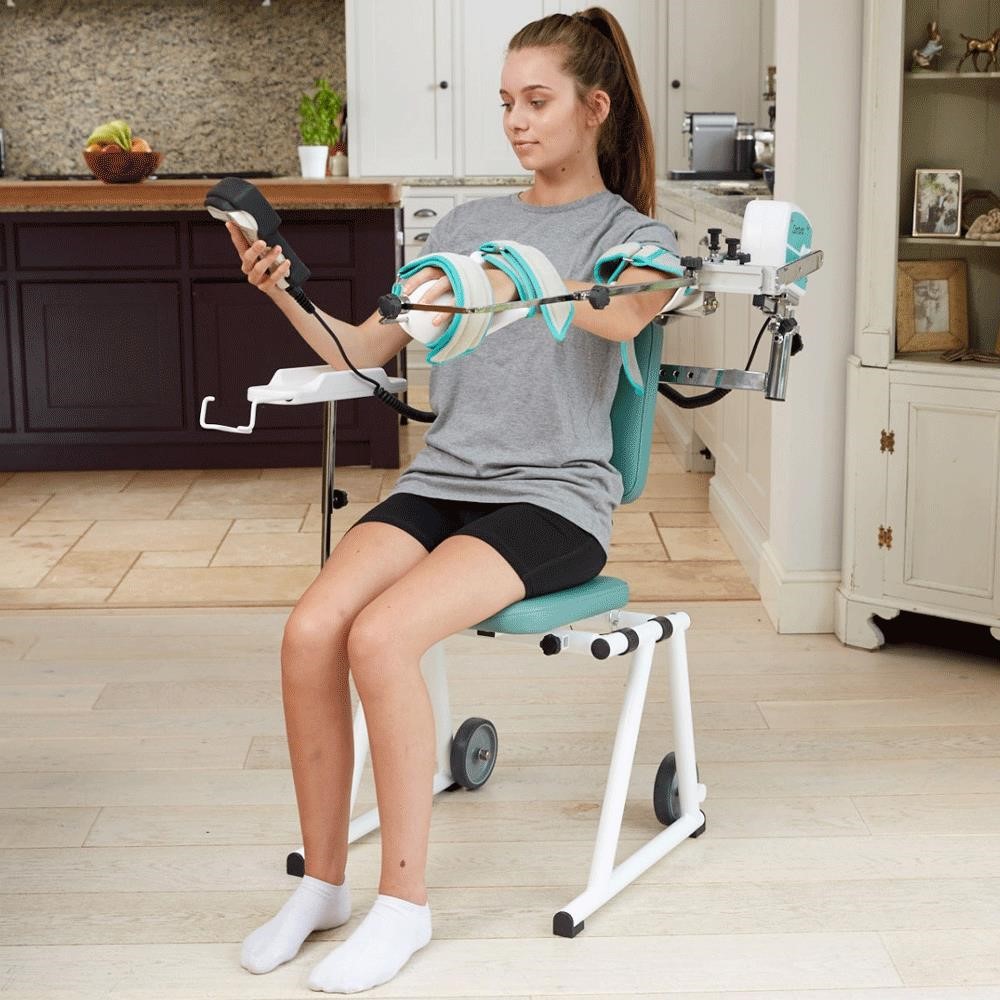

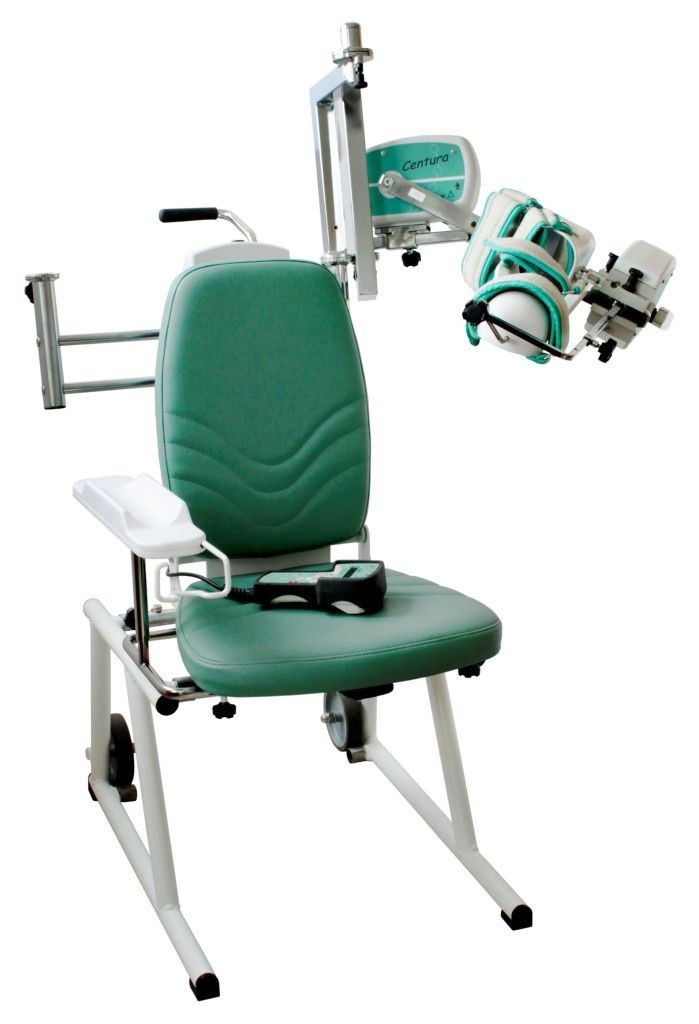

The Kinetec Centura Anatomical Shoulder CPM Machine is the ideal choice for hospital shoulder rehabilitation.

Complete range of movements available

Synchronised and anatomical motion

Modular, build-to-your-need device with up to 3 extra modules available

KINETEC DATA CAPTURETM USB technology ready

Complete range of movements

The KINETEC CENTURATM allows 5 anatomical movements covering most of the pathologies of the shoulder:

– Abduction/Adduction

– Abduction/Adduction with synchronised rotation – Shoulder Rotation

– Shoulder Flexion/Extension

– Horizontal Abduction (optional)

Easy to switch between left and right arms

Patient set-up is anatomical, comfortable and quick with an intuitive colour-coded system.

Evolution compliant

The KINETEC CENTURATM is available in different versions to fit with your daily requirement and use. The device has been designed with additional modules so the user can upgrade the product as required.

Kinetec Data CaptureTM USB technology ready

The KINETEC CENTURATM remote control features the latest USB technology enabling the use of the KINETEC DATA CAPTURETM software and patient USBs to track patient progress as well as pre-program the entire patient rehabilitation protocol.

Technical specifications

Automatically resets the parameters when the movement is changed. This prevents incompatible range of motion to the patient’s condition.

Load reverse ensures patient safety when excessive force is exerted on the joint.

Possibility to lock the adjustment of the parameters.

Precise adjustment of the parameters of the movement:

Modulation: Allows manual setting of the ROM end-point based on patient tolerance. This mode is generally used at the beginning of the session.

ROM By Pass: Used during the session, this mode allows a manual setting based on new patient tolerance, thus offering a real progressive work of the Range of motion.

Force: This security feature allows the patient to reverse the movement following muscular contraction.

Pauses: Pauses at movement limits, for improved outcomes.

2-year full warranty.

Type BF class II electrical device

Speed: 50° to 140° per minute.

Weight: 28 kg.

Size of the device: Length 56cm, width 100cm, height 76cm (variable).

Patient sizing: from 1,4 to 2m; user weight: 135kg

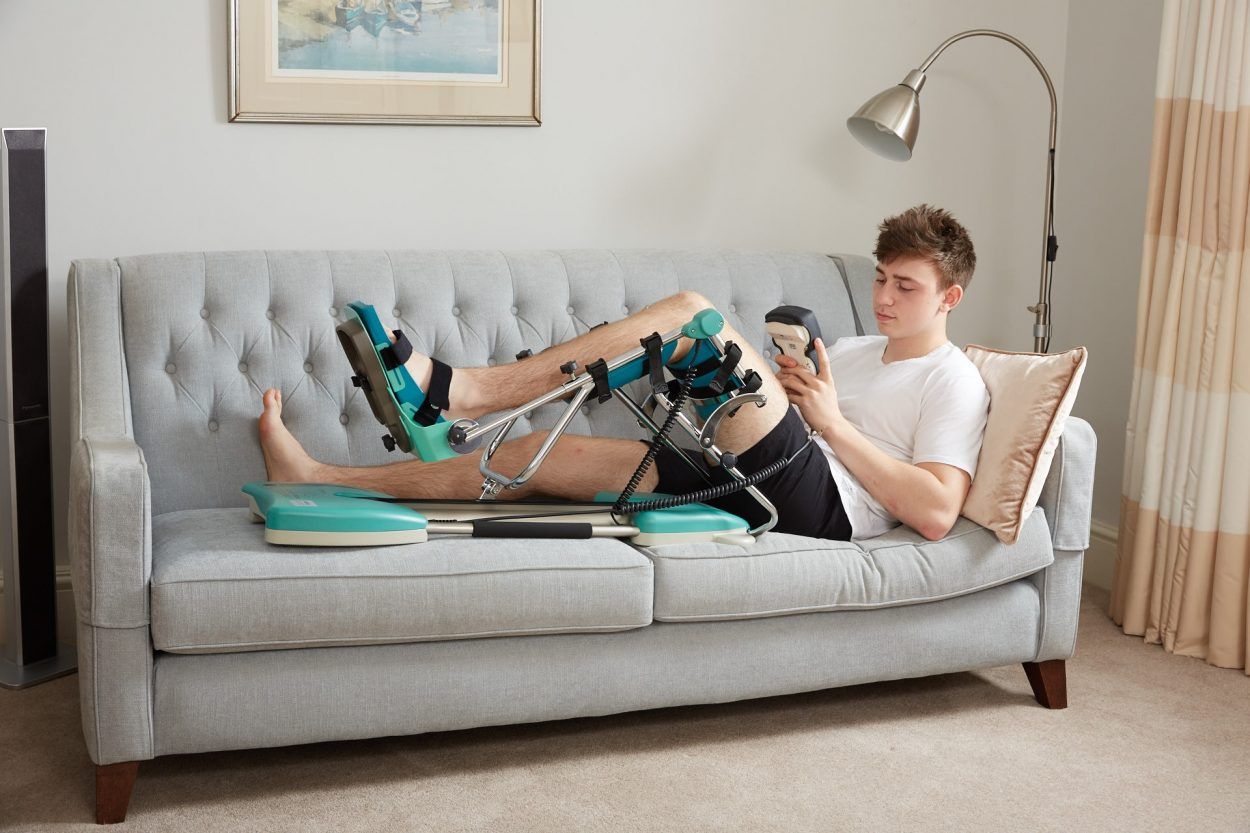

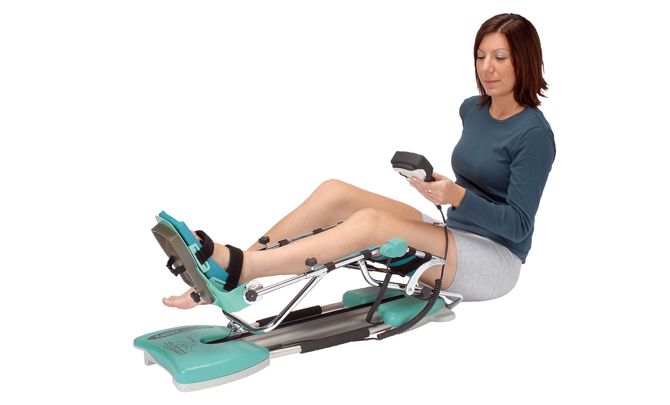

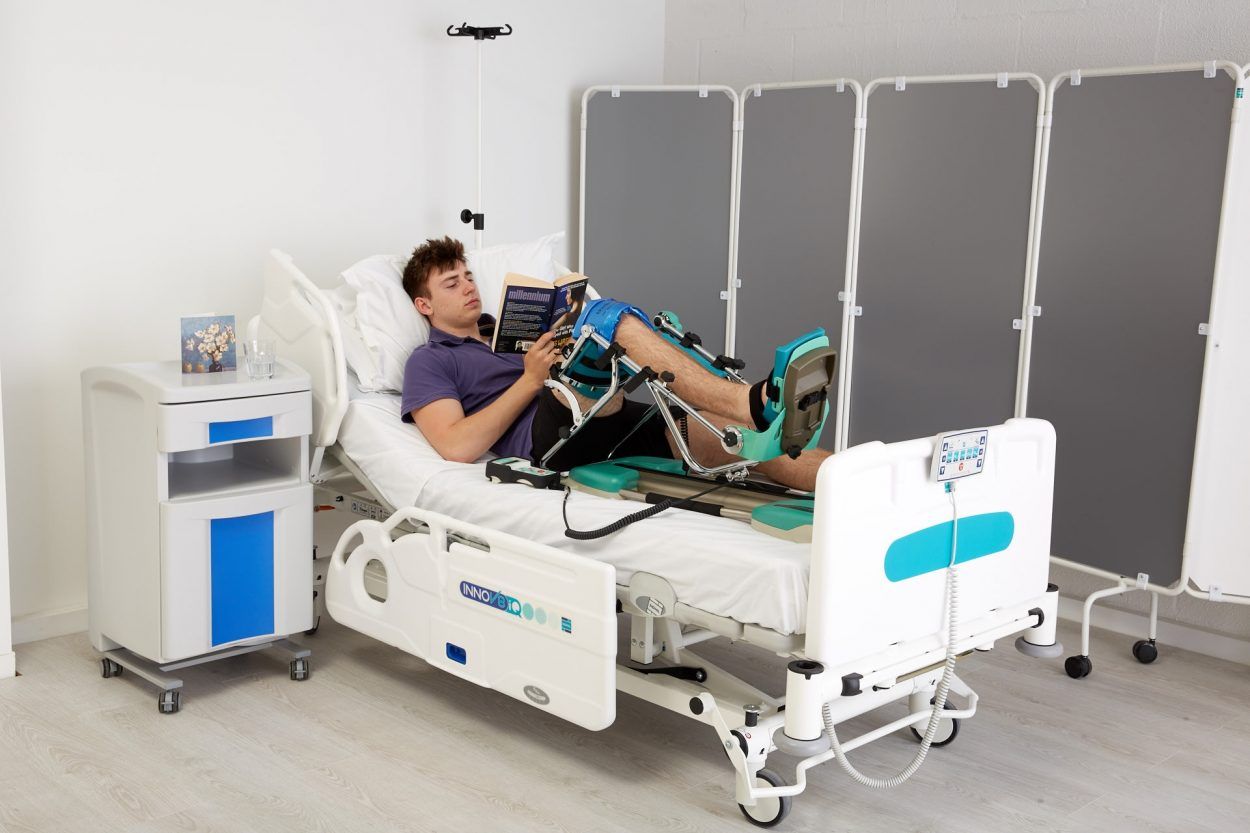

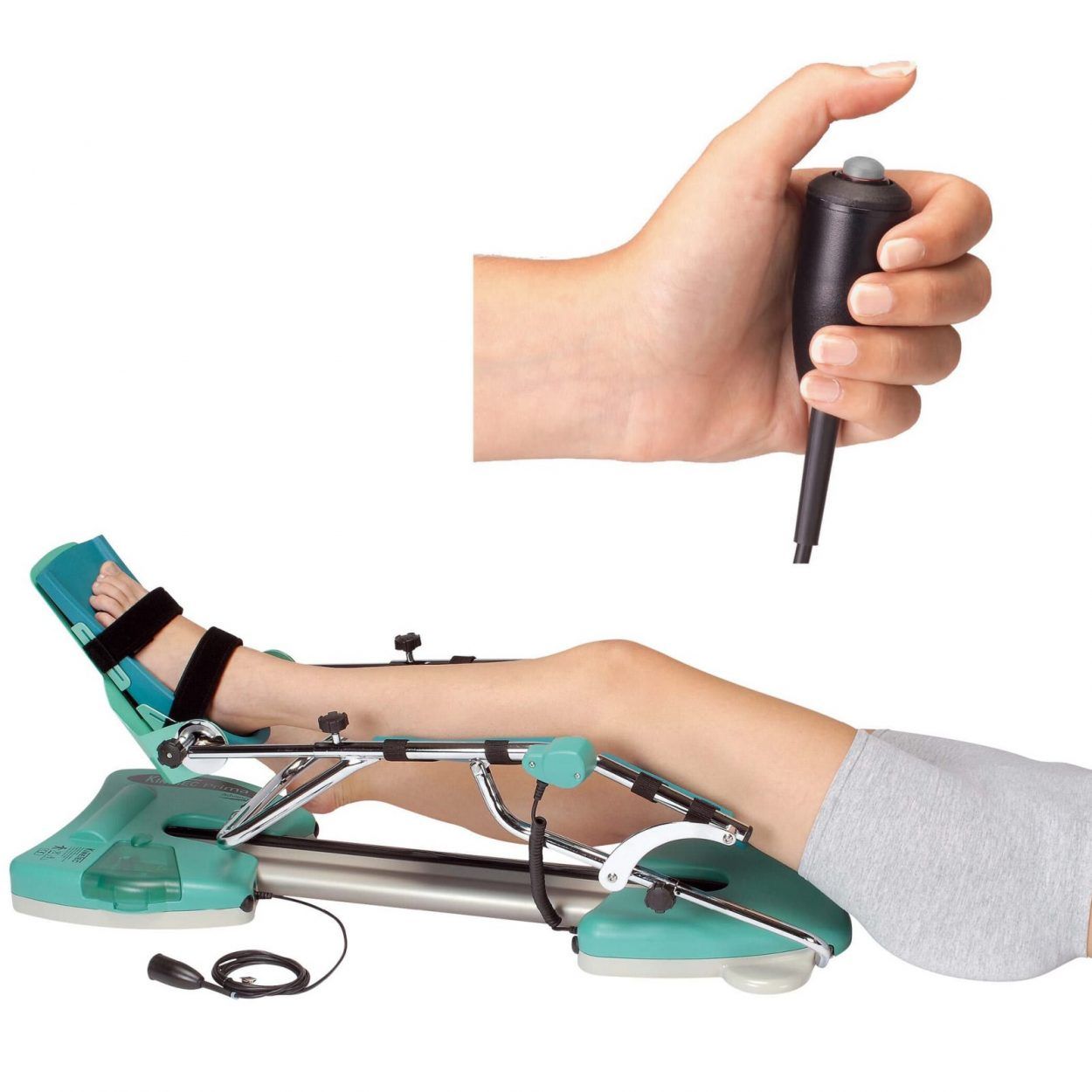

The Kinetec Spectra Essential™ combines stylish design and outstanding functionality with a simple hand control.

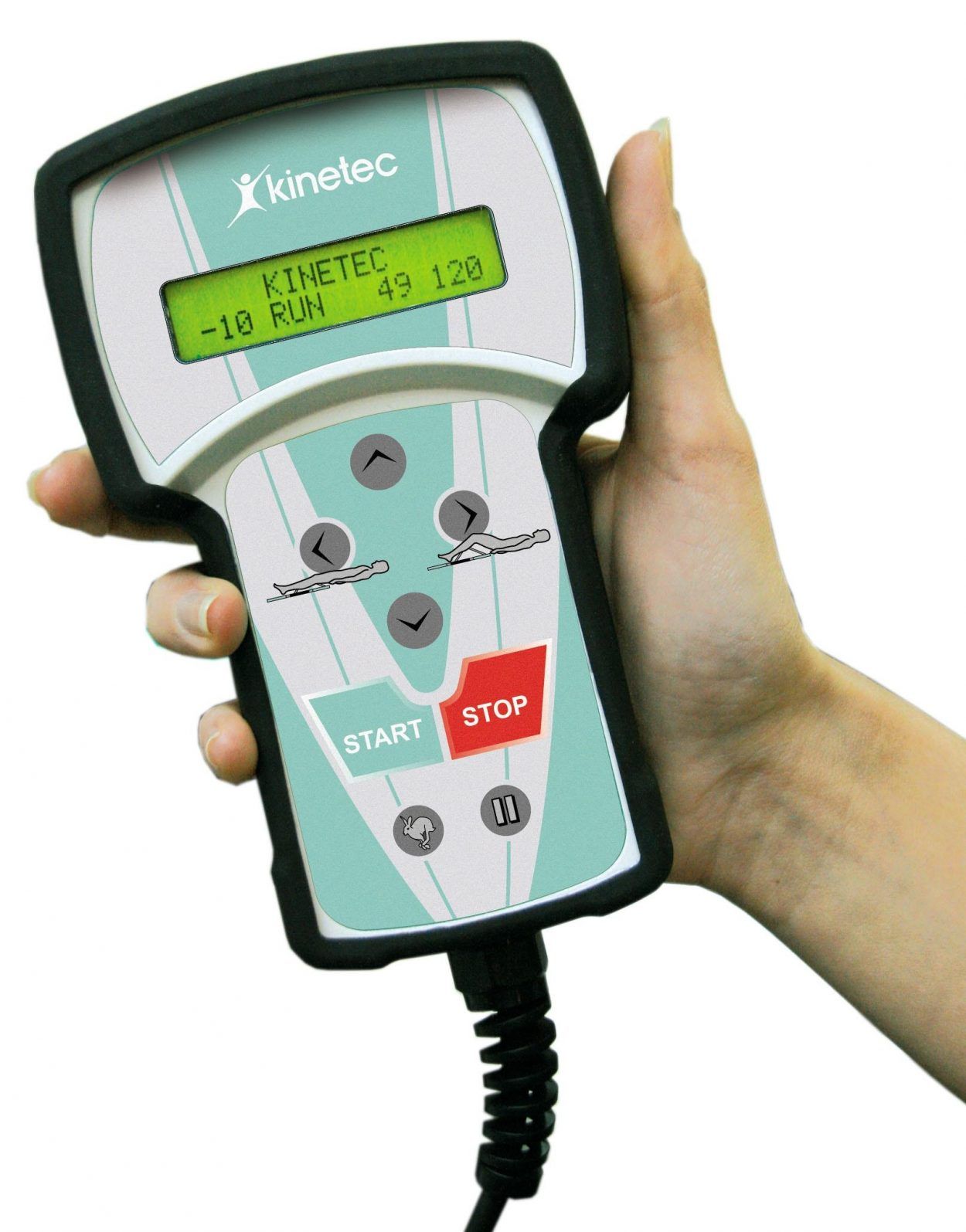

Intuitive remote control

The remote control design provides an immediate and intuitive control by the user in hospitals or at home helping the patient to focus on the therapy.

Main functions featured

Range of motion, speed and pauses are all adjustable on the remote control.

Safety first

The remote control features a keyboard locking system preventing misuse and enhancing patient safety.

Range of motion

From -10° to 120° of flexion.

The KINETEC SPECTRA ESSENTIALTM range of motion allows treatment of most knee & hip pathologies. Anatomically correct alignment increases patient compliance and decreases joint stress.

Technical specifications

The anatomically correct system increases the comfort of the patient and decreases the points of pressure. Patient lock-out prevents accidental program changes and potential injury.

Start/Stop and reverse always accessible.

Precise adjustment of the essential parameters of the movement: ROM, speed, pauses at the limit of extension or flexion for improved results.

Internally contained medical grade transformer eliminates handling extra components.

Type BF class II electrical device.

Long-life DC motor and screw-drive mechanism for years of reliable performance.

ROM: Knee: -10° to 120°, Hip: 75° to 10°.

Foot positioning: Plantar flexion: 40°, Dorsal flexion : 30°, Abduction/adduction: 30°.

Speed: 45° to 155° per minute.

Patient sizing:

Full patient: 145 to 195 cm

Full leg size: 71 to 99 cm

Tibia: Femur: 38 to 53 cm

Femur: 33 to 46 cm

User weight: 135 kg

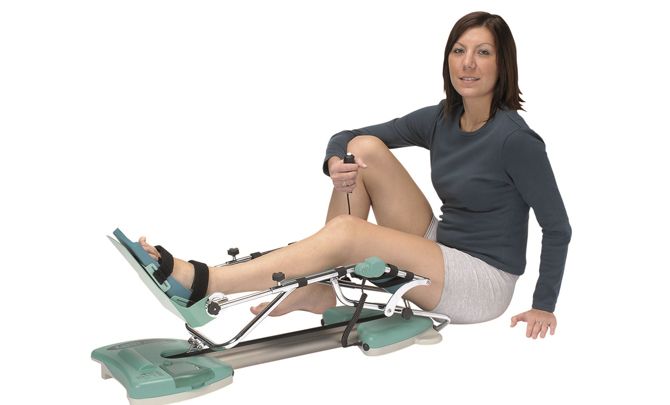

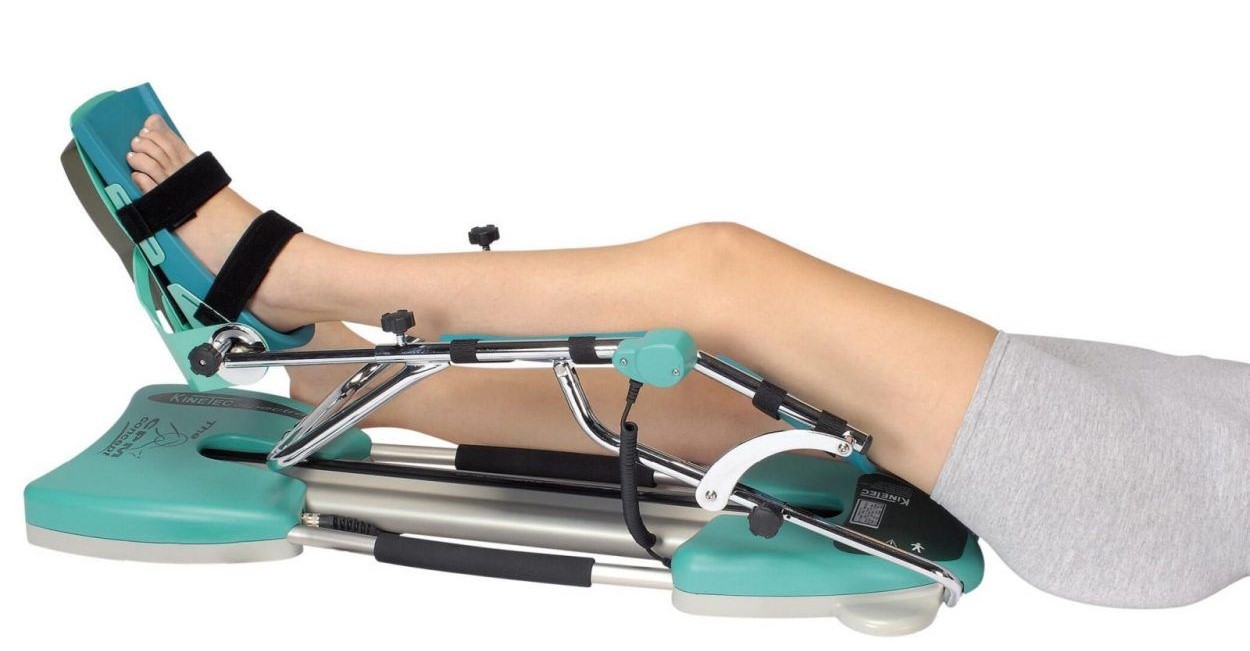

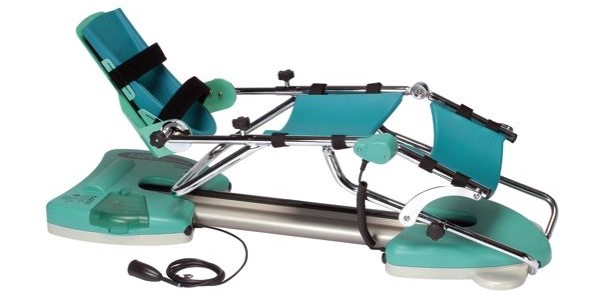

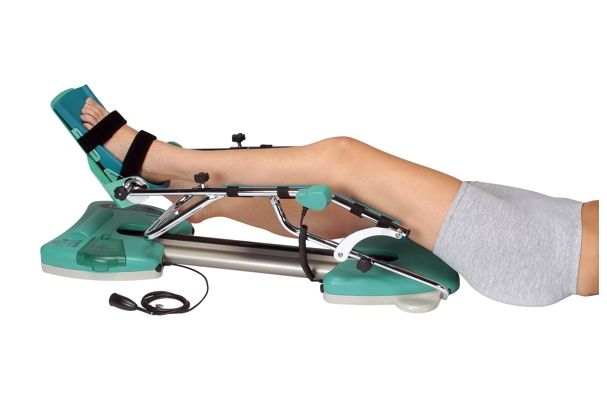

Lightweight, easy to use knee CPM with simple controls.

The easiest to use and most intuitive knee CPM device on the market. Very simple controls for the patient and therapist. Simple click button stop/go hand held switch. The simple analogue controls allow adjustment of flexion, extension and speed. This Prima Advance comes with wipe clean PU pads to support the foot, calf and thigh.

Ease of use

Remarkable dimensions

Extremely lightweight

ROM from -5° to 115°

Patient friendly

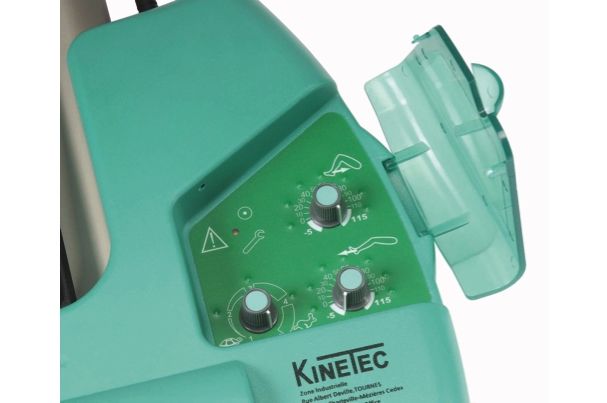

With simple and straightforward adjustments (angular limits, speed and patient sizing), the KINETEC PRIMA ADVANCETM is the most intuitive and easy to use device on the market making. It the first choice for elderly people and patients with a visual impairment.

Great range of motion

Its wide range of motion going from -5° of hyperextension to 115° of flexion allows treatment of most knee & hip pathologies.

Remarkable dimensions & weight

Its 94 cm (37 inch) length will facilitate set ups in hospital beds or at patients’ homes as well as easing its storage. The 11 kg (24 pound) KINETEC PRIMA ADVANCETM is ideal for frequent handling in hospitals as well as the home environment.

Technical specification

The anatomically correct system increases the comfort of the patient and decreases the points of pressure. – Panel of adjustments with protective cover avoiding bad handling.

Simple and direct adjustments of flexion, extension and speed limits.

Start/Stop and reverse always accessible.

Load reverse ensures patient protection when excessive force is exerted on the joint.

Internally contained medical grade transformer eliminates handling extra components.

2-year full warranty.

Type BF class II electrical device.

Long-life DC motor and screw-drive mechanism for years of reliable performance.

ROM: Knee: -5° to 115°, Hip: 75° to 10°.

Foot positioning: Plantar flexion: 40°, Dorsal flexion: 30°

Speed: 40° to 145° per minute.

Weight: 11 kg.

Size of the device: Length 95cm, width 33cm, Height 33cm.

Patient sizing

Full patient: 145 to 195 cm

Full leg: 71 to 99 cm

Tibia: 38 to 53 cm

Femur: 33 to 46 cm

User weight: 135 kg

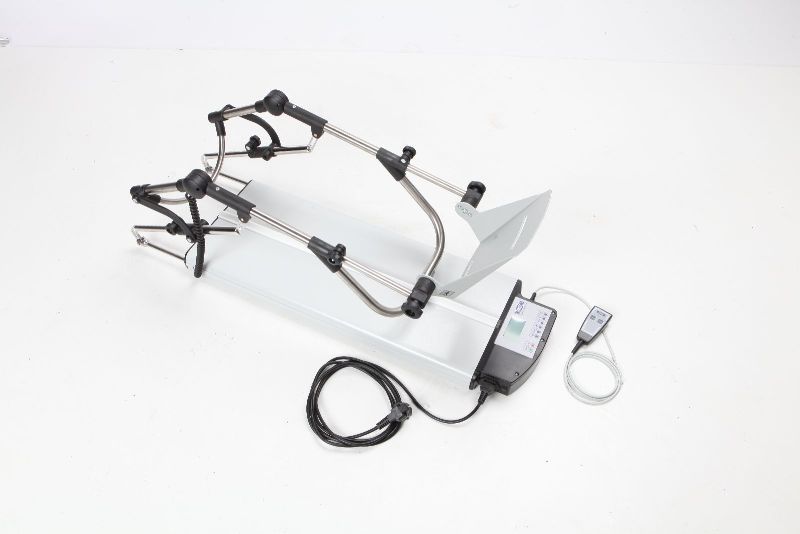

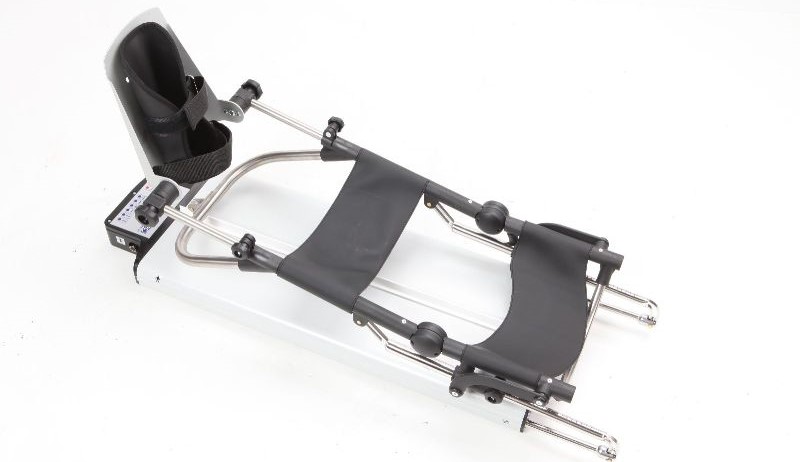

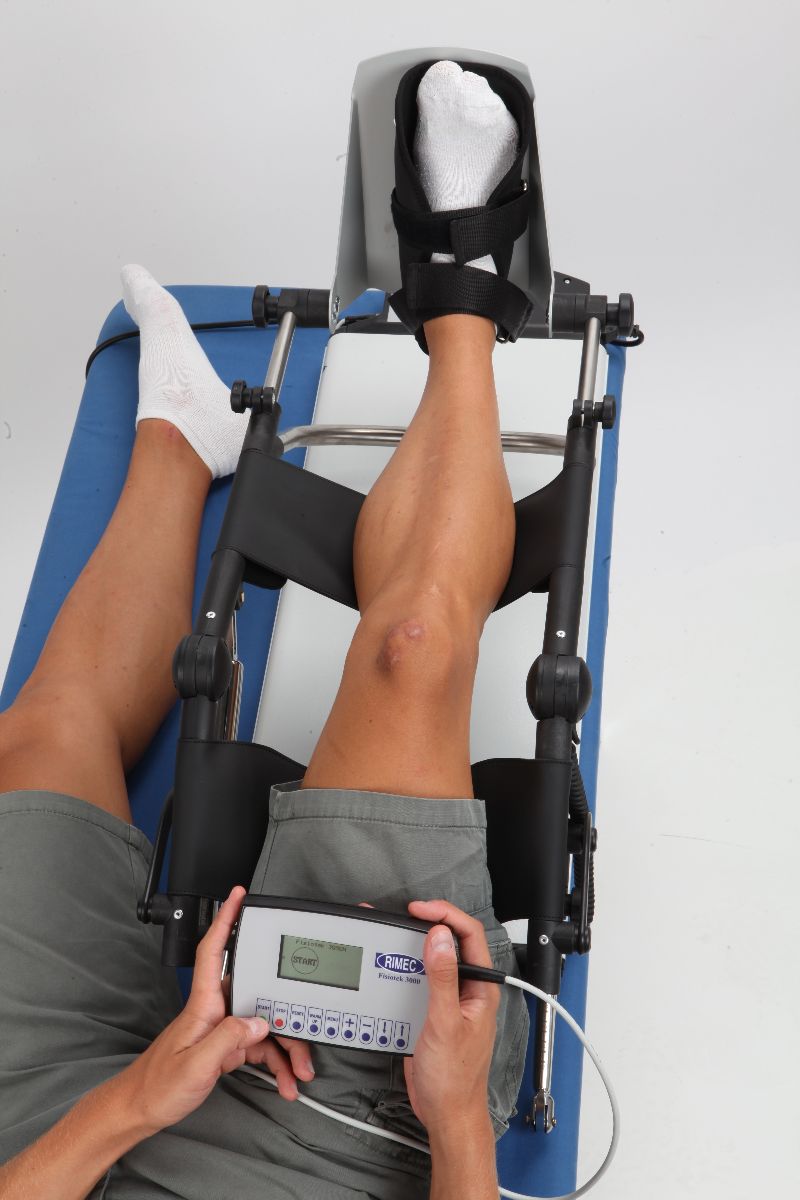

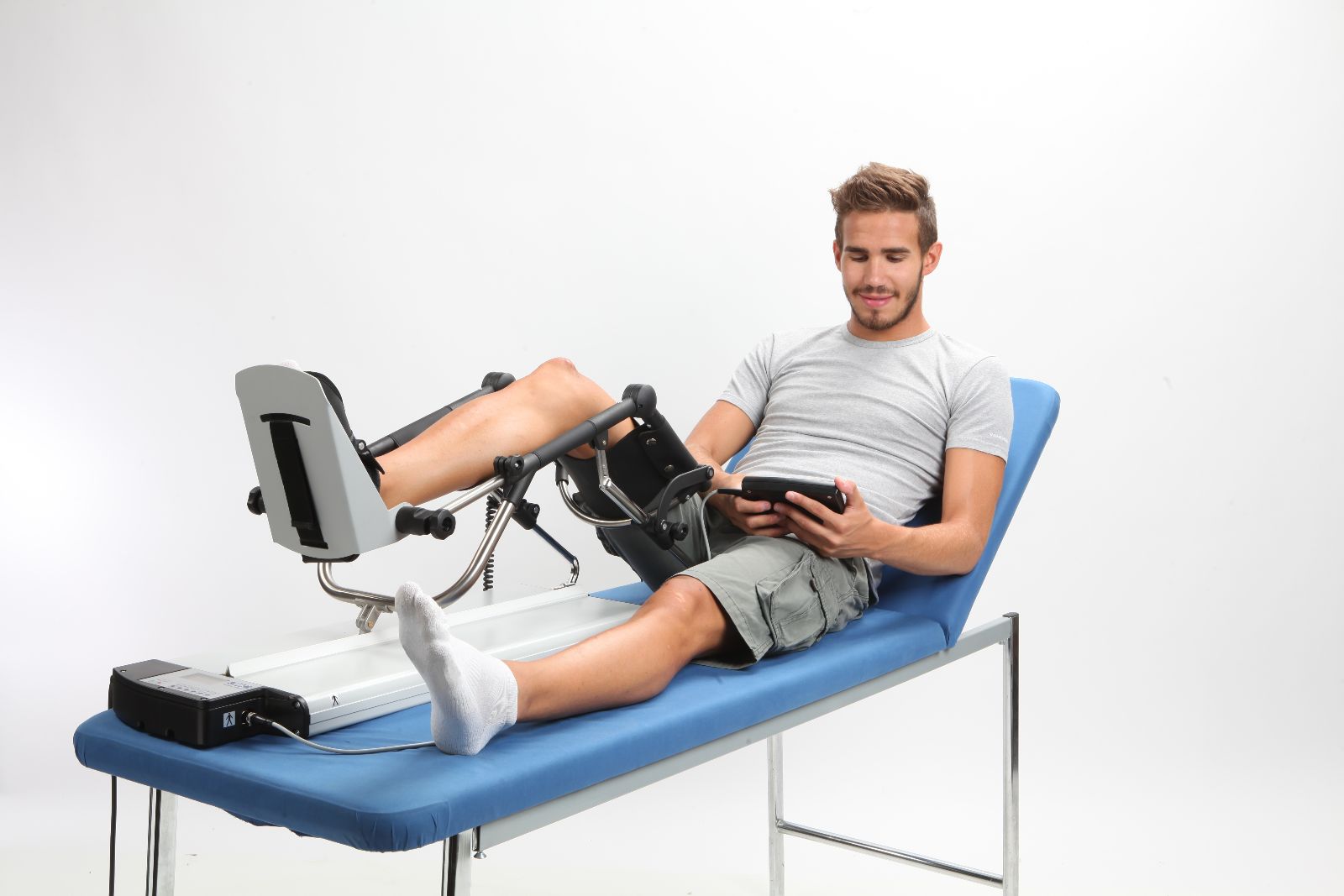

Fisiotek 3000 E model uses flexion-extension movement to allow mobilisation of the knee and hip. The movement of the device is based on the correct adjustment of the length of the patient’s femur, which is necessary for the positioning of the limb. The device is light-weight, only 9.5 kg, to ensure the greatest manoeuvrability during use. Limbs with a length relative to the patient’s femur from 32 cm to 49 cm can be rehabilitated. The device can be programmed by means of:

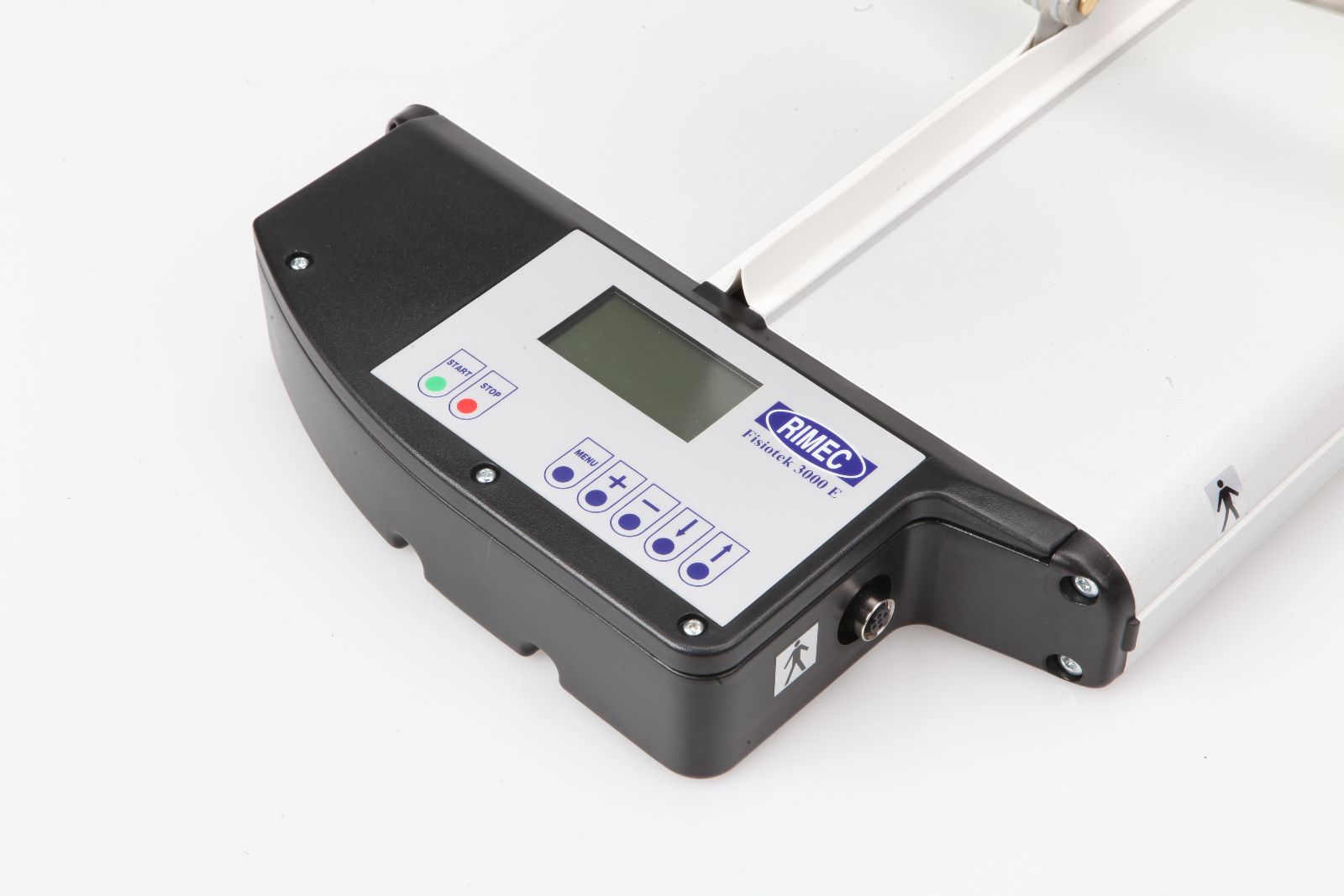

The control console

The hand-held programmable keypad

Both units display new self-explanatory graphic symbols that provide clear images to make use easy and intuitive. The programmable features make it possible to meet different rehabilitation needs through means of customised and therefore more effective control.

Hand-held programmable keypad: the hand-held programmable keypad has been designed to empower the patient to actively participate in rehabilitation therapy (when possible). The keypad unit contains all the programming keys for the device, as well as START & STOP buttons for movement control.

Control console: the control console is used to program the functions of the Fisiotek device. The information display provides extremely sharp graphic symbol images that are clear and easy to understand to make use intuitive.

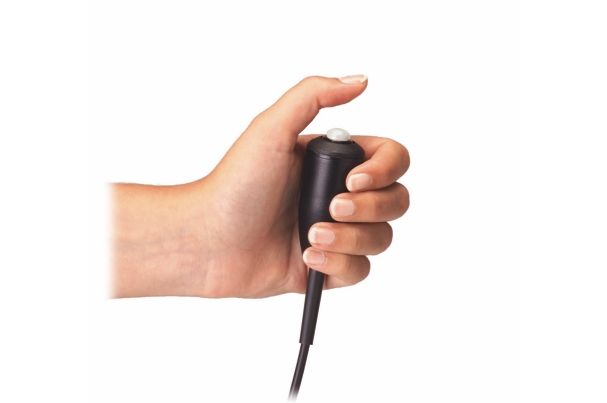

Remote-controlled START & STOP: the patient can use the Start & Stop buttons to fully control movement of the device.

Why choose it?

Fisiotek 3000 is intended for use in rehabilitation to restore joint movement in both surgically and non-surgically treated medical conditions. It is therefore suitable for the needs of a considerable range of patients.

Its internal software has new programmable features that are useful and easy to use to customise therapy and promote the comfortable, gradual and effective recovery of joint mobility.

The line’s design makes use of high quality materials, such as aluminium and stainless steel to ensure greater dependability over time. The models’ linear frame and harmonic structure are pleasing to the patient and instil confidence.

The remote-control START & STOP functions and hand-held programmable keypad (optional) offer two ways to control the movement of the device: these two handsets are interchangeable and use the same connector.

Each model of the 3000 line is equipped with a Warm Up feature that can be used to warm the joint before therapy actually begins.

Engineering data

Power supply: 85 ÷ 260V ~ 50 ÷ 60 Hz

Electrical safety: Class I B Standard EN 60601-1

Electromagnetic compatibility: Group 1 Class B Standard EN 60601-1-2

Classification according to Dir. EEC 93/42: Class IIa

Weight: Kg. 9,5

Programmable functions

Flexion-extension knee movement range from -10° to 120°

Hip movement range from 7° to 115°

Speed

Force

Working time

Pause in flexion

Warm-up (menù’s page)

Repetitions to extension limit

Repetitions to flexion limit

Foot support: the foot support can be adjusted to allow more comfortable positioning of the patient’s ankle.

Accessories

Remote-controlled START&STOP

Hand-held programmable keypad

Trolley for internal use

When should it be used?

Surgical repair of the knee’s extensor mechanism

Meniscectomies and meniscal sutures

Surgical treatments of fractures and pseudoarthrosis

Osteotomy

Artificial hip and knee

Arthroscopy

Arthrolysis

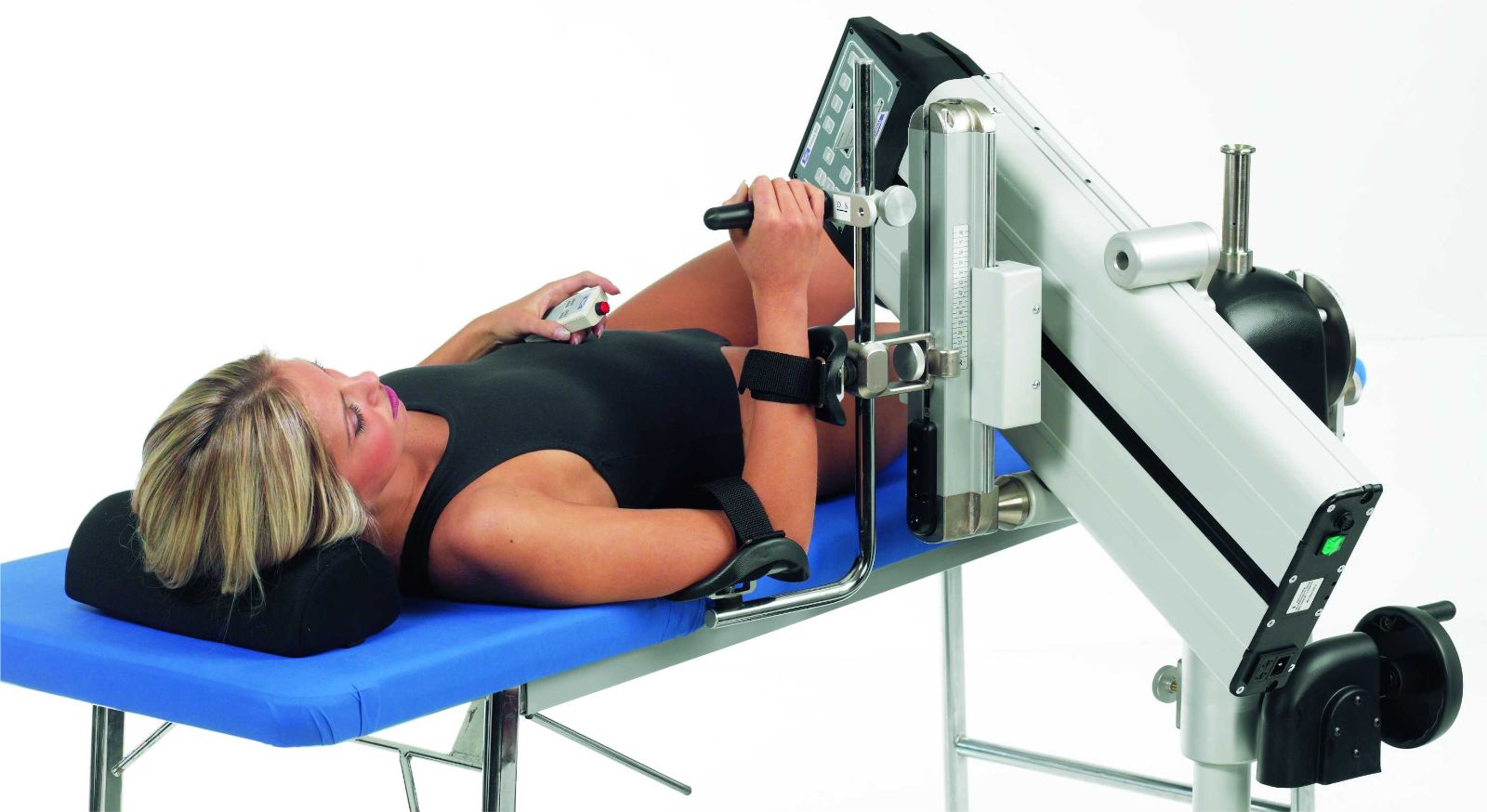

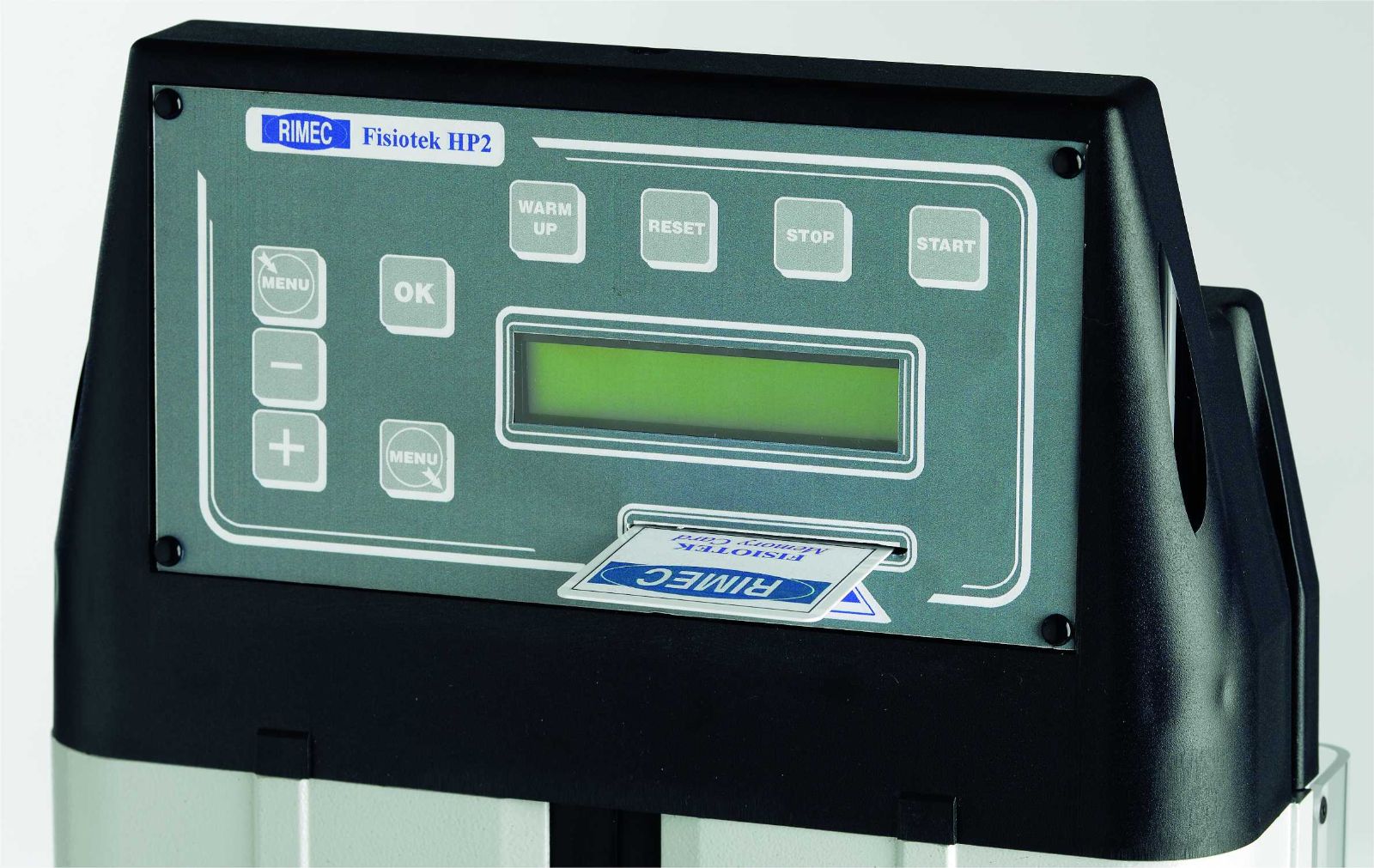

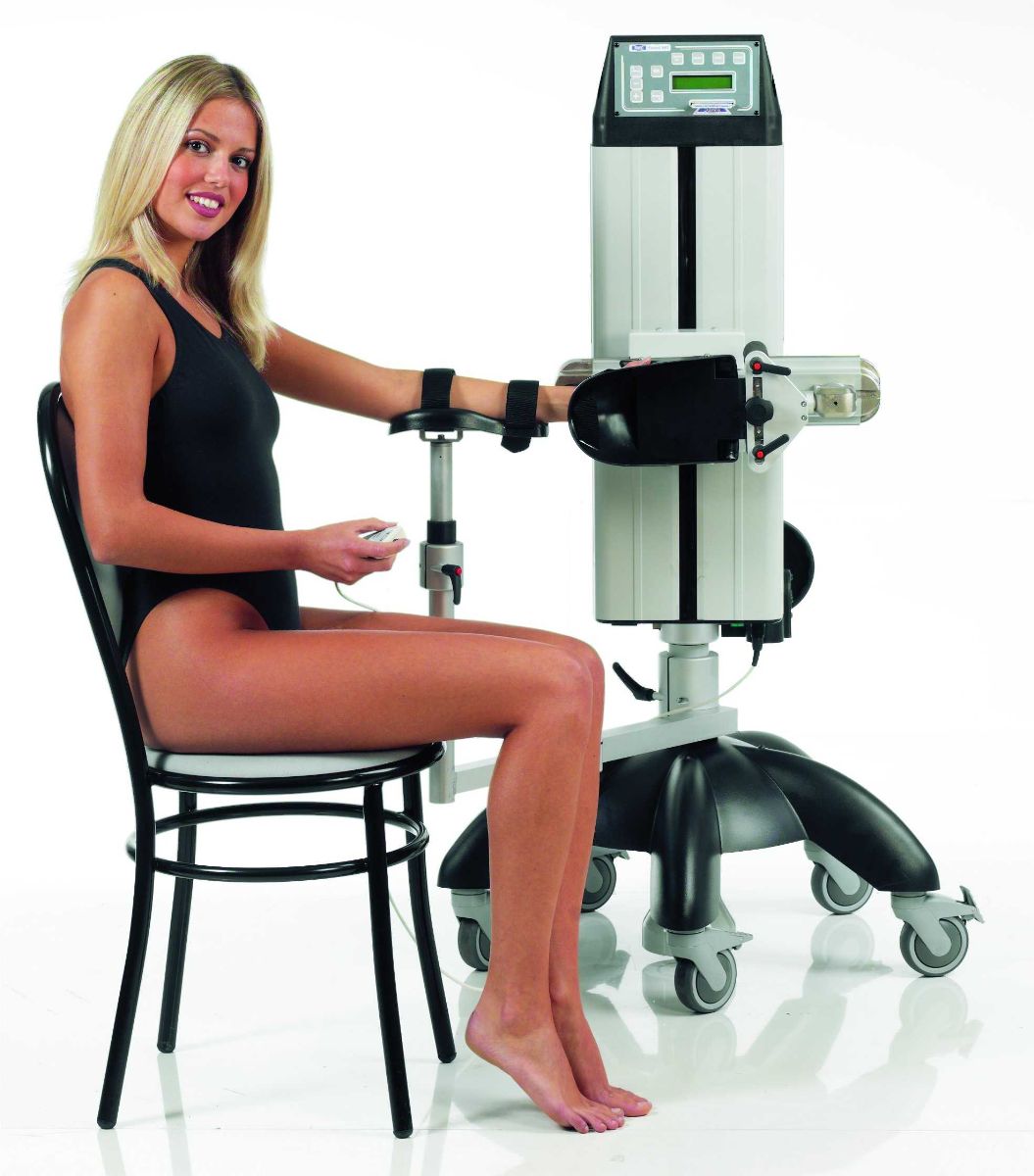

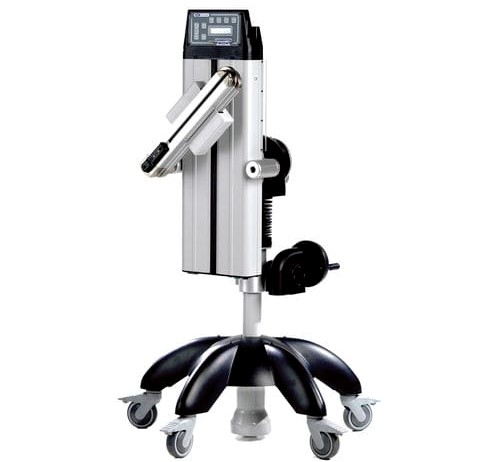

Fisiotek HP2 is a highly versatile apparatus that offers passive shoulder, elbow and wrist mobilization with various types of movements. Its base rests on 5 pirouetting wheels with a brake, and this allows the apparatus to be easily moved and locked in the desired position. It is adjustable in height and the body of the apparatus can be tilted. This makes it possible to perform the entire arthral range of movements, to use it with the patient sitting or supine, and to have a wide choice of the plane surface where the movement will be carried out. A variety of accessories can be mounted on its mechanical arm, depending on the type of rehabilitative movement chosen. It is possible to program all of the functions on the fixed keyboard. The movable keyboard allows the patient to stop and start the movement by using the STOP and START pushbuttons, which have the same function of those on the fixed keyboard.

Movements carried out on the shoulder:

Elevation 5° ÷ 180°

Adduction-abduction 35° ÷ 150°

Internal-external rotation 90° ÷ 0° ÷ 90°

Movements carried out on thel elbow (with appropriate accessories):

Flexo-extension 0° ÷ 150°

Prone-supination 90° ÷ 0° ÷ 90°

Movements carried out on thel wrist (with appropriate accessories):

Flexo-extension 80° ÷ 0° ÷ 80°

Ulnar-radial deviation 20° ÷ 0° ÷ 30°

Engineering data

Power supply: 85 ÷ 260 V ~ 50 ÷ 60 Hz

Electrical safety: Class 1 B EN 60601-1 Standard

Electromagnetic compatibility: Group 1 Class B EN 60601-1-2 Standard

Classification according to Dir. EEC 93/42: Class IIa

Weight: 77 kg

Programmable functions

Speed in both directions: min. 1,5°/sec. max. 3,5°/sec.

Work time

Automatic increase of the amplitude of movement on both limits

Pause in both movement limits

Warm-up cycles

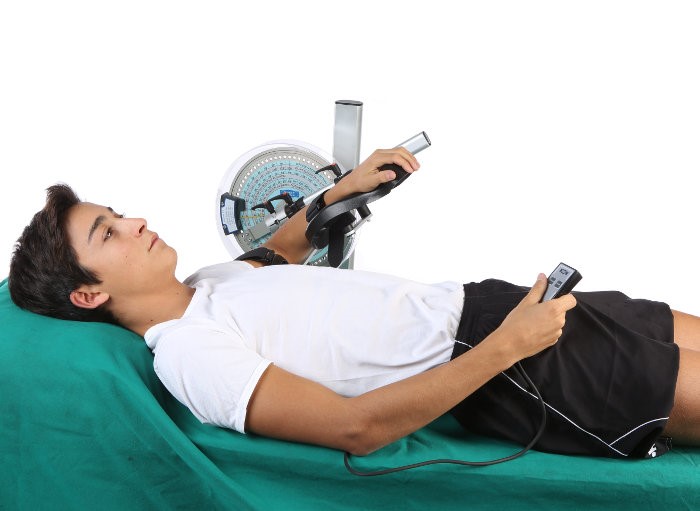

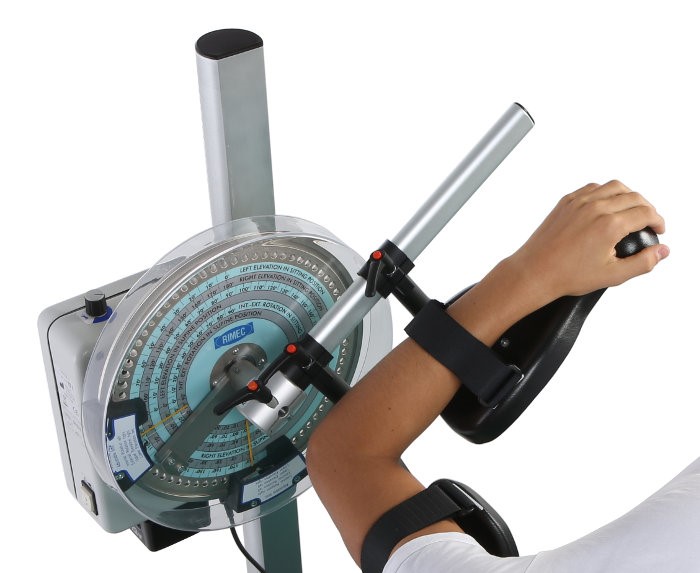

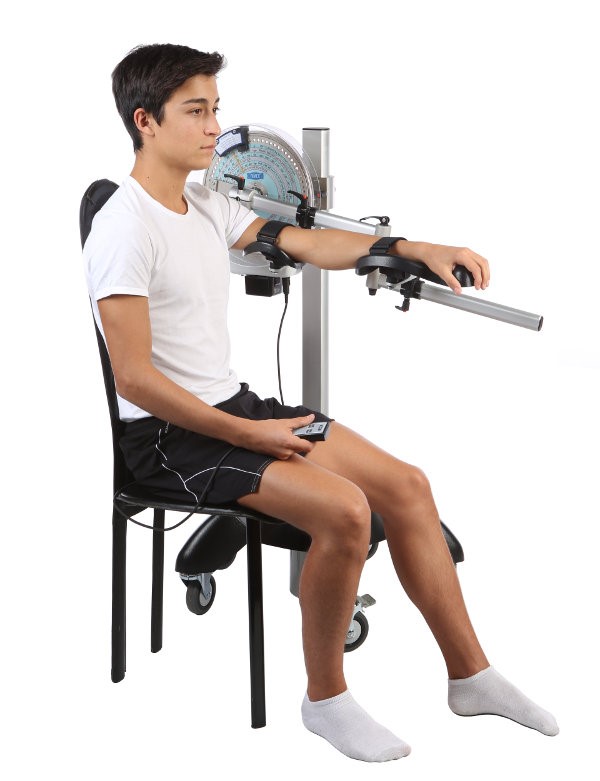

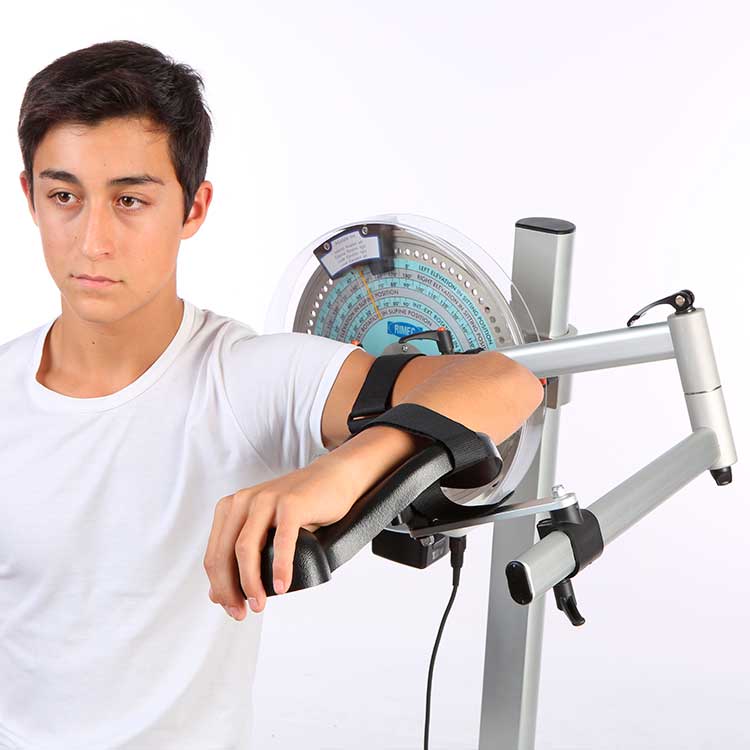

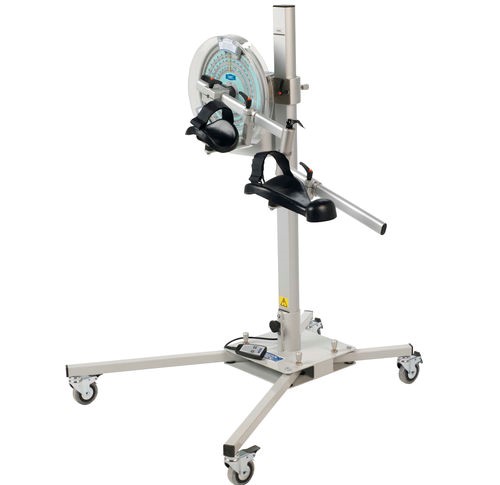

Fisiotek LT is an appliance that allows the shoulder to undergo passive mobilization with different movements; It allows it to be used with the patient seated or supine. This model is characterised by its simplicity, ease of handling and quality of movement. Positioning of the patient is an easy and smooth operation.

Movements carried out for the shoulder:

Elevation during flexion, range: 0°÷ 180°

Internal-external rotation, range: 90° ÷ 0° ÷ 90°

Adduction-abduction: complete physiological range

Why choose it?

It can be used with patient sitting or supine;

It is simple, manageable and easy to transport;

It allows the patient to be easily positioned;

It is stable and accurate.

Engineering data

Input: 12V DC 50/60Hz – 4.8W

Electric safety: Class II B Standard EN 60601-1

Electromagnetic compatibility: Group 1 Class B Standard EN 60601-1-2

Classification according to the directive EEC 93/42: Class II a

Weight: 20 Kg

The instrument is compliant with the applicable Basic Requirements for safety, Health and protection established by EU Directive 93/42.

External power supply:

Input: 100 ÷ 240 V AC – 50 ÷ 60 Hz400mA

Output: 12V DC – 1.25A

Programmable functions

Speed: min. 2°/sec. – max. 4°/sec.

Range of movement : adjustment by electromechanical limit switch.

Accessories

Arm support for internal-external rotation movement

Batteries and battery-charger kit

Base light

When should it be used?

Whenever joint movement needs to be restored passively in both surgical and non-surgical pathologies.

CPM is used for early and painless joint movement recovery to prevent complications and long-term fixation (immobility), and is used for rehabilitation auxiliary treatment of patients with lower limb joint function.

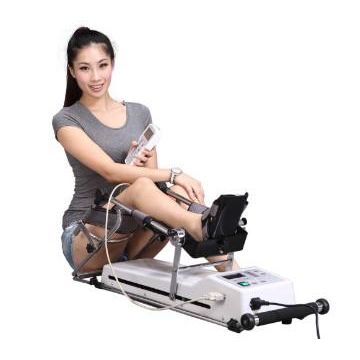

Continuous passive motion(CPM)device in home setting.

Matrix LCD Display with Hand Held Remote Control, Adjustable Calf Length Rang.

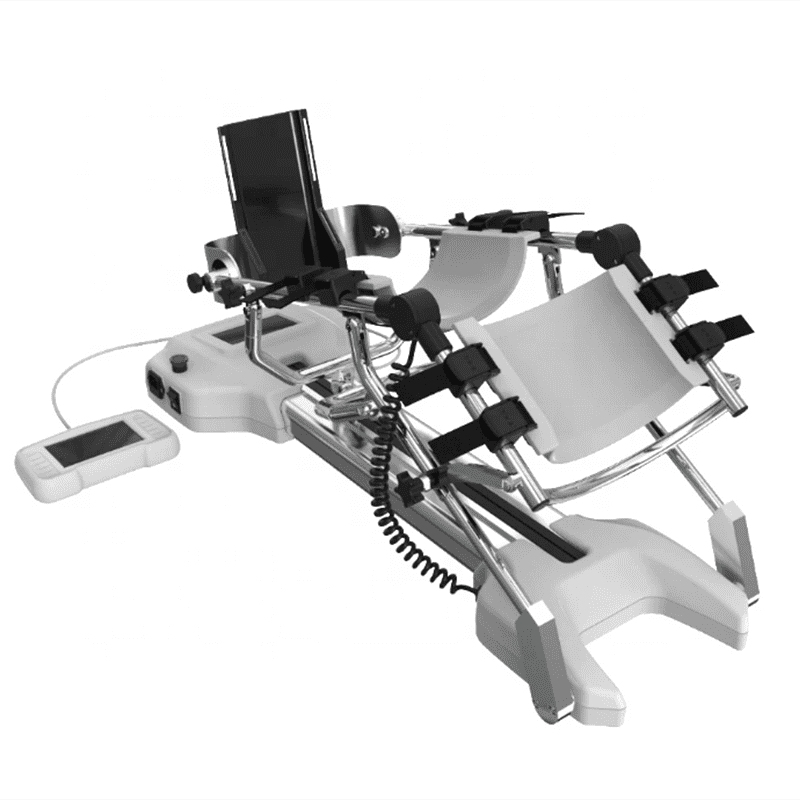

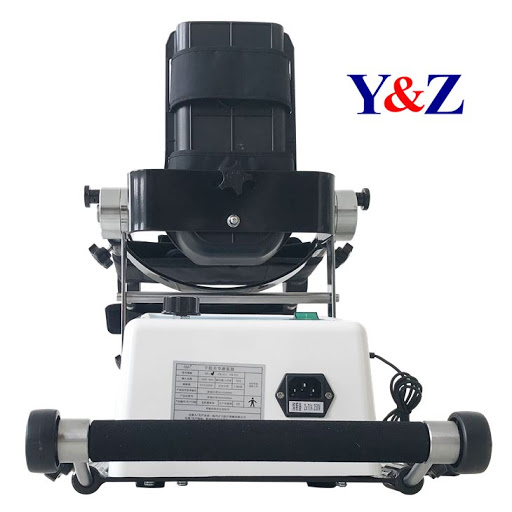

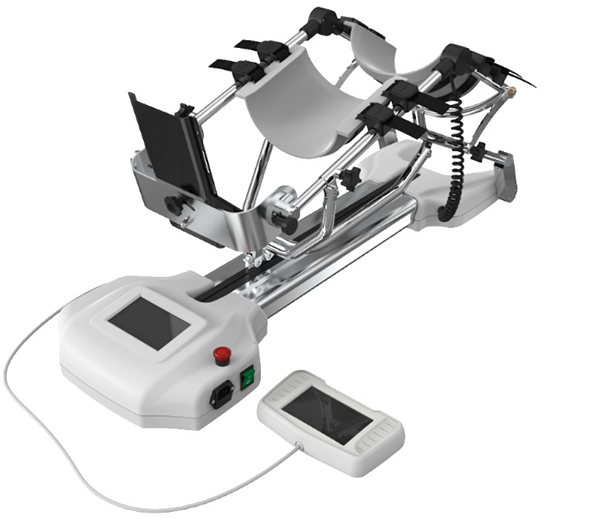

Multi-function lower limb continuous passive motion CPM

Features:

CPU microcomputer control, LCD display

Have torque function

Dual display and control

Adopt DC motor and wheel gear box, more safety and efficiency

Adopt angel sensor, improve accuracy

Three running models: angle, speed and normal

Vertical support, suit for physiological need

Adopt ball screw rod, running distance is 60cm, suit to adult less than 1.9m.

Parameters:

Speed:0.5-3.5 degree/s

Control:control setting ,display and controlled by both machine and hand controller

Range of speed:0.5-3.5 degree/s

Range of motion angle: -5° ~120°

Range of Hip angle:0° ~100°

Range of motion: -5-120 degree

Working time:0-240min

Application: keen coxa and ankle joint.

Motor power:30 Q Mechanical Output

Weight :15kgs
