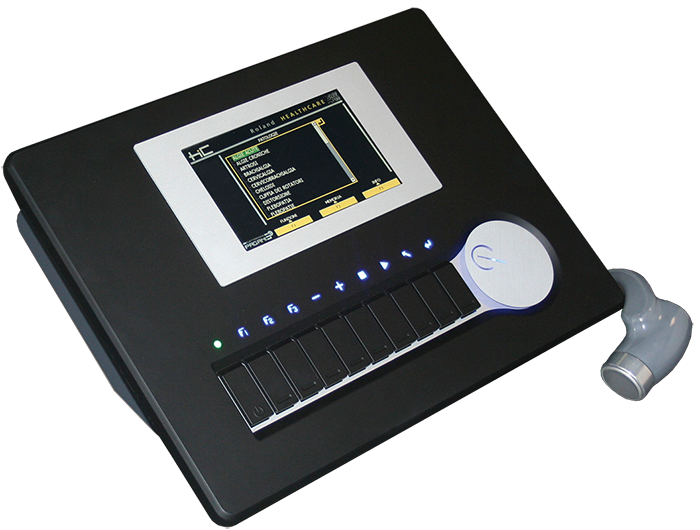

HC SOUNDSTIM allows to select both single generator (ultrasound or electrotherapy) and also to combine the two generators for mixing ultrasound to electrotherapy. Mainly, the combination is made for performing pain relief and anti-inflammatory applications and it is generally more effective than the single technique both for reducing application time and granting better results.

Technical features

Ultrasound

Frequency: 1-3 MHz

Emission: continuous and pulsed (from 20 to 80%)

Modulation: 1 to 200 Hz

5cm2 multifrequency head for single and combined use

Ergonomic 1 - 3 MHz head for massage and under-water applications

Timer max. 30 min

Intensity max: 3 W cm2

Real-time attesting no-coupling between patient’s tissue and us head

Electrotherapy

Outputs: n. 2

Intensity max.: 76,5 mA

Low frequency: Galvanic, interrupted galvanic, diadynamics (50-100 Hz, CP, LP, 50 and

100 Hz interrupted), rectangular, exponential, triangular, Biphasic, Trabert, Faradics, drainage current

Mid frequency: Outputs: 2  Frequency: 2,5 KHz to 20 KHz ,IF bipolar, IF quadripolar, IF isoplanar, IF vectorial, MF of stimulation, Kotz, IF horizontal

Graphic and coloured LCD with touch-screen

Pre-set programs with pictures

Free memories

On inquiry:

HV current

Trolley with 4 boxes

1 cm2 1-3 MHz head

1 MHz 8 cm large head with strap for static and underwater treatments

 connector combining electrotherapy to ultrasound applications

Compact dimensions along with the wide versatility of the combined.

R2 X5EU includes all special features belonging to the most modern therapeutic generators for electrotherapy and ultrasound therapy. X5EU is the most versatile combined device for electrotherapy and ultrasound. 1 & 3 MHz multifrequency ultrasound therapy is combined to the universal electrotherapy device, capable to perform every useful current alone or also combined to the ultrasound waves.

The universal electrotherapy generator is provided with two outputs. X5EU allows the operator to set every pathology whit all the widest range of parameters, over the Windows CE platform; also, the operator may use a lot of pre-set protocols with the relevant pictures, for placing correctly the relevant electrodes and/or ultrasound head.

Combination of the two available generators, ultrasound and electrotherapy, also grants more therapeutic benefits, due to the sum of the combined effects into the same time.

Technical features:

Ultrasound therapy

Frequency: 1-3 MHz

Emission: continuous and pulsed (from 20 to 80%)

Modulation: 1 to 200 Hz

5cm2 multifrequency head for single and combined use

Timer max. 30 min

Intensity max: 3 W cm2

Real-time attesting no-coupling between patient’s tissue and us head

Electrotherapy

Outputs: n. 2

Intensity max.: 76,5 mA

Low frequency: Galvanic, interrupted galvanic, diadynamics (50-100 Hz, CP, LP, 50 and 100 Hz interrupted), rectangular, exponential, triangular, Biphasic, Trabert, Faradics, drainage current.

Mid frequency: 2,0 KHz to 20 KHz

IF bipolar, IF quadripolar, IF isoplanar, IF vectorial, MF of stimulation, Kotz, IF horizontal

Graphic and colored LCD with touch-screen

Pre-set programs with body pictures

Free memories

Therapeutic objective

On inquiry:

HV current

Trolley with or without drawers

1 cm2 1-3 MHz head

1 MHz 8 cm large head with strap for static and underwater treatments

Connector combining electrotherapy to ultrasound therapy.

STAR EU combining the features of STAR Infinity electrotherapy & STAR 3-Band ultrasound, offers you everything you need in one device!

Electrotherapy

- Outputs: 2 (4 electrodes)

- Fully independent outputs

Ultrasound

- Transmission frequency: 1, 2 & 3 MHz

- Broadcast mode: Continuous & Pulsed

- Maximum output current: 3 W / cm² (15W)

- Possibility of simultaneous transmission on all 3 frequencies

- Special Interactive Ultrasound Transmission system for automatic frequency & intensity calculation

- Ready-made treatment protocols with display of electrode / head placement on the screen

- Infinite memory slots

- 6.5 "color LCD touch screen

- Proposed combination of treatments

- Greek menu

- CE certification

- STAR Slim Wheelchair (optional)

- STAR wheeled (optional)
