Intelligent identifying CSA avoids improper pressure rise

Using of traditional CPAPs without CSA detection may exacerbate CSA. AS100A identifies CSA and OSA, thus reduces the improper pressure rise which may cause severe effect to patient.

AS-Elex expiration pressure release

AS-Elex provides 7 grades of pressure release during expiration, thus reduces the patient’s discomfort, which effectively increases patient compliance.

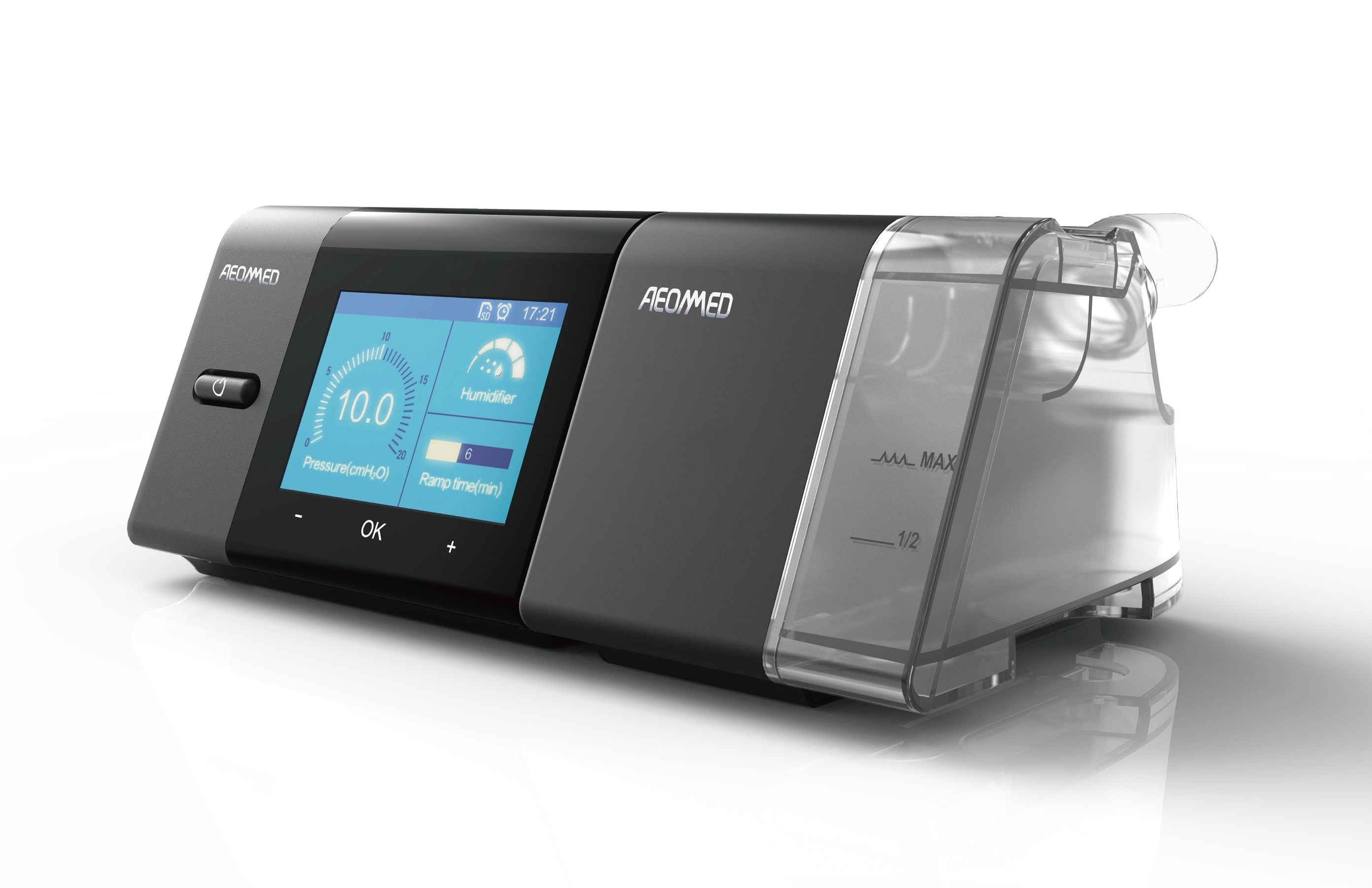

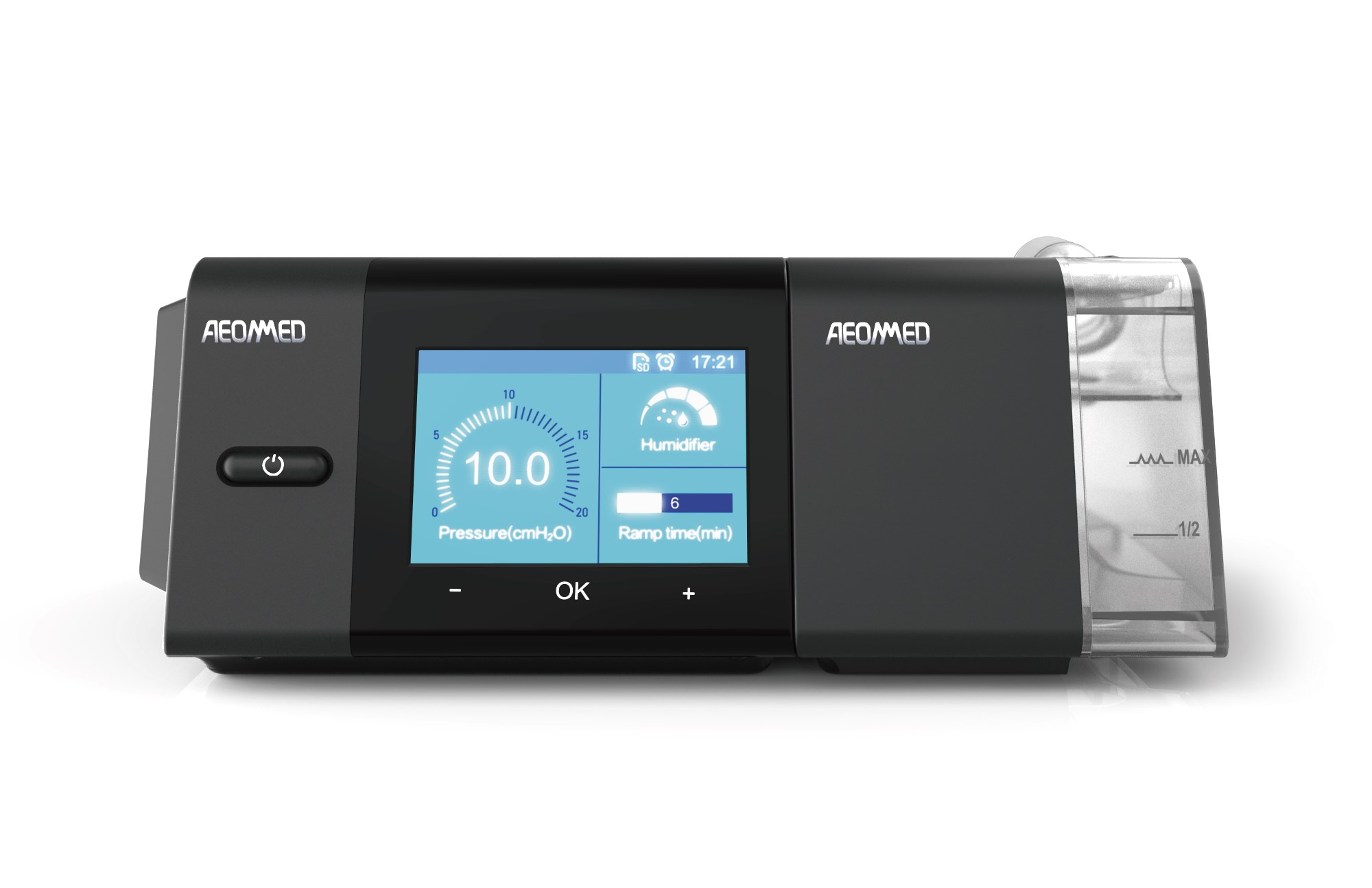

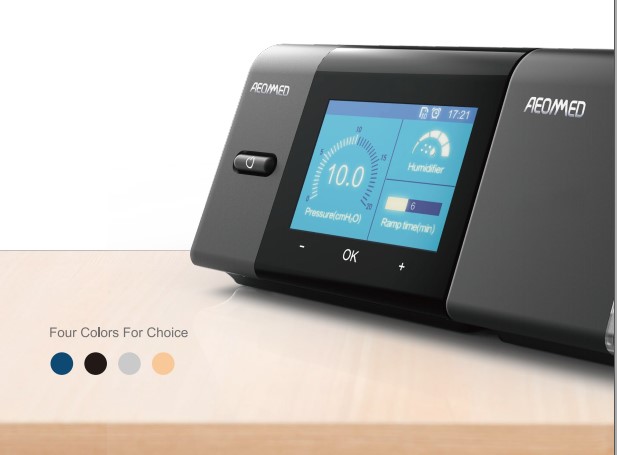

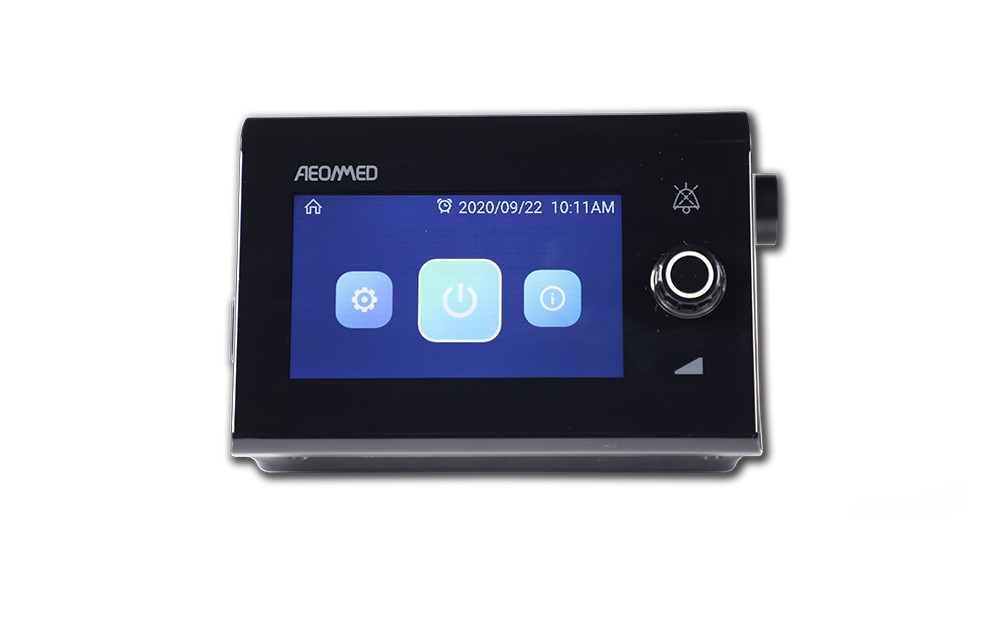

3.5-inch touch screen design enables a better operation experience　

The 3.5-inch touch screen of the device, ensures a fashionable and high-tech view, simplifies operation and report review.

Folded PM2.5 pollen filter with efficient filtering (optional)

Up to 20 cm2 PM2.5 pollen filter ensures an efficient filtering, provides superb clean air and ensures the health of patients. Also efficient dust filter protects the inner airway of the AS100 and prolongs the working life of the device.

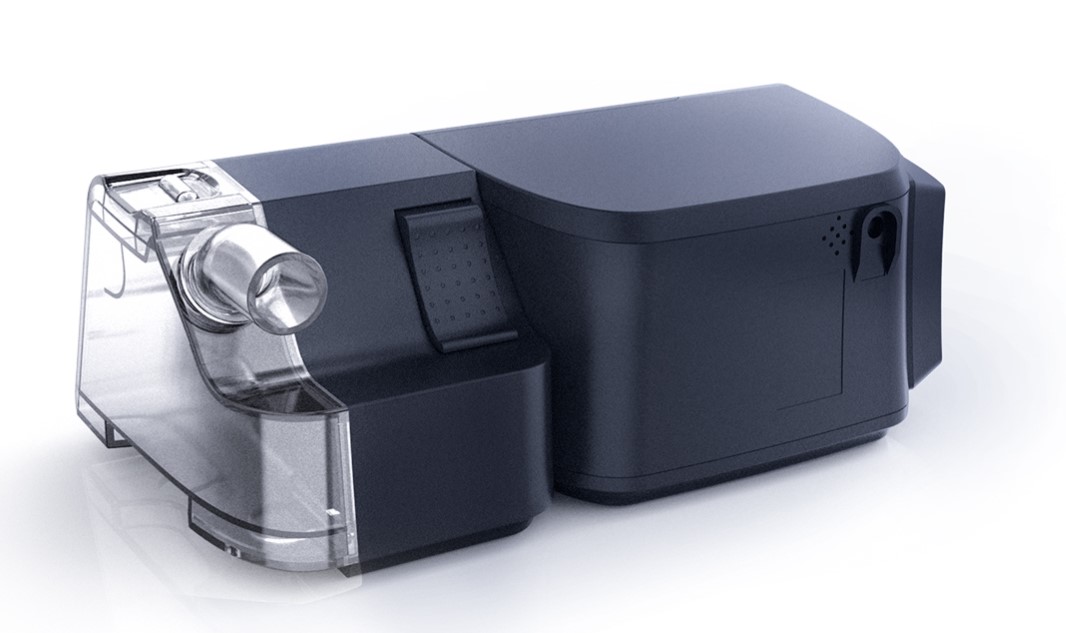

1.26kg light and compact design, easy for travel

Whole device weighs 1.26kg, light and compact design, good choice for both home and travel use.

5 years data storage

AS100 SD card stores up to 5 years’ therapy data that is readable through PC software and on the screen.

Real-time manual titration

AS100 provides manual titration function, which enables the doctor to finish clinical titration process without stopping the treatment.

AS-Dry technology

Every time after treatment with humidification, AS100 turbine blows at a lower speed to cool down the whole airway and water tank. The AS-Dry technology keeps a dry environment and protects the device against moisture. Furthermore, the dry environment reduces the bacterial breeding and keeps a healthy treatment to user.

Super smooth shifts between inspiration and expiration

AS100’s unique tracking system follows every breath and ensures a high precision and comfort treatment experience.

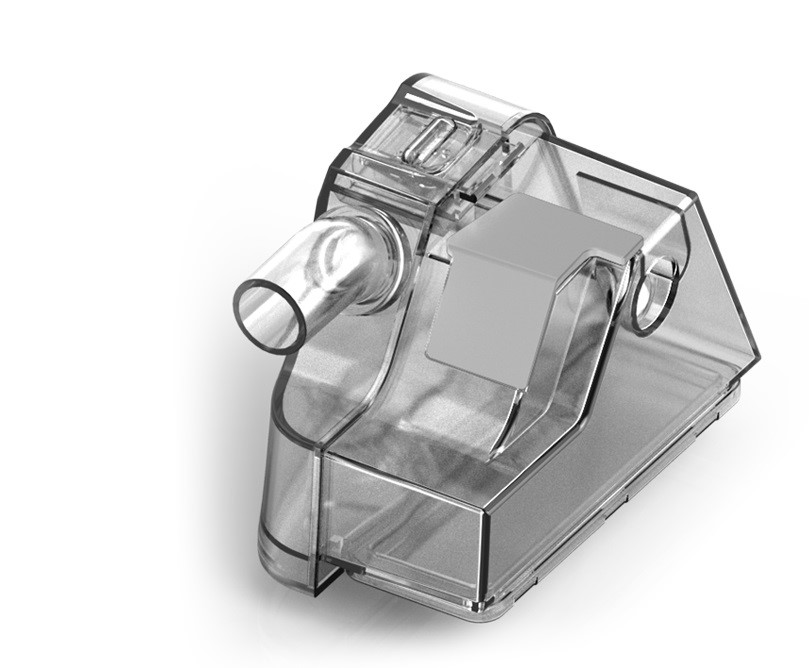

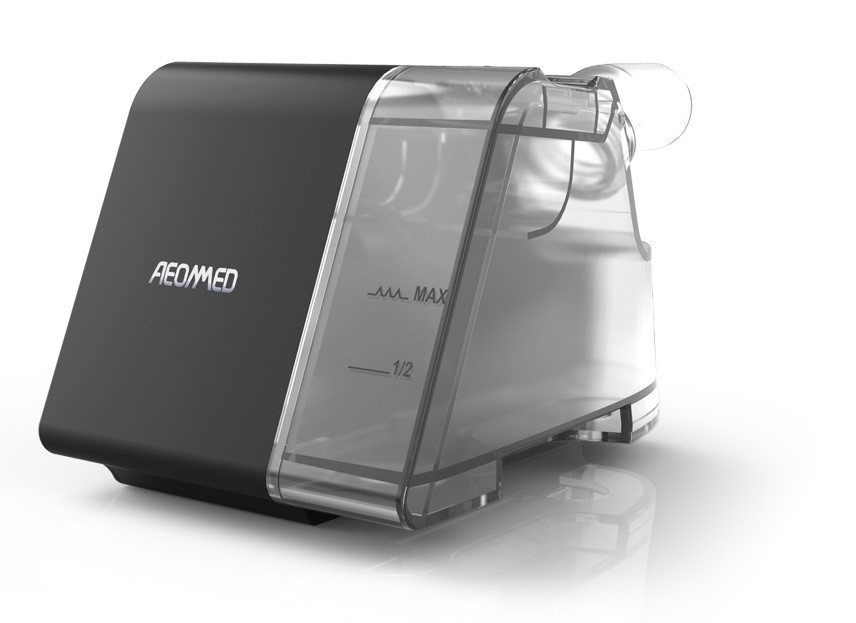

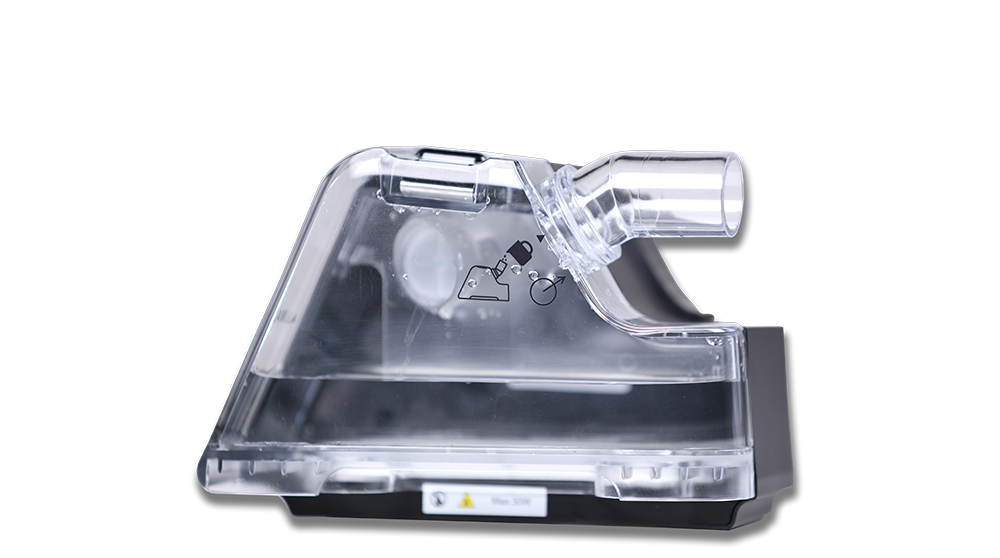

Humidification system

Room air is heated and humidified to body temperature as it travels through the system and enters human airway, soothing any discomfort caused by a cold and dry air.

AutoCPAP for your choice

AS100A AutoCPAP would adjust the treatment pressure according to the patient’s breathing air flow and airway condition, ensuring both the effectiveness and comfort treatment experience.

Technical specifications

Type: Auto CPAP

Identification of OSA: Yes

Expiration pressure release: AS-Elex   1-7 level

Auto On/Off: Yes

Leaking compensation: Yes

Altitude compensation: Yes

Manual Titration: Yes

Therapy data review: P90, AHI, SNI, LEAK, Treatment time, Average Pressure

Therapy data recording : Therapy data recording up to 5 years, reading trough screen and PC software

PM2.5 /Pollen Filter: Folded PM2.5/Pollen filter (Unfolded area up to 20 cm2 )

Mask leaking test: Yes

AS-Dry technology: 10-min lower speed running of the blower keeps the device and tube dry

Alerts: Power down alert, leak alert, alarm clock, filter change alert and customized alerts

Pressure: 4-20cmH2O

Dimensions: 160 × 148 × 99.5 mm ,247 × 148× 99.5 mm (with humidifier)

Weight:  0,88kg and 1.36 kg with the humidifier

Noise: ≤28dB

Adapter: 100-240V AC，24V DC

Function: Heated humidification, 6 levels to adjust, infrared communication with main device

Humidifier volume: 300 ml

Ramp time: 0-60min

Screen: 3.5-inch touch screen

Language: Chinese, English.

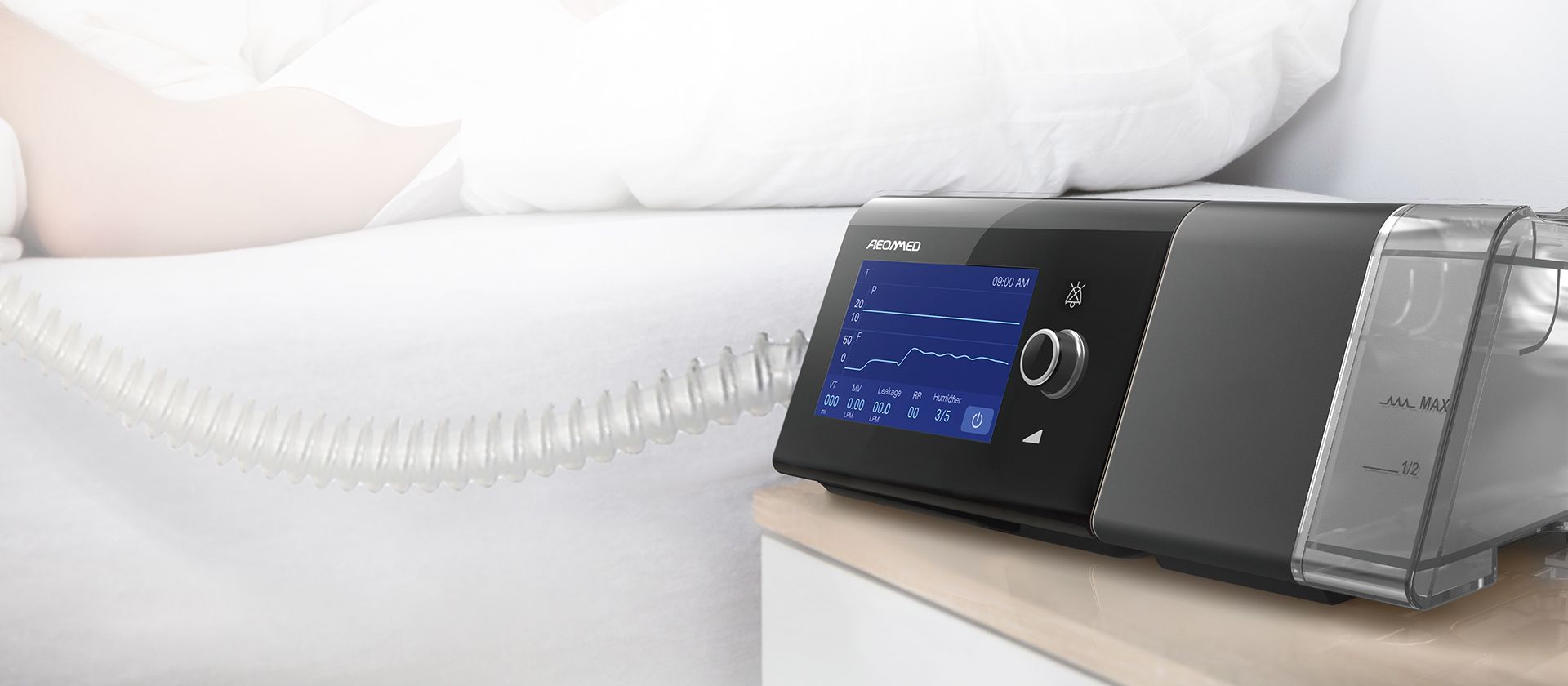

Accurate intelligent control for every comfortable breath

Intended for the treatment of Obstructive Sleep Apnea for the adults or pulmonary insufficiency patients who need respiratory support.

VENTILATION MODES

CPAP: Continuous Positive Airway Pressure mode, suitable for Obstructive Sleep Apnea.

AUTOS: Intelligent regulation of inspiratory pressure to ensure a smooth and comfortable breath.

S: Spontaneous ventilation mode, suitable for patients with spontaneous respiratory.

T: Timed mode, suitable for patients without spontaneous respiratory capacity.

S/T: The machine automatically switches between S and T modes according to patient's condition.

VGPS: Volume Guarantee Pressure Support, meets patient's tidal volume requirement with its minimum pressure.

Technical specifications

Pressure Range: AUTOS, ST, T, VGPS: 4 to 30 cm H2O (4 to 30 hPa)

Ramp rate: 0 – 60 minutes

Warranty: 3 years

Data Storage: SD Card (8GB Card Included)

Input power: 100-240VAC, 50-60 Hz, 2.0 A max

Output power: 24Vdc, 3.33A

Certifications: ISO 80601-2-70:2015

Therapy Modes: CPAP, S, ST, T, VGPS

Weight: 1.26

Dimensions: 160x 148x 99.5 mm, 247x 148x 99.5mm (with the humidifier)

Data Storage Capacity: 8gb (SD Card Included)

Temperature: 5 - 35 Degrees Centigrade

Humidity: 10% to 93% Non-condensing

Atmospheric Pressure:  760 to 1060 hPa

Power Input: 100-240VAC, 50-60 Hz, 2.0 A

max Output: 24Vdc, 3.33A

Accuracy: According to ISO 80601-2-70:2015
